Rockler Universal Router Sub-Base with Edge-Routing Dust Port

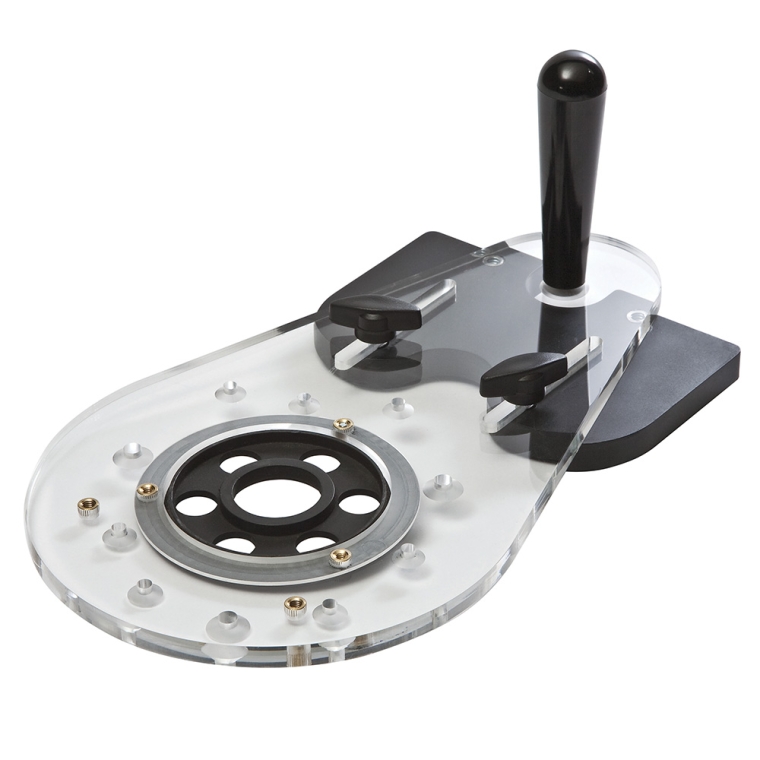

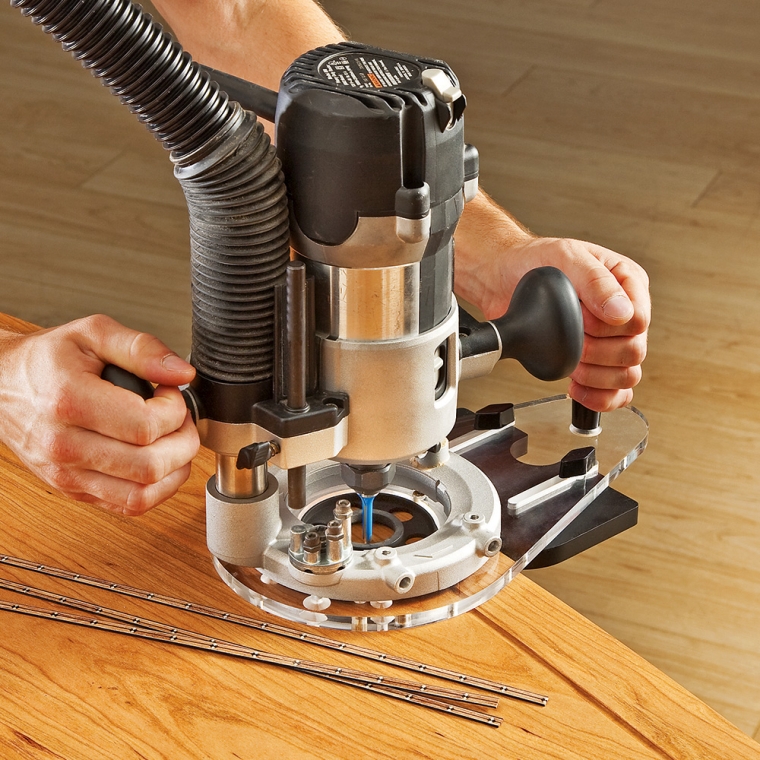

This versatile router baseplate extends well over the flat face of your workpiece, providing far better stability when edge profiling. In addition, the sub-base includes a fence/edge guide that can be used to guide bits without bearings along the edge of your workpiece—ideal for dados, grooves, fluting and inlays. The fence is reversible: one edge is straight, while the other is a contoured two-point guide that's useful for following inside and outside curves. Finally, the baseplate accepts our selection of Standard (4'' O.D.) Rockler Router Plate Insert Rings, which add a great deal of versatility to your router. A standard guide bushing insert is included, while a variety of other inserts are available separately.

Baseplate Details:

• Two separate fence attachment points allow you to rout from 0'' to 5'' from the edge
• Accepts our selection of Standard (4'' O.D.) Rockler Router Plate Insert Rings
• Made from 3/8'' thick clear acrylic for excellent visibility, with a durable 1/2'' thick edge guide
• Pre-drilled to fit many popular routers and can be drilled to fit others
• Includes standard 1-3/16'' guide bushing insert and screws to attach router

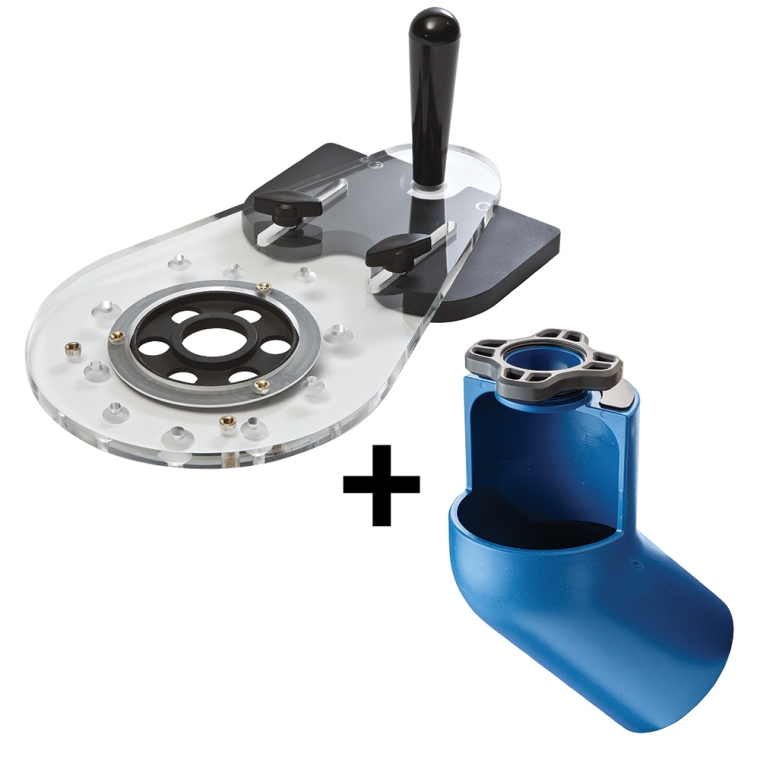

Package includes the Edge Routing Dust Port to catch dust from the bottom side when edge routing!

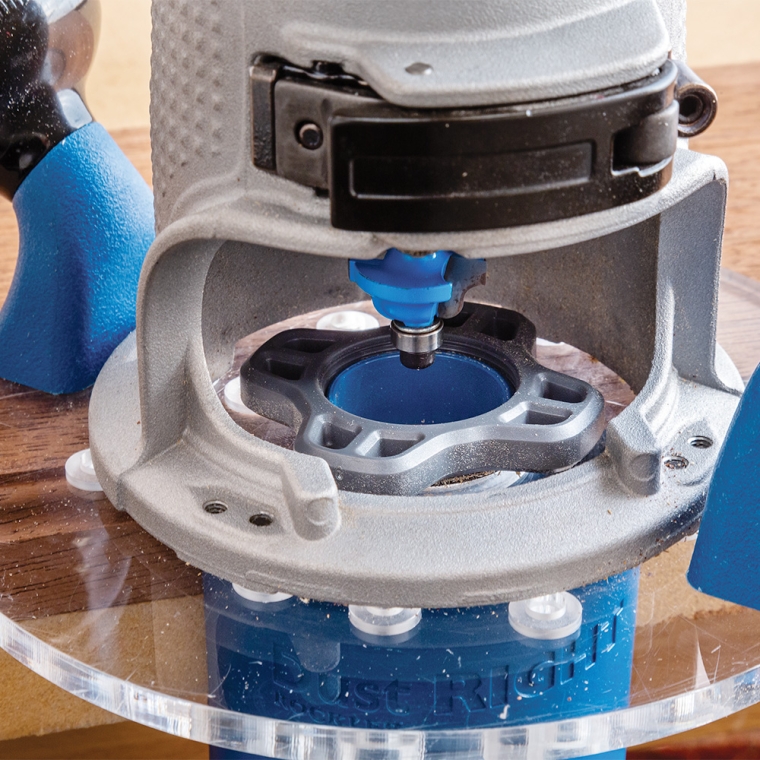

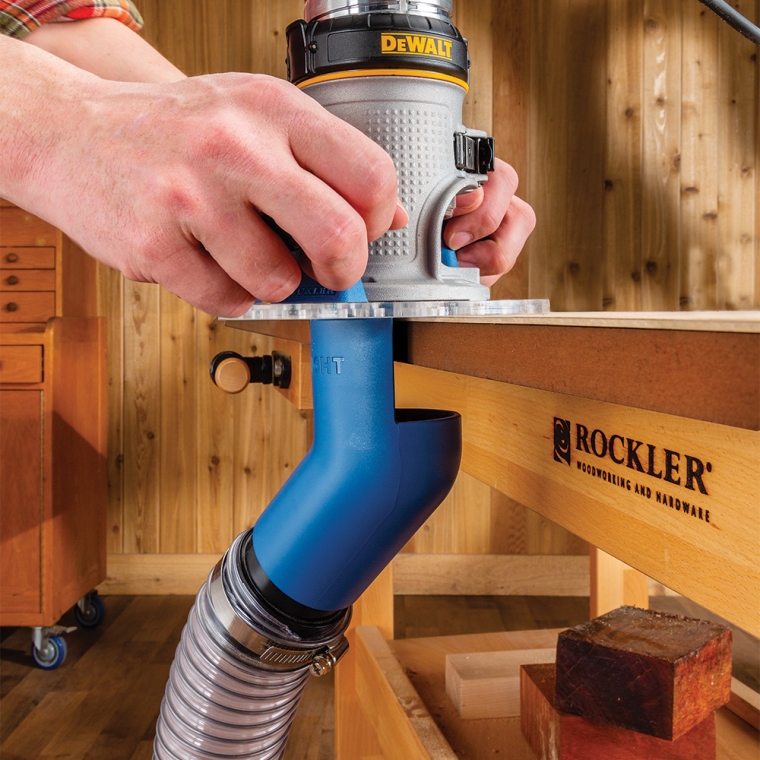

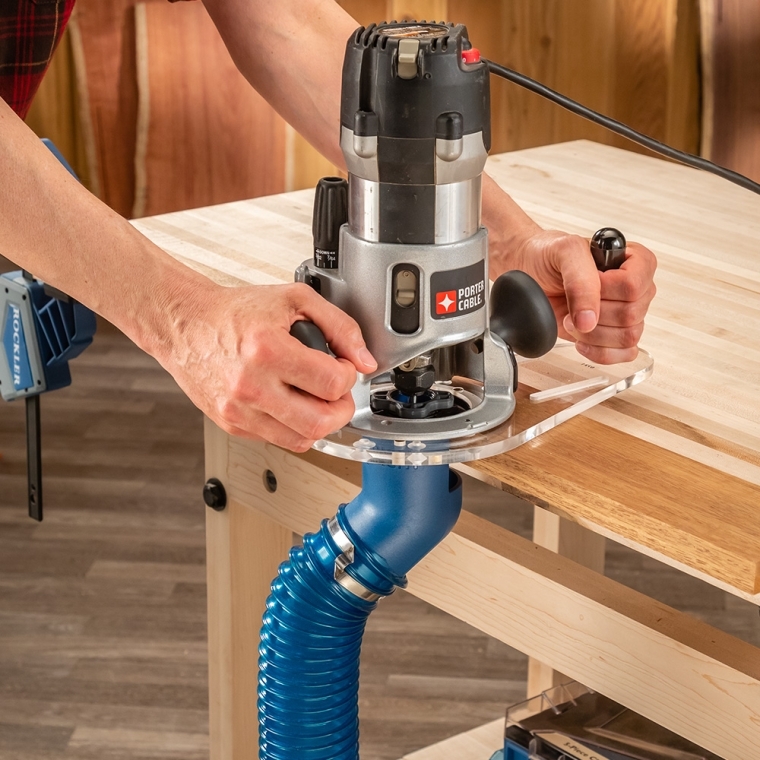

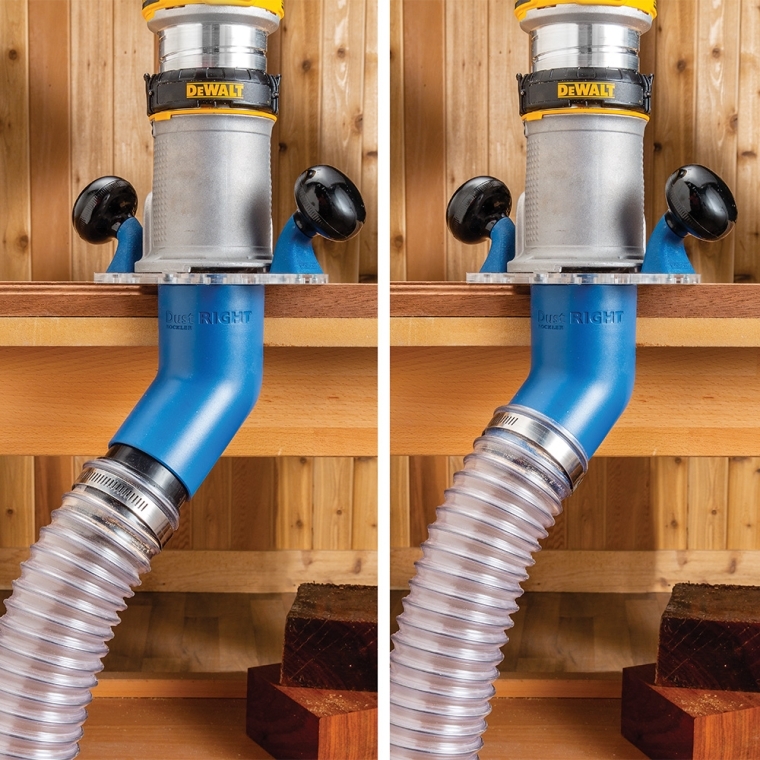

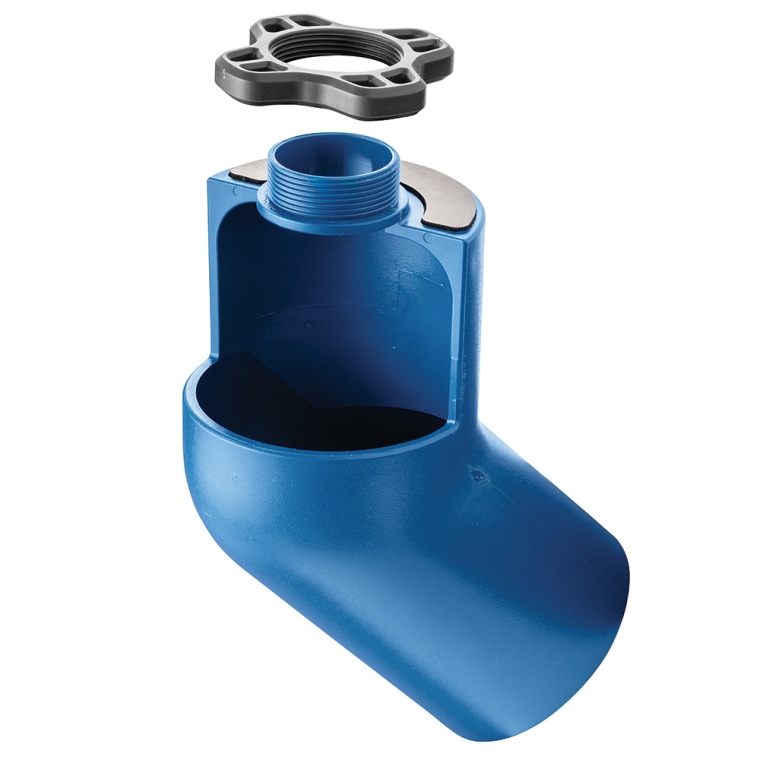

This simple accessory partially surrounds the bit to capture dust when flush trimming or routing decorative edge profiles. Made from sturdy reinforced ABS, it's designed to take the bumps and knocks of shop life. The large locking collar provides ample leverage to tighten it down without straining your fingers. Fits any router baseplate that accepts standard 1-1/4'' diameter guide bushings, including the plate and ring in this package. Works with bits up to 1'' in diameter and stock up to 1-3/4'' thick. Fits standard 2-1/2'' dust hose and also accepts our Dust Right Quick Change Shop Vacuum Handle (#55083, sold separately).

Pre-drilled for the following routers:

• Bosch 1617 (fixed base only)
• Bosch 1618 series
• Bosch 1619
• Bosch 1619 EVS
• Dewalt DW625
• Dewalt DW616
• Dewalt DW618 series
• Hitachi M12VC (not M12V)
• Makita 1100 series
• Porter-Cable 100
• Porter-Cable 690
• Porter-Cable 890 series
• Porter-Cable 7529
• Porter-Cable 8529
• For routers not listed, check the Rockler Router Hole Pattern Drilling Template (#68547, sold separately)

Note: If you plan to use this product with a Skil router, please download and use the Drilling Template in the Technical Documents section.
