Simplex Concealed Hinge - Black

Item #
30361
Rating:
92% of 100

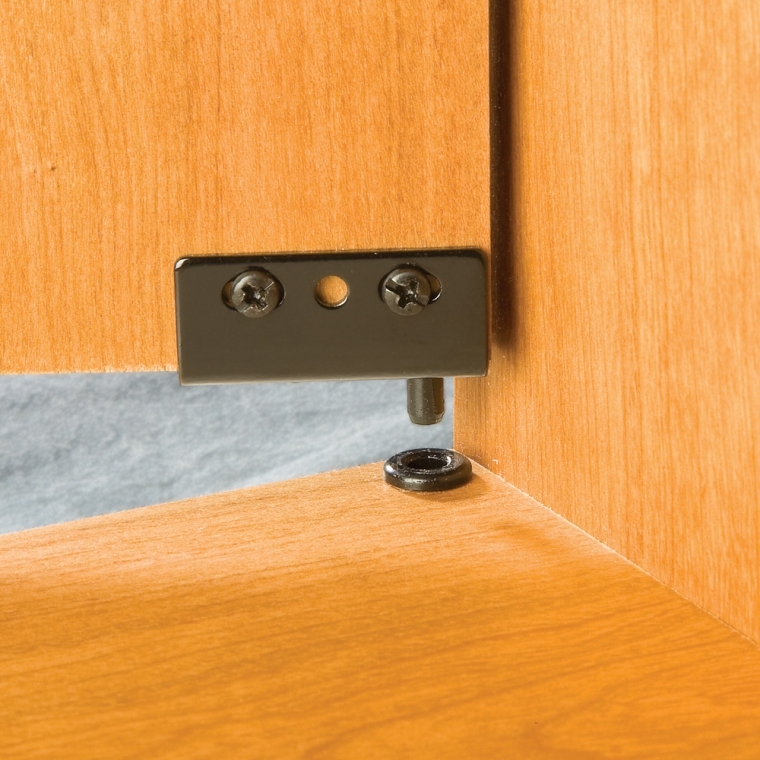

A simple, inexpensive concealed hinge for inset doors. Just drill a hole and press the bushing in place; the hinge pin pivots in the bushing. With no mortising required, installation is easy. The plate simply mounts to the surface of the door. Slots in plate allow side-to-side adjustability. Steel hinge with plastic bushing.

(1) Pair of Simplex Concealed Hinges
(2) Screws
More Information
Manufacturer Part Number 361.42.391
Weight 0.1000
Tech Spec
  • Hinge is 40mm wide x 17mm high x 16mm deep
  • Requires 8.5mm (approximately 11/32") drill bit
Finish Black
4.6 / 5.0
25 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
19
5
0
0
1
I Thought no one would carry these hinges!
These hinges were perfect for our entertainment center door. We thought no one would carry this type of hinges as we bought this entertainment center in the mid-1990s
October 12, 2019
Purchased
1 month ago
Replacement hinge
Excellent replacement was able to adapt so no need to buy a new microwave cart that was purchased in 1990 made of oak from costco
August 5, 2019
Purchased
3 months ago
Woodworking Experience:
Intermediate
Simplex Concealed Hinge - Black
It took some searching but I finally found these at Rockler and they worked so much better than the plastic swivel hinges that came with the cabinet. The plastic ones only lasted 1 day...Thank you Rockler for having them in stock.
June 12, 2019
Purchased
5 months ago
It was the exact size needed and now I have a useful cabinet
again. I never expected to find such a small part.
Thanks to Rockler employee who knew what I needed.
October 27, 2018
Purchased
1 year ago
simplex concealed hinge-black
i used the hinges for my bathroom cabinets i built for chest hieghth storage. my doors were only a couple pounds. The hinges open with a soft glide. i feel they work great in the bathroom because of the hard plastic glide insert that isn't going to be an issue with the moisture from bathing or showering.
October 6, 2018
Purchased
1 year ago
Woodworking Experience:
Intermediate
This was exactly what I needed, and was delivered as advertised.
July 31, 2018
Purchased
1 year ago
Woodworking Experience:
Intermediate
Quality replacement
When it is difficult to find Rockler has it it. Part fit ferfectly and of better quality than original.
May 5, 2018
Purchased
1 year ago
Cheap effective hinges for small inset doors on a face frame cabinet. Rockler shipped them extremely quickly too and i am very satisfied. I just wish i had decided to use them before assembling my project to make the install easier.
April 8, 2018
Woodworking Experience:
Beginner
Looked all over the place for these and couldn't find them anywhere. Was happy to find them here and they worked out perfectly.
April 5, 2018
Purchased
1 year ago
Perfect hinges exactly what I needed
They worked exactly like I hope they
April 3, 2018
Purchased
1 year ago
Woodworking Experience:
Beginner
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 8 questions Browse 8 questions and 44 answers
Why did you choose this?
Rockler Store
Need for breadbox
Gerhard S on Nov 3, 2019
I needed this hinge for a cabinet build.
Richard F on Oct 2, 2019
Need for breadbox
Gerhard S on Nov 3, 2019
Replacement for lower wooden door on an older kitchen island.
Paul B on Oct 7, 2019
I needed this hinge for a cabinet build.
Richard F on Oct 2, 2019
hard to fins resoably priced fair shipping cost
P E on Sep 28, 2019
I am making no overlay wood framed glass kitchen cabinet display doors. And have used these before for bottom cabinet doors on book cases and like the look.
Dennis S on Aug 28, 2019
Rockler quality and convenience. Thank You
peter r on Aug 16, 2019
for a project
J R on Jun 20, 2019
I have thick doors 15/16 and needed Black. They look they will work
Edward C on Mar 22, 2019
I am repairing a very old hand made desk and this is the ideal hinge for the way the original builder wanted.
Marshall R on Feb 2, 2019
need them
Kenneth W on Nov 13, 2018
Economical and lightweight, for adding a hinged insert inside of a desk drawer.
TBury on Aug 13, 2018
for shelf project
Andy D on Jul 31, 2018
Your site was the only site I found with the product I needed. I thank you in advance
Kenneth P on Jun 7, 2018
replace broken hinges on medicine cabinets
Takidez on Apr 18, 2018
replacement parts
Stephen B on Apr 13, 2018
Trying something new.
Terrie G on Jan 3, 2018
known to be good for bifold doors
Jill J on Sep 27, 2017
Will solve a problem in repairing an antique cabinet door.
tom c on Jul 31, 2017
Fits the style of the cabinet. Couldn't find it locally.
Debra C on Jun 7, 2017
Missing in parts to assemble fire place
David K on Mar 15, 2017
Could not find them in any type of hardware store
Elaine S on Feb 4, 2017
needed for repair
Cathleen A on Feb 2, 2017
Exact match to what I needed.
Patrick B on Nov 28, 2016
Replace broken hinge. thank you for carrying it. Could not find it anywhere
Robert S on Nov 21, 2016
needed to repair a cabinet in the bathroom , only one that will work
frank e on Jul 17, 2016
alternate to pivot hinge
mark3784 on May 29, 2016
My wife broke one of the doors on the entertainment center in a jealous rage and threw it at me so now I have to fix it before I let her have it in the divorce settlement.
Rick R on May 5, 2016
I didn't want the hinges to show on my antique cabinet door.
Jeannine J on Jan 6, 2016
Cabinet repair.
James K on Aug 1, 2015
I wanted it
Dennis P on Jul 31, 2015
Specialty Project.
Fred T on May 15, 2015
Replacement for lower wooden door on an older kitchen island.
Paul B on Oct 7, 2019
hard to fins resoably priced fair shipping cost
P E on Sep 28, 2019
What is the door clearance created by the thickness of both the bushing and the hinge plate? 3/16"? 1/8"? It seems it would create a larger gap than I want for a tight fitting cabinet door.
Peter D on Apr 12, 2016
BEST ANSWER: The dimension you stated are correct and they do look fine when it is done
how far in do you drill the bushing hole?
A shopper on Apr 20, 2015
BEST ANSWER: I drilled them 1/8 to 3/16 deeper than the length of the bushing measuring from the collar to the bottom of the bushing, to allow the hole to be deep enough to accept the bushing since I was using a standard drill bit which is angled on the tip.
They can actually be deeper than that, since the collar on the bushing sits on top of the drilled hole, and the hinge rides on the collar after it is inserted. I did not compensate for the thickness of the collar on the bushing and the hinges when making my door, but simply mortised the edge of the door to accept the hinge to allow it to be recessed.

I hope this helps.
What type drill do you use to drill pilot holes? The chuck on a regular power drill is too wide to get drill bit this close to cabinet side.
Mike C on Nov 17, 2016
BEST ANSWER: Mike,

I ran into the same problem, building and entertainment center. I drilled to holes all the way through from the opposite side and backfilled them with a plug, but did not have the top of the entertainment center in place at the time, so the plugs are all hidden on the top and cannot be seen on the bottom. If this is not the case with your project, the other option that I thought about, but did not go with was a flexible extension attached to an impact driver, and just take your time, or if that concerns you, put the flexible extension on a manual driver.
I wish I would have decided to use these hinges before I had my project assembled, whereas I could have drilled the holes prior to assembly.
I hope this helps, and good luck.
Tony
Can this be used on a 3/8” inset style cabinet door? I have face-frame cabinets. The doors are partially inset with a overlay edge.
Leah R on Jun 10, 2018
BEST ANSWER: I am not sure I exactly understand how things look from the question description, but perhaps this hinge would work if the doors were going to open inward into the cabinet. If there is an overly and the doors open out I would find it difficult to use this hinge.
Can this hinge be used on an 18"w x 6'-8"h hollow core door?
Heidi D on Jul 6, 2015
BEST ANSWER: I wouldn't recommend it. The are designed for small cabinet doors and I don't believe they could take the load of a larger door. In addition the screws that come with the kit are far to small for a door of that size.
just checking 2 means 4 hinges . I have two doors. ? thx
Edward C on Mar 22, 2019
BEST ANSWER: each package contains one pair of hinges, so you'd need one package for each door.
what is the maximum weight door that this hinge can be used on?
Heidi D on Jul 6, 2015
BEST ANSWER: Any cabinet door, assuming no one builds a "cabinet" door more than 50 or 60 lbs.
