$10.99 Pack
In stock
Ideal for new projects and retro fitting.

Single Track Slide

Item #
33589
Rating:
92% of 100
Single Track Slide Single Track Slide
Single Track Slide

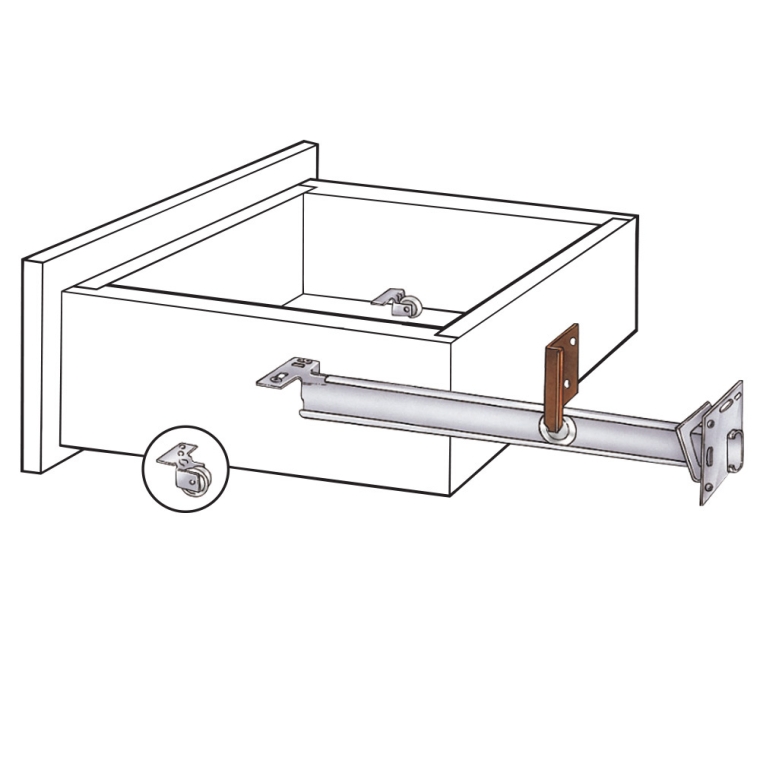

Economical single track slides are ideal for both new projects and retro fitting. Designed for use on face frame cabinets, they feature a smooth roller action and support up to 50 lbs. The slides also allow drawers to be removed and have a positive stop mechanism that prevents drawers from accidentally falling out.

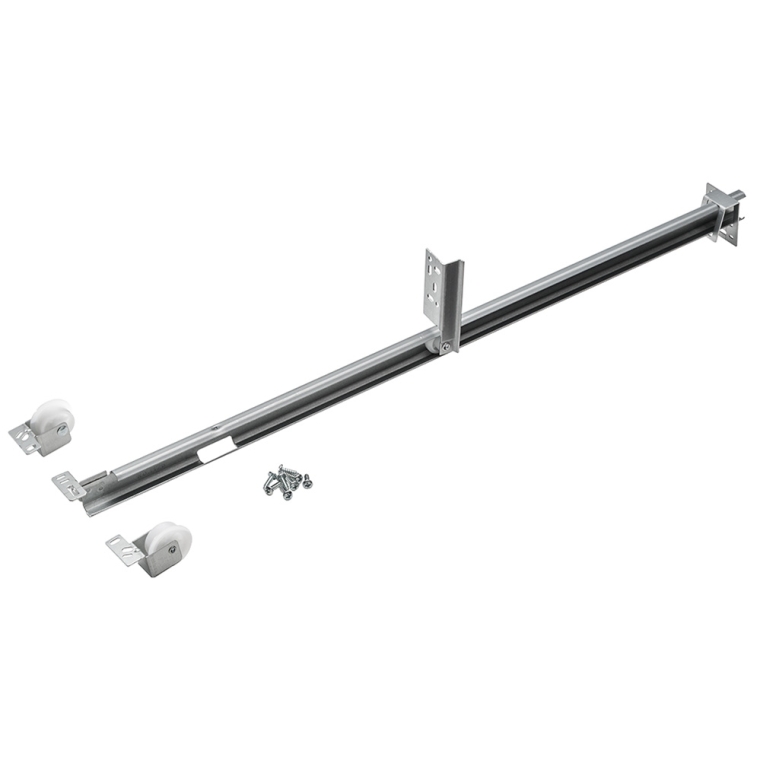

(1) Drawer slide assembly
(1) Steel center track
(1) Center roller
(1) Rear mounting socket
(2) Side mount rollers
More Information
Manufacturer Part Number 1175P ZC 22-5/8
Weight 0.7000
Tech Spec
  • Track is zinc plated steel and 22-1/2" long
  • Track can be cut down to fit shallower cabinets
  • 1/8" of clearance on each side of the drawer is required
  • 3/8" of clearance from top of the drawer to the bottom of the opening is required for easy drawer removal
  • Includes nylon center track roller and two nylon side mount rollers for stability and smooth travel

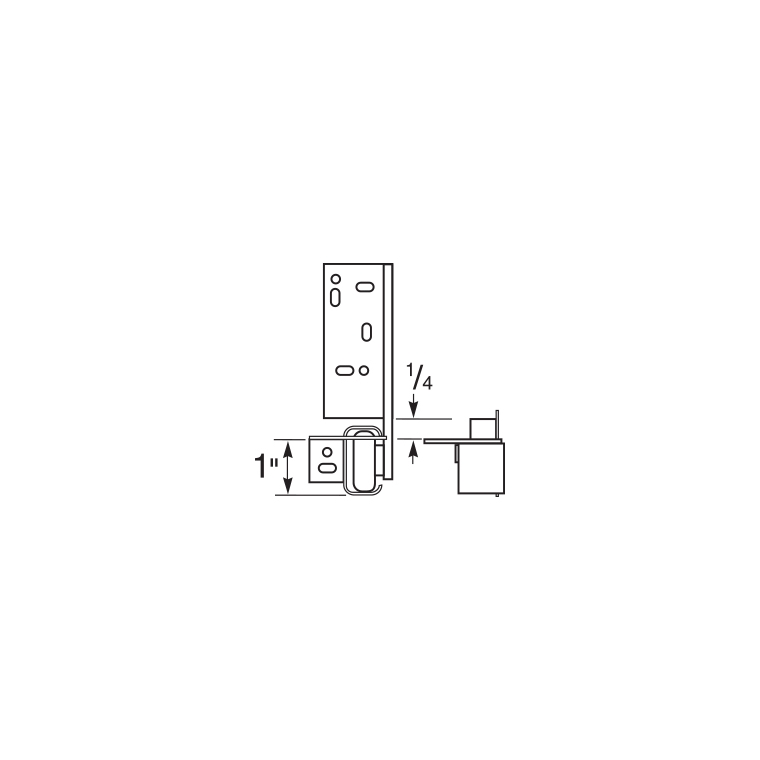

  • Includes an optional rear mounting socket
  • See technical document (below) for additional measurements and instructions
Technical Documents
Load Rating 50 lbs
Extension 3/4 Extension
Mounting Method Center Mount
4.6 / 5.0
27 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
19
6
2
0
0
Slider for an old antique drawer
It worked better than expected . Also easy to install karma the instructions the person who helped me buy it were impeccable.
May 19, 2019
Purchased
2 months ago
Woodworking Experience:
Beginner
I love it!
April 15, 2019
Purchased
3 months ago
Found drawer glides that worked!
Our 40 year old drawer glides were shot!
These added new life to the drawers once again.
The only draw back was installing them with the existing counter top on..... it was a little more difficult than I thought but after doing one, I figured out how to do the rest more easily. Great product! Hope they give us 40 more years of service. By the way, I tried the big box stores. They didn’t have them. These were the answer! Thank you Rockler!
March 31, 2019
Purchased
4 months ago
Woodworking Experience:
Intermediate
Perfect!
This is a perfect match to the hardware used in my kitchen built in 1954!
February 1, 2019
Purchased
6 months ago
Very good
Excellent. 1
January 28, 2019
Purchased
6 months ago
Great parts adaptable to any size
August 14, 2017
Purchased
1 year ago
Woodworking Experience:
Beginner
Worked properly
Installation was straight forward. Didn't even read the instructions. Worked nicely. Was priced right and promptly delivered. Recommended.
August 5, 2017
Purchased
over 2 years ago
Woodworking Experience:
Beginner
Hard to find parts
Parts were just as good as the original forty year old parts when they were new. Everything fit and worked as planned, Thanks!
June 11, 2017
Purchased
over 2 years ago
Drawer slides
Very good product. Built my wife a chest of drawers 9 drawers and two lower doors (big Unit) these slides meant my every need. Good price and easy to cut to fit your need and was shipped timely.
May 10, 2017
Purchased
over 2 years ago
Woodworking Experience:
Intermediate
perfect fit
The slide replaces an ancient one that gave-up-the-ghost. Works fine, and easy to install.
May 6, 2017
Purchased
over 2 years ago
Woodworking Experience:
Intermediate
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 13 questions Browse 13 questions and 79 answers
Why did you choose this?
Rockler Store
my house was built in 1978 and this is the type of hardware they used for my kitchen drawers. one broke and so happy I found this hardware
Joyce V on Jul 15, 2019
The existing drawer track slide is broken.
George Davidson R on Apr 3, 2019
my house was built in 1978 and this is the type of hardware they used for my kitchen drawers. one broke and so happy I found this hardware
Joyce V on Jul 15, 2019
Direct replacement for our drawer slide.
Nancy G on Apr 20, 2019
The existing drawer track slide is broken.
George Davidson R on Apr 3, 2019
Retro on old kitchen drawers. These look perfect!
Carlin H on Apr 1, 2019
direct replacement
stephan m on Mar 14, 2019
Because of the tight space in the cabinet
kenneth f on Mar 3, 2019
Good, proven design and allows maximum drawer width.
John C on Jan 26, 2019
To replace a 30 year old unit that has worked very well.
Robert S on Jan 18, 2019
Best solution for my aplication.
Neal B on Jan 13, 2019
This item worked well in my cabinet.
Robert N on Jan 2, 2019
Easy install. Old slides broken.
Carroll A. M on Nov 3, 2017
Repair a dresser drawer
James M on Sep 15, 2017
Most appropriate for my application
kenneth r b on Aug 25, 2017
ordered one previously
Dennis C on Aug 13, 2017
trying to find the easiest way to fix my old drawers
Sharon C on Aug 10, 2017
This is what I currently have on my cabinet drawers.
Wilbur D on Jul 27, 2017
Seems best for my project for now
Dennis C on Jul 23, 2017
To repair existing drawer that was broken.
Duane M on Jul 16, 2017
Existing slides broke
John L on Jul 12, 2017
It is almost identical to the one I am replacing
George C on May 29, 2017
I have limited space side to side.
Larry E on May 27, 2017
replacing drawer hardware with the same as old hardware.
Dave on May 18, 2017
Kitchen cabinet drawer slide is broken. I need a replacement.
Thomas K on Apr 26, 2017
Replacing a house full of 30-year-old broken drawer slides.
Karen F on Apr 20, 2017
needed to complete a project
Sim G on Mar 5, 2017
Looked everywhere for a mount that would work on my old bathroom drawers and could not find any. Hope this works!
Steve P on Feb 27, 2017
Matches what I have
Norman P on Feb 18, 2017
Very hard to find track with right side roller.
Steve W on Feb 7, 2017
I'm hoping this will mount on the face frame and back of the cabinet as it is an open cabinet and does not have sidewalls.
Anne L on Jan 20, 2017
The single track slide for my drawer broke and needed to be replaced. I believe this is the closest option to that slide.
Leslie P on Jan 3, 2017
very old -0- clearance kitchen drawers need new slides. Local hardware store only carries newer side mount slides.
Phillip H on Dec 21, 2016
Matches what I have. No side clearance on drawer openings.
Robert B on Nov 21, 2016
Replace existing and faulty draw slide.
shawn d on Oct 3, 2016
Have 1974 cabinets and need simple flexibility they provide.
GERALDINE L on Aug 20, 2016
easy to install
Richard B on Aug 16, 2016
This is exactly what I need.
John M. N on Aug 7, 2016
was replacing kitchen drawer hardware and new drawers and this slide worked within the cabinet case
Peter N on Aug 2, 2016
To repair an existing drawer.
Bobby H on Aug 2, 2016
To repair drawer
Carol M. N on Jul 23, 2016
I have an older home and this is exactly the slider on my current drawers. I ordered two, one to use and one to save for the future.
Paul L on Jul 10, 2016
To conform with the older slides and clearance in the existing cabinet.
Fred A. J on May 28, 2016
It matched what I needed
Allen R on May 4, 2016
Best fit for repair
Brad W on Apr 17, 2016
EASY TO INSTALL AND WORKS WELL
JOE J on Apr 5, 2016
Experiment that failed.
Don S on Mar 28, 2016
this will be installed in a water bed base unit drawer system.
gerry w on Mar 22, 2016
Replace old broken slides
Jerry H on Mar 14, 2016
It fit the functional needs of my project.
Tyson D R on Mar 11, 2016
I need this to retrofit into cabinets built in 1978.
Rick D on Mar 8, 2016
Replace worn ones
Steven T on Feb 20, 2016
Direct replacement for our drawer slide.
Nancy G on Apr 20, 2019
Retro on old kitchen drawers. These look perfect!
Carlin H on Apr 1, 2019
If the depth is a little longer than 22.5 inches can the track be extended?
A shopper on Jul 28, 2015
BEST ANSWER: The drawer roller that rolls in the track must be supported in the track. If the drawer is shorter than the 22 inches of the drawer then I expect it would not be too much trouble to build an shelf like structure from the back of the cabinet to connect with and support the back end of the track.
Hello. I am renovating an old bedroom suite and am having trouble with the old wooden slides that are located on the bottom of each drawer. The slides are wooden in the cabinet, but the hardware located on the drawer itself are metal. The furniture is like 30 years or so old. How do I know what to replace them with?
Georjean R on Jun 23, 2017
BEST ANSWER: Not sure exactly what you'll need but I wouldn't use these. If you are able to, I recommend you go to the actual Rockler store and speak with them. Bring some pictures and measurements with you. I tried to use these on something of a similar age/style and they gave me a lot of trouble. Remounting drawers can be a real pain.
is this a bottom mount system?
larry j on Jul 23, 2015
BEST ANSWER: In its essence it is a single roller extending down from the back of the drawer that rides in a rail in the cabinet that is position under the drawer space. I would NOT call the drawer roller element a bottom mount, though the whole unit might fall in that category. The benefit of this system is that it does not need any side clearance at the cabinet face. Side rollers are provided for smoother operation, but are not needed in practice. Measure and re-measure many times, cut once and locate a few screws and turn them in. It is probably as simple a drawer rail setup as exists.
How many are in a pack of item # 33589?
A shopper on May 25, 2015
BEST ANSWER: 1 single track & 2 rollers & 1 rear mount bracket
are the front mounting bracket screws drilled to the bottom of the drawer or onto the edge of the drawer frame?
George D on Mar 20, 2016
BEST ANSWER: There are two rollers that are attached to the opening of the cabinet. They are not attached to the drawer. The vertical sides of the drawer roll on these.
is this slide available in a 20" size?
Tom K on Jan 28, 2016
BEST ANSWER: The slide length can be adjusted by cutting off of the end that goes into the back wall with a hacksaw. I don't recall the size I bought but the installed length is 22". I could have cut off another two inches if it been necessary.
I have an old single tract like this but the drawer is weak can I use 2 of these to give the drawer strength or better yet can I replace it with an under drawer slider?
Jim B on Jan 24, 2016
BEST ANSWER: No sir, The center mount drawer guide will not work better with 2 because the failure to close smoothly is caused by the long term wear of the front rollers either being bent from too much weight or the front rollers have worn into the drawer sides from years of use . You can only replace it with a under drawer slide if it requires 3/8" clearance & the other option is to take your drawer out & cut 1/4" off the bottom edge of the drawer sides& glue a peice of 1/4" hardwood to it & it will make a big difference
"Track is zinc plated steel and 22-1/2" long" --- without a drawing (which even Knape & Vogt doesn't have on their website) this is a useless specification. Is that the total length of the track piece (*with* the front mounting tab) or the maximum inside measurement of the cabinet depth?
Tim N on Nov 11, 2015
BEST ANSWER: The track itself is actually 22 5/8" and that is what is printed on the bag. With the front bracket the overall length is 23 1/8".
The bottom of my drawer isn't flush with the sides, it is recessed a bit - maybe 1/8-1/4". Will this work to retrofit a center mount kitchen drawer?
debra t on Sep 13, 2017
BEST ANSWER: The guide wheels at the front of the drawer mount on the cross bar at the front of the cabinet. The bottom sides of drawer rides on these guide wheels. If the bottom of the drawer is higher than the sides of the drawer, you should be fine. Also, if the back of the drawer is even with the sides, mounting the rear wheel can be done according to directions. If it is recessed also, you will have to compensate for the difference height between the sides and the back of the drawer.
Can i use it on a drawer that is a 1/2 inch narrower then the opening on the cabinet?
Mike B on Apr 27, 2017
BEST ANSWER: Yes. The front guide wheels have a flange on the outside of each one-right and left. Measure and offset for your drawer dimensions and you should be fine.
Can I just get the roller that attaches to the back of the drawer? My existing tracks are good but several of the rollers have fallen off.
John A on Apr 22, 2019
BEST ANSWER: I don't believe individual parts are available separately. However, if the roller is in good shape, you can probably fix it by purchasing a small machine screw that fits in the axle hole, 2 flat washers, and 2 nuts that fit the machine screw. Insert 1 washer on the screw, place the screw through the roller then place this assembly through the bracket, place the second washer against the bracket and thread on the first nut just tight enough to let the roller turn freely. Thread the second nut until it contacts nut #1. Holding nut #1 in place, tighten nut #2- being careful to allow the roller to turn freely. I have studied my slides of this type and believe this fix would work. Hope this helps.
Can I swap out center draw slides for a more modern side or undermount type with modifications?
Loren C on Apr 18, 2017
BEST ANSWER: No the blind undermount drawer guides require a 1/2" clearance below drawer bottom & has to have a hole bored in back to attach the guides to drawer, & the side mount guides will not work because they require a1/2" clearance on both sides to fit drawer opening'
