Snap in cam lock bodies allow you to secure drawers, single cabinet doors and double doors by customizing your installation. Choose the Cam Lock body that works best for your application and then purchase the plug key you want to use with it. (Sold Separately)
Grouped product items
Product Name Price Qty
Horizontal Cam Lock Body
Horizontal Cam Lock Body Item #: 47271
In stock
$8.99
Each
Vertical Cam Lock Body
Vertical Cam Lock Body Item #: 47279
In stock
$9.99
Each
Universal Cam Body
Universal Cam Body Item #: 47287
In stock
$9.99
Each
Double Door Lock-Standard Cam Body
Double Door Lock-Standard Cam Body Item #: 47295
In stock
$14.99
Each
Double Door Lock-Offset Cam Body (for Face Frames)
Double Door Lock-Offset Cam Body (for Face Frames) Item #: 47302
In stock
$14.99
Each

Snap-In Locks-Lock Bodies

Item #
GRP10064_1
Rating:
78% of 100
Snap-In Locks-Lock Bodies Snap-In Locks-Lock Bodies Snap-In Locks-Lock Bodies Snap-In Locks-Lock Bodies Snap-In Locks-Lock Bodies Snap-In Locks-Lock Bodies Snap-In Locks-Lock Bodies
Snap-In Locks-Lock Bodies
Frequently bought together
  1. 47271 - Horizontal Cam Lock for drawers
  2. +
  3. CompX Double Door Latch
Total price: $0.00
  • This item: Snap-In Locks-Lock Bodies $0.00
    Grouped product items
    Product Name Qty
    Horizontal Cam Lock Body
    $8.99
    Vertical Cam Lock Body
    $9.99
    Universal Cam Body
    $9.99
    Double Door Lock-Standard Cam Body
    $14.99
    Double Door Lock-Offset Cam Body (for Face Frames)
    $14.99
  • Grouped product items
    Product Name Qty
    CompX Double Door Latch, DL-200
    $4.99
    CompX Double Door Latch, DL-300
    $4.99

This system allows you to choose from up to six different lock styles and six different finishes giving you up to 36 combinations that only need one key. Choose a lock body, finish and key option to build a custom lock. (Snap-In Lock Plug Keys are Sold Separately)


Choosing the Proper Style Cam Lock


Drawers: Horizontal Cam locks are ideal for drawers. The lock mounts horizontally and when turned the locking mechanism will stop your drawer from opening. This cam lock installs in wood with a thickness up to 3/4''.


Cabinet Doors: Vertical cam Locks are ideal for Cabinets and other doors with a thickness up to 3/4''. Once installed the vertical cam lock will hold the closed when used on a single door application with a frame cabinet style.


Doors with a thickness greater than 3/4'': the Universal cam body works for projects that have a thickness of 3/4" to 1-3/8" thick.

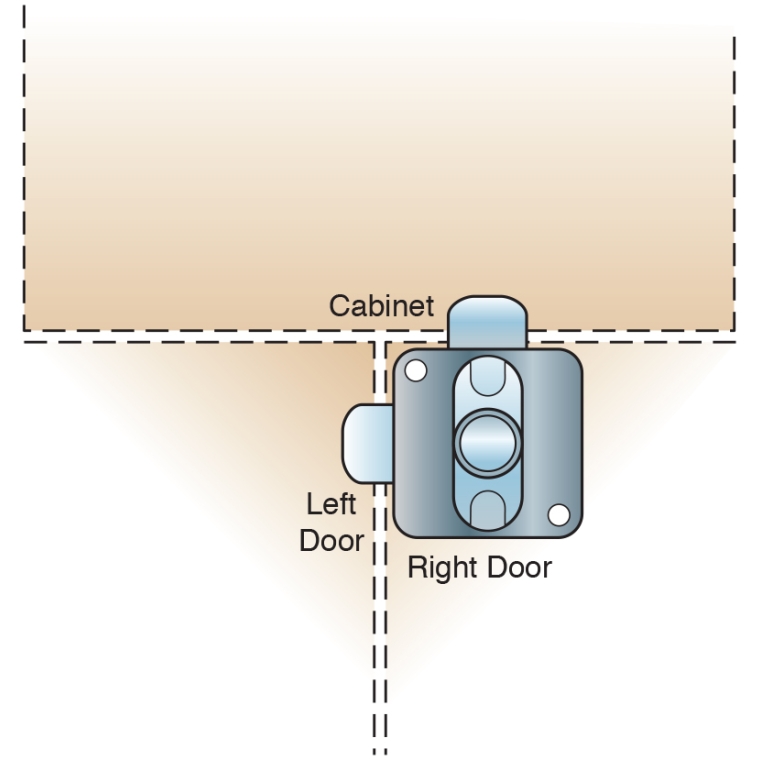

Double Doors: the Double Door Standard Cam Locks or the Double Door Offset Cam Locks will work for cabinets where you want to stop both doors from opening. One leg/arm stops the first door from opening by locking behind the frame of the cabinet and the other arm stops the second door from opening.

(1) Cam lock of your picking
*No screws included

More Information
Weight 0.1600
Tech Spec

Horizontal Cam Lock Body #47271

  • Designed for: Drawers
  • Wood Thickness: up to 3/4''
  • Strike Plate: None


Vertical Cam Lock Body #47279

  • Designed for: Cabinets (single door)
  • Wood Thickness: up to 3/4''
  • Strike Plate: None

Universal Cam Body #47287

  • Wood Thickness: 3/4" to 1-3/8" thick
  • Strike Plate: None


Double Door Lock-Standard Cam Body #47295

  • Designed for: Cabinets (Double Door)
  • Wood Thickness: up to 3/4''
  • The two throws extend out 1/2" and fully retract
  • Throws are 3/4" wide
  • Cylinder is 3/4" long
  • Strike Plates: (2) one is L shaped and one dog leg shape

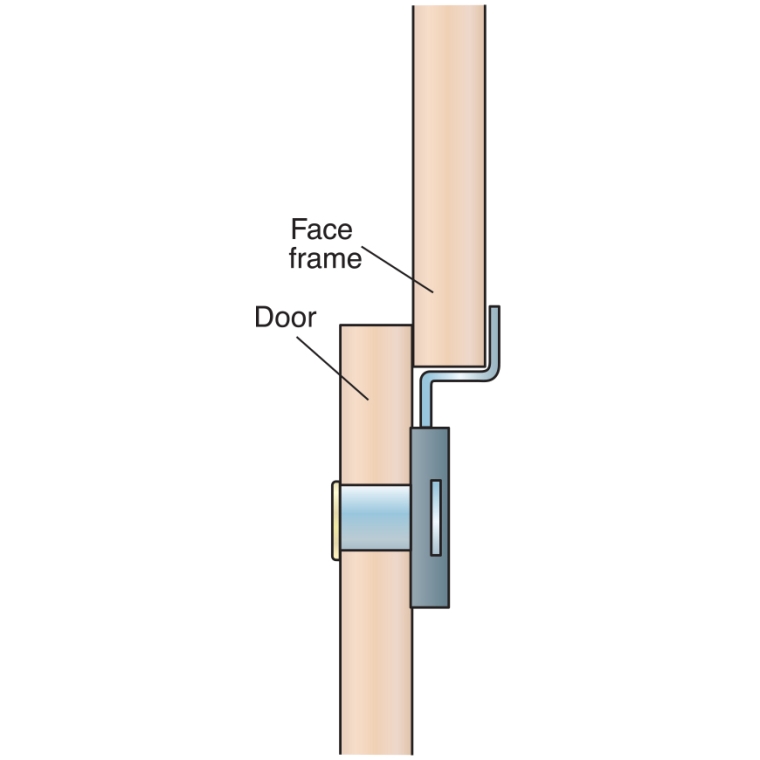

Double Door Lock-Offset Cam Body (for Face Frames) #47302

  • Designed for: Face Frame Cabinets (Double Door)
  • Wood Thickness: up to 3/4''
  • The two throws fully retract
Hardware Type Locks
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

3.9 / 5.0
16 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
4
8
2
2
0
lock bodies
I like this product very much. it is quite versatile an can be adapted to many projects requiring a modect degree of security.
My current project is a glass doored long gun case, which require one lock in the glass door an another in a small ammo storage door in the base of the case.
March 29, 2017
Purchased
1 year ago
Snap in lock bodies
Easy to use, works good , would recommend it.
May 3, 2015
Purchased
over 3 years ago
Woodworking Experience:
Advanced
I used the lock on a...
I used the lock on a gun case. This is the first time that I used this lock set, and I found it easy to use and it made a nice appearance.
March 14, 2008
High quality and easy to use...
High quality and easy to use also a good price
November 1, 2007
lock shaft too large
Directions would be very helpful. You need to drill an 11/16 hole on your door frame for the lock. But then the Bezel does not fit. So then you drill a 3/4 hole. Everything fits but on the back side there is a gap. I suppose I could have drilled a 23/32 hole, but I didn't have that size drill bit. Hence, directions would be nice in the catalog and with the lock set.
July 2, 2017
Purchased
1 year ago
Woodworking Experience:
Advanced
Drawer lock
Easy install and works well for our application
March 22, 2017
Purchased
1 year ago
Woodworking Experience:
Intermediate
Cam Locks installed easily
I found it relatively easy to get these cam locks installed. I used them on single and double doors, and drawers. The snap in locks just pressed into place.
May 5, 2015
Purchased
over 3 years ago
Woodworking Experience:
Intermediate
Works well, but does not cover...
Works well, but does not cover the distance when the cabinet door closes on 1 by material. I had to use a drill to mill a groove in the stanchion. I got the universal kit.
May 19, 2010
Easy to install and very smooth...
Easy to install and very smooth operation. Overall a quality product. The only issues I had was finding the proper diameter for the hole during installation. It was not in the instructions nor anything I could find at the web site. I did get a quick response from Rockler via email with the correct diameter.
April 23, 2009
Product seems to work well. Since...
Product seems to work well. Since there were no instructions, I had to take the time to figure out how to install lock cylinder, then mount latch assemble. I was disappointed that it did not come with any screws to mount it.
March 23, 2009
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 7 questions Browse 7 questions and 19 answers
Why did you choose this?
Rockler Store
Security and seems to be rigid. Will be my first attempt at this model.
James D on Jun 23, 2018
needed it to go with plug key
Doug S on Apr 19, 2017
Security and seems to be rigid. Will be my first attempt at this model.
James D on Jun 23, 2018
Needed for cabinet
Thomas H on Jan 3, 2018
needed it to go with plug key
Doug S on Apr 19, 2017
To Install lock in cabinet.
Peter S on Jan 24, 2017
wanted 2 locks that were keyed alike
danny boy on Jan 12, 2017
Needed it to go with the snap in lock plug
Tina K on Jul 12, 2016
quick and easy to install and a quality product
Rick B on Jun 16, 2016
I needed several lock body styles and all use on sne snap in lock
Karl L on Apr 6, 2016
Seems to fit the purpose
Roderich K on Mar 4, 2016
For the snap-in Lock plug key
Kenneth D on Jan 10, 2016
Ability to get different finish options
Kim M on Jul 31, 2015
gift boxes
Leonard A S on Jul 10, 2015
To secure gun cabinet job. Customer was very pleased with finished project.
Harry on Jun 26, 2015
To keep my personal items and medicines safe from children.
Donna Z on May 13, 2015
first time - trying it out
Jarrod R on May 7, 2015
Needed for cabinet
Thomas H on Jan 3, 2018
To Install lock in cabinet.
Peter S on Jan 24, 2017
What is the difference between "Option 1" and "Option 2" on the lock?
Rex A on Aug 3, 2015
Snap-In Locks-Lock Bodies
Snap-In Locks-Lock Bodies
Snap-In Locks- Plug Key Option
Snap-In Locks- Plug Key Option
BEST ANSWER: The difference is that it will be keyed differently.
can you remove the snap in lock once it is installed?
Mike T on Jan 28, 2016
What size drill bit do I need for this item? Thank you.
A shopper on Jun 20, 2015
Snap-In Locks-Lock Bodies
Snap-In Locks-Lock Bodies
Snap-In Locks- Plug Key Option
Snap-In Locks- Plug Key Option
BEST ANSWER: 21/32" hole size
what is the distance between mount holes?
Robert B on Jan 25, 2016
BEST ANSWER: The distance between the mount holes is 1-1/4" center to center
Are there installation specs available for the different lockset bodies? Rockler is good about posting the directions/specs, so you know what will fit, but don't see that here. Installing locks in two situations: 1. Overlay 3/4" cabinet door 2. Flush, in face frame drawer.
Greg B on Oct 20, 2016
I have a two inch door frame, with 1/2 inch over lay, on 3/4 inch cabinet frame. Would like the lock to latch behind cabinet frame. Which one will work?
Richard N on May 10, 2016
BEST ANSWER: I have used this type of cam lock in the past in the situation you're describing. I think you'll need a cam that has an offset in it . See the universal cam 47287 or 35982.
