Triton Oscillating Spindle Sander with Insert Plate for Convertible Benchtop Router Table

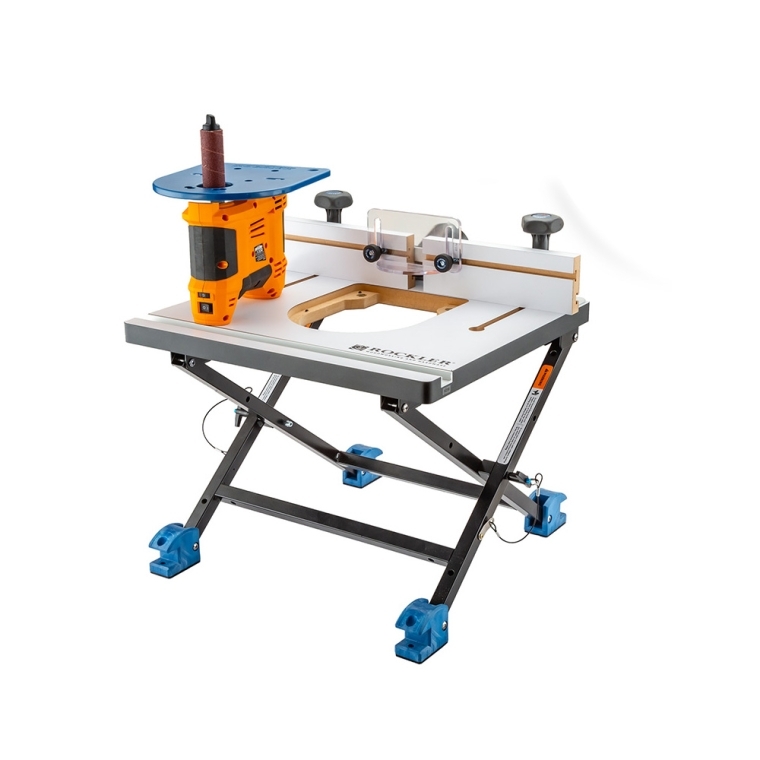

Handhold it for sanding large, heavy workpieces, or drop it into our Convertible Benchtop Router Table for stable benchtop sanding!

Item #
68276
Rating:
86% of 100

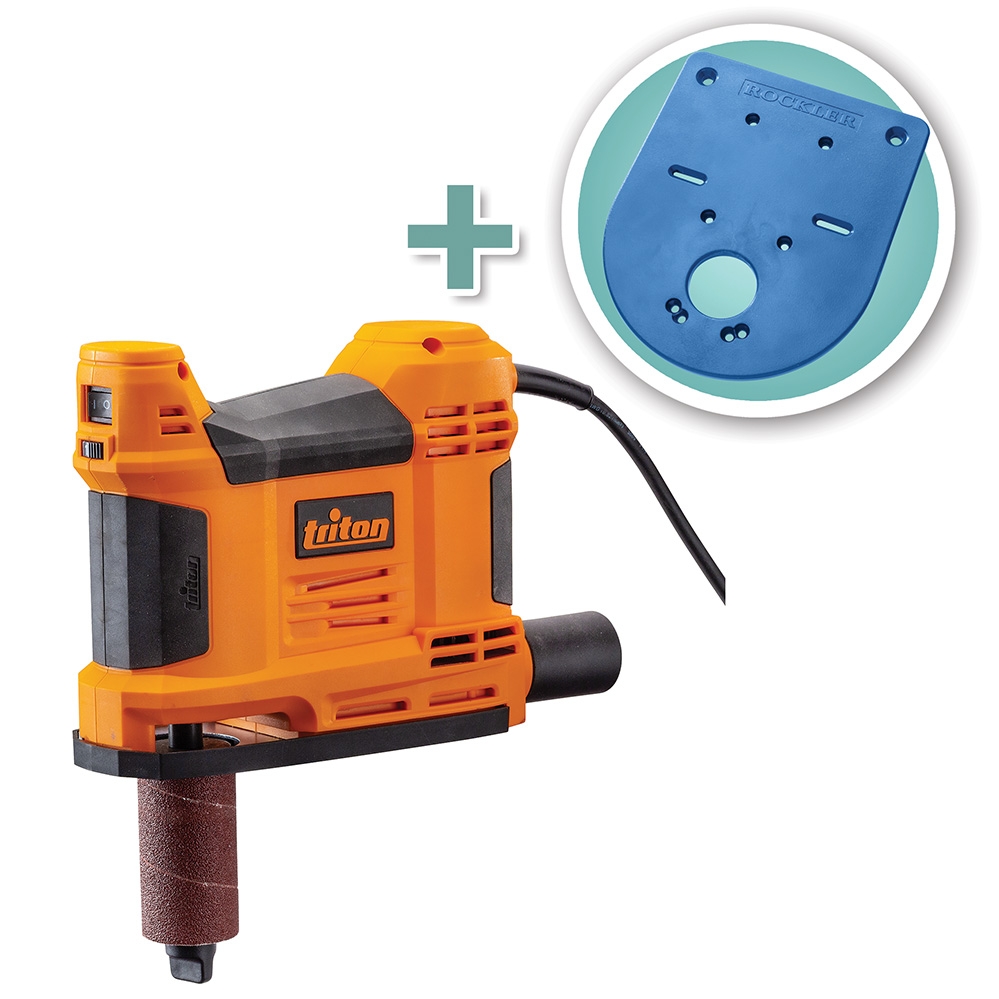

Sand curves and straight edges on workpieces both large and small with Triton's TSPSP650 Portable Oscillating Spindle Sander! We've bundled the sander with our proprietary baseplate, which lets you drop it into the Convertible Benchtop Router Table (sold separately) for stable benchtop sanding. This gives you all the benefits of the sander, but with a larger, more stable work surface. Dual-use tools are also great space savers in small shops. In addition, the sander can be operated freehand—ideal for large, heavy workpieces that are too unwieldy to handle, and it includes the table-mounting clamps which let you use the sander upside down on a table, a nice option for very small parts when your router table isn't available. Whichever mode you choose, our extra-wide baseplate gives you improved stability. Variable speed lets you dial in the right speed for any material. Spindle rotates and oscillates vertically for burn-free sanding. Quick-change system enables tool-free drum changes. Includes four drums with sanding sleeves (1/2'', 3/4'', 1-1/32'' and 1-1/2''), inverted bench-mounting set, dust port adaptor and adjustable edge guide.

Features:

  • Includes our Baseplate for the Convertible Benchtop Router Table (e.g. #58147, sold separately)
  • Powerful 650W or 5.4 amp motor delivers a variable speed of 1800-3200 RPM
  • Variable oscillation of 50-90 OPM minimizes chance of burning
  • Includes a range of drums and sanding sleeves (1/2'', 3/4'', 1-1/32'' and 1-1/2'' diameter) for a variety of sanding tasks
  • Tool free, quick-change system for changing drum size
  • Non-slip matt and bench clamps for inverted bench-mounted spindle sanding
  • Rear dust extraction port allows connection to dust extraction system
  • Adjustable edge guide allows precise edge sanding
  • Ergonomic rubber over-moulded grips for low vibration and improved user comfort
  • Adjustable edge guide for precise material removal
  • (1) Triton TSPSP650 Portable/Handheld Oscillating Spindle Sander
  • (1) Convertible Benchtop Router Table Baseplate For Triton Oscillating Spindle Sander
  • (4) Sanding Sleeves with Drums (1/2'', 3/4'', 1-1/32'' and 1-1/2'')
  • (1) Edge Guide
  • (2) Bench Mounting Clamps
  • (1) Bench Mounting Mat
  • (1) Dust Extraction Port Adaptor
  • (1) Instruction Manual
More Information
Brand Triton
Manufacturer Part Number 61030 53061
Weight 7.2000
Tech Spec

Oscillating Spindle Sander:

  • Finish: Plastic
  • No Load Speed: 1800 - 3200 RPM
  • Oscillations Per Minute: 50-90 OPM
  • Power: 650W
  • Product Height: 261mm (10-1/4'')
  • Product Length: 262mm (10-5/16'')
  • Product Weight: 2.2kg (4.85 lbs.)
  • Product Width: 84mm (3-5/16'')
  • Sound Power LW: 97.4dB(A)
  • Sound Pressure LP: 86.4dB(A)
  • Stroke Length: 6.5mm (1/4'')

Baseplate:

  • Brand: Rockler
  • Manufacturer Part Number: 53061
  • Material: ABS
  • Overall Insert Plate Dimensions: 7-1/2''W x 9''L x 3/8'' thick
4.3 / 5.0
4 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
2
1
1
0
0
Satisfied with capabilities of the unit.
Really good Sander, nice and compact. I like that you can use on or off a worktable. I made an adjustment to the insert plate and adapted it to my Husky workbench.
July 5, 2020
Purchased
1 month ago
Woodworking Experience:
Intermediate
For a small shop or no shop
Great tool for a small shop or no shop. Glad I found this. Works great make sure you order extra disks.
March 23, 2020
Purchased
4 months ago
Woodworking Experience:
Advanced
Performs well
Have used it, mounted on the portable router table, to sand the inside and outside of a scroll saw cut vase. I was pleased with the results. The only disappointment was that this makes it impossible to attach a vacuum to capture sawdust
September 16, 2019
Purchased
10 months ago
limited stroke
Purchaced for my rockler mini table. It went together fine BUT1/4 inch STROKE ????
May 26, 2020
Purchased
1 month ago
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 7 questions Browse 7 questions and 20 answers
Why did you choose this?
Rockler Store
I chose this because I have a very small shop with limited space. So having a piece of equipment that does double duty is great
David B on Jun 21, 2020
I wanted a small portable sanding system
john s on Jun 7, 2020
I chose this because I have a very small shop with limited space. So having a piece of equipment that does double duty is great
David B on Jun 21, 2020
It's portable.
Mike F on Jun 12, 2020
I wanted a small portable sanding system
john s on Jun 7, 2020
The space savings that this has over a dedicated benchtop model.
Uh... on Jun 2, 2020
I have very limited work space. I just got the router table, so I think with the insert plate it maximizes the space I have.
LEO M on Dec 25, 2019
This was on husband's Christmas Wish List!
Carol P on Nov 29, 2019
it's a great addition to my bench top router table' maybe more tools could be adapted to the table like rotary saws or jig saws ect.
harry b on Sep 1, 2019
Already had the router table. I hope this works better than a similarly priced spindle sander with it's own stand and table. I'm taking a risk.
HSV user on Aug 28, 2019
saves shop space by using on my router table
Robert S on Aug 21, 2019
Ease of use
N A on Aug 21, 2019
I have the table and have wanted a spindle sander. I’ve wanted to try Triton tools and the price was ok.
John K on Aug 19, 2019
I already have the router table and find it very useful and thought a sander for it would be a plus in my workshop.
Virginia on Aug 7, 2019
It's portable.
Mike F on Jun 12, 2020
The space savings that this has over a dedicated benchtop model.
Uh... on Jun 2, 2020
Is there a square plate that will hold the sander in the other router tables?
George L on Aug 10, 2019
Triton Oscillating Spindle Sander with Insert Plate for Convertible Benchtop Router Table
Triton Oscillating Spindle Sander with Insert Plate for Convertible Benchtop Router Table
Rockler Pro Phenolic Router Table, Fence, & FX Router Lift
Rockler Pro Phenolic Router Table, Fence, & FX Router Lift
BEST ANSWER: Would be easy enough to make 1
How long, or tall is the sanding drum itself?
John C on Aug 17, 2019
BEST ANSWER: The drum is 4 1/2" long.
Do I need a special plug adapter to use this product with New Zealand power supply?
Constance P on May 16, 2020
BEST ANSWER: The sander comes with a plug for standard voltage in the US. You would need an adapter for New Zealand.
What is the dust port size?
Jerry J on Dec 15, 2019
BEST ANSWER: It measures about an inch and a half.
I already have the oscillator. Will you be selling the router table plate?
Robert F on Aug 19, 2019
BEST ANSWER: The base plate for the Convertible Benchtop Router Table is Rockler Item Number 53061.
How does the “adjustable edge guide” work? Would it be useful as a pattern sander?
Michael L on Aug 21, 2019
