Rockler Convex Edging Router Bit - 7/8" Dia x 1/2" H x 1/2" Shank

Ideal for making your own Lincoln logs, or use it as a basic bullnose cutter.
Item #
22597
Rating:
86% of 100
Our Convex Edging Bit can be used to rout the rounded flanks of homemade Lincoln logs—a children's classic. Simply cut the profiles and then use a straight bit to cut half-lap dados in the logs so they interlock. In addition, the bit can be used to rout a rounded edge on shelves and table tops. The rounded profile measures 1/2" in length, so it will leave two 1/8" beads on 3/4" stock.
(1) Convex Edging Bit, 7/8"W x 7/8"H, 1/2" Shank
More Information
Brand Rockler
Weight 0.1700

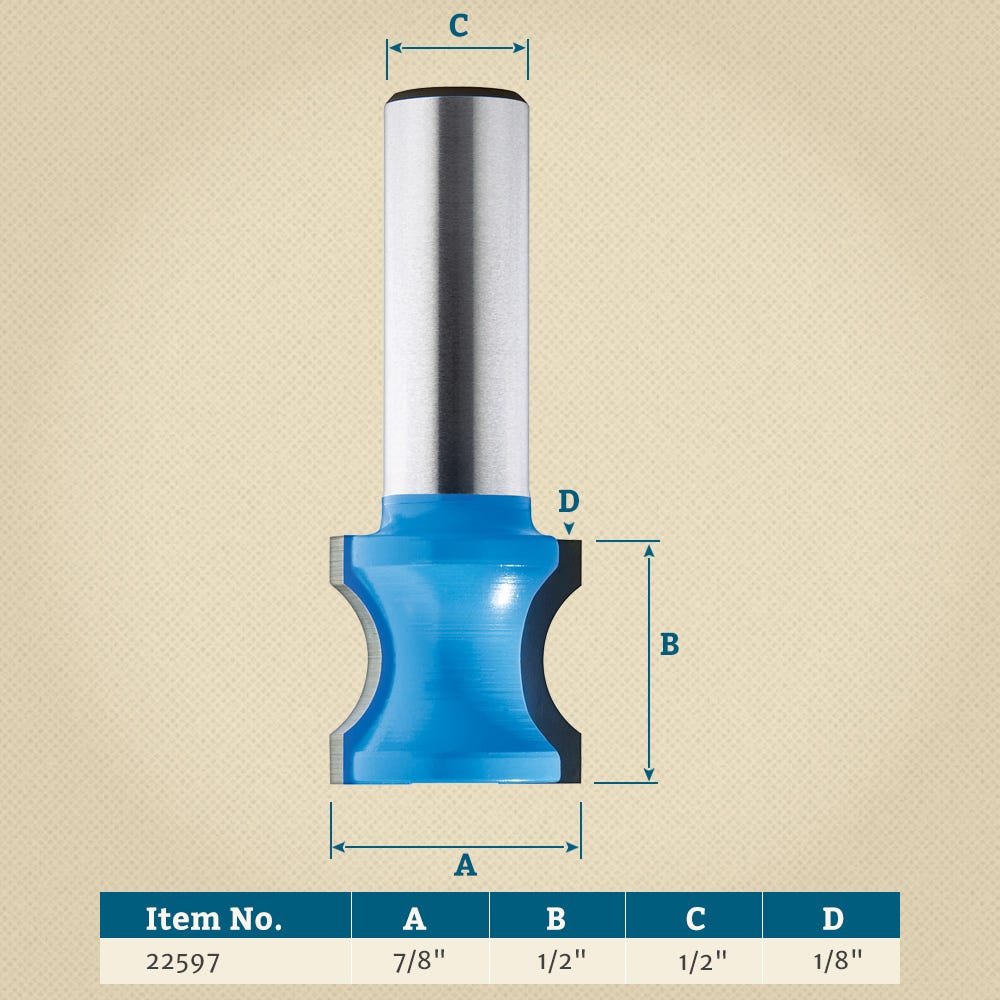

Tech Spec
  • Convex Height: 1/2"
Bit Type Edge Forming, Specialty
Diameter 7/8"
Cutter Height 7/8"
Shank Size 1/2"
Flutes 2
4.3 / 5.0
4 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
3
0
0
1
0
Convex edge router bit
Bought this bit to make "logs" for a birdhouse. Milled the logs and they turned out just like I hope they would. The bit worked great, sharp and a no sand finish. Still building the birdhouse.
Would recommend this bit to make "logs".
December 16, 2018
Purchased
10 months ago
Woodworking Experience:
Intermediate
Excellent Bit!!!
This bit does not make a log that is exactly like a Lincoln Log, but they are a very close copy. I used some Lincoln Logs that we had laying around to help determine the lengths that needed cut. I have made about 270 linear feet of logs with this bit and it performs flawlessly! This bit permitted me to shape each side in one pass without any kickback issues. Multiple feather boards kept the logs in good contact and my fingers away from the bit during milling. I used a dado blade on my radial arm saw to make the requisite notches. I also used a bandsaw to cut some of the logs in 1/2 (length wise) to provide starter pieces for the rows.
December 25, 2014
This works exactly as advertised. The...
This works exactly as advertised. The results look just like in the picture. For those wanting to make home-made Lincoln Logs, this is the perfect bit.
July 13, 2011
Not as useful as I hoped.
May 17, 2016
Purchased
over 3 years ago
Woodworking Experience:
Advanced
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 2 questions Browse 2 questions and 3 answers
Why did you choose this?
Rockler Store
I needed this profile
Charles on May 28, 2018
I'm using this bit to mill a grove for reels seats.
John M on Jun 4, 2017
I needed this profile
Charles on May 28, 2018
Recommended for the project I was working on
John W on Mar 23, 2018
I'm using this bit to mill a grove for reels seats.
John M on Jun 4, 2017
I plan on making sets of Lincoln logs for nieces and nephews using wood sourced from our family's property.
Scott S on Jan 4, 2017
Making wood inserts for reel seats
Michael A on Dec 4, 2016
looking to make some log cabin bird houses and feeders
Jack M. K on Aug 10, 2016
BUILDING LINCOLN LOGS FOR GRANDCHILDREN.
dale s on Apr 18, 2016
To make Lincoln logs for my great grand kids
Robert B on Mar 20, 2016
Recommended for the project I was working on
John W on Mar 23, 2018
I plan on making sets of Lincoln logs for nieces and nephews using wood sourced from our family's property.
Scott S on Jan 4, 2017
Will this make pieces that will fit with actual Lincoln Logs?
Michael S on Mar 22, 2019
BEST ANSWER: Absolutely will. I found that running them as 3/4 x 3/4 strips on a table mounted router with a power feeder made for an easy operation. Then a zero clearance insert in the table saw with a 3/4" dado blade and a sled to put in the slots. Only do the cut to length last.
What speed should I use? At 21,000 rpm my logs are getting shot right through.
Gary J on Jul 19, 2018
BEST ANSWER: I am using mine on a stationary overarm router at about 10000 rpm with good results.
Are you trying to "climb Cut" ?
As small as the diameter of the bit is 15 to 20 k
RPM should be doable.
