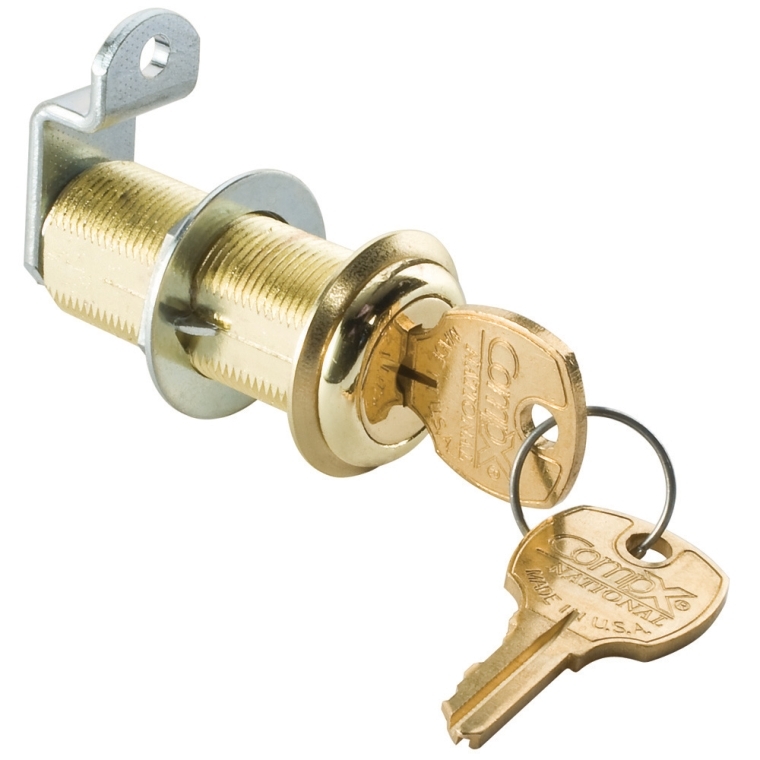

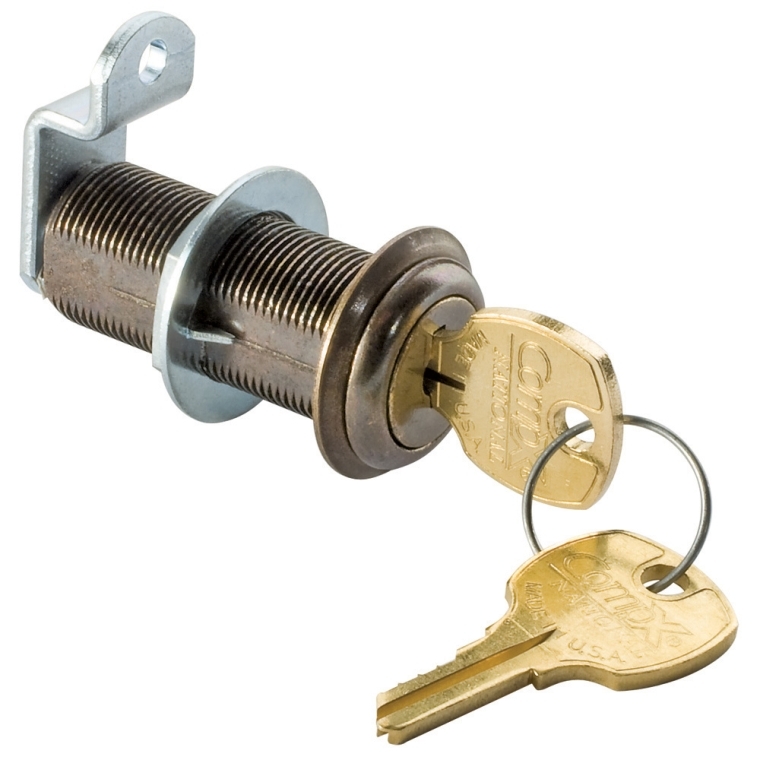

This 1-3/4" long cylinder lock is ideal locking false-front drawers and cabinet doors made of stock up to 1-1/2" thick. The lock has a five disc tumbler and is available in a nickel, antique brass, or brass finish. Available keyed alike or keyed differently. Includes two cams: one for lipped applications and one for flush or overlay applications. The provided stop washers can be used to set the lock for a 90 or 180 degree cam turn.
(1) 1-3/4" Long Cylinder Lock
Weight | 0.3500 |
---|---|
Tech Spec |
|
4.7 / 5.0
30 Reviews
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Worked well. Well documented for install
Retrofitting an existing desk to locking drawers. This product was easy to plan for the installers and easy for me to procure for the client.
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Works well.
The hardest part was drilling the 3/4” hole. It came without instructions, but the diagrams on the web were self-explanatory.
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Good finish & quality
Just what I expected them to be
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
A Product with Depth!
Rockler was the only place I could find a barrel lock deep enough for my project (Jewelry Armoire.) The bonus was that it was available in antique brass!
Rock On Rockler!
Rock On Rockler!
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Highly recomend this lock
This tumbler cam lock is a step above in quality & features over other cam locks.
- Was this review helpful? Yes (1) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (1) No (0)
- Flag as Inappropriate
Works perfectly everything i needed to finish my simple locking storage cabinet project
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 14 questions
Browse 14 questions
and 16 answers
Why did you choose this?
Rockler Store
I need a 2" offset cam. Is one available?
can i get 1 3/16 and 1 3/4 cylinders keyed alike?
BEST ANSWER: Sorry no, these sizes will not be keyed the same.
- Reply
- Inaccurate
- Steve Staff on May 15, 2015
Can this unit be rekeyed by a locksmith?
BEST ANSWER: As far as I can tell, no. With that being said, I believe it would be less expensive and easier to replace the cylinder as opposed to having a locksmith rekey it. Hope that helps.
- Reply
- Inaccurate
- Steve R on Aug 18, 2015
- Purchased on Apr 16, 2015
Can you choose to have the key come out on only in the locked position or does the key come out in both the locked and unlocked position?
BEST ANSWER: I can't imagine why not, but no, in my experience it comes out in both positions. You don't have to take it out of course.
- Reply
- Inaccurate
- David M on May 19, 2016
- Purchased on May 5, 2015
My desk drawer front is a total of 1.5 inches. Will this lock work?
BEST ANSWER: Yes this will work for 1.5".
There are some spacers that come with it to take up any extra space.
There are some spacers that come with it to take up any extra space.
- Reply(1)
- Inaccurate
- Rick H Staff on Apr 28, 2015
what is the diameter of the cylinder?
BEST ANSWER: This cam lock is sized to fit in a 3/4" hole.
- Reply(1)
- Inaccurate
- David Staff on Apr 24, 2015
If it is keyed differantly how can thier only be one?
BEST ANSWER: For products that say "keyed differently", each unit we sell has a random key pattern so a key from one lock will not open another lock from that particular SKU. For products that are "keyed alike" all the units we sell have the same key pattern so a key from one lock will open all the other locks.
- Reply
- Inaccurate
- Scott E Staff on Apr 7, 2015
I want to purchase 8 locks. two groups of 4. Each 4 in each group keyed alike but the two groups keyed differently. Can you offer that to me?
BEST ANSWER: Sorry, I can’t help. Something tells me that getting this done by online ordering is not possible.
Suggest you order them and then take them to a locksmith. Better yet that the info to a locksmith
and see if he thinks he can change the keying. Past knowledge is that a lot of times they may have
made hundreds of the same keying on locks of that type.
Suggest you order them and then take them to a locksmith. Better yet that the info to a locksmith
and see if he thinks he can change the keying. Past knowledge is that a lot of times they may have
made hundreds of the same keying on locks of that type.
- Reply
- Inaccurate
- Roger A on Dec 5, 2019
- Purchased on Dec 29, 2017
I have a wood file cabinet - the door stands out from the cabinet. The drawer edge depth is 3/4" and the frame depth is 3/4". I'm guessing I will need 1.5" to secure in place. Would the 1.75" work for this?
BEST ANSWER: Yes it will. Your application is the same one I had. It has been quit a while since I installed mine but it should come with two end pieces, what would be the latch. The silver bent piece on the left end in the picture. there should be a straight one as well and a little rubber bumper (included/optional) can be inserted into that hole on top. This piece is held on with a screw so they're interchangeable. The straight latch with the bumper worked for my 3/4" door, 3/4" face frame application.
- Reply
- Inaccurate
- Steve R on Mar 15, 2017
- Purchased on Apr 16, 2015
Will this work on a door that is 1" thick?
BEST ANSWER: Yes it will. The threaded cylinder is a little over 1-1/2" long. 1" should be no problem.
- Reply
- Inaccurate
- Steve R on Dec 2, 2016
- Purchased on Apr 16, 2015
How long are the cams?
BEST ANSWER: the two cams are 1-1/2" and 1-1/8 in length from the center of the screw on the end
- Reply
- Inaccurate
- Rick H Staff on May 4, 2016
do you have a latch similar to your "1-3/4" Long Cylinder Lock-Choose finish and keying method" that has a knob instead of the key/lock?
BEST ANSWER: I got this, but it doesn't seem like you need something so heavy duty and expensive if you don't need a lock. Maybe try a cabinet store for something less expensive.
- Reply
- Inaccurate
- David M on Sep 4, 2015
- Purchased on May 5, 2015
need 2" total length from keyhole to bottom of cam. if offset cam is turned over will total length = approx 2"?
BEST ANSWER: I am sorry but I do not understand your question. I suggest you look at the drawing provided on the website.
http://go.rockler.com/tech/RTD10000040AA.pdf
http://go.rockler.com/tech/RTD10000040AA.pdf
- Reply
- Inaccurate
- douglas y on Jul 8, 2015
- Purchased on May 4, 2015
can the cam be removed?
