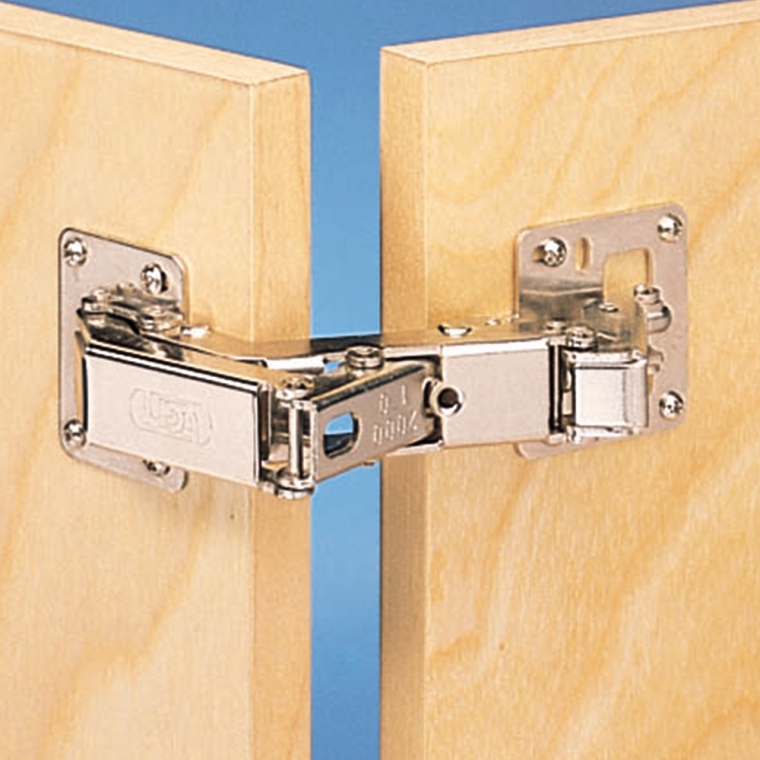

175° Fully Concealed Hinges

Item #
66613
Rating:
88% of 100
Fully concealed hinges swing the door out of the way for pullout shelves, and surface mounting ensures perfect and simple installations. Use for inset, full- and half-overlay applications. Nickel-plated, self-closing. #6 x 5/8'' mounting screws included (Price is per pair). In addition, this hinge works on 3/8'' Lipped Doors.

Related Products

We recommend using our JIG IT® Hinge Plate Template for 175° Hinges to make installation of these hinges accurate and easy.
(2) 175° Fully Concealed Hinges
(1) Package of Mounting screws
More Information
Weight 1.1000
Application Full Overlay, Half Overlay, Inset
Cabinet Application Surface Mount
Open Degree 175
Finish Nickel
Style Snap Close
Adjustments 2-way Slot
