Rockler 4'' Hose Connector for PVC Sewer Pipe

Item #
38820
Rating:
78% of 100
21  Reviews
Rockler 4'' Hose Connector for PVC Sewer Pipe Rockler 4'' Hose Connector for PVC Sewer Pipe Rockler 4'' Hose Connector for PVC Sewer Pipe

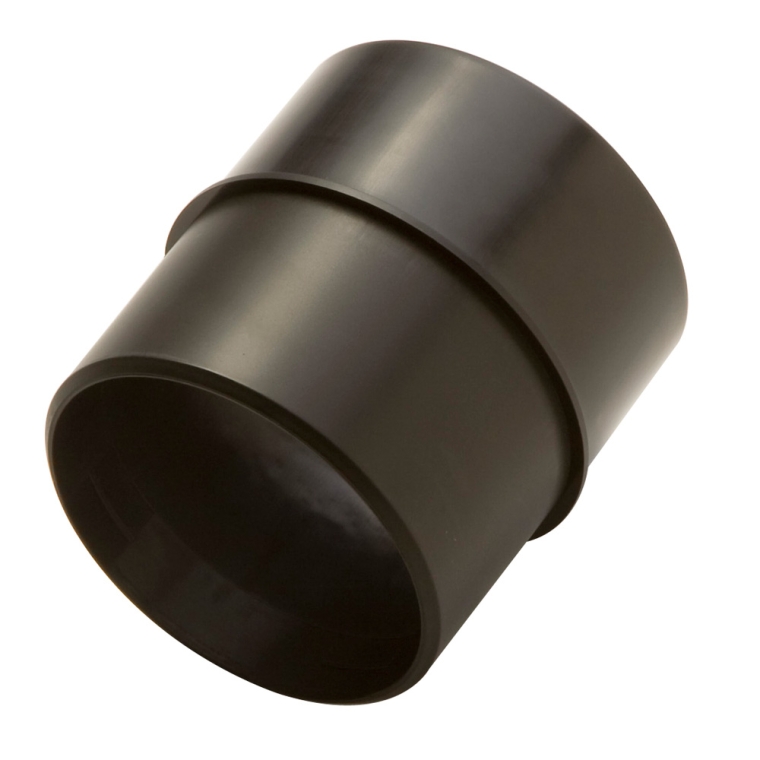

Rockler 4'' Hose Connector for PVC Sewer Pipe

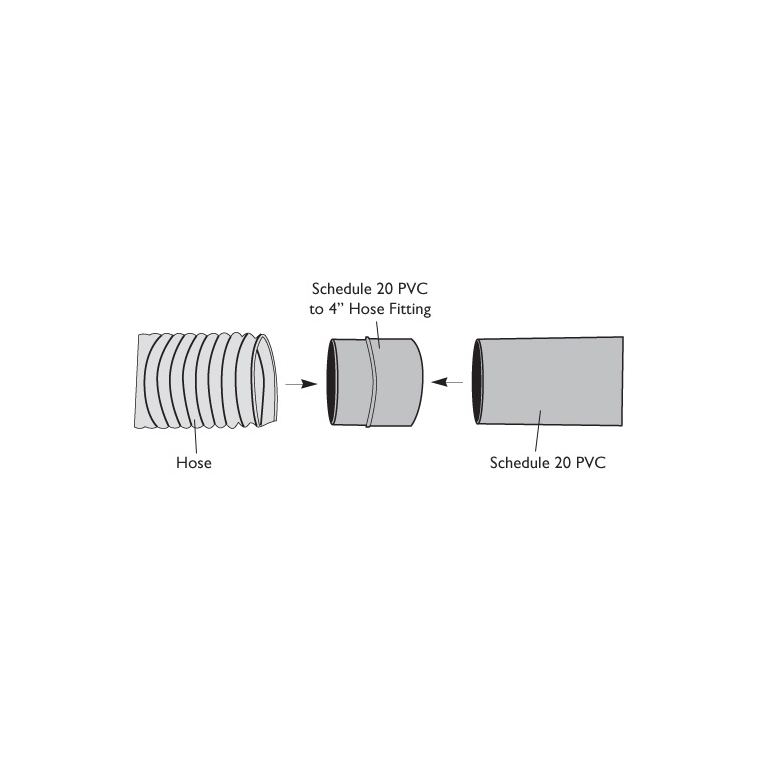

The large end of this connector fits into Schedule 20 PVC, while the smaller end attaches to any 4" dust hose. The PVC connection requires silicone adhesive (sold separately) and the hose can be fixed with a metal clamp (sold separately). Schedule 20 (PVC sewer pipe) is thin walled PVC pipe commonly found at home centers.


The term "Schedule 20" merely refers to the wall thickness of the pipe. When inquiring at your local sources, it is best to ask for thin wall sewer/drainage pipe (rather than asking for "Schedule 20"). It may be difficult to find this pipe via online sources as it is typically sold in 10 ft. lengths.

(1) Rockler 4'' Hose Connector for PVC Sewer Pipe
More Information
Brand No
Manufacturer Part Number TADS-4HPVC
Weight 0.3000
Tech Spec

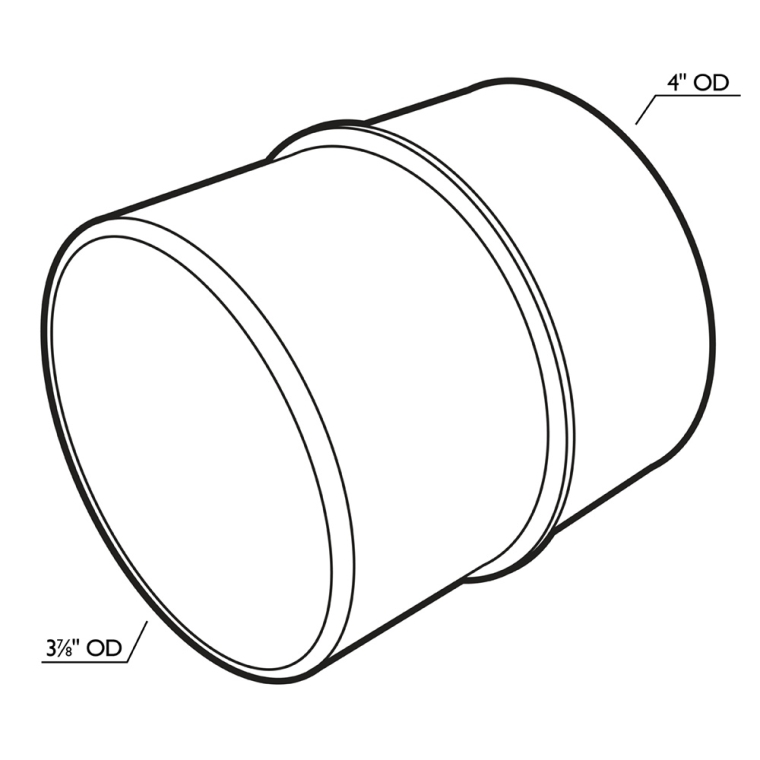

  • Small Opening OD: 3-7/8''
  • Large Opening OD: 4''
Technical Documents No
Size 4"
Material Plastic
Type Adapter
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Prop 65 WarningWARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
Powered by TurnTo
3.9 / 5.0
21 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
11
2
5
1
2
Worked
Fit the pipe...fit the hose... fit the bill. Solidly built adapter that was perfect my dust collecting plumbing.
September 8, 2018
Purchased
 2 months ago
Woodworking Experience:
Intermediate
Works very well
June 16, 2017
Purchased
 1 year ago
Woodworking Experience:
Advanced
Works with sched. 40!!!
While this is designed as a direct connect to sched. 20 PVC and many people, like myself, can't find sched. 20 PVC locally I just connected one of these to a piece of sched. 40 PVC. I applied heat to the end 2"-3" of the pipe, both inside and out, with a handheld propane torch while rolling the pipe slowly to keep from scorching the plastic. Then slip this fitting into the end of the pipe quickly and squarely (a block of wood and light hammer taps or gently pushing the pipe down onto the fitting on the floor help) to fully seat the fitting. Once the plastic cools it shrinks back and holds the fitting snugly.

I don't think any clamps or caulk are necessary. In fact, I imagine this would be better than sched. 20 as it will result in a tighter fit in the end.

I also imagine the same results could be had with the black ABS DWV, though that plastic will (I believe) melt at a lower temperature.
The adapter installed in sched. 40 PVC.
The adapter installed in sched. 40 PVC.
May 25, 2017
Purchased
 1 year ago
Woodworking Experience:
Advanced
Hose to PVC Connection
While the instructions tell you to put this on one way I found in my case I had to put it on reversed because of the type of PVC pipe I am using. It works great and the fit is perfect.
April 5, 2017
Purchased
 1 year ago
Woodworking Experience:
Intermediate
PVC Server Pipe to iVac Pro Blast Gate Adaptor
If you are using PVC sewer pipe for your dust collection system you will need this adapter for 4" flexible and for iVac Pro 4" Blast Gate. Works great.
February 23, 2017
Purchased
 over 2 years ago
Perfect connector
Worked perfecting for ASTM2729 sewer and drain pipe to flex hose.
January 9, 2017
Purchased
 1 year ago
Woodworking Experience:
Advanced
woodwork shop dust collection .
The 4 in. hose connector works great when connecting 4 in. dust hose to schedule 40 pvc pipe ,,, perfect !! may need to order more ,, thanks .
October 13, 2016
Purchased
 over 2 years ago
Woodworking Experience:
Intermediate
4 " hose connector
Worked great. Delivery service was excellent
May 13, 2016
Purchased
 over 2 years ago
Woodworking Experience:
Intermediate
perfect fit
I had tried several solutions to attaching the 4" hose to the PVC sewer pipe in my dust collection system.

This works perfectly!
February 19, 2016
Purchased
 over 2 years ago
Woodworking Experience:
Advanced
Easy connection from 4" DWV to flex
I bought some of these for my PVC dust collection system and are highly recommended to make the connection from the PVC to flex hose. Remember to seal the connection between fitting and duct with silicone, and ground your system from the collector to the tool as PVC is not a conductor and can build up a static electrical charge. I purchased some more of these from a competitors store and they were cheaper quality. I recommend these.
December 24, 2014
Powered by TurnTo
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 3 questions Browse 3 questions and 41 answers
Why did you choose this?
Rockler Store
Because I needed it
David F on Feb 13, 2018
Building a small dust collection system
William D on Jul 20, 2017
Because I needed it
David F on Feb 13, 2018
needed it
mark p on Dec 10, 2017
Building a small dust collection system
William D on Jul 20, 2017
Upgrading system to PVC
RODNEY B M on May 3, 2017
To connect the dust collector to the fixed piping in my shop.
Stephen A on Apr 16, 2017
only way to hook hose to pipe
Cordell W on Mar 19, 2017
Installing new dust collection system and needed fittings to fit schedule 20 thin wall pipe
Michael F on Mar 4, 2017
CAUSE I AM TIRED OF LUGGING THAT HEAVY HOSE AROUND
Harry T on Feb 24, 2017
I chose this item to allow me to connect Schedule 40 PVC to 4" Clear Flexible Dust Collection Hose
Stephen H on Feb 4, 2017
I wanted to try it
K E on Jan 13, 2017
Attached to my dust collector
Charles S on Dec 5, 2016
need
andy e on Dec 2, 2016
To complete my DC setup and ease hooking Sewer pipe to hose
Gerald V on Nov 30, 2016
Needed
Rick D on Nov 27, 2016
Why use schedule 40 PVC for vacuum. Cut cost with these fittings, and use scedule 35 drain pipe! Rocker's thinking of us!
Tom H on Nov 15, 2016
to hook up dust system
david g on Nov 15, 2016
Perfect fit to adapt my D.C. hose to pvc fittings. Gives more economical dust collection options.
Alan K on Nov 4, 2016
needed more fore new machines.
Chris H on Oct 22, 2016
These work well going from 4" sewer pipe to dust collection system. Take note however, they sell two different ones. One goes from sewer pipe to dust collection fitting. The other goes from sewer pipe fitting to dust collection hose. I was reordering this one and accidentally ordered the other.
Craig W on Sep 15, 2016
Building a dust collection system.
Carl J on Aug 12, 2016
needed to conect some dust collection hoses
ronald e on Jul 21, 2016
To go from pvc to dust collection hose connection
JEROME J L on Jul 19, 2016
Needed it
Andreas W on Apr 20, 2016
Building dust collection system
Dale on Feb 23, 2016
For a homemade dust port.
Joe R on Jan 2, 2016
Building Thein separator for dust collector.
Robert G on Jan 1, 2016
Setting up dust collection sys
Darwin G on Dec 16, 2015
For a Thein Separator
James W on Nov 22, 2015
I want to see if this will fit.
Tom M on Nov 15, 2015
Save money on long span with pic pipe
James K on Oct 28, 2015
To connect a short length of 4" flex hose to 4" PVC S&D drain pipe at both ends.
Gerald G on Oct 13, 2015
It is worth the price to avoid the hassle of trying to Mickey Mouse the connection between the sewer pipe and flex hose. The metal blast gates fit very snugly in the sewer pipe but some branches in my dust collection system require a direct connection between the flex hose and a Wye or other fitting.
Gerald W on Sep 13, 2015
Flexibility to use pvc
Charlie on Aug 23, 2015
Needed the product
Eddie P on Jun 21, 2015
needed it
mark p on Dec 10, 2017
Upgrading system to PVC
RODNEY B M on May 3, 2017
What are the OD and ID of both ends?
Dave R on Nov 25, 2015
BEST ANSWER: inside diameter at both ends is 3 5/8". outside diameter at one end is 4" and the other end is 3 7/8"
Will this work with 4" ABS (black) pipe? SCH 20 PVC is no longer available at the Big Box Stores but ABS is...
Myeloman on Sep 26, 2016
BEST ANSWER: No it won't. I've been all over today trying to find the schedule 20. Not at Lowes or HD. I wish they'd make an adaptor to fit to the white thinner 4" drain pipe commonly found. This doesn't fit.
