Adjustable Box Joint Jig Downloadable Plan

Item #
10101-WJ038
Rating:
62% of 100

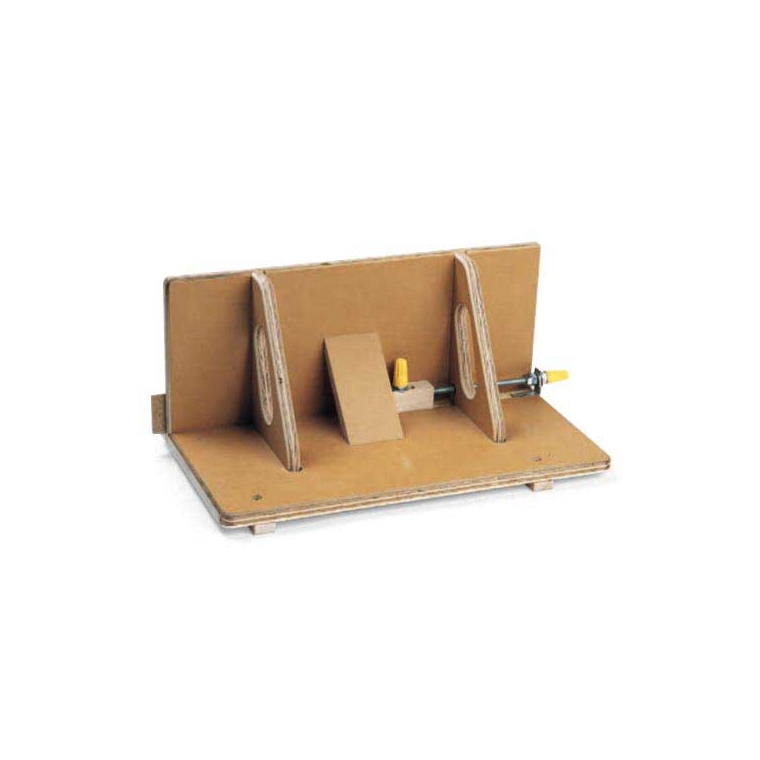

On a standard-style box joint jig, setting up the pin to match the dado blade and getting the spacing just right makes the jig a fussy, single-use item. Here's an adjustable, reusable box joint jig that will suit any joint. It's the last one you'll ever make.

(1) Downloadable Adjustable Box Joint Jig Plan
More Information
Brand Woodworker's Journal
3.1 / 5.0
9 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
4
1
1
2
Thorough, complete, but not over-wrought
This jig is like Goldilocks' oatmeal: just right. It's sophisticated enough to be adjustable, but simple enough to build and operate. The plan is also just right: complete and thorough, but not unnecessarily technical. I'm going to enjoy building and using this jig.
February 21, 2017
Purchased
over 3 years ago
Woodworking Experience:
Intermediate
Haven't made the jig yet, HOWEVER, I had to go back and copy the COMMENT about changing the design a bit to be able to ADJUST the gig better, in particular, it looks, by adding a knob and a spring to the jig adjust mechanism.
February 13, 2019
Purchased
1 year ago
Woodworking Experience:
Beginner
Good Plans
I needed more information and potential sourcing for 1-2 items needed. Otherwise, it was great.
April 20, 2018
Purchased
over 2 years ago
Woodworking Experience:
Intermediate
Nice design, except for the adjustment mechanism
I liked the idea of a universal, adjustable box joint jig, so I bought this plan and built it out of Baltic birch plywood. It's solid and accurate, but the mechanism for adjusting the position of the sliding pin block is unworkable as described. The author instructs the user to turn the threaded rod to make fine adjustments to the pin position, but this rod is fixed into threads tapped into the sliding block and thus can't be rotated. I devised a simple solution using a threaded knob that moves the rod without rotating it. I also installed a small spring to keep tension on the pin block during adjustments. See photos.
Threaded through-knob adjusts pin block position
Spring maintains tension on pin block
March 7, 2018
Woodworking Experience:
Advanced
Easy build!
I enjoyed building my jig and have used it for 3 projects already. It works very well. A minor complaint is that you mix pictures from both a left and right construction that causes a bit of concern.
