Adjustable Drafting Table Hardware

Item #
84% of 100

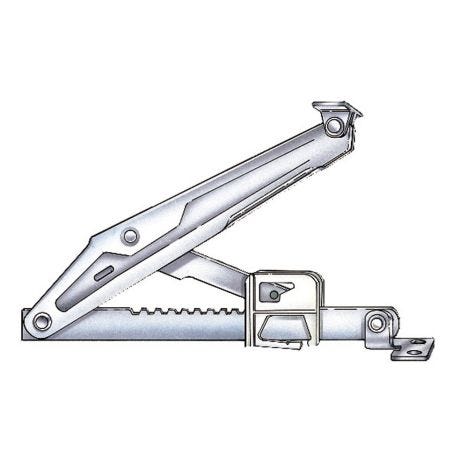

Build a drawing or drafting table that sets up to your choice of 14 different positions. Adjustable hardware has a gravity feed release.

(2) Adjustable Drafting Table Hardware with screws
More Information
Brand Rockler
Weight 1.5500
Tech Spec
  • Material: Rugged heavy duty steel
  • Finish: Zinc
Hardware Type Supports
