$999.00 Each
Additional Shipping Charge: $10
Direct Ship

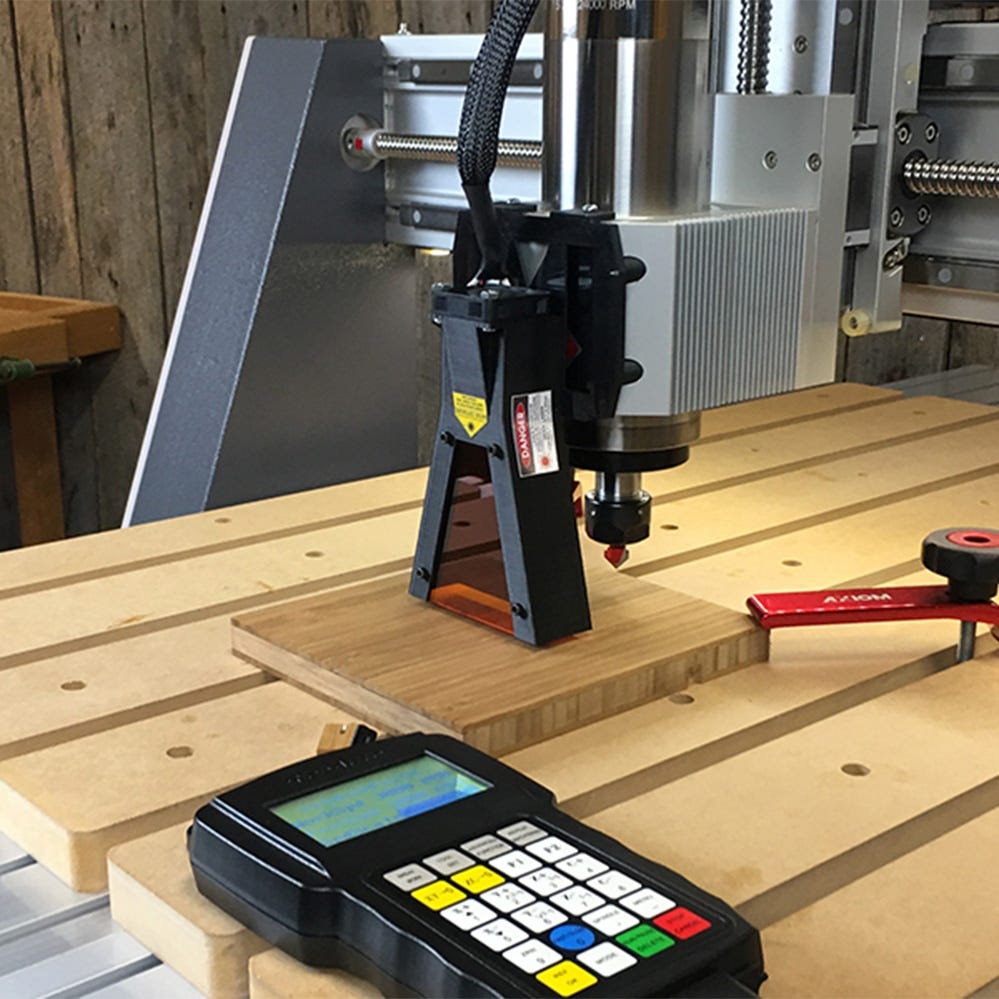

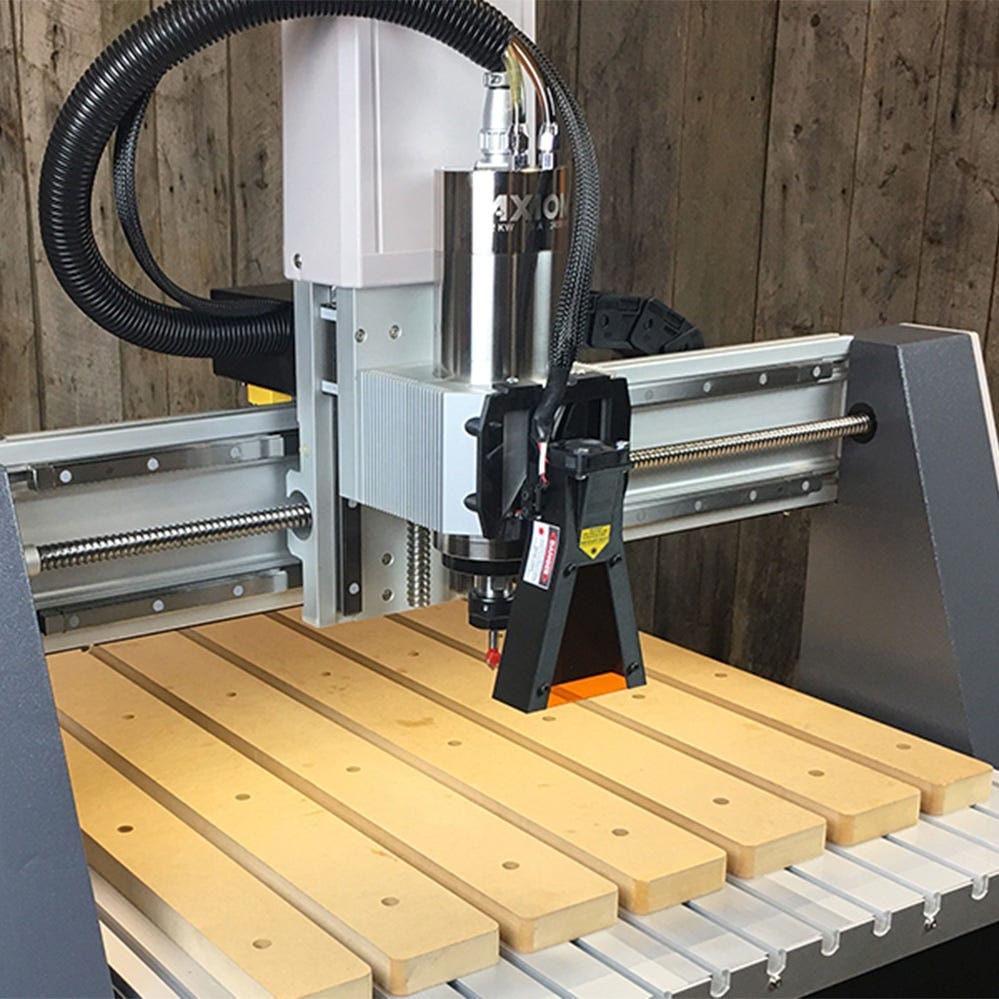

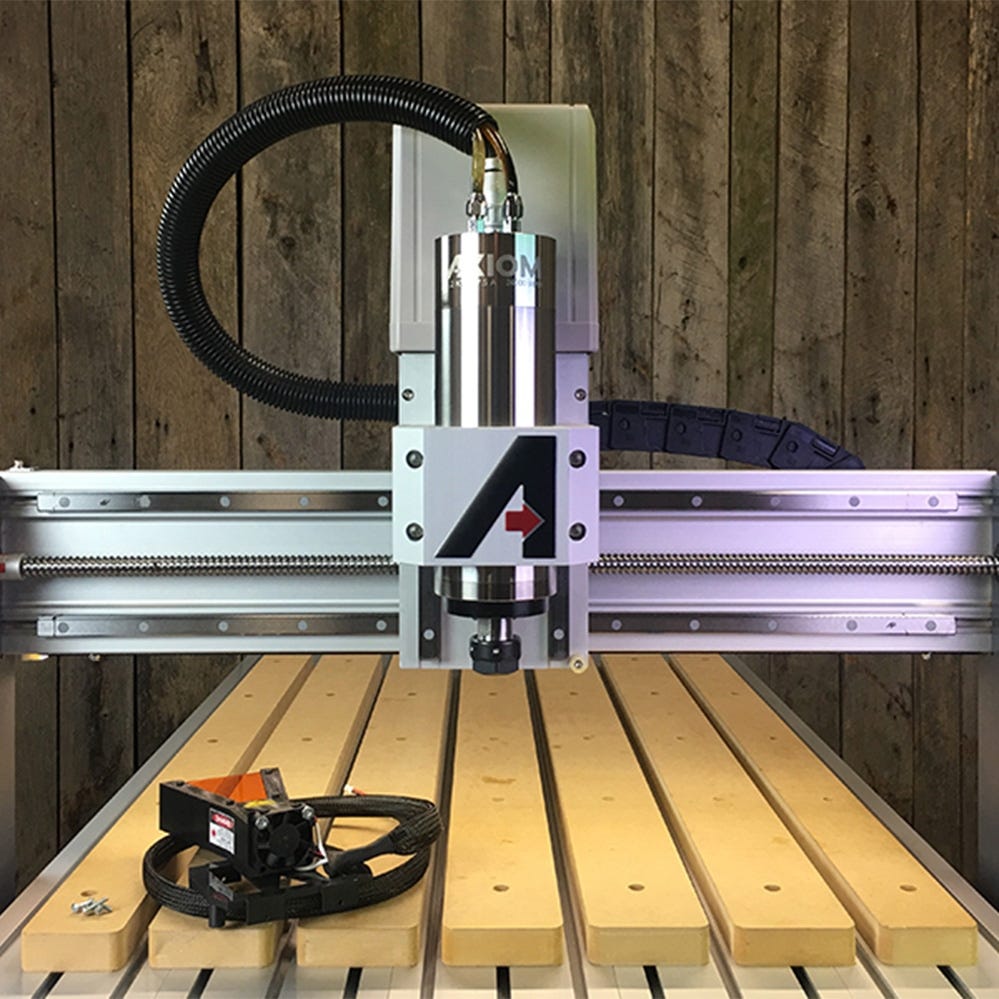

Engrave wood, leather and acrylics, and cut soft, thin materials—compatible with all Axiom Basic, Pro, Pro+ and Elite Series CNCs.

Axiom 4.2W CNC Laser Kit by JTech

Item #
50378
Rating:
54% of 100

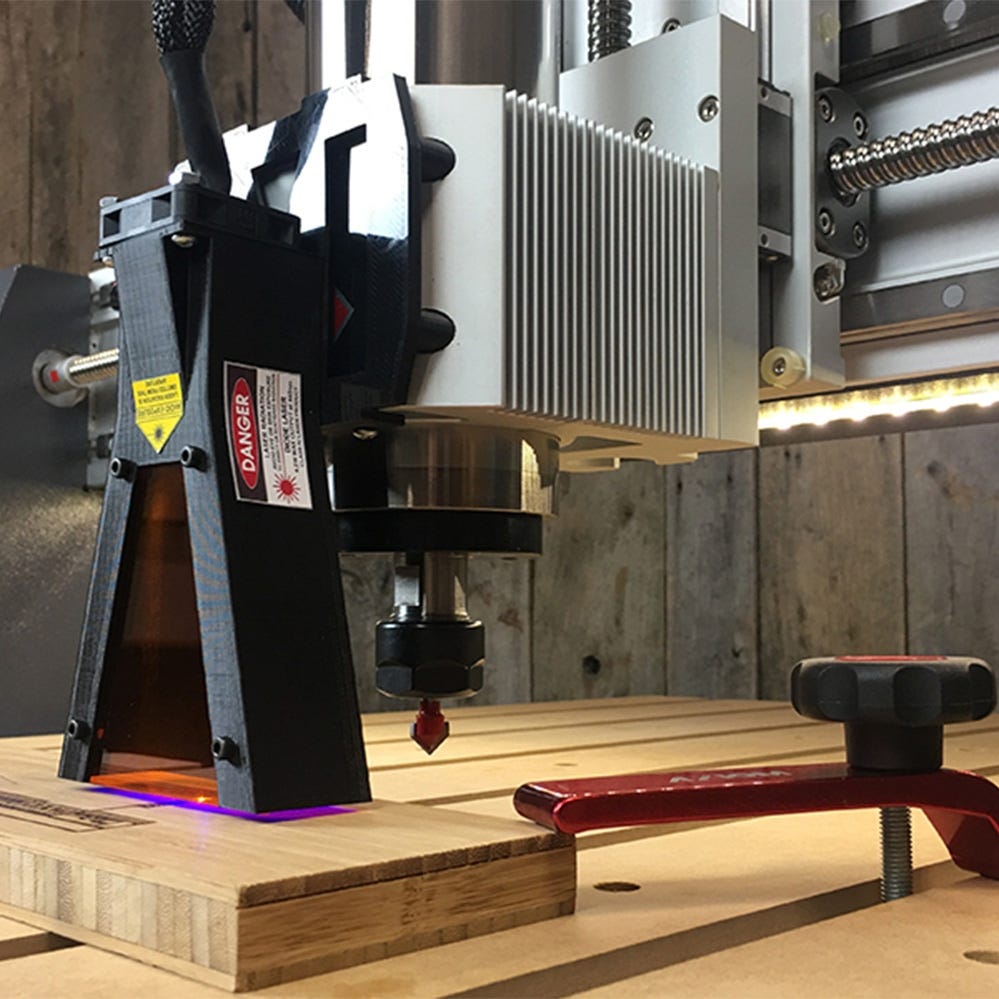

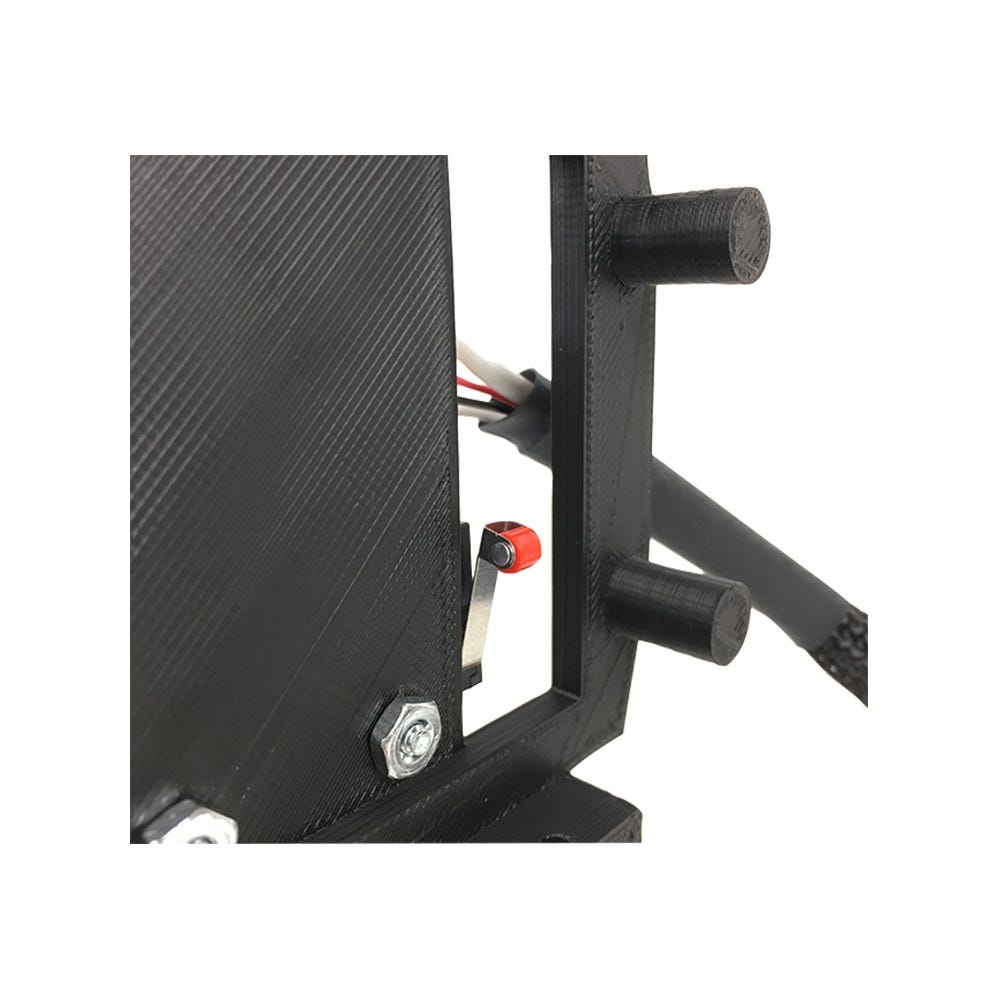

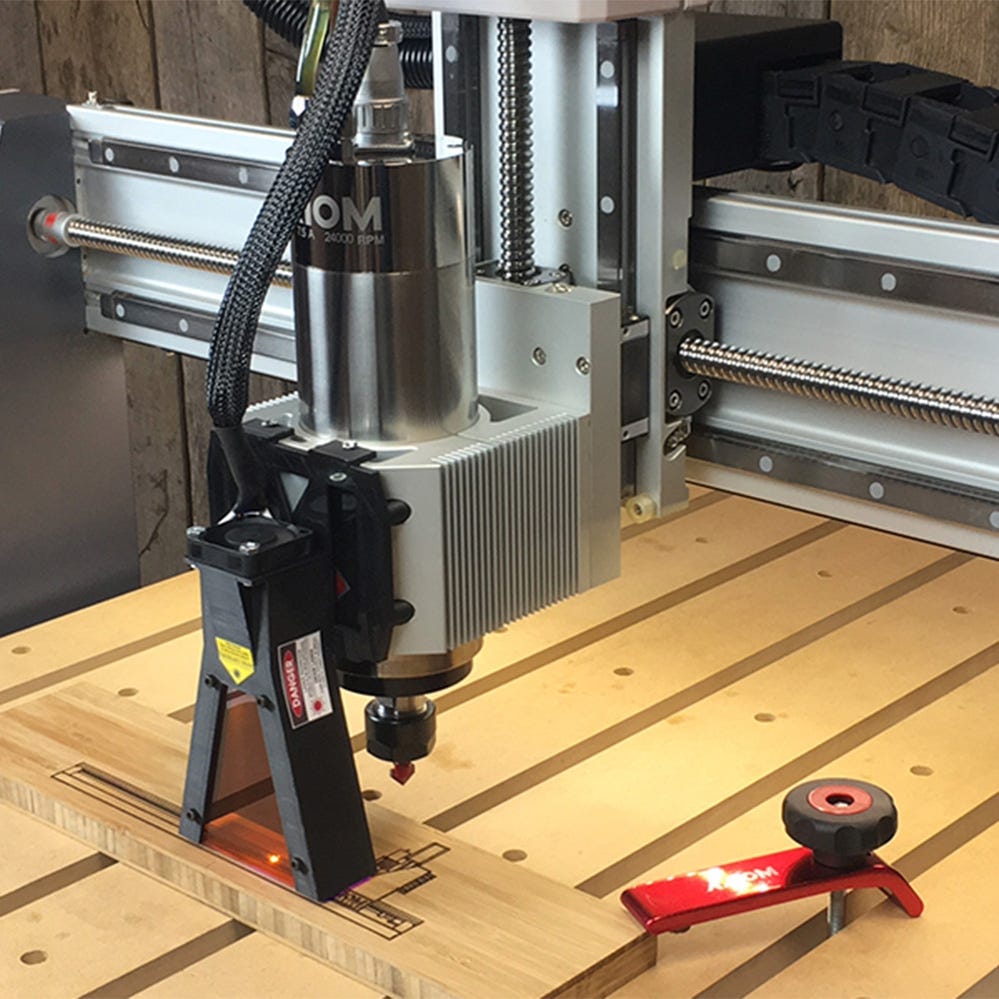

Axiom's laser attachment kit boasts 4.2 watts of power, enough to engrave wood, leather, acrylics, and to cut thin, soft materials like thin balsa and basswood, foam, paper, cloth and acrylics. It is compatible with all Axiom Basic, Pro, Pro+ and Elite Series CNC machines. All necessary components are included, and installation is easily achieved with the included pre-wired connectors; there is no need for soldering. The kit is designed to comply with high powered Class 4 laser regulations. It includes a keyed switch that enables the laser, a safety interlock switch that disables the beam if the laser is removed from the router, power fault protection, which prevents the beam from activating after a power failure, and LED indicators that indicate when the laser is active. Precision laser trimmed regulators provide constant current to the laser. Other features include soft start, current limiting, reverse protection, ESD protection, and thermal shutdown control.


Features:

  • High power 2.5A current source
  • Current range is adjustable in 500ma increments
  • Integrated cooling fan
  • Soft start for diode protection
  • CW mode and input control mode
  • Digitally isolated control input
  • Control from CW to 5KHz
  • Configurable input signal: inverting/non-inverting
  • Multiple connector options for both laser/LED output and control input
  • LED status lights for input laser enabled and laser on
  • There is an additional $10.00 shipping charge for this item.
  • Ships directly from the manufacturer.
  • Estimated Delivery time: 14 days.

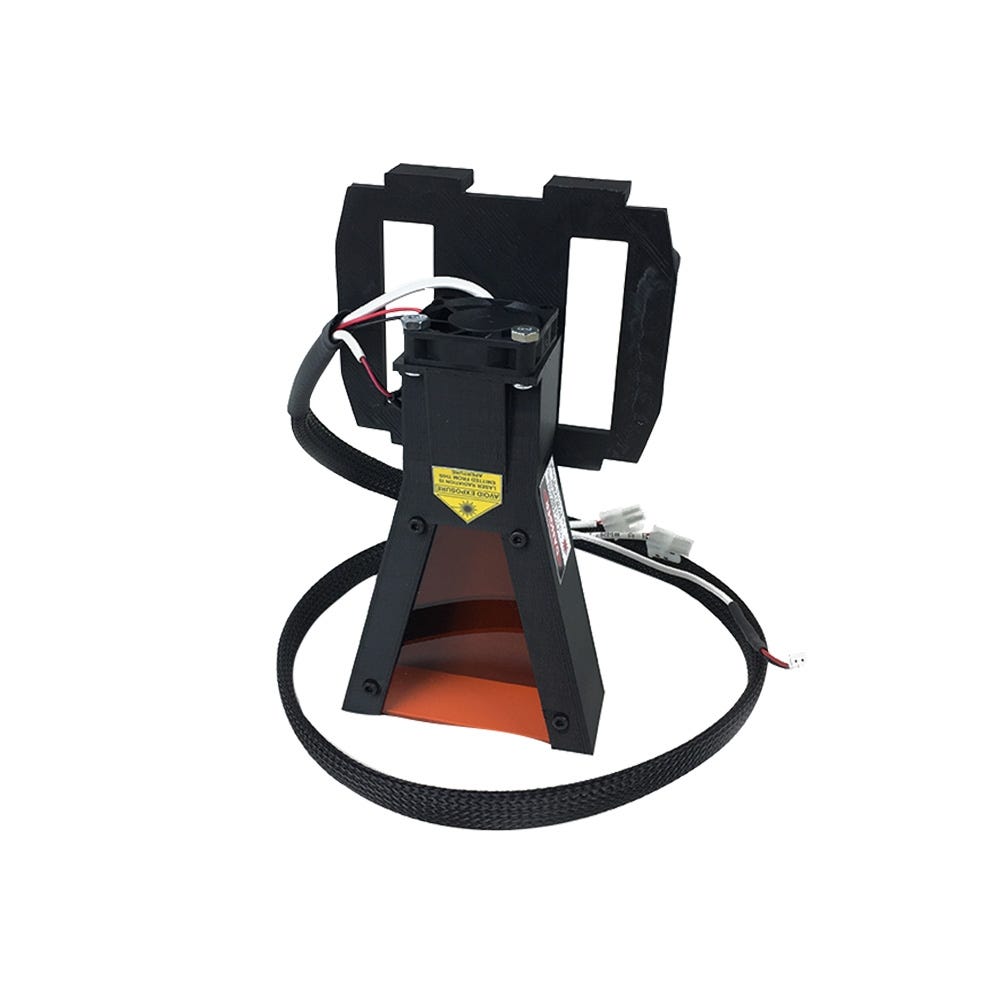

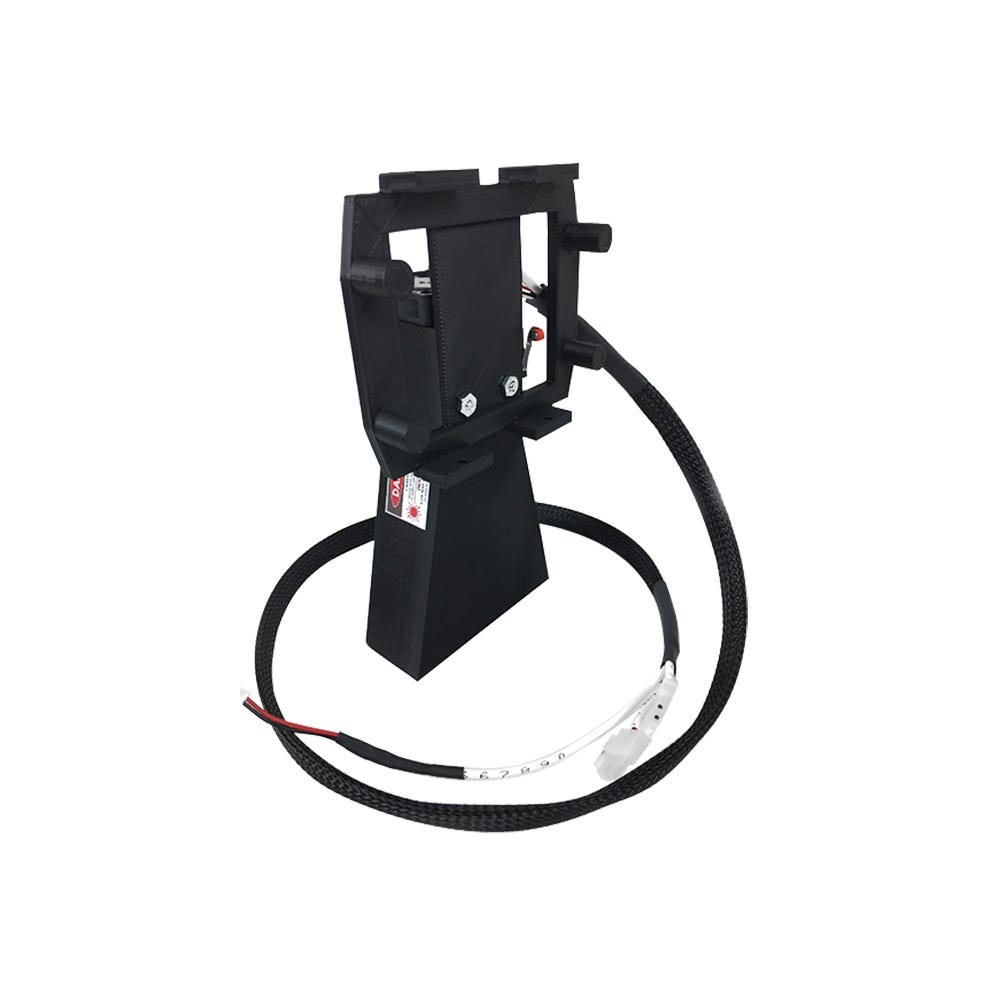

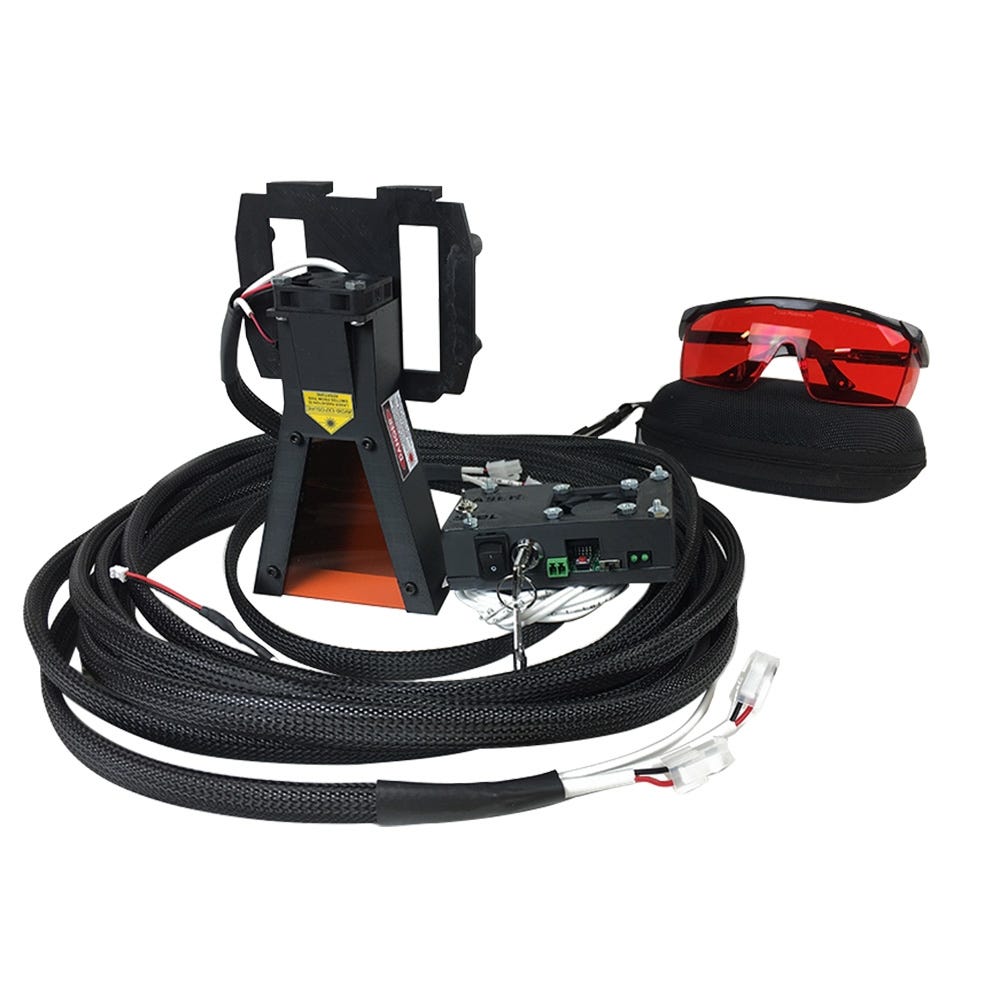

(1) Axiom 4.2W CNC Laser with Custom Protective Housing and Mount

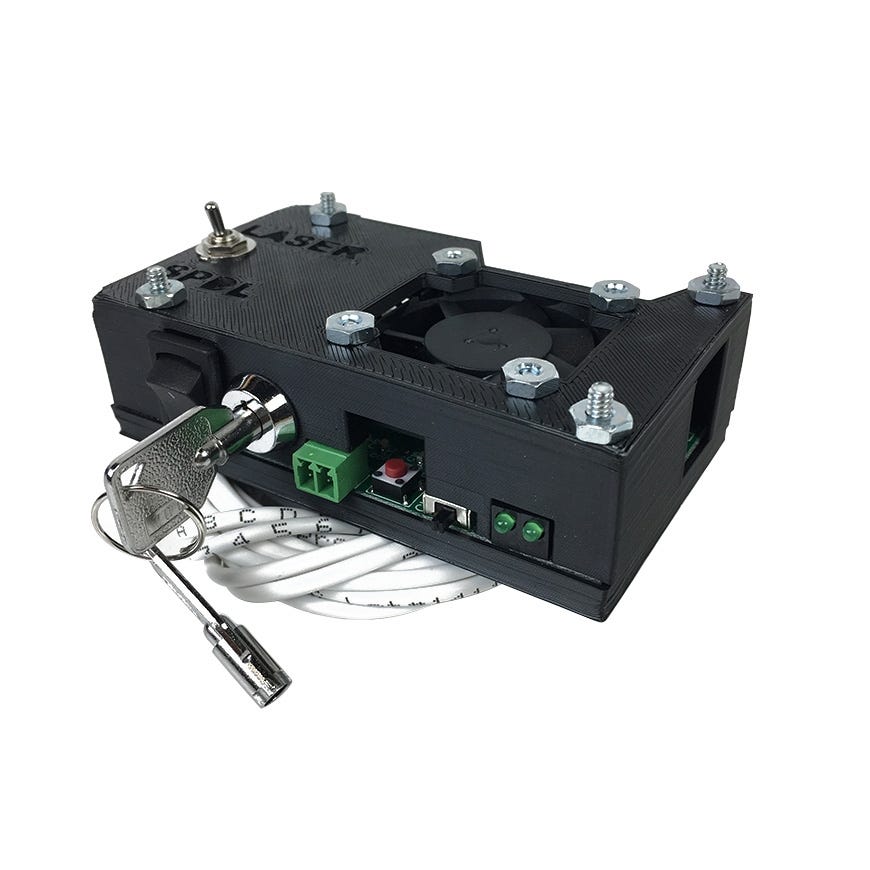

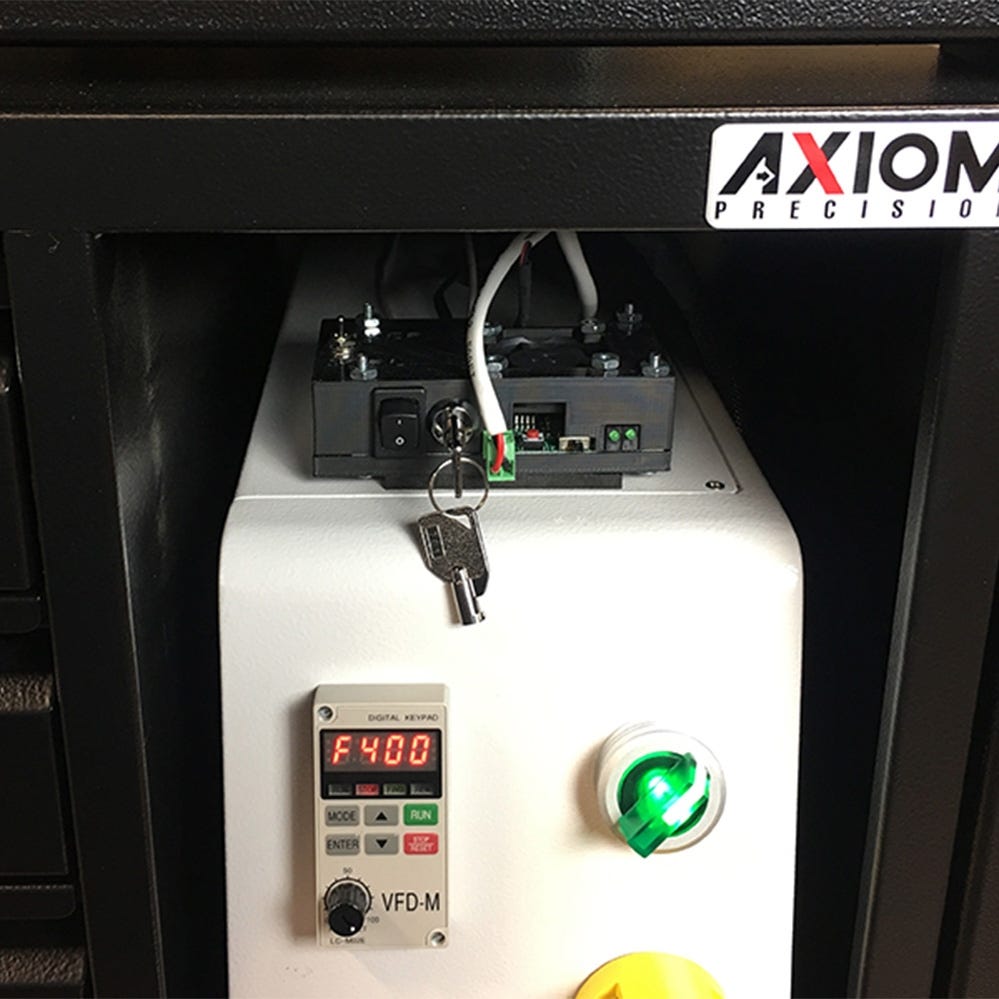

(1) 2.5 Amp Adjustable Safety Compliant Laser Diode Driver with Pre-Wired Connections
(1) 12V 2.5A Power Adapter with US Style Plug
(1) Safety Goggles for 445nm Lasers
(1) Set of Laser Extension Cables
More Information
Brand Axiom
Manufacturer Part Number ALK42
Weight 6.0000
Tech Spec
  • Current Amperage: 2.5A
  • Laser Wattage: 4.2W
  • Current Increments: 500ma
2.7 / 5.0
3 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
0
1
1
0
1
Axiom laser
Great laser for the power. As stated from another reviewer, you cannot make laser pictures with the stock equipment. It can be done, but you have to buy other equipment and its a pain.
November 26, 2018
Woodworking Experience:
Intermediate
Not capable of doing laser photo engraving
In order to engrave photos with a laser, you must have a laser with Pulse-width modulation (PWM), or pulse-duration modulation (PDM) to engrave varying shades of the 256 grayscale required for laser photo engraving. This laser can only engrave at a fixed grayscale shade and therefore can't produce light and dark areas needed in a laser photo engraving. For basic laser engraving at a fixed power output (one shade of gray), this kit works fine.
September 20, 2018
Woodworking Experience:
Intermediate
Great attachment, if you're a hobbyist with low expectations.
This product is great for creating basic, novelty type items. Stuff that you might find at a flea market or swap meet. It is not a robust industrial tool as it does not have very effective cutting power or depth. You get what you pay for.
February 26, 2018
Woodworking Experience:
Advanced
