$999.00 Each
Additional Shipping and Handling Charge: $50
Direct Ship
Operation requires VCarve PRO software (#58150, sold separately).
Ships directly from the manufacturer.
Estimated Delivery time: 10 business days.

Get Expert Advice

Return Policy

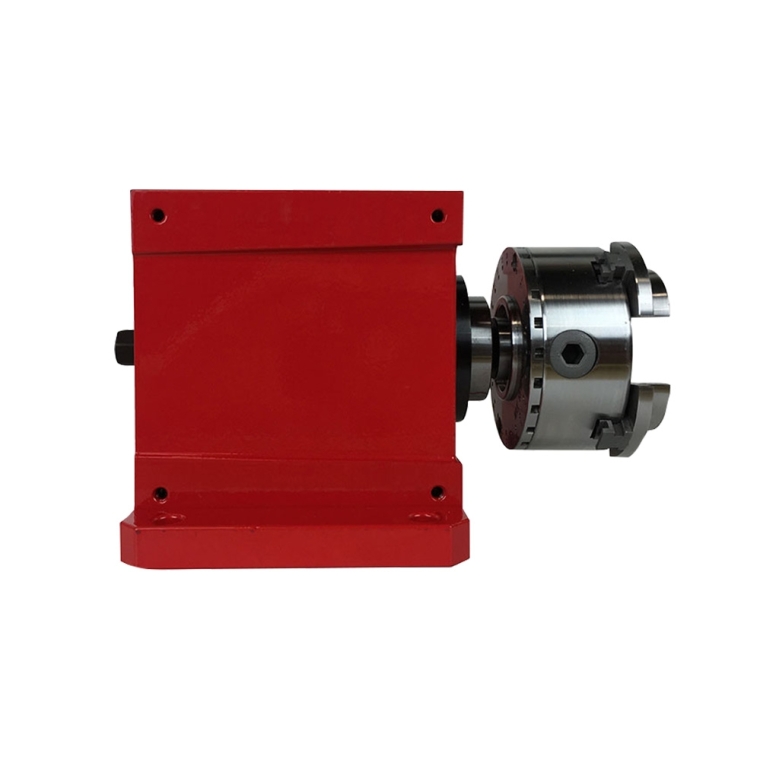

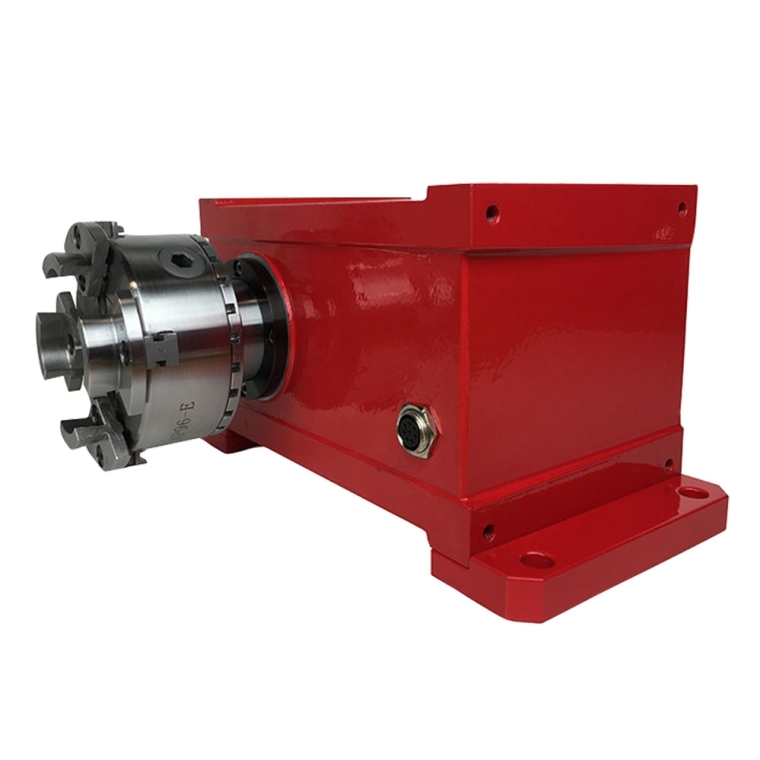

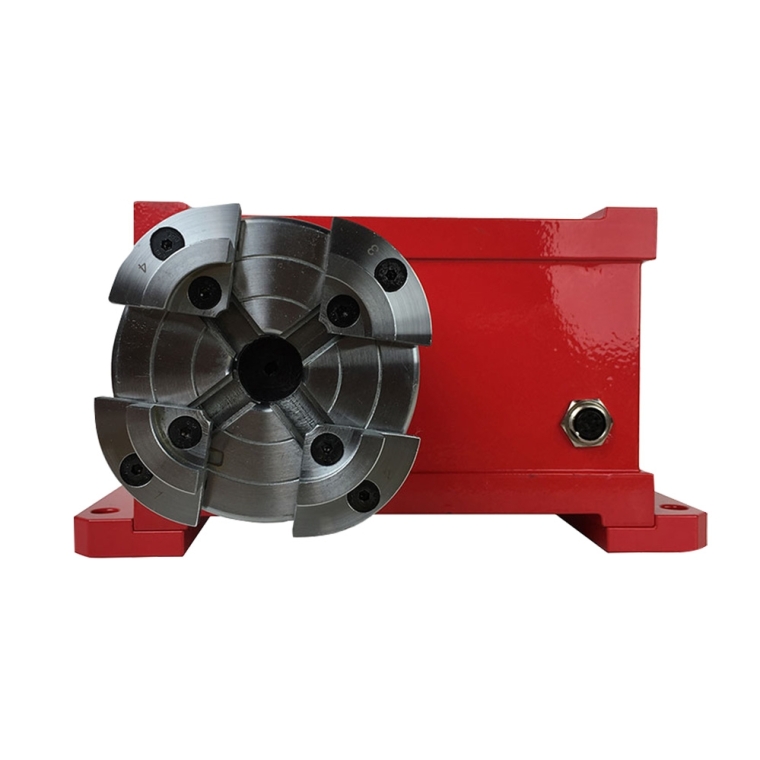

Axiom 4th Axis CNC Rotary Kit

Allows you to machine cylindrical objects with your Axiom CNC (sold separately).
Item #
59591

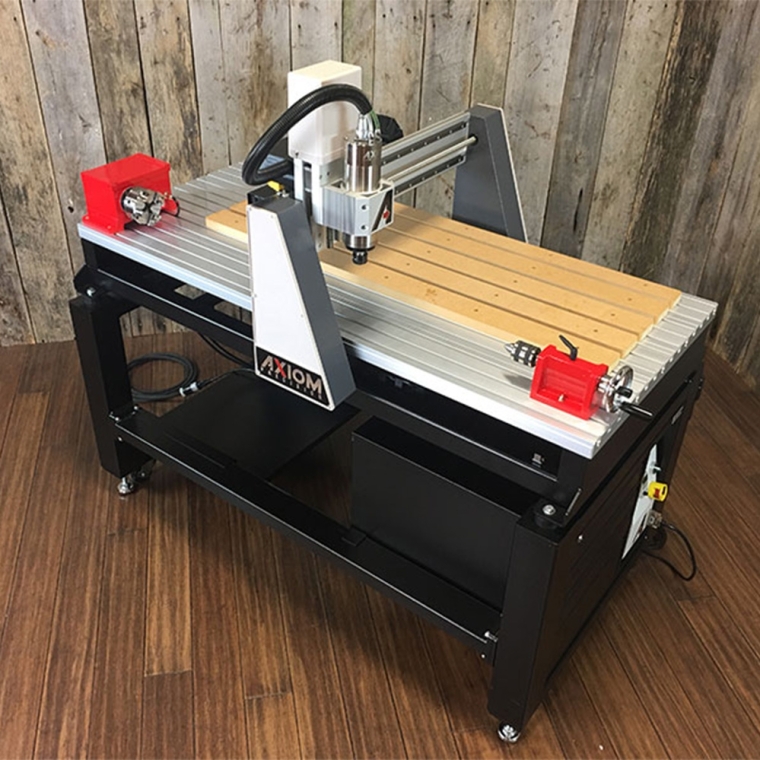

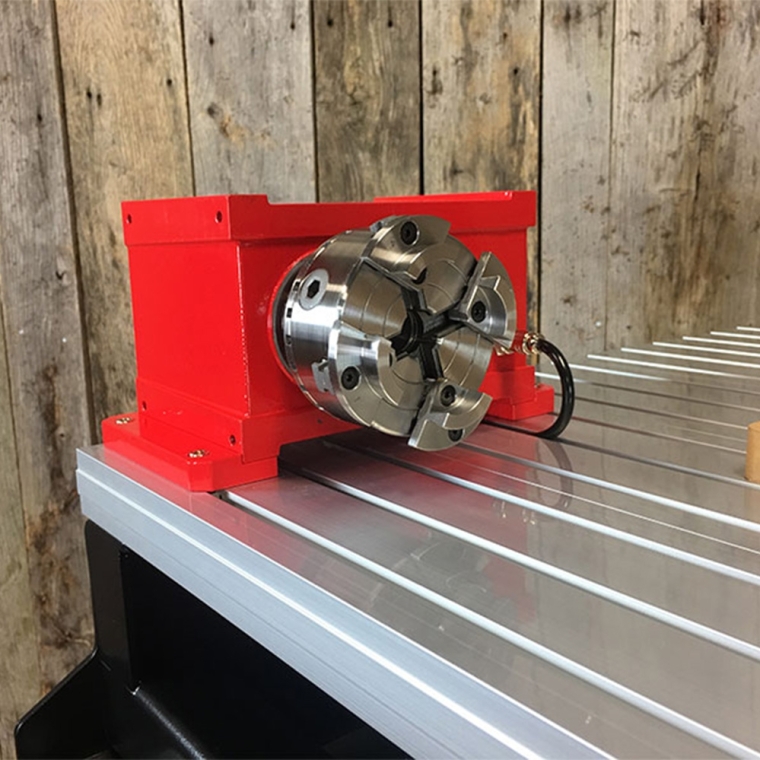

The Axiom ARK360 Rotary attachment is compatible with any Axiom Pro+ or Elite Series CNC machine. Once installed, it allows you to machine cylindrical objects such as wine bottles, glasses and pen turnings. The ability to carve all sides of an object opens up a whole new world of possibilities. The rotary's two-piece design with separate headstock and tailstock lets you take advantage of the entire machining surface of your CNC. Rugged build quality and premium features like a 4-jaw chuck and morse taper live center ensure precision and lasting performance.

(1) Axiom 4th Axis CNC Rotary Kit
More Information
Brand Axiom
Manufacturer Part Number ARK360
Weight 32.0000
Tech Spec
  • Chuck Capacity: 80mm (3.14'')
  • Chuck Diameter: 100mm (3.93'')
  • Diameter of Center Through Hole: 13mm (0.5'')
  • Center Height: 75mm (2.95'')
  • Min. Increment: 0.0023°
  • Overall Height: 140mm (5.51'')
  • Motor Stepper Tailstock with Live Center: Yes
  • 4-Jaw Chuck: Yes (1'' 8TPI)
  • Center Taper: Morse Taper #2
There are no reviews for this item. Write Review
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question and 1 answer
Why did you choose this?
Rockler Store
3D turnings
Edwin S on Jan 13, 2020
3D turnings
Edwin S on Jan 13, 2020
Can this 4th axis be used diagonally ? Thank you
Jeffery M on Mar 16, 2019
BEST ANSWER: This accessory is designed to be mounted parallel to the Y-axis specifically, it would not support or allow for diagonal operation.
