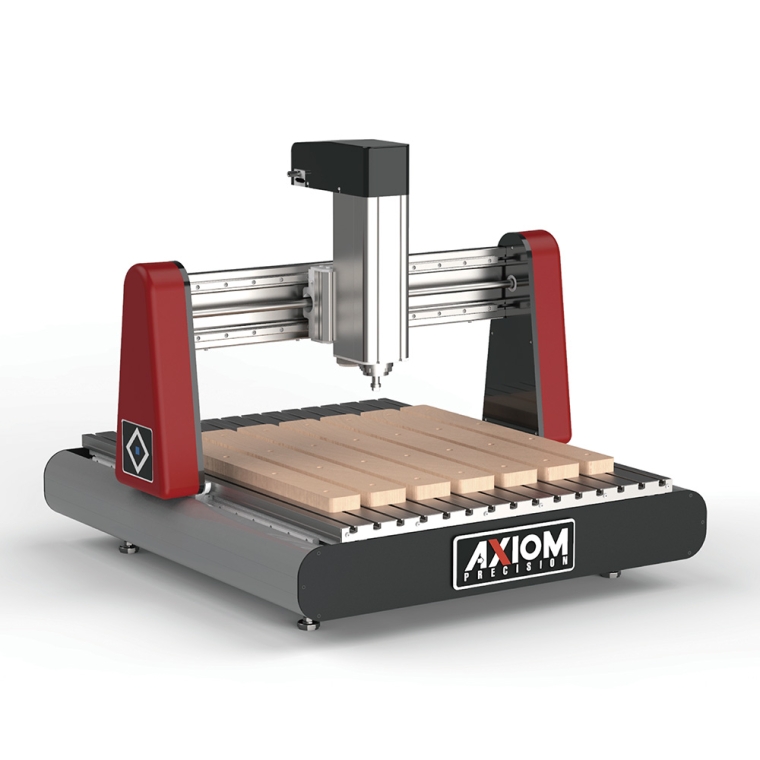

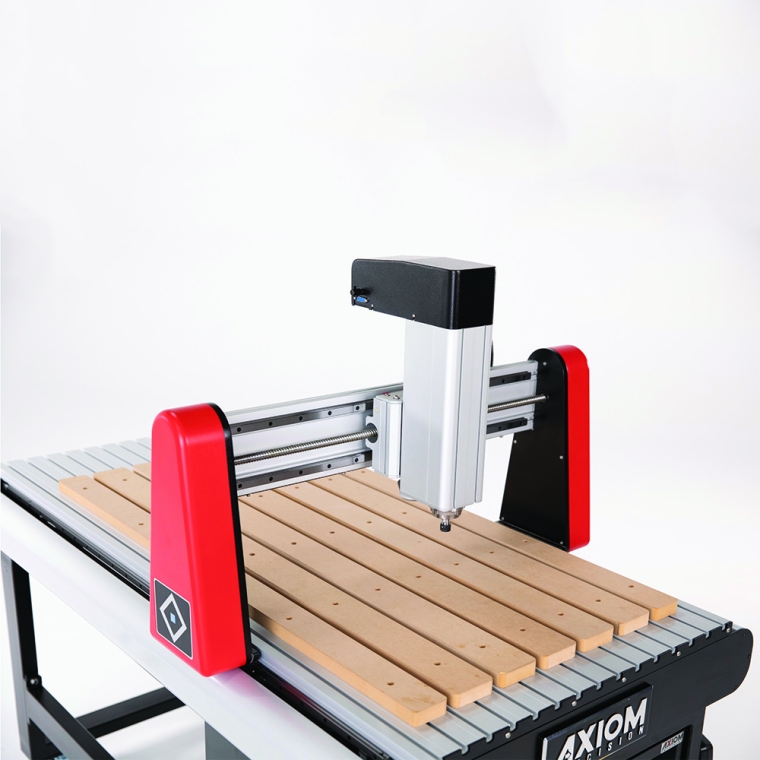

Axiom Iconic 4 CNC Router

Redefines ''entry level'' with an industrial-quality 1.1HP electro-spindle, pendant controller and rigid steel frame—compact yet powerful!

Item #
BCS63241

As low as $4,999.00

Additional Shipping and Handling Charge: $299
Direct Ship
Software is not included with the machine. We recommend the following software depending on your needs: Vetric VCarve Pro Software V10 (Item #58150), Vetric VCarve Desktop Software V10 (Item# 57318), Vetric Aspire V10 (Item# 59990), Vetric Photo VCarve Software (Item# 54822 )
Ships directly from the manufacturer.
Must be shipped within 48 Contiguous United States.
Estimated Vendor Lead Time: 1 week.
20% restocking fee on all returned merchandise.
Please call customer service before returning product.
VCARVE PRO SOFTWARE INCUDED WITH PURCHASE
  • VCARVE PRO SOFTWARE included with Axiom CNC Routers purchased between 6/1/23 – 6/30/23. Rebate shipped automatically direct from Axiom.
$4,999.00   Axiom Iconic 4 CNC Router (63241)

$4,999.00

Summary

    Get Expert Advice

    Return Policy

    The Axiom Iconic CNCs redefine ''entry level'' with industrial-quality components and superior technology. Available in three sizes, the Iconic machines feature a 1.1HP electro-spindle, prismatic guides, ball screws, and the same powerful, yet easy-to-use DSP pendant controller used on the larger Axiom machines. Compact and cost-effective, they represent an ideal entry point to the world of CNC. Supported by a comprehensive manual, video library, lifetime technical support, and a full complement of available accessories, the Iconic series has the potential to dramatically shorten a new user's learning curve.

    Features:

    • 24'' x 24'' x 4'' working envelope (nominal)
    • USB port for easy file transfer (no PC required)

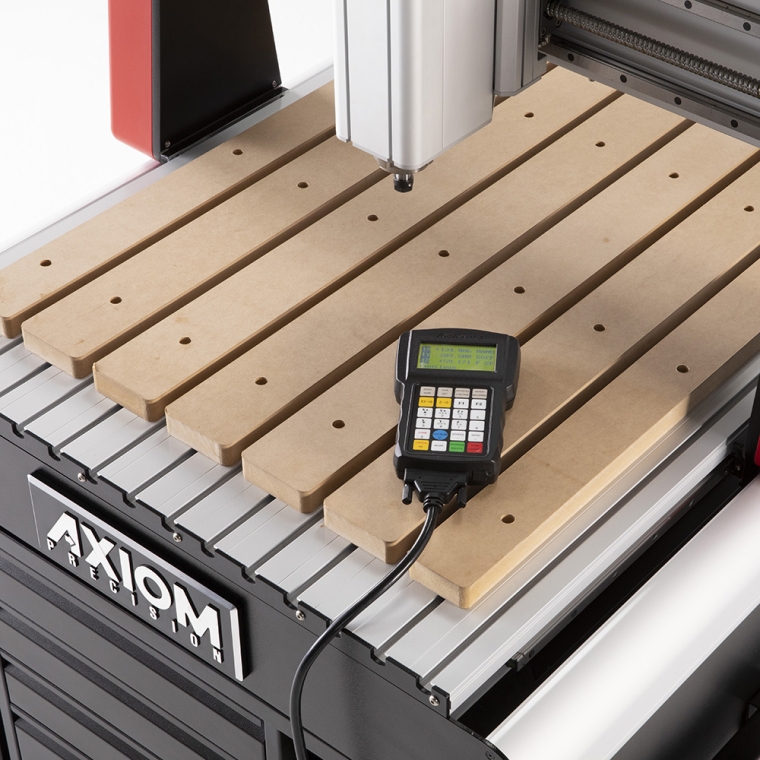

    • Pendant DSP included (no PC required)

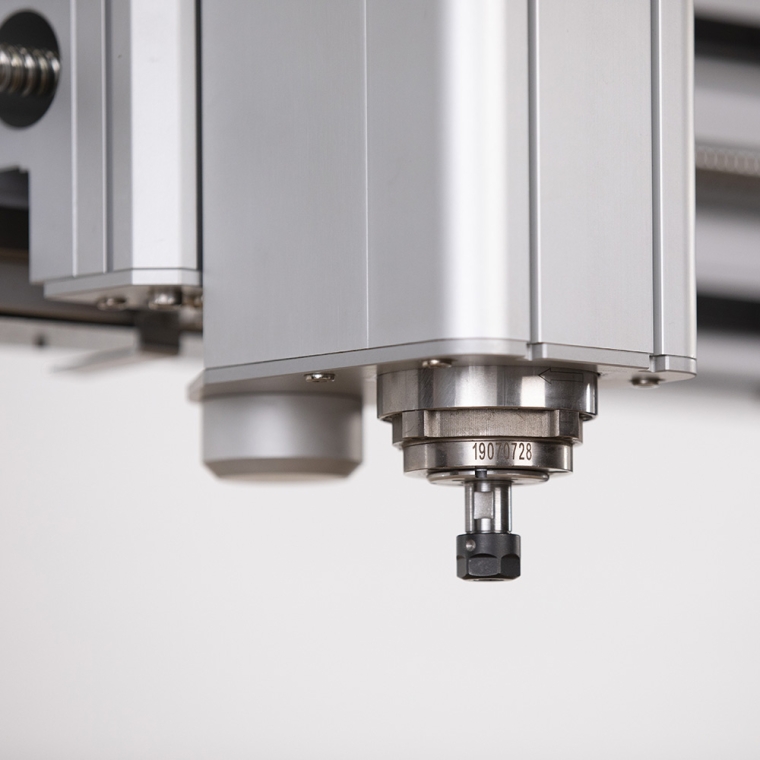

    • 800W (1.1HP) electro spindle included
    • Sacrificial MDF spoilboard

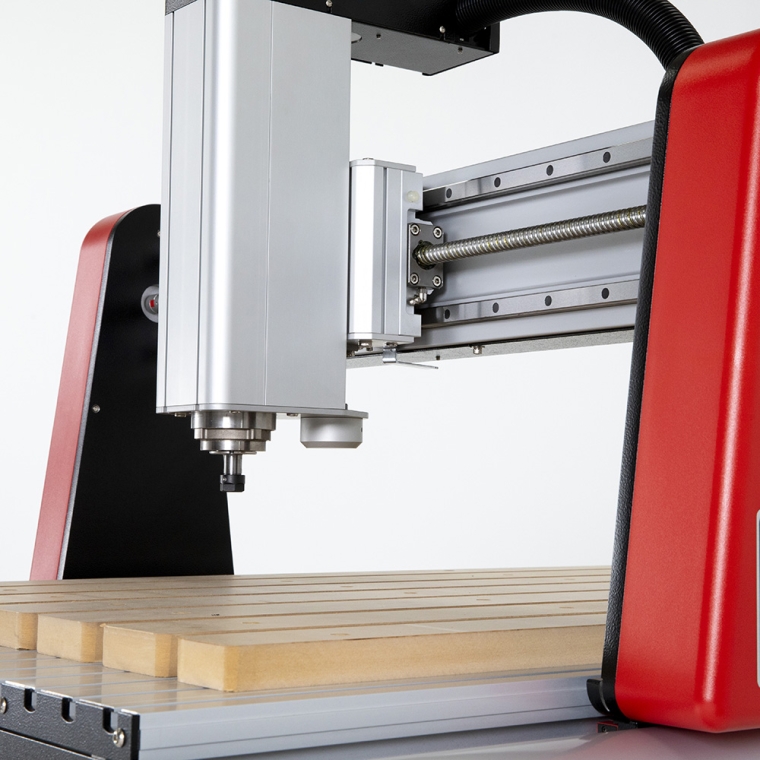

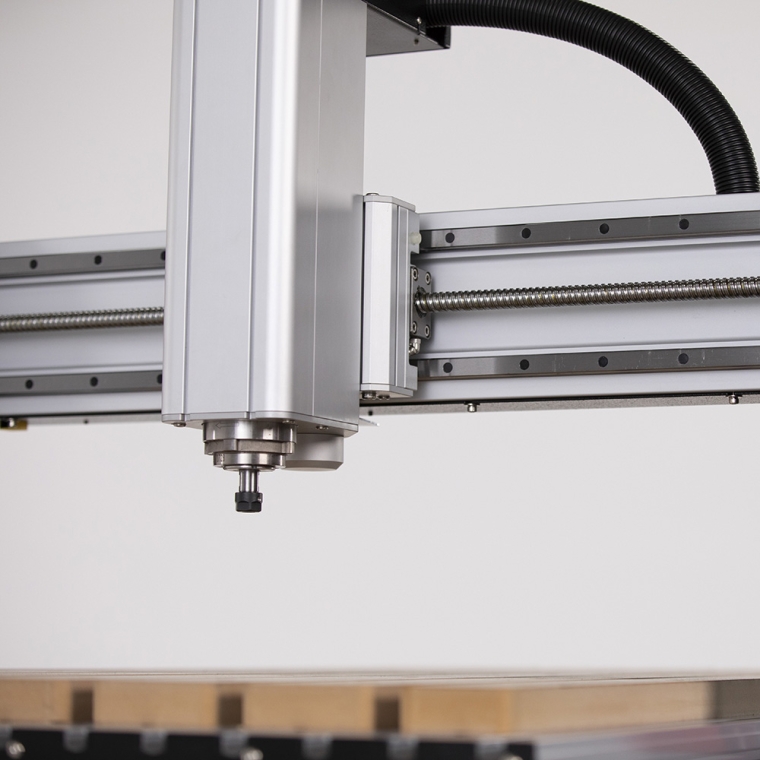

    • Ball screws in all axes
    • Prismatic guides in all axes
    • Magnetic proximity switches
    • Rigid steel frame
    • Robust extruded aluminum T-track table surface

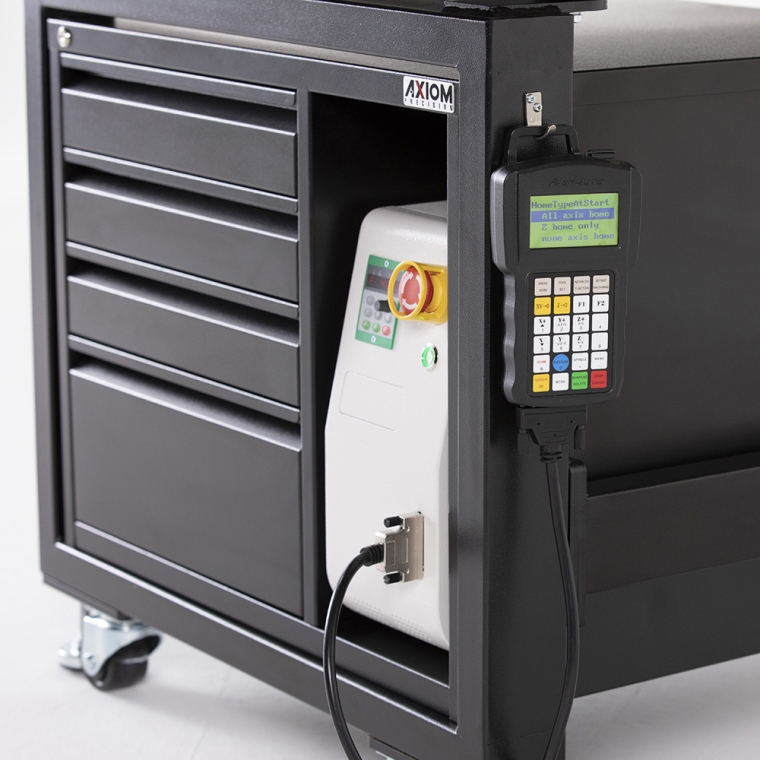

    • Optional stand and tool storage available
    • Lifetime technical support

    (1) Axiom Iconic 4 CNC Router
    (1) Tool touch-off device
    (1) DSP pendant controller
    (1) Electro spindle
    (1) Owner's manual

    Rockler Protection Plan
  • With the Rockler Protection Plan, you'll get accidental damage coverage immediately upon purchase of your tool. Plus, we will extend the manufacturer's warranty for your choice of an additional 1 or 2 years. We'll take care of all parts and labor for any repairs, with no deductibles and no hassles. If your tool can not be repaired, we'll gladly replace it. Available in the US only. Click here to learn more. Standard Manufacturer's Warranty: 12 months
  • More Information
    Brand Axiom
    Manufacturer Part Number ICONIC4
    Tech Spec
    • X-Axis Travel: 23.81'' (605mm)
    • Y-Axis Travel (Iconic-4): 24.01'' (610mm)
    • Z-Axis Travel: 3.937'' (100mm)
    • Table Work Area (Iconic-4): 28.4'' X 37''
    • Electro Spindle: 800W (1HP)
    • Includes Collets: 1/4'' and 1/8''
    • Spindle Speed: 0-24,000 RPM
    • Rapid Feed Rate: 150 IPM (3.81 MPM)
    • Precision Linear Guideway: X/Y/Z
    • Precision Ball Screw: X/Y/Z
    • Ball Screw Diameter: 16mm
    • Positional Accuracy: +/- .00589'' (0.15mm)

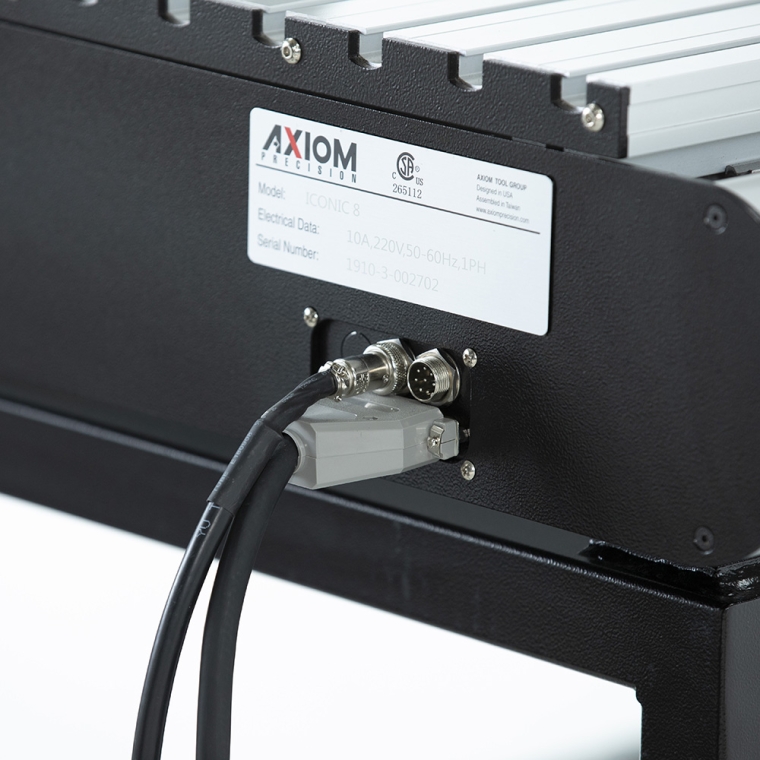

    • Power Requirements: 115V, 50~60Hz, 13A, 1-Phase
    • Working Table: High Rigidity Aluminum Extrusion

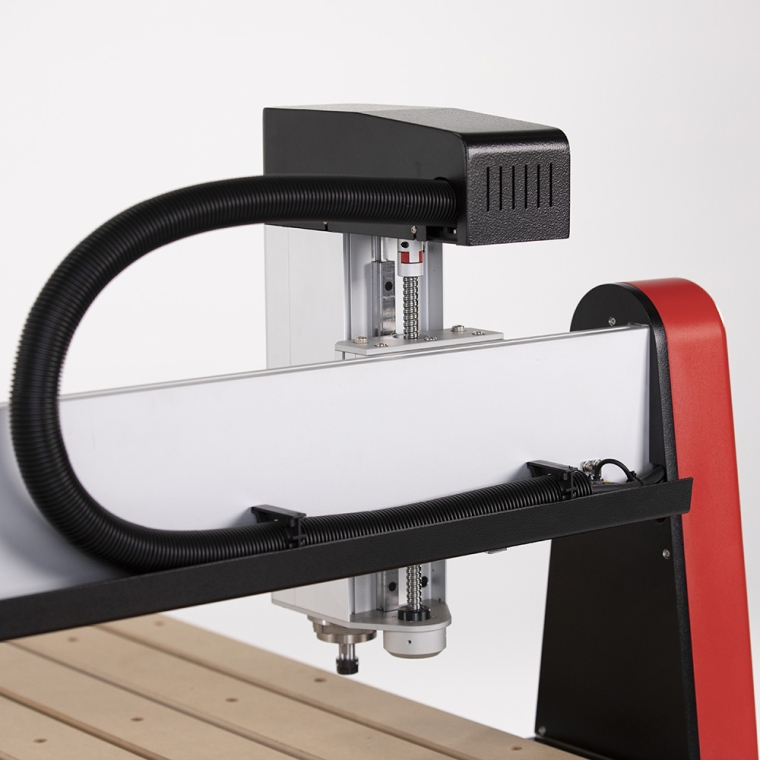

    • Gantry Bridge: High Rigidity Aluminum Extrusion
    • Gantry Supports: Aluminum Billet Machined
    • Max Gantry Clearance: 5 1/2'' (139.0mm)
    • Gantry Clearance Above Spoil Boards: 4-1/2'' (114.3mm)
    • Machine Base: All Welded Steel Frame
    • Machine Dimensions (Iconic-4): 38''L X 35''W X 28''H
    • Machine Weight (Iconic-4): 176 lbs
    • Tool Touch Off: Included
    • Controller: RichAuto B11 DSP
