Axiom Lateral Clamp Kit

The Axiom AHC109 Lateral Clamp Kit provides a low-profile, obstruction-free way of securing your work to the table of your Axiom CNC Router.

Item #
$99.00 ea
Direct Ship - Estimated Ship Date: 10/04/2023

Get Expert Advice

Return Policy

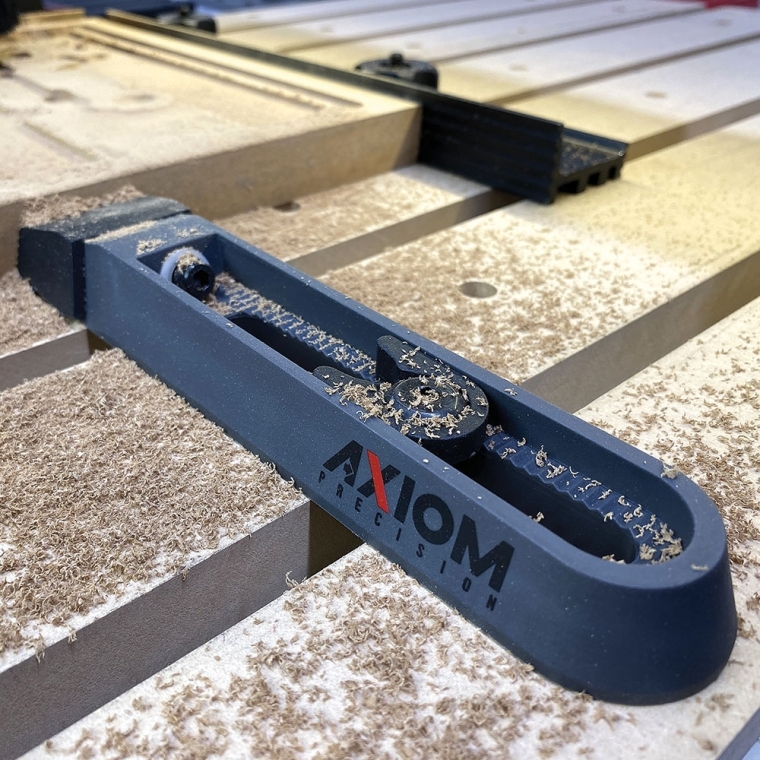

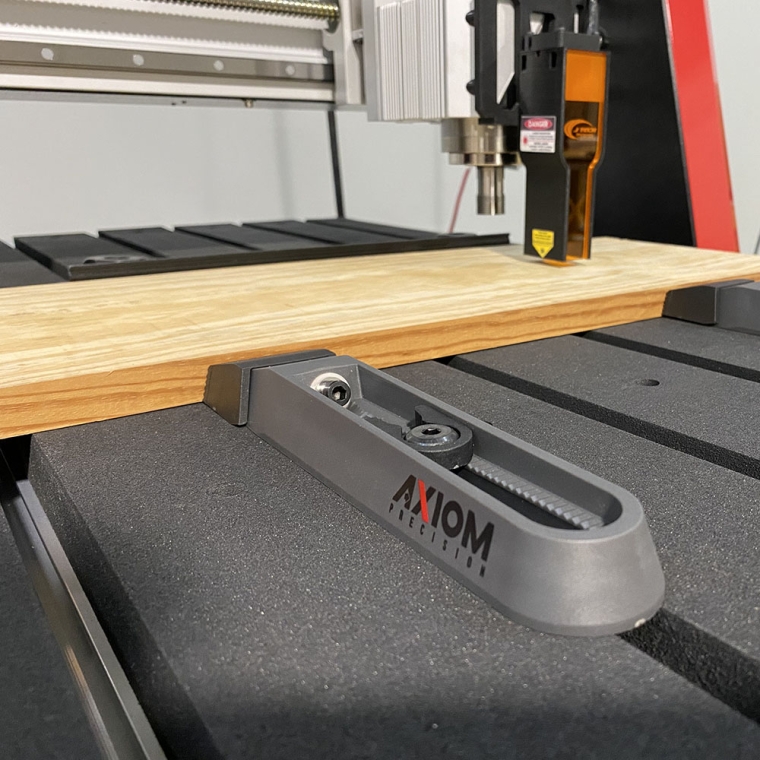

The Axiom AHC109 Axiom Lateral Clamp secures your work with sideways pressure, eliminating the obstruction of traditional hold-down clamps on the top surface of your work. The kit includes two fences, and two low-profile clamps, which exert sideways pressure, pushing your work against the two fences. Each clamp also includes two foot types: one standard, and one soft rubber, which compresses to form to curved edges, and also provides additional clearance for the bit at the edge. The clamps offer immense holding power without marring the edge of your workpiece.

Axiom Lateral Hold Down Clamp Kit Details:

  • The perfect solution for fast, secure, repeatable clamping operations without obstructions on the top face

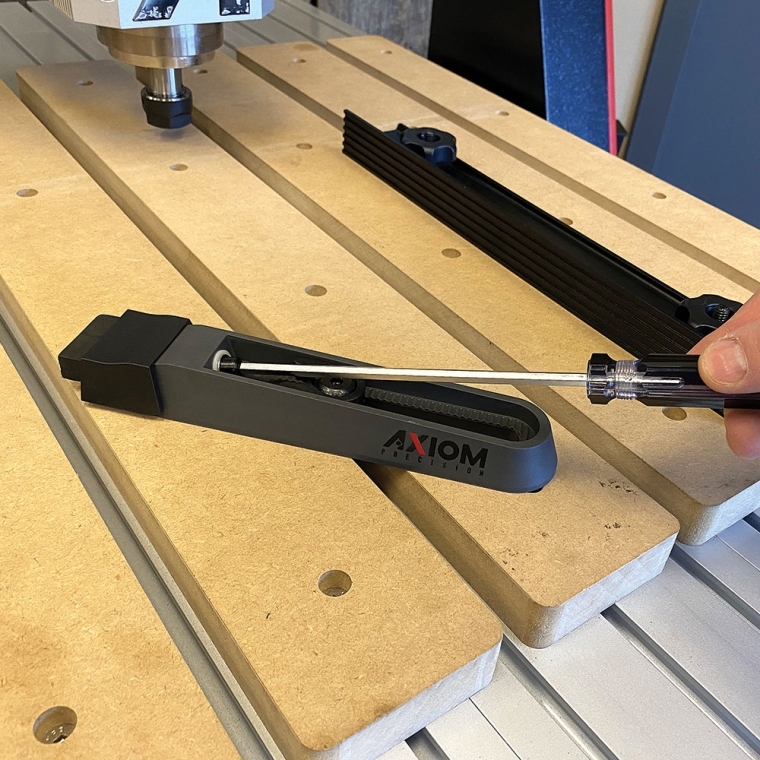

  • Clamp body is made from glass-filled resin and features 3/8'' clamping travel with the hex key operated screw
  • Clamps measure 7-1/4'' x 1-1/2'' x 1'' tall
  • Fences are made from extruded aluminum with pebble-texture and anodizing
  • Fences measure 14'' x 2'' with option of 1/2'' or 1-1/4'' height
  • Designed specifically to fit the integrated T-slots on all Axiom Precision CNC machines

Axiom Lateral Clamp Kit
(2) Lateral clamps
(2) Serrated clamp tips
(2) Non-marring EVA rubber clamp tips
(2) Dual-height extruded fences
(1) Hex driver for tightening

More Information
Brand Axiom
Manufacturer Part Number AHC109
Weight 3.000000
Tech Spec
  • Brand: Axiom
  • Manufacturer Part Number: AHC109
  • Clamp Dimensions: 7-1/4'' x 1-1/2'' x 1'' tall
  • Fence Material: Extruded aluminum with pebble-texture and anodizing
  • Fence Dimensions: 14'' x 2'' with option of 1/2'' or 1-1/4'' height
  • Clamp Body Material: Glass-filled resin
  • Clamp Screw Travel: 3/8''
