Rockler Circle/Grommet Templates

Transparent acrylic with fine cross-hairs on each hole makes it easy to align the template with your pencil marks. Includes 13 circle sizes and two oval sizes.
Item #
34499
Rating:
88% of 100

No more rummaging through a stack of templates for the right size, this package combines the most common grommet sizes into two templates. Each size is clearly labeled for quick identification. Transparent acrylic with fine cross-hairs on each hole makes it easy to align the template with your pencil marks. Use with the 5/8" Short-Shank Guide Bushing, which is specially designed for 1/4" template stock.

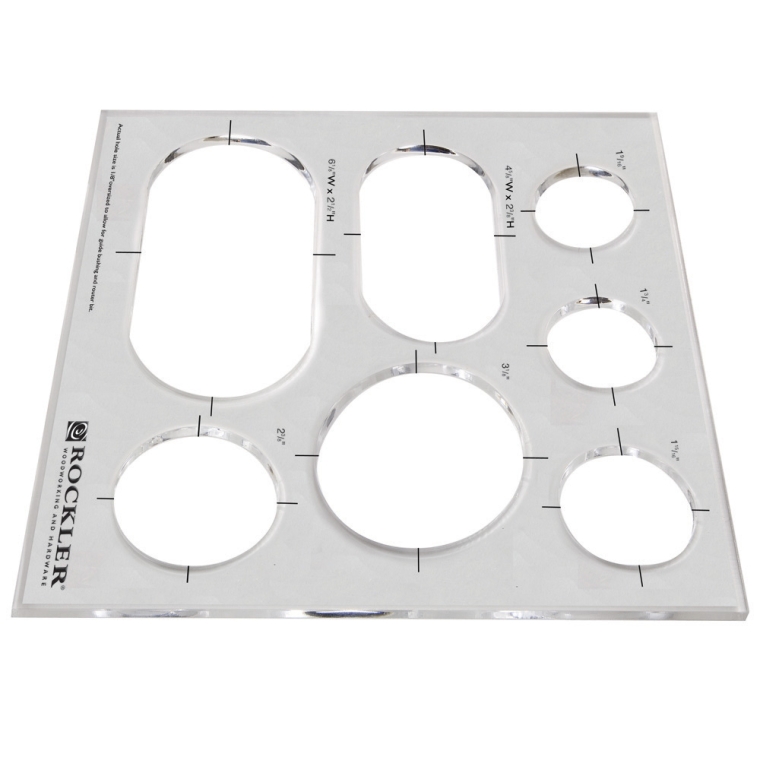

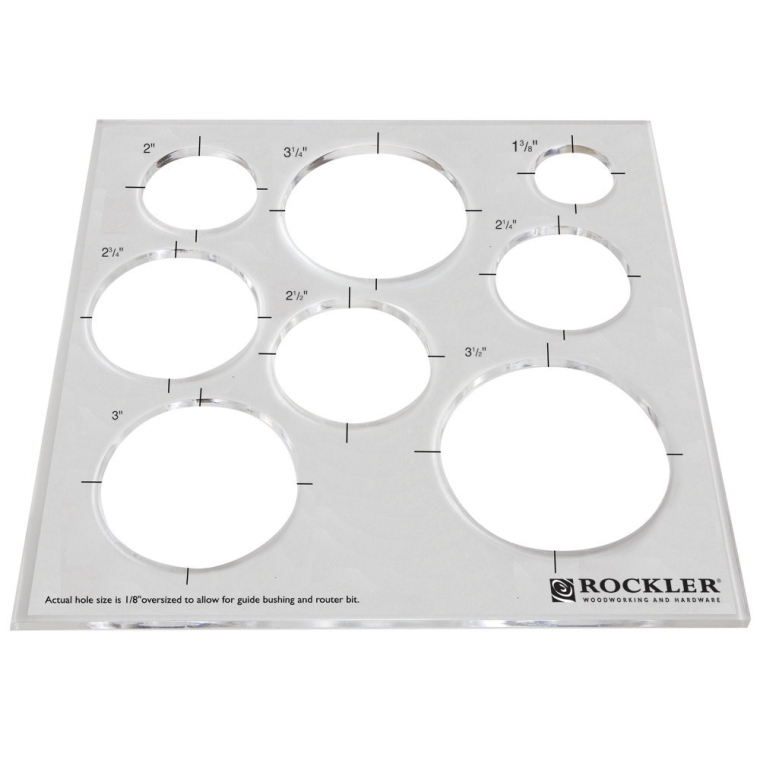

The template holes are 1/8'' larger than thee finished size to allow for a guide bushing. The finishes circle sizes are: 3-1/2", 3-1/4", 3-1/8", 3", 2-3/4", 2-1/2", 2-3/8", 2-1/4", 2", 1-15/16", 1-3/4", 1-9/16" and 1-3/8". Finishes oval sizes are: 2-1/2" x 6-1/8" and 2-3/8" x 4-5/8".

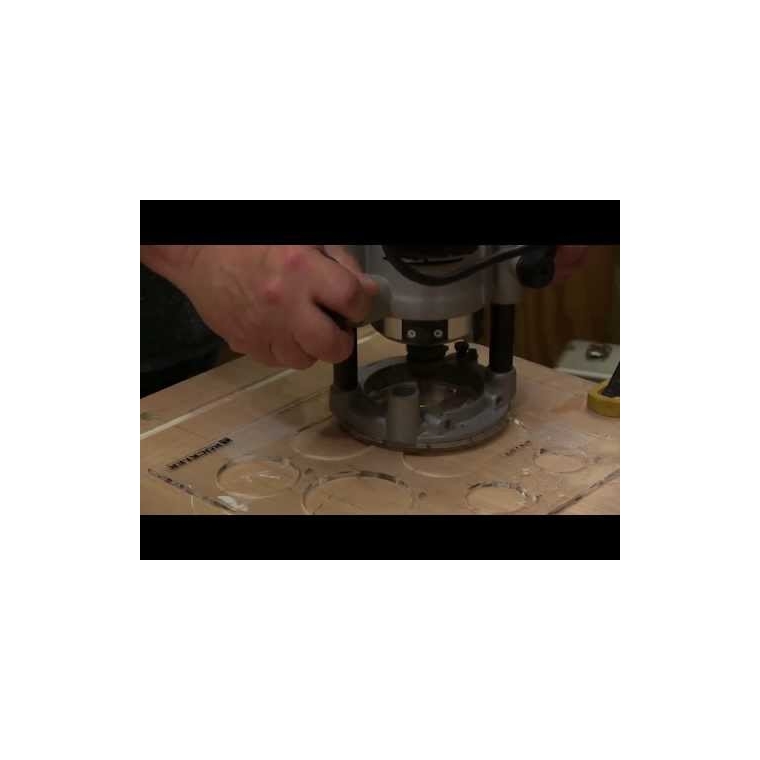

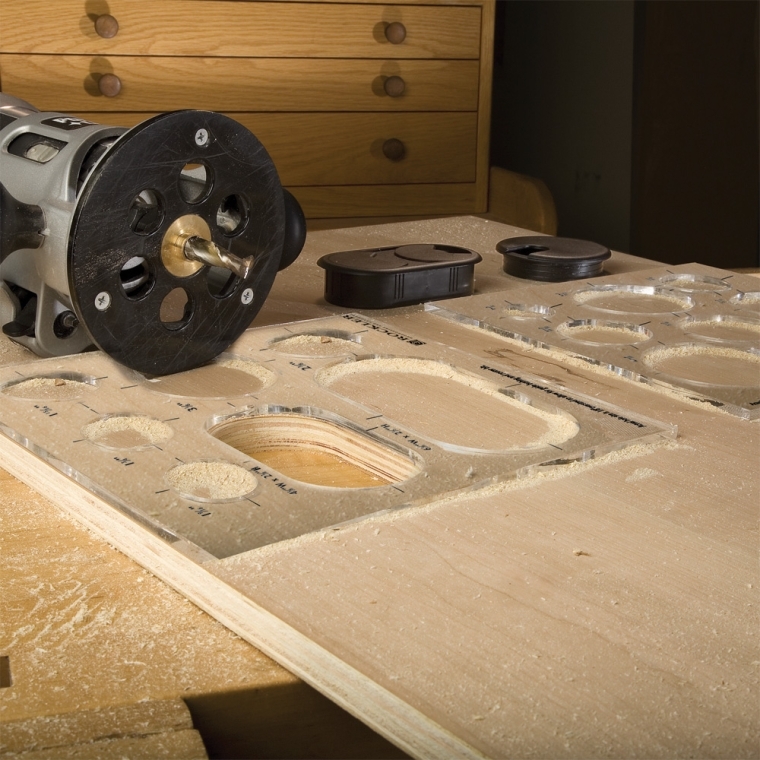

These templates can easily be attached to your piece / surface using double-sided tape. For a firm hold you can also countersink some holes and screw the template to the work-piece. This is designed for use with a 5/8'' short-shank guide bushing and a 1/2'' spiral up-cut bit but other bits may be used for alternative results.


The variety of circle / oval sizes makes these templates ideal for grommets, inlays and general tracing for other projects.

(2) Acrylic Circle Template Sheets
More Information
Brand Rockler
Weight 1.5000
Tech Spec
  • Template Dimension: 10-7/8'' Square
  • Material: Acrylic
  • Finish: Clear
  • Template thickness: 1/4''
  • Oval holes fit oval grommets (91372 and 22899)
Type Circle
4.4 / 5.0
23 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
14
5
3
1
0
These have been great and weirdly useful for lots of projects I had sitting around.
January 25, 2020
Purchased
3 months ago
Woodworking Experience:
Intermediate
Worked very well
The template was spot on. Very easy to use. Previously I used a Forstner bit. This is much cleaner.
January 3, 2020
Purchased
3 months ago
Woodworking Experience:
Intermediate
excellent
worked perfectly as a circle template when applied correctly using double sided tape.
January 2, 2020
Purchased
3 months ago
Woodworking Experience:
Intermediate
very good nice
November 21, 2019
Purchased
over 3 years ago
Woodworking Experience:
Advanced
Sorry but I haven’t used them yet—however I have been looking for something like this
May 4, 2019
Purchased
11 months ago
Woodworking Experience:
Advanced
A good template enabling you to make accurate inlays and holes for grommets saves a lot of time. Well worth the investment.
April 11, 2019
Purchased
1 year ago
Woodworking Experience:
Advanced
Fantastic.
It has saved me a ton of time by having all templates on one plate. It has allowed me to clean out my template drawer and free up valuable space.
January 5, 2019
Purchased
1 year ago
Good template
October 16, 2018
Purchased
1 year ago
Woodworking Experience:
Beginner
Works just as expected. A little pricey but worth it if you have a need.
April 19, 2017
Purchased
over 2 years ago
Woodworking Experience:
Intermediate
When that Forstner bit just isn't enough
I have made a number of projects which included large openings such as in boxes where I was using large Forstner bits. They would bog down with my drill press and ended out making a rather ugly hole that needed a lot of sanding to clean up. This will enable me to make much cleaner openings for my projects. It will also be faster.
March 8, 2017
Purchased
over 3 years ago
Woodworking Experience:
Intermediate
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 3 questions Browse 3 questions and 40 answers
Why did you choose this?
Rockler Store
I chose these templates to support the placement of the grommets I'm going to be using in the fabrication of my patio drapes.
SHEILA E on Mar 12, 2020
Need for project
James B on Dec 23, 2019
I chose these templates to support the placement of the grommets I'm going to be using in the fabrication of my patio drapes.
SHEILA E on Mar 12, 2020
Future project
pedro m on Feb 16, 2020
Need for project
James B on Dec 23, 2019
I’m always searching for the right size circle to trace, from cups to cans, this will make it a lot easier.
Mike P on May 1, 2019
To help install an Inlay madalion.
Glenn B on Apr 19, 2019
planning to make wood clocks with quartz movement 3"
Thomas H on Feb 14, 2019
To make salt cellars
Kim on Jan 6, 2019
I need one
Adrian L on Nov 28, 2018
Easiest way to route small circular recesses for cups, etc.
David M on Jul 3, 2018
Fly Fishing gear closet
Charles R. F on Jun 18, 2018
Need to cut some perfect circles with my router
Greg C on Dec 11, 2017
Need to cut clean circles with my router.
Jason F on Oct 22, 2017
I have always wanted this sort of acrylic guide
Mike M on Apr 17, 2017
Perfect tool and easier than making my own. I like efficiency
Robert C on Feb 25, 2017
To use with a pattern bit for small dish projects...
Wally H on Jan 31, 2017
It was on the wood whisperer
James K on Dec 11, 2016
needed to make perfect circles and oblongs
Paul on Dec 2, 2016
Worked perfect for circles and a router. I wish that the company would come out with a series of ovals. I had a project that needed a 1/2" oval. Cutting it out with a jig saw/ scroll saw was almost impossible.
David L on Sep 18, 2016
to use as template for grommet
Steve J on Sep 14, 2016
Needed it.
Chris K on Sep 13, 2016
Needed for project
Richard G on Sep 1, 2016
I need it for a project.
Wirepusher on Jun 22, 2016
useful jig, works great with the routers
Santandres on Jun 11, 2016
Saw it on Wood Whisperer and needed it so rushed right out and bought it.
PHILIP S on May 14, 2016
From Wood Whisperer
Chelsey O'Brien G on May 3, 2016
building clocks
Kevin S on Apr 29, 2016
As seen in use by The Wood Whisperer for making a keepsake box, I know it will be handy and helpful.
Robin L H on Apr 21, 2016
I saw the temple on a Wood working video
John B on Apr 21, 2016
plan on making circles in future
Tom R on Mar 2, 2016
Saw it on the wood whisperer video podcast #237.
Jim K on Feb 20, 2016
Never saw it anywhere else.
Richard S on Jan 4, 2016
This is an alternative to using the drill press.
Don on Oct 11, 2015
I needed a 1/4" acrylic template to cut a recess in some jewelry boxes!
Brandon G on Sep 3, 2015
The wood whisperer
Michael R on Jul 27, 2015
Saw them on the Wood whisperer and thought it was a great idea, it is!
Joseph T on May 15, 2015
Plexiglass templates are the only way to go with a router.
Robert on May 13, 2015
To make my hole cutting with router easier/
William M on Apr 18, 2015
Future project
pedro m on Feb 16, 2020
I’m always searching for the right size circle to trace, from cups to cans, this will make it a lot easier.
Mike P on May 1, 2019
I need to make recessed holes frequently and my biggest forstner bit is 2 in. If i set this to only go through about 1/4 inch, it should be fine, right? and I could clean up the rest of the hole with the same bit?
christy h on Aug 23, 2017
BEST ANSWER: Yes, these templates and the included bushing would work well for this purpose.
How much to send to England please?
A shopper on May 26, 2015
BEST ANSWER: We do not have any locations outside the U.S. however you would be able to order on our website www.rockler.com

Shipping options and costs will be displayed in the on-line checkout based on the items ordered and your complete address. You will not need to submit the order to view these, however you will need to add the items to your cart and then go into checkout to enter your address info.

We regret that we will not be able to calculate any duties, taxes or brokerage fees that may be due at your end upon delivery of a shipment.
