In stock
Grouped product items
Product Name Price Qty

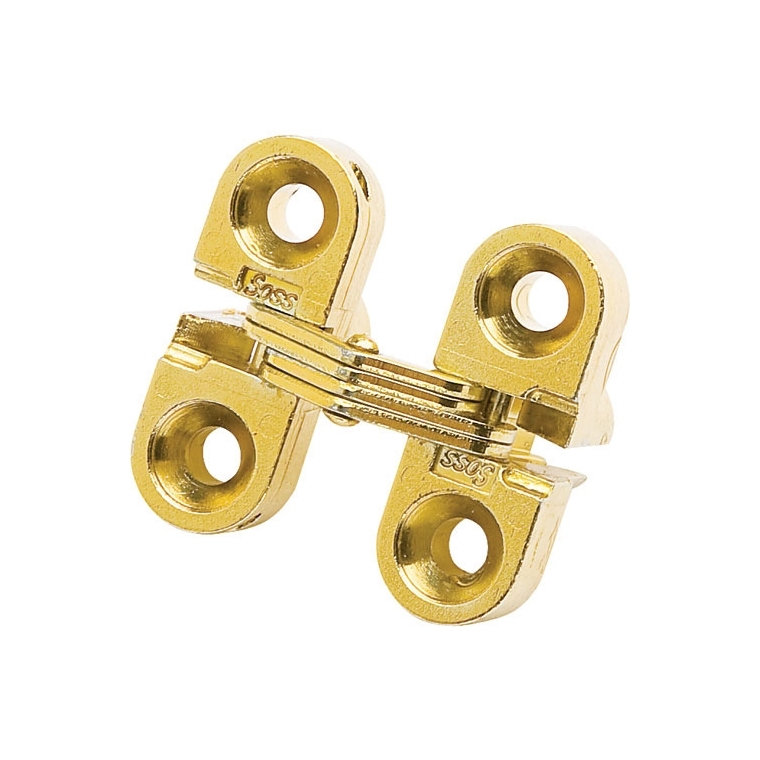

Mini Concealed Soss Hinge
Mini Concealed Soss Hinge Item #: 37428
Oversold Until 12/23/2018
$24.99
Pair
  • Buy 10 for $22.49 each and save 10%

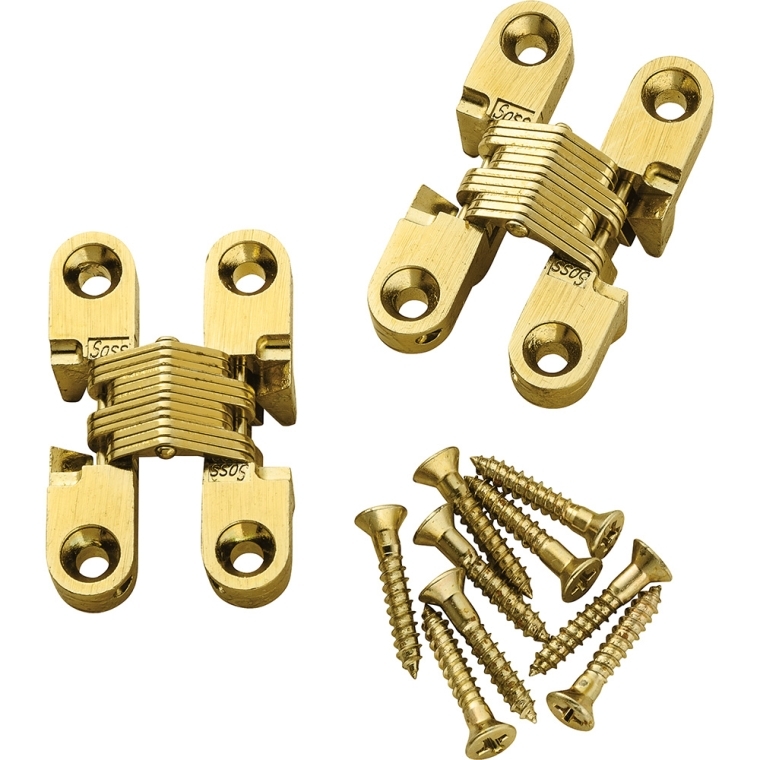

Satin Brass Soss Concealed Hinge, Wings measure 3/8" Wide x 1-11/16" Long for 1/2", SOSS #101
Satin Brass Soss Concealed Hinge, Wings measure 3/8" Wide x 1-11/16" Long for 1/2", SOSS #101 Item #: 26518
In stock
Special Price $24.99 Regular Price $29.99
Pair

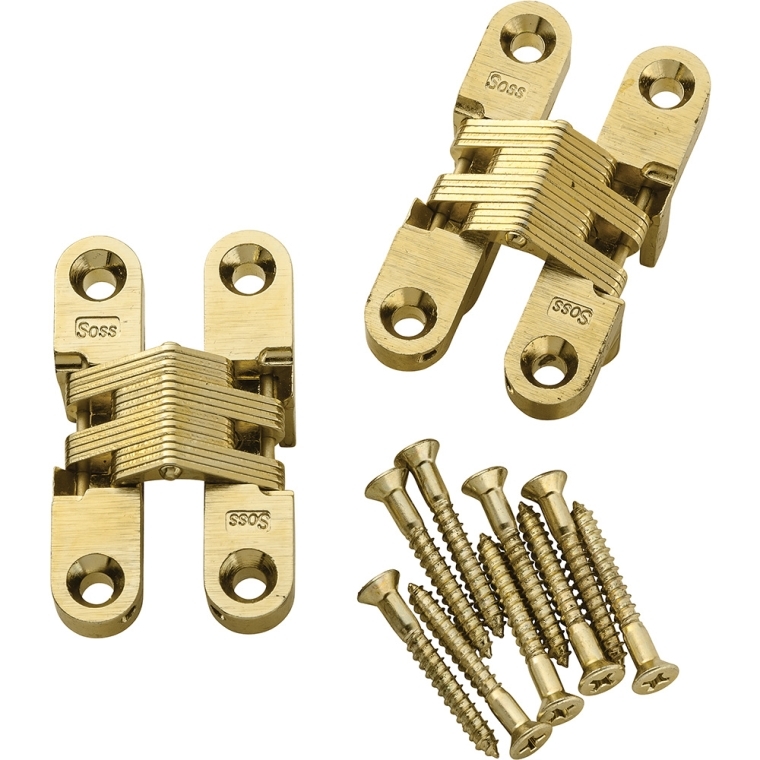

Satin Brass Soss Concealed Hinge, Wings measure 1/2" Wide x 2-3/8" L. for 3/4", SOSS #204
Satin Brass Soss Concealed Hinge, Wings measure 1/2" Wide x 2-3/8" L. for 3/4", SOSS #204 Item #: 26526
In stock
$36.99
Pair
  • Buy 10 for $33.29 each and save 10%
Satin Brass Soss Concealed Hinge, Wings measure 1" Wide x 4-5/8" Long for 1-3/8", SOSS #216 - EACH
Satin Brass Soss Concealed Hinge, Wings measure 1" Wide x 4-5/8" Long for 1-3/8", SOSS #216 - EACH Item #: 26287
In stock
$45.99
Each
  • Buy 10 for $41.39 each and save 10%

Concealed Soss Hinges-Satin Brass Finish

Item #
GRP268_3
Rating:
94% of 100
Concealed Soss Hinges-Satin Brass Finish Concealed Soss Hinges-Satin Brass Finish Concealed Soss Hinges-Satin Brass Finish Concealed Soss Hinges-Satin Brass Finish
Concealed Soss Hinges-Satin Brass Finish
Frequently bought together
  1. Concealed Soss Hinges-Satin Brass Finish
  2. +
  3. Twin Pin Sewing Machine Hinges-Select Option
Total price: $0.00
  • This item: Concealed Soss Hinges-Satin Brass Finish $0.00
    Grouped product items
    Product Name Qty
    Mini Concealed Soss Hinge
    $24.99
    • Buy 10 for $22.49 each and save 10%
    Satin Brass Soss Concealed Hinge, Wings measure 3/8" Wide x 1-11/16" Long for 1/2", SOSS #101
    Special Price $24.99 Regular Price $29.99
    Satin Brass Soss Concealed Hinge, Wings measure 1/2" Wide x 2-3/8" L. for 3/4", SOSS #204
    $36.99
    • Buy 10 for $33.29 each and save 10%
    Satin Brass Soss Concealed Hinge, Wings measure 1" Wide x 4-5/8" Long for 1-3/8", SOSS #216 - EACH
    $45.99
    • Buy 10 for $41.39 each and save 10%
  • Grouped product items
    Product Name Qty
    Standard Twin Pin Sewing Machine Hinge, 1-3/16" W x 2-3/4" L
    $19.99
    • Buy 10 for $17.99 each and save 10%
    Narrow Twin Pin Sewing Machine Hinge, 1/2" W x 3" L
    $12.99
    • Buy 10 for $11.69 each and save 10%

Elegant and durable, Soss invisible hinges are completely concealed when the cabinet door is closed. Available in Black, Satin Nickel and Satin Brass finishes. Soss hinges require mortises in the door and door stile for installation. Designed for use with inset doors.

(1) Pair of Concealed Soss Hinges
More Information
Weight 1.7300
Tech Spec
  • 180 degree opening
  • Requires a mortise
  • For use in materials at least 1/2'' thick
  • Includes instructions and paper template
  • For detailed dimensions see the Soss hinge datasheet below
  • Wings on #37428 measure 3/8" W x 1" L. (Minimum wood thickness: 1/2" ).
  • Wings on #26518 measure 3/8" W x 1- 11/16" L. (Minimum wood thickness: 1/2" ).
  • Wings on #26526 measure 1/2" W x 2-3/8" L. (Minimum wood thickness: 3/4" ).
  • Wings on #26287 measure 1" W x 4- 5/8" . (minimum wood thickness: 1- 3/8" ).
Technical Documents
Prop 65 Warning WARNING This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product
4.7 / 5.0
16 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
14
1
0
0
1
A quality hidden hinge for a sewing machine cabinet
The hinges appear to be of excellent quality and are packaged with the appropriate screws for installation. I need to modify my sewing machine cabinet slightly to make them fit - they were the closest to the originals that could be found (at Rockler, of course!), but appear as if they are going to work just fine. As an aside - I am NOT a woodworker - but I'll put in the effort to save an antique sewing machine and its cabinet. Rockler makes it a LOT easier with their cabinet parts, such as these hinges, and other products from wood veneer, to pulls and knobs to finishes. They are a "one stop shop" for me!
July 26, 2018
Purchased
5 months ago
Woodworking Experience:
Beginner
This is a good hinge
January 20, 2018
Purchased
11 months ago
Great 4 Hidden work!!
These hinges are great for making hidden access panels!
June 24, 2017
Purchased
1 year ago
Woodworking Experience:
Advanced
Wonderful product
The hinge is a great product and ws exactly what I was looking for in a concealed hinge.
May 5, 2017
Purchased
1 year ago
Woodworking Experience:
Intermediate
Soss hinges
I was worried, but pleasantly surprised by how easy they were to install. And they operate perfectly.
May 16, 2016
Purchased
over 3 years ago
Woodworking Experience:
Advanced
Nice quality
I only used four hinges and was not going to buy a jig, so I cannot comment on the quality of that jig that caused so many others to comment. I made my own jig but have to admit that it took me quite a while and practice with scrap material to install those hinges to my satisfaction. The final product was great, though. If I have one critical comment (other than about my own skills), it is about the size of the screws. I used longer screws that those that were supplied. Given the price of the hinges, two sets of screws with different lengths would not have been an exaggeration.
March 1, 2016
Purchased
over 2 years ago
Woodworking Experience:
Intermediate
Voss hinges.
Great product. They would have been easier to install if I had the router template.
February 8, 2016
Purchased
over 3 years ago
Woodworking Experience:
Advanced
Concealed Soss Hinges
The hinges were exactly what I needed.
September 12, 2015
Purchased
over 3 years ago
Woodworking Experience:
Advanced
I was looking for a solution...
I was looking for a solution to install concealed hinges in a china cabinet that I am making, but did not like the euro style hinges for this application since they are rather bulky. I discovered the SOSS hinge and it was exactly what I needed. I purchased the Routing Jig for the model 204 hinges and had to purchase a 3/8" mortising bit and 3/8" collet for my DeWalt router. But once I had all the tools, everything went smoothly in regards to the mortising for the hinges. One departure from the instructions with the jig which I did not like was nailing the jig to the parts being mortised. I clamped the jig to the cabinet and doors instead. Very pleased with the result.
September 29, 2011
A client had louvered bi-fold doors...
A client had louvered bi-fold doors installed in his 55 year old 1 owner home. The doors had 4 broken brass Soss Hinges. After searching the local hardware store & 2 "box" stores to no avail, I went into a cabinet shop where they gave me a Rockler catalogue where I found the exact same hinges. I ordered 2 sets online. They fit in the mortise perfectly & everything lined up. The hardest part of the project was getting the old slotted screws out!
February 19, 2011
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 6 questions Browse 6 questions and 39 answers
Why did you choose this?
Rockler Store
I do antique sewing machine restoration as a hobby - and Rockler has seemingly EVERYTHING to make the cabinet restoration easier. I am NOT a woodworker - but with Rockler products, I get stellar results and I don't have to shop all over creation to find exactly what I need. Rockler has made this hobby enjoyable for me!
Greg S on Jul 5, 2018
replace broken hinge
edward m on Apr 10, 2018
I do antique sewing machine restoration as a hobby - and Rockler has seemingly EVERYTHING to make the cabinet restoration easier. I am NOT a woodworker - but with Rockler products, I get stellar results and I don't have to shop all over creation to find exactly what I need. Rockler has made this hobby enjoyable for me!
Greg S on Jul 5, 2018
Replace existing hinge that broke after 20 years on teak outdoor dining table that has folding leaves that store under table top for expanded seating.
A M on Jul 4, 2018
replace broken hinge
edward m on Apr 10, 2018
replacement
John R on Mar 1, 2018
Building a window covering that is going to need these.
Charles P on Feb 16, 2018
replacements
Philip B on Jan 4, 2018
I'm looking to install double cabinet panels over an opening smaller than the overall dimension of panels, and do not want to utilize a piano hinge. Hoping to achieve a clean design.
Luis R on Dec 5, 2017
making small box with lid
Eric J on Oct 5, 2017
A family member had a concealed closet in the den of their home (not for security but aesthetics only). These are the hinges used - no hardware was visible on the door exterior. We just purchased a house with a couple of awkward non-symmetrical niches on either side of a fireplace --huge closet like shapes. The perfect solution seemed to be hidden closets. So glad to locate these SOSS hinges to solve our issues in making the space useful and more attractive.
Janis G. M on Sep 19, 2017
Replace broken hinges
Kerry R on Sep 11, 2017
wood smith shop project
Louis A on Sep 7, 2017
I need this special hinge for a butterfly leaf table I am currently building so it hides the hinge.
Andrew M on Jul 3, 2017
Woodworking plan called for them.
Tricia B on May 10, 2017
Building a retractable tv cabinet with a flip top
William H on Mar 21, 2017
Matched existing
Frances G on Feb 19, 2017
custom project
Dennis O on Oct 4, 2016
wanted to try them. Heavy duty no doubt, but I like the Brusso (sp?) better.
Gary D on Aug 2, 2016
replace existing damaged ones
BK B on Jun 21, 2016
Spoke with Renee in tech support today - she was very helpful.
John A on May 3, 2016
They are a concealed hinge.
Jim D on Dec 14, 2015
Part of a project from Plansnow
Robert William R on Oct 1, 2015
a pair broke on an item I am refinishing
Richard L on Jun 23, 2015
Called for in plan for a desk
Don Z on Jun 8, 2015
180 swing, Heavy door
Timothy S on May 11, 2015
Replace existing hinge that broke after 20 years on teak outdoor dining table that has folding leaves that store under table top for expanded seating.
A M on Jul 4, 2018
replacement
John R on Mar 1, 2018
what model hinge must i use for a solid 1-3/4 door ?
joe d on Aug 15, 2017
BEST ANSWER: A wooden door 30" wide that weighs 200 lbs @ 1-3/4 thick would require 4 #218 soss hinges.
Your soss hinge #37428 what are the dimentions. I have 1/2" material.??
Jim S on Aug 5, 2015
BEST ANSWER: I think that would be to narrow, unless you do as I did and pad the unexposed side with additional material.
I want to replace old hinges on my bathroom base cabinet doors. Do I need to rout out the cabinet for these hinges?
If so, can you direct me to the correct kind?
thank you.
jo-Ann C on Jun 23, 2017
BEST ANSWER: Yes you need to rout both the door and cabinet to make it work with these hinges. I use the router jig made for the specific size hinge from the manufacturer. A bit pricey if you are only doing one cabinet I would recommend a soft close Euro hinge.
I am building a gate at the top of a stair landing that needs to look like the railing. It will be a Traditional style top rail, with tapered balusters and a square stock bottom rail. This will be hinged to the existing end newal post. It needs to open 180 degrees to fold back out of the way. Will the Soss hinge work for this?
Bruce M on Oct 4, 2015
BEST ANSWER: BRuce the biggest red flag I see is the weight of the gate too much for the hinges. I don't think they will last very long for your project. These hinges have worked great for me for box lids but I don't believe they will hold up to children running up, down and thru, the individual carrying a load of laundry and the tired spouse forgetting the gate is there:) so I'd go a different route.
What's the weight capacity of these hinges? what's the maximum poundage 2 hinges can support?
Cullen on Feb 1, 2017
BEST ANSWER: For info on load capacity see http://go.rockler.com/tech/RTD10000502AB.pdf
