Festool Domino XL DF 700 Joiner Set (576431)

Hogs out huge mortises up to 2-3/4'' deep — great for beefy apron/leg joints on tables and chairs, and sturdy framing joints on doors.

Item #
BCS45759

As low as $1,685.00

In stock
$1,685.00   Festool Domino XL DF 700 Joiner Set (576431)

$1,685.00

Summary

    Get Expert Advice

    Return Policy

    For those looking to tap the true mortising potential of the Domino joinery system, the Domino XL DF700 boasts one spec you need to know: massive mortises up to 2-3/4'' deep x 1/2'' wide, by as long as your heart desires. That's enough depth to make mortises for just about anything but a timber frame house. One plunge creates a perfect, smooth-sided mortise that is precisely sized to accept a Domino loose tenon, creating an incredibly strong joint. The Domino XL DF 700 borrows all of the ease and simplicity of its little brother, the DF 500, but its capacity makes it more of a handheld slot mortiser than an ordinary joining tool. This makes it ideal for joinery that demands the utmost in strength: beefy apron/leg joints on tables, chairs and beds, sturdy framing joints on entry doors and gates, and the large, rugged joints required for outdoor furniture and decking. You can even purchase rot-resistant Sipo tenon stock specifically for outdoor use. This set includes the Trim Stop for mortising narrow material and the Cross Stop for repeated hole spacing.

    Technical Details:

    • Precision placement of solid hardwood tenons for a perfect fit and a strong joint that will last for generations
    • Specially engineered cutter simultaneously spins and oscillates to create a perfect, smooth sided mortise
    • Mortise width adjustment with the turn of a dial
    • Loose tenons up to approximately 5-1/2'' in length for large scale projects
    • Includes trim stop and cross stop for narrow stock and edge joining
    • Light and nimble enough for use anywhere in the shop or the jobsite
    • Great for large workpieces, where you can bring the tool to the piece
    • Operation is as simple as a biscuit cutter
    • Quick-set height adjustment with stepped stopping system
    • Fence can be adjusted for angled mortises, with stops at common angles
    • Retractable pins allow registration for a series of evenly spaced mortises
    • Expanded range of thicker, longer tenons available separately

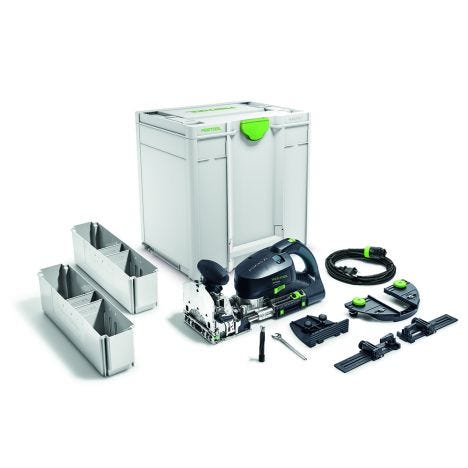

    (1) Festool Domino DF 700 XL Joiner
    (1) 12mm Cutter
    (1) Trim stop
    (1) Cross stop
    (1) Support bracket
    (1) Wrench
    (1) Plug-it power cord
    (1) Sys5 T-Loc Systainer with Storage Trays for Dominoes

    Rockler Protection Plan
  • With the Rockler Protection Plan, you'll get accidental damage coverage immediately upon purchase of your tool. Plus, we will extend the manufacturer's warranty for your choice of an additional 1 or 2 years. We'll take care of all parts and labor for any repairs, with no deductibles and no hassles. If your tool can not be repaired, we'll gladly replace it. Available in the US only. Click here to learn more. Standard Manufacturer's Warranty: 36 months
  • More Information
    Brand Festool
    Manufacturer Part Number 576431
    Tech Spec
    • Power Consumption: 720 watts
    • Spindle Speed: 21,000 RPM
    • Plunge Depth Range: 12-70mm (12'' to 2-3/4'')
    • One-Plunge Max Mortise Length: 16.5mm (5/8'')
    • Routing Height Adjustment: 10mm (3/8'') to 50mm (1-15/16'')
    • Included Cutter: 12mm (7/16'')
    • Available Cutters: 8mm (5/16''), 10mm (3/8''), 14mm (9/16'')
    • Angle Adjustment: 0-90°; stop positions at 0°, 22.5°, 45°, 67.5°, 90°
    • Dust Port Diameter: 27mm (1-1/16'')
    • Weight (tool only): 5.2 kg (11.46 lbs)
