Festool Router OF 1010 REBQ-Set+FS (578308)
This OF 1010 REBQ-Plus Router with 32'' Guide Rail and plentiful accessories will help you take charge of many routing operations—from template routing to working along edges, cutting circles, milling precise dados and much more!
More details
Crafting with Wood: Turn Your Ideas into Reality
Create with wood! Our premium materials make your projects come to life...Read More
With this OF 1010 REBQ-Plus Router, 32'' Guide Rail FS 800 and a substantial collection of accessories, you'll be able to template-rout, cut precise dados and grooves, work confidently along edges and even create perfect circles. The included LED light ring, extra sub-bases and dust extraction accessories just sweeten the deal!

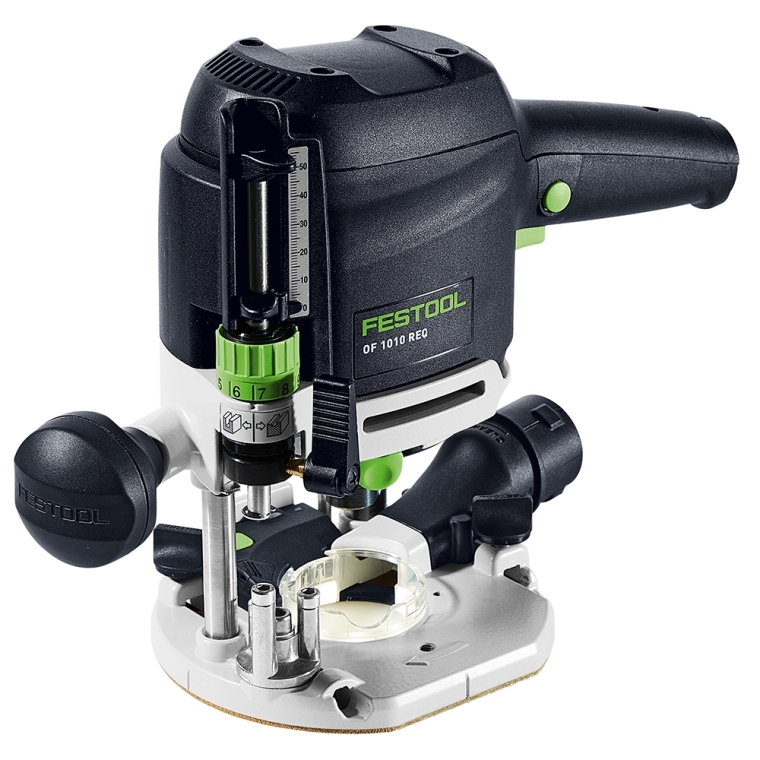

The heart of this collection is the OF 1010 REBQ-Plus—a full-featured plunge router with a compact, lightweight design that you can operate with just one hand. Dual guide columns ensure smooth plunging action and improve the router's torsional rigidity. The knob-style handle doubles as a plunge lock for both posts so you never have to take your hand off the grips. Its rotating turret lets you maintain three different depth settings and quickly switch between them. Depth adjustment is simple with the integral scale and zeroing function—no measuring required. Use the micro-depth adjuster to fine tune your depth-of-cut to the nearest 1/256'' for ultra-precise cuts. A chip extraction system is directly integrated into the router base with a dust port that will accept both D27 and D36 Festool vacuum hose nozzles.
Routing in low-light conditions will be easier, thanks to the Light Ring LM-OF accessory that sheds bright LED light on both the bit and the immediate area surrounding it. You also get the SA-OF 1010/MFK Parallel Side Fence for routing flutes, dados, grooves and other cuts parallel to the edge of a workpiece. It features a micro-adjustable fence with two separately adjustable sub-fences for accommodating different bit widths.
To top it all off, the included Accessory Kit ZS-OF 1010 M has five sizes of Copy Rings to carry out template routing tasks. A Guide Rail Adapter with Fine Adjuster lets you use the router in tandem with the Guide Rail FS 800 for making perfectly straight cuts any distance in from the edge of a workpiece. You can also rout circles and curves up to almost 30'' in diameter with the Trammel Unit. The transparent Base Runner sub-base offers a clear view of the work surface and is especially helpful when paired with the LED Light Ring LM-OF. Or install the black Router Baseplate Widener AFB-OF 1010 R sub-base for routing along the edge of a workpiece—it increases the router's footprint and adds stability to the operation. A Dust Extraction Hood and Chip Deflector help to keep the work area and your lungs cleaner when routing edges or when using the SA-OF 1010/MFK Parallel Edge Guide. All these components fit neatly into the customized, foam-lined interior of a Systainer SYS3 M 187, with additional space for storing router bits (not included).
Festool Router OF 1010 REBQ-Set+FS (578308) Details:
- One-handed operation with power switch, speed and plunge controls all at your fingertips
- Compact, lightweight design with comfortable center of gravity
- Ergonomic handle for increased control and reduced fatigue
- Smooth 2-1/8'' plunge action with a quick and secure plunge lock
- MMC electronic controls provide constant speed under load
- Infinitely variable speed, with overload and thermal protection
- Dust extraction integrated into the base for D27 and D36 hose diameters
- Light ring with eight 5000K LEDs surrounds the bit for a 360° shadow-free view in two brightness levels and mounts inside the router's base to provide shadow-free illumination
- 3.7-volt battery pack of light ring is removable and can be recharged via the USB-C interface
- Parallel Side Fence with dual guide rods installs easily on router base and adjusts without tools
- Perform template-routing operations with Copy Rings in 17mm, 24mm, 27mm, 30mm and 40mm bushing diameters
- Centering Mandrel installs copy rings accurately in router base
- Chip Deflector provides improved dust collection from below when routing along an edge
- Extraction Hood for OF 1010 R Parallel Side Fence mounts beneath the fence to provide a port for a dust extractor hose
- Fine Adjuster FE-FS/OF 1000 brings micro-adjustability to both the Guide Rail Adapter and Trammel Unit in 1/10mm increments
- Guide Rail Adapter quickly and easily connects router to Festool guide rails
- Guide Rail FS 800 ensures perfectly straight routing cuts up to 32'' long and any distance in from a workpiece edge with Guide Rail Adapter installed on router
- Trammel Unit SZ-OF 1000 attaches to router base for machining circles and curves up to 760mm (29-15/16'') in diameter
- Base Runner LAS-OF 1010 R sub-base offers a clear, light transmitting view of the workpiece below; ideal for use with the Light Ring LM-OF
- Router Baseplate Widener AFB-OF 1010 R sub-base increases the router's footprint to add stability when routing along an edge
- Systainer SYS3 M 187 with customized, foam-lined interior conveniently stores all components of Accessory Kit, plus additional router bits
- Palm-sized SYS3 XXS 33 Systainer is handy for keeping tiny routing supplies easy to find

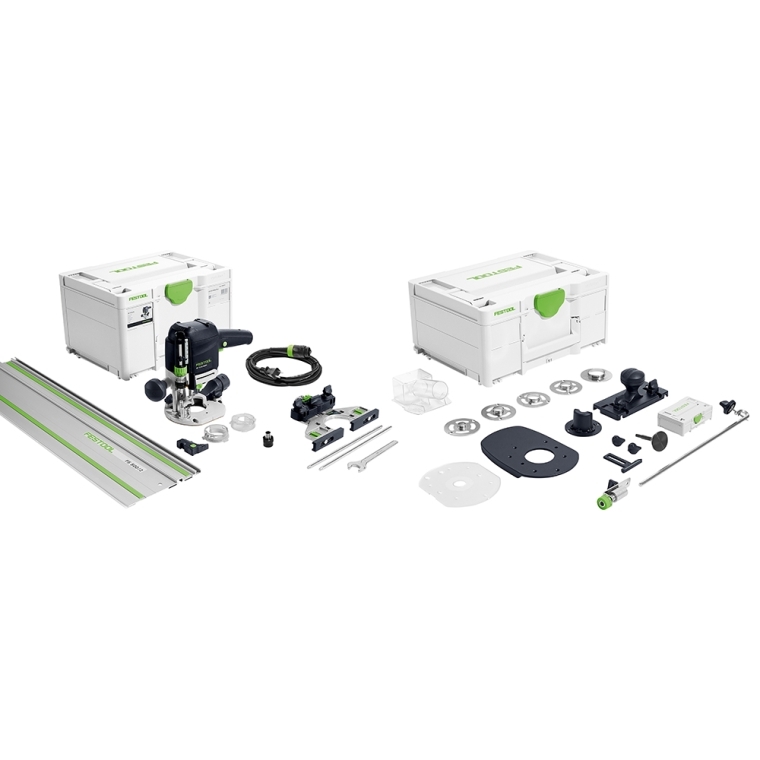

Festool Router OF 1010 REBQ-Set+FS (578308)
(1) Festool Router OF 1010 REBQ-Plus Router
(1) Light Ring LM-OF 1010 R
(1) SA-OF 1010/MFK Parallel Edge Guide
(1) 1/4'' collet
(1) 8mm (5/16'') collet
(1) Collet wrench, WAF 19
(1) Plug-it Power Cord
(1) Set of guide rods
(1) Base Runner LAS-OF 1010 R
(5) Copy Rings in D17, D24, D27, D30 and D40 sizes
(1) Centering Mandrel
(1) Chip Deflector
(1) Extraction Hood for OF 1010 R Parallel Side Fence
(1) Fine Adjuster FE-FS/OF 1000
(1) Guide Rail Adapter
(1) Guide Rail Adapter Support
(1) Support AFB-OF 1010 R
(1) Trammel Unit SZ-OF 1000
(1) 32'' Guide Rail FS 800
(1) Systainer SYS3 M 237
(1) Systainer SYS3 M 187
(1) Systainer SYS3 XXS 33
Brand | Festool |
---|---|
Manufacturer Part Number | 578308 |
Tech Spec |
|
Unit of Measure | Each |
