$133.97 Each
In stock
Adjust the groove width, stock thickness and tenon length to suit your needs!

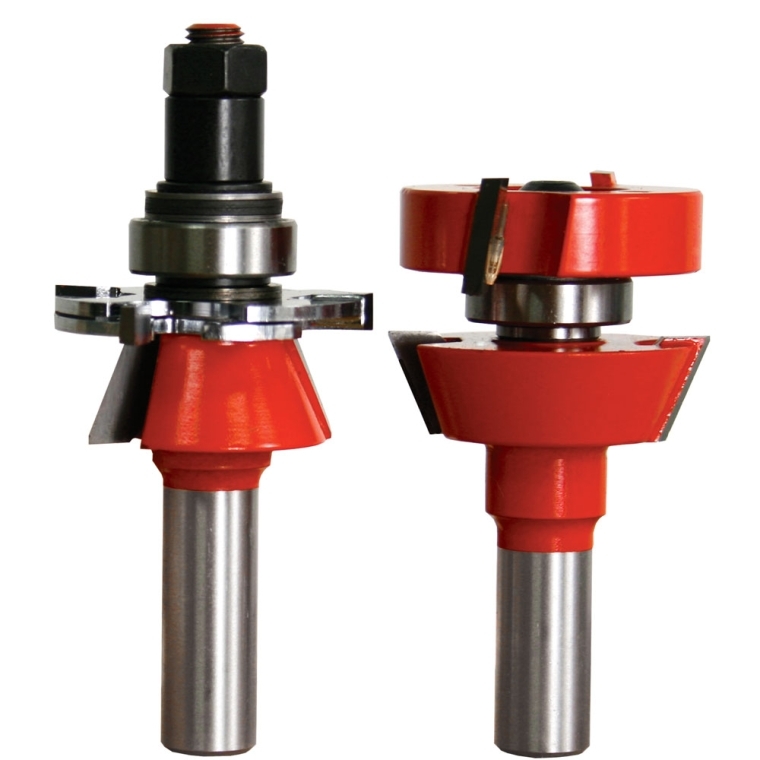

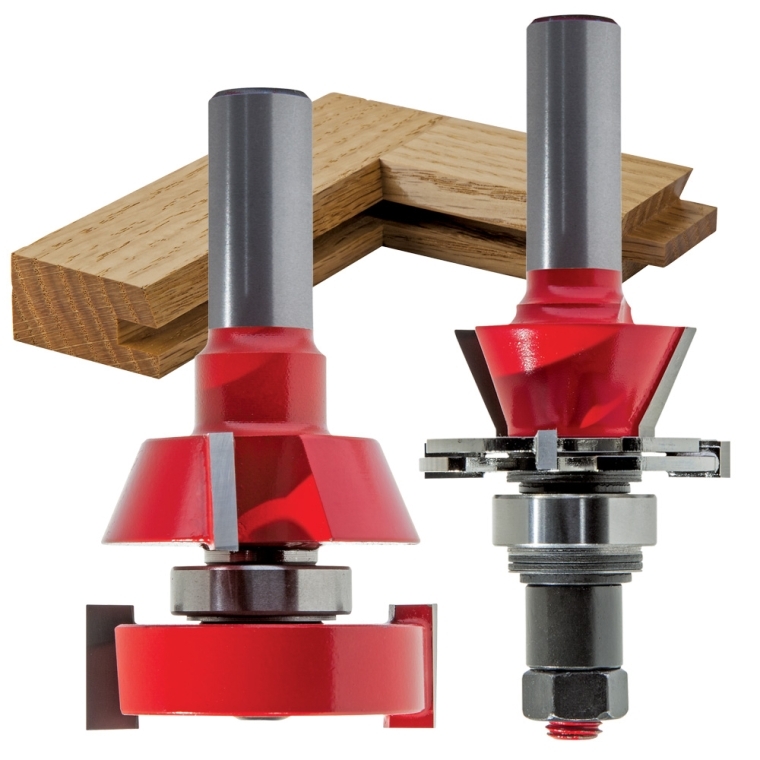

Freud® 99-762 Shaker Stile and Rail Router Bit - 1-11/16" Dia x 1/2" Shank

Item #
44317
Rating:
90% of 100

Now with Freud's unique, patented Premier Adjustable Rail-and-Stile Router Bit system, you can build cabinet doors in a range of door thicknesses – all with perfectly fitting tenons! This easy-to-use solution produces Shaker-style rail-and-stile doors from 5/8" to 1-1/4" thick. You can adjust the groove width to suit different panel thicknesses for rattle-free plywood panels or solid wood raised panels. You can even create extended tenons for extra joint strength on larger doors. All this with Freud's trademark TiCo™ Hi-Density Carbide to maximize bit life and material finish.

  • Standard tenon length is 7/16", and can be adjusted for tenons of any length.
  • Lets you choose from a variety of material thicknesses (5/8" to 1-1/4").
  • Adjustable shims adjust panel groove down to 7/32" (5.5mm) and up to 3/8" (9.5mm) thick – ideal for plywood panels.
  • Unique cutter geometry eliminates tear-out.
  • Patented extended tenon capability: Top portion of cutter, including bearing and spindle, can be removed to produce the front of the long tenon profile.
  • TiCo™ Hi-Density Carbide to maximize bit life and material finish.
  • Perma-SHIELD™ coating reduces heat and pitch buildup and protects from rust.
(1) Freud® Shaker Stile-and-Rail Bit Set
More Information
Brand Freud
Manufacturer Part Number 99-762
Weight 1.4500
4.5 / 5.0
25 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
18
3
3
1
0
Flexibility was important for me
I needed a pair of bits that had the flexibility to adjust for the thickness of a door panel so they would fit snugly and also accommodate stiles/rails thicker than 3/4" and this set has met my needs. You can easily adjust it in increments of 0.005". My door panels were 0.250" MDF from a cabinet shop, not the typical 7/32" plywood. 7/32" can also be accommodated. High quality finish.
July 9, 2019
Purchased
2 months ago
Woodworking Experience:
Advanced
It’s Freud...
You know it’s going to be great!
July 5, 2019
Purchased
7 months ago
Woodworking Experience:
Intermediate
Great
Great bits. Work awesome nice tight fits. Worth the money.
June 21, 2019
Purchased
3 months ago
Woodworking Experience:
Advanced
Best on market
Premium bits... best in the market!
January 10, 2019
Purchased
8 months ago
Woodworking Experience:
Advanced
Used 5/4 poplar and they cut like butter. Really easy to use and calibrate
June 11, 2018
Purchased
1 year ago
The product is great!
April 9, 2018
Purchased
1 year ago
Woodworking Experience:
Beginner
Excellent tool for cutting Shaker style rails and stills. Made several doors and I am now going to use this to make a Mirror frame.
February 10, 2018
Purchased
1 year ago
Woodworking Experience:
Intermediate
Great product
November 8, 2017
Purchased
1 year ago
Woodworking Experience:
Advanced
Worked great, I try to buy Freud bits whenever I can.
This router bit set works great, and gives a high quality professional finish every time.
October 10, 2017
Purchased
1 year ago
Woodworking Experience:
Advanced
great quality
I had to make 15 cabinet doors and bought this set up. East to use and they cut through the wood like butter!
September 15, 2017
Purchased
over 2 years ago
Woodworking Experience:
Advanced
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 7 questions Browse 7 questions and 54 answers
Why did you choose this?
Rockler Store
i like the option to change tongue size
Lynden l on Sep 14, 2019
I had a set of doors to build and I have used your product before
sally a on Mar 31, 2019
i like the option to change tongue size
Lynden l on Sep 14, 2019
It will work with material from 5/8" to 1 1/4" thick and I like the profile.
Jeffrey K on May 9, 2019
I had a set of doors to build and I have used your product before
sally a on Mar 31, 2019
I chose these bits because they are very adjustable for different thickness of door frame materials .
john m on Mar 18, 2019
Needed for door making
John S on Mar 5, 2019
I need of these bits for my kitchen project and for my business.
James B on Feb 19, 2019
Cabinet Doors and Drawer fronts. Freud has great router bits and they last forever.
David D on Dec 27, 2018
It is adjustable
Garry N on Sep 7, 2018
It is adjustable and I have liked the other Freud router bits I have used.
David R on Aug 12, 2018
I chose this set for the quality in Freud tools that I have experienced in the past. I own a lot of Freud router bits and as long as you don't try to router threw nails, they hold there edge for a long time
allan m on May 18, 2018
I need to make some shaker style refrigerator panels, I have used other profiles from freud in the past with good results
dave b on May 17, 2018
To make cabinet doors
Dylan F on May 17, 2018
I am replacing existing kitchen cabinet doors and want to simplify the look. Can't go wrong with Freud products.
Margie M on May 14, 2018
Necessary for update cabinet project
Ronald S on Mar 5, 2018
used freud bead stile and rail router bit to make cabinet doors, worked well. now making shaker stile doors.
Daniel R on Mar 4, 2018
Building Shaker style cabinets. Own quite a few Freud Router Bits. Excellent quality.
Paul E on Mar 4, 2018
Building kitchen cabinet doors
Edmond L on Mar 1, 2018
reviews
Rex H on Jan 29, 2018
I needed to make several cabinet doors and these are in the Shaker style. I have always liked Freud products because these are will made.
James W on Nov 17, 2017
I liked the style and couldn't get it at the local store.
BOB S on Sep 11, 2017
Why would I say something about a product I haven't used yet
Bret B on Aug 21, 2017
Its adjustable
Greg W on Apr 16, 2017
I'm building my first set of kitchen cabinets
Thomas R B on Feb 26, 2017
Quality and adjustable features.
Gregory S on Jan 13, 2017
Quality and performance. Freud makes the best cutting tools available
Lester H on Jan 10, 2017
to make shaker style cabinets. I prefer the bevel look rather than a 90 degree angle
Austin A on Dec 28, 2016
I already own other sets by Freud but wanted the shaker style (and stile!) Rockler is the place to go for the best products available all in one place.
Jeffrey C on Dec 14, 2016
I have bought Freud bits in the past and the work great, needed a bit set for kitchen cabinets I will be building
Mark D on Nov 28, 2016
Building new doors for cabinets
Dale M on Oct 23, 2016
I have a project coming up and I need the shaker stile router bits. I also like Freud products.
Mike M on Sep 30, 2016
Hoping it is a high quality product.
Roger F on Jul 27, 2016
Replacing old cabinet with shaker doors
Dennis W on Mar 10, 2016
Freuds reputation for excellent quality
Rod on Mar 6, 2016
I have kitchen cabinets of this sort and want to make an island with cabinet doors to match.
Stan G on Mar 5, 2016
Projects in process.
Sean B on Jan 20, 2016
bit is excellent. has made my project go very smoothly
GIA L on Jan 12, 2016
like the adjustability
scott s on Sep 17, 2015
this has too many adjustable options?
Mike C on Jul 26, 2015
I picked these bits because I believe in Freud makes good quality, long lasting bits and blades
Ron H on May 19, 2015
It will work with material from 5/8" to 1 1/4" thick and I like the profile.
Jeffrey K on May 9, 2019
I chose these bits because they are very adjustable for different thickness of door frame materials .
john m on Mar 18, 2019
I don't understand how you can change the tenon length. It says to remove top portion of cutter, including spindle and bearing. This leaves the angle portion and can cut one side of the tenon. How do you cut the other side of the tenon to make it longer, and maintain the proper length of the rail and it's relationship to the angle on the front?
Dick on Mar 5, 2016
BEST ANSWER: If I'm understanding your question properly, with the bit fully assembled, you'd lower the bit down so that only the top cutter is in use to cut the flat side. You'll need to ensure the board is held in the same place for both cuts.
The instruction for the 99-762 bit set for reducing the mortise groove to 7/32 is not clear with the bits. I am inexperienced and will be making simple shaker doors. How do I adjust to 7/32 ?
Taylor C on Apr 7, 2015
BEST ANSWER: It's pretty simple actually. It did take me a minute also to figure out only because I was unsure and didn't want to mess any thing up. On the end of the cope bit there is an Allen screw and two small holes, in the bit set you should have a small black cardboard box containing and Allen wrench and another silver spanner wrench. The silver spanner wrench has two tabs that fit into the small holes in end of bit. Hold the bit by placing spanner wrench into holes and use Allen wrench to remove screw. Then top part of bit lifts off and will expose the bearing and shims. Adding or removing shims is what adjusts groove width. On the rail bit there is a threaded portion sticking up thru end and a nut. Removing this nut allows you to acess the bearing and shims on this big. Just keep track of how everything was stacked while removing. You will find the shims between the two slot cutters on the rail bit. You may want to install the rail bit into your router and then use the spindle lock to on router to hold bit while you remove the nut since there is no spanner wrench for that one like there is for the cope bit. Just add or remove the same number of shims for both bits and everything should stay equal. Hope this helped
Hi, I somehow managed to misplace the shims on the tongue cutter. They have a slightly larger bore than the shims on the groove cutter, so I can't use them. Is there any place in the world I can buy some shims or do I have to buy a new set?
Larry on Jan 1, 2016
BEST ANSWER: I do believe those shims are packaged and sold separately but I'd be willing to bet that if you contacted Freud that they would send you a set. I contacted Freud with a similar problem. I lost the shim set to a Freud dado stack. I contacted Freud customer service and they sent out a set of the shims same day free of charge. The rep I dealt with seemed more than willing to help me out. I would try that route if I were you
Does anyone know the angle of the chambered edge?
David P on Jan 27, 2016
BEST ANSWER: Thinking 22 deg, but leads me to believe 22 1/2 deg might make more sense
Are the bits pre set for a 1/4 groove?
Barclay T on Sep 7, 2018
BEST ANSWER: I just completed a cabinet with drawers and 1/4” glass doors using the Freud 99-762 Shaker style and rail bit set. It met all my expectations.
I want to replace my kitchen cabinet doors and drawer facings with ones in the shaker style. For my purposes, what are the differences in the Freud 99-036 adjustible tongue and groove router bits and the Freud 99-762 bits?
Joseph G on Jan 6, 2016
BEST ANSWER: The 99-036 will give you a good tongue and groove for the door frame, but will leave you with an issue on the Shaker profile at the joint. The 99-762 will solve both issues, and will provide for fine adjustments for any board thickness. This set, after tuning with practice boards, will make a tight joint with the Shaker profile clean and square in the corners.
