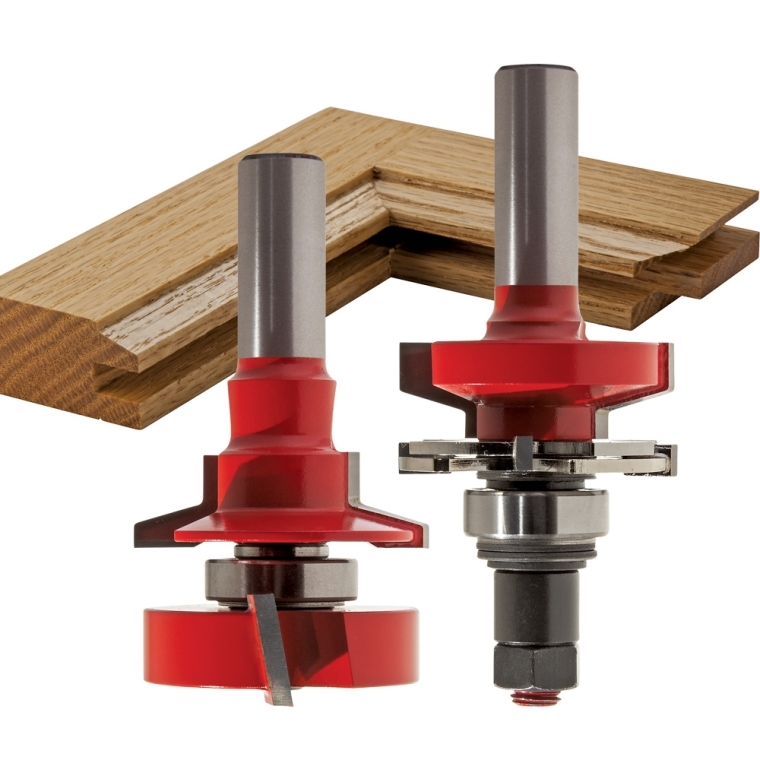

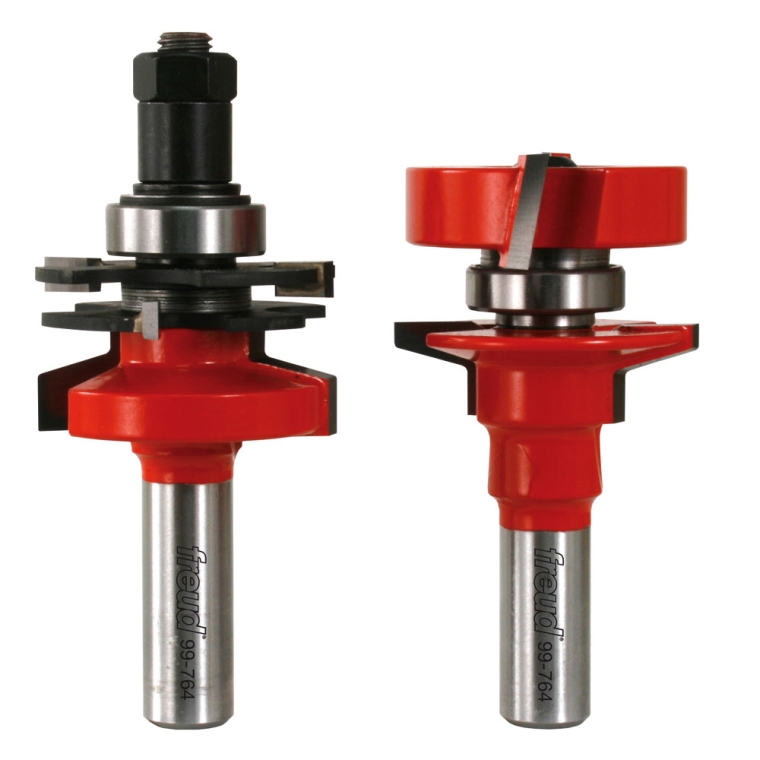

Freud® 99-764 Bevel Rail and Stile Router Bit Set - 1-11/16" Dia x 1-1/4" H x 1/2" Shank

Create beautiful stile and rail doors with variable tenon lengths, and tight-fitting panel grooves.
Item #
35314
Rating:
96% of 100
Mill tenons of any length! Simply remove the top portion of the cutter (including bearing and spindle) to produce the front of the long tenon profile for blind tenons, through tenons or bridle joints. These precise bits work for any door 5/8" to 1-1/4" thick. Unique cutter geometry virtually eliminates tearout. Adjustable shims enable a tight fit when using plywood and also allow use with thick panels from 7/32" to 1/4" thick. High-density carbide composition and Perma-Shield® coating lengthen bit life and protect against heat and pitch build-up. 1/2" shanks.
(1) Freud 99-764 Beveled Stile and Rail Bit Set
More Information
Brand Freud
Manufacturer Part Number 99-764
Weight 1.4500
Tech Spec
  • Depth of Cut: 7/16''
Bit Type Stile & Rail
Diameter 1-11/16"
Cutter Height 1-1/4"
Shank Size 1/2"
Flutes 2
4.8 / 5.0
4 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
3
1
0
0
0
High Quality
Mentoring with a neighbor who has the lead on my project - we thought that this bit would be needed to add some nice detail to the cabinet for the Murphy Bed Project. We ran a test on scrap and yes it will do the trick. I decided to go this path using Freud, past experience with a Freud Table Saw blade gave me confidence that their products are worth the price, and Freud it worth it.
August 23, 2019
Purchased
10 months ago
Woodworking Experience:
Beginner
Quality bits
I used this set to build an entire set of kitchen cabinets. My first set of frame and panel doors. I love Freud bits and these worked flawlessly. Easy set up and great cut quality.
December 8, 2017
Purchased
over 4 years ago
Woodworking Experience:
Intermediate
Very high quality
I have used the Sears/internet special bits. I have also read other reviews that state some of the cheaper bits are just as good as the freud. That's just not true. You get what you pay for. These bets produce a flawless cut and finish. No sanding needed ready to go right to sealer and top coat.
September 14, 2017
Purchased
over 2 years ago
Woodworking Experience:
Beginner
Good quality bits for small shop.
September 28, 2018
Purchased
1 year ago
Woodworking Experience:
Advanced
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 2 questions Browse 2 questions and 2 answers
Why did you choose this?
Rockler Store
I would've chosen a Rockler Bit, because Freud tends to be pricey - But I could not find a comparable Rockler bit. But - I know Freud is a solid go to brand that is spot on....
Gary M on Aug 2, 2019
This looked like a good design to go with my kitchen. I didn't want the "standard" design you see on most other doors. This is a clean and simple look.
Roy B on Apr 23, 2017
I would've chosen a Rockler Bit, because Freud tends to be pricey - But I could not find a comparable Rockler bit. But - I know Freud is a solid go to brand that is spot on....
Gary M on Aug 2, 2019
Need to match an existing door style and new Freud would have what I needed <br />And their quality is the best
Terry D. W on Dec 6, 2018
This looked like a good design to go with my kitchen. I didn't want the "standard" design you see on most other doors. This is a clean and simple look.
Roy B on Apr 23, 2017
was the style I wanted
Paul on Mar 10, 2016
USING 1 1/8 STOCK
THOMAS T on Jan 9, 2016
replacing all kitchen cabinets and these are best quality. only one pass required on poplar wood with smooth, chip free results.
Michael M on Dec 31, 2015
recommended
Risco O on Nov 5, 2015
Rockler doesn't make the same Stile & Rail set or I would have bought it.
Jason L on Apr 14, 2015
Need to match an existing door style and new Freud would have what I needed <br />And their quality is the best
Terry D. W on Dec 6, 2018
was the style I wanted
Paul on Mar 10, 2016
Hi what thickness panels can this cutter adjust to? whats stated seems very small compared to the shaker style cutters.
Thanks
Dave
David M on Jan 5, 2019
BEST ANSWER: Door thicknesses of 5/8" to 1 1/4"
can I use this for a 1-3/8" interior door?
Jeff F on Dec 5, 2017
BEST ANSWER: No, These bits work for any door 5/8" to 1-1/4" thick.
