$69.99 Each
In stock

Full Overlay Hinge Kit for KV8091 Pocket/Flipper Door Slides

Item #
20072
Rating:
90% of 100
Full Overlay Hinge Kit for KV8091 Pocket/Flipper Door Slides
Full Overlay Hinge Kit for KV8091 Pocket/Flipper Door Slides

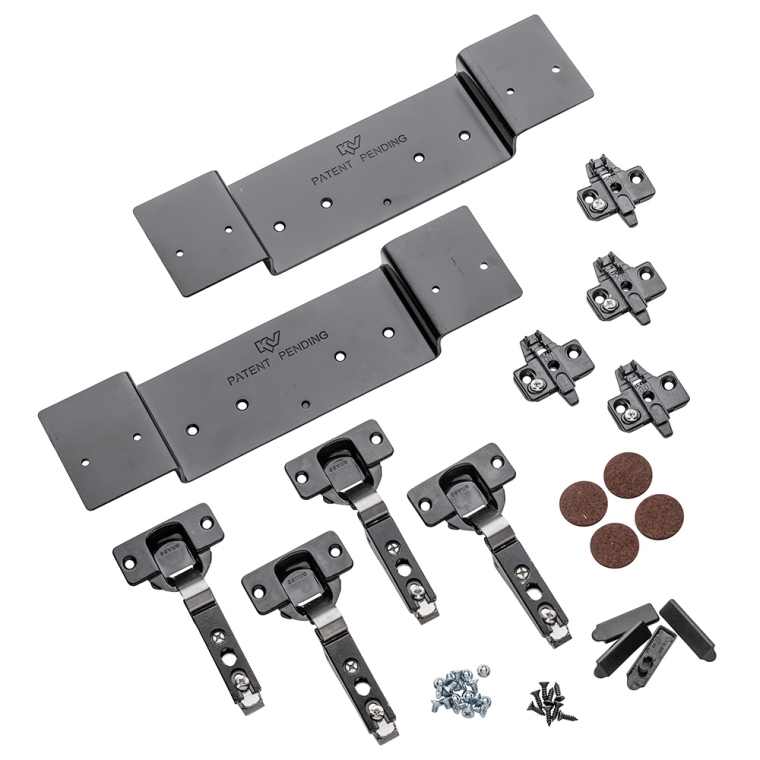

Provides a full overlay on 3/4" thick doors. Kit includes two full overlay brackets, four 40mm overlay hinges, four hinge bases, cover caps, instructions, felt pads and mounting hardware.

(1) Full Overlay Hinge Kit
More Information
Manufacturer Part Number 8091FULL3/4 M
Weight 3.0000
Hardware Type Hinges
Prop 65 Warning WARNING This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product
4.5 / 5.0
2 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
1
0
0
0
great hinge! recommend it to all who need the overlay hinges.

five star yes sir!
March 2, 2017
Purchased
over 2 years ago
Woodworking Experience:
Advanced
High quality
High quality, but didn't work full overlay on my cabinet as I would have needed to install a ledger board on the inside, but didn't have the room. I turned the bracket around so the track ran on outside of the cabinet and it worked at about 3/4 overlay. Great product though, and will definitely will be using this product many more times.
User submitted image
User submitted image
March 3, 2017
Purchased
over 2 years ago
Woodworking Experience:
Advanced
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 7 questions Browse 7 questions and 14 answers
Why did you choose this?
Rockler Store
Tech help
John B on Feb 10, 2017
Tech help
John B on Feb 10, 2017
what is the maximum weight capacity of the kv 8091 pocket door system?
wes R on May 3, 2016
What's the diameter of the hinge bore? I'm having doors custom made, and I want to make sure they are the right size for this system.
AJ Cliq on Dec 30, 2016
BEST ANSWER: 40mm is the specifications call for, I did not have a 40mm and used a 1 9/16" hole with no problems, though that makes the hole 3 hundredths of an inch oversized it worked wonderfully well.
Are these hinges soft close as well ?
Jonathan S on Mar 1, 2017
BEST ANSWER: No, they are self-closing, but not soft close. Be aware that this system is designed to be installed on a partition, not on the cabinet wall. Found that I can achieve 1/2" overlay by discarding the brackets and installing the hinges on the slide plates, with the slides mounted to the sidewalls. Did not want to add partitions.
Difference between full overlay and partial overlay?
Tommy on Jun 16, 2015
BEST ANSWER: Full overlay, the door fully covers the cabinet edge. Partial overlay, the door covers roughly half the cabinet edge. Inset, the door sits inside the cabinet edge.
Says full overlay. How much does it end up being? 5/8"? 3/4"?
Tyler S on Jul 12, 2016
BEST ANSWER: I believe 5/8", but it was last fall...
If I was to do this again, I would make the pocket panels removable, because getting in there to adjust hinges was very difficult with the pocket panels fixed.
.
will this work for a 1" thick door ?
Tim W on Mar 23, 2019
BEST ANSWER: I used it for a 5/8” thick door. I’m not sure what it’s rated for but I would trust the company specs on it.
Could a set of folding cabinet doors be used with the KV8091 pocket door system?
wes R on May 3, 2016
BEST ANSWER: Yes!
