GO-EZ Universal Concealed Drawer Slide Set

If your cabinets are more than twenty years old, there is a good chance your drawers run on these exact slides.
Item #
51997

Get Expert Advice

Return Policy

This type of slide has been used in millions of cabinets since being introduced in 1948. These slides can replace worn slides or be used as an affordable option in new cabinets. Slide length is cut-to-fit simply trim with a tin snips. Concealed installation. Needs only 1/8" of side clearance for more usable drawer space.

  • An excellent, affordable slide for utility drawers in the shop or garage
  • Retrofit onto existing cabinets—there are millions of these same slides still in use today
  • New acetyl wheels provides longer wear and higher load capacity

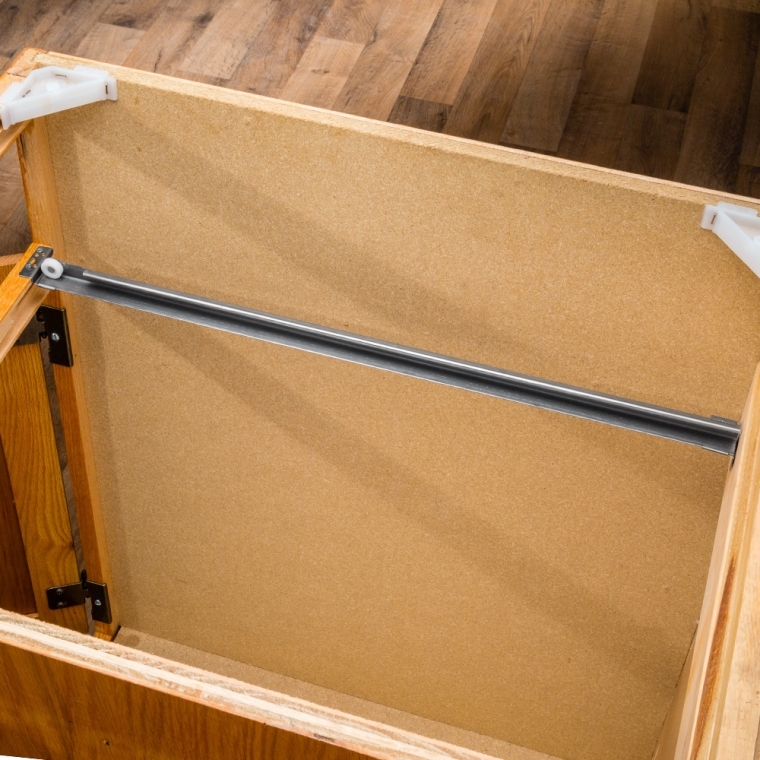

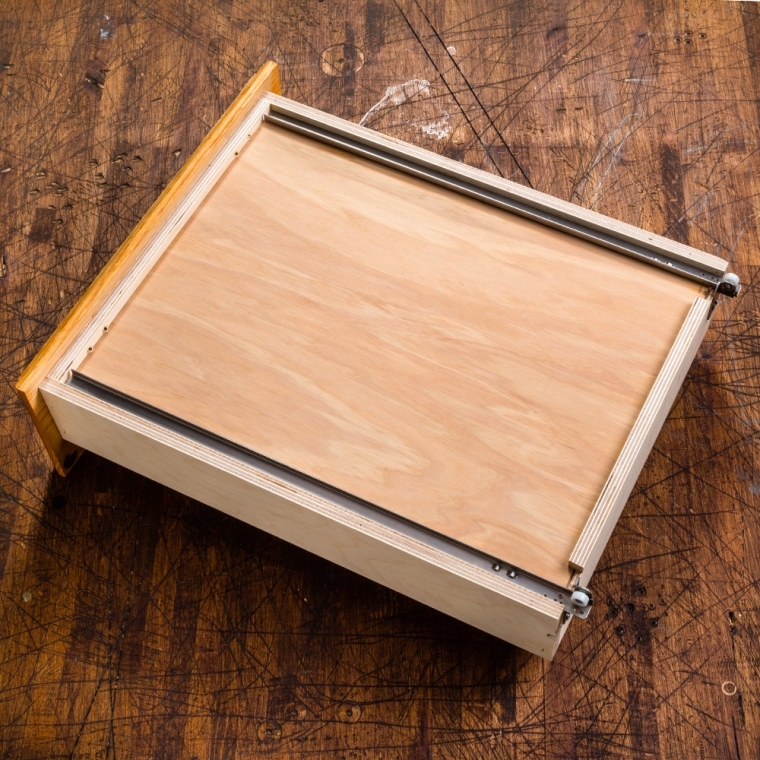

  • Totally concealed design mounts to bottom of drawer for maximum drawer width and clean drawer side appearance
  • 4-Point suspension
  • Dual dimple stop provide safety stop and lock open
  • Can be installed as originally, with staples, or with screws
  • Slides are 24'' long—trim to length if necessary with a tin snips or hacksaw

(2) GO-EZ 524 Cabinet Members

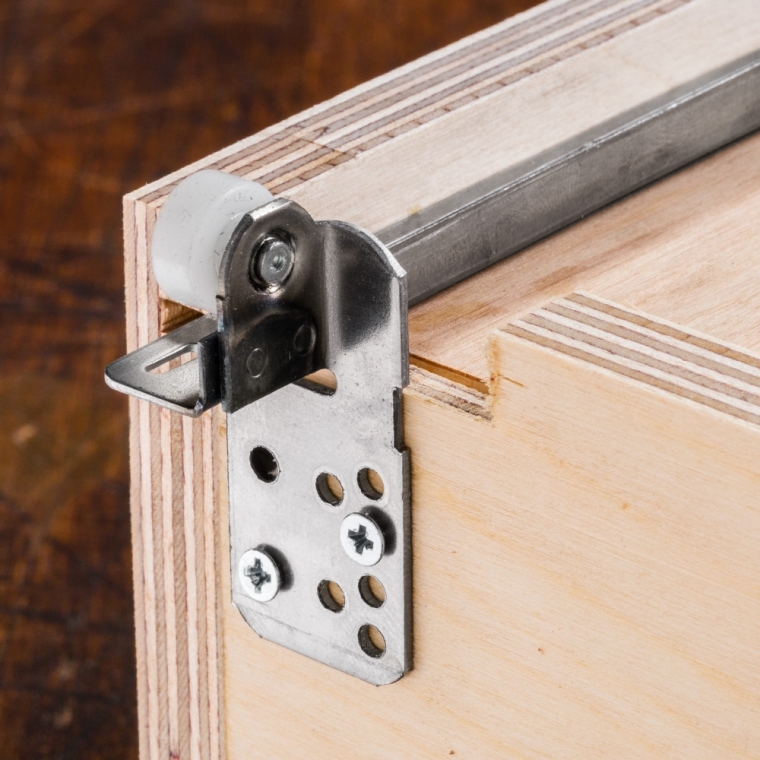

(2) GO-EZ 524 Drawer Members

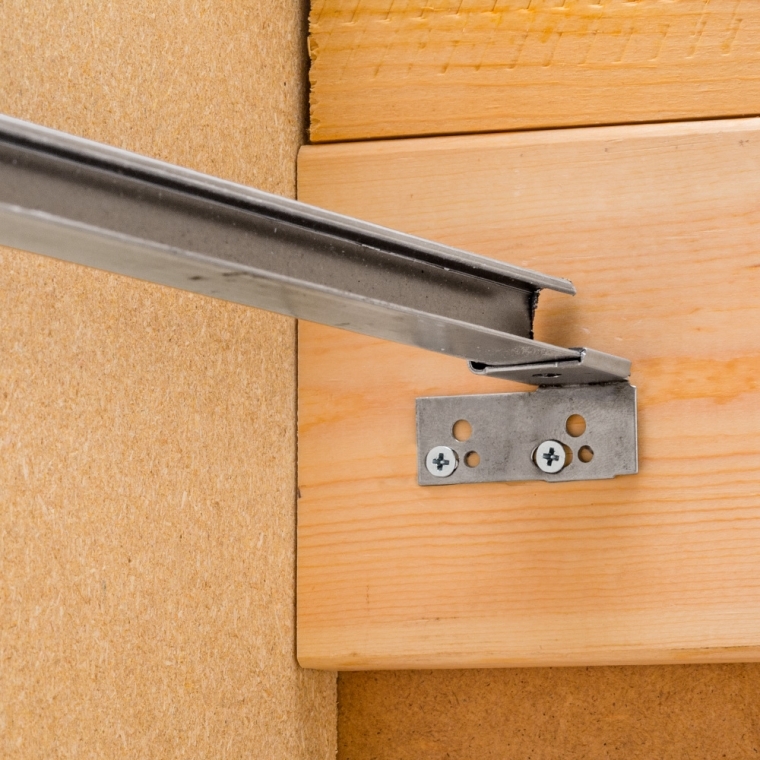

(1) Set of Mounting Brackets

More Information
Weight 1.280000
Tech Spec
  • Material: Cold rolled steel
  • Finish: Zinc
  • Load Capacity: 50 lbs at 22'', more at shorter lengths
  • Axle Load Rating: 100 lbs
  • Notching Required: Yes
  • Side Clearance: 1/8''
  • Top Clearance: 1/4''
  • Bottom Clearance: 3/16''
  • Required Bottom Recess: 3/8''
