$27.99 Each
In stock
Easily drill holes without splitting.

Rockler Hidden Control Arm Jig Kit for Shutter System

Item #
45143
Rating:
96% of 100
Rockler Hidden Control Arm Jig Kit for Shutter System Rockler Hidden Control Arm Jig Kit for Shutter System Rockler Hidden Control Arm Jig Kit for Shutter System Rockler Hidden Control Arm Jig Kit for Shutter System
Rockler Hidden Control Arm Jig Kit for Shutter System

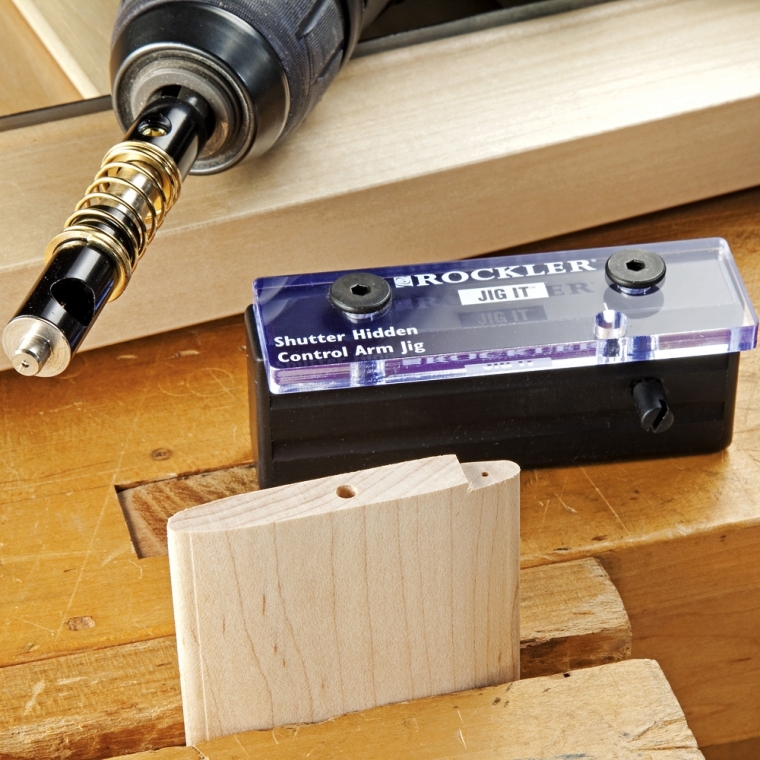

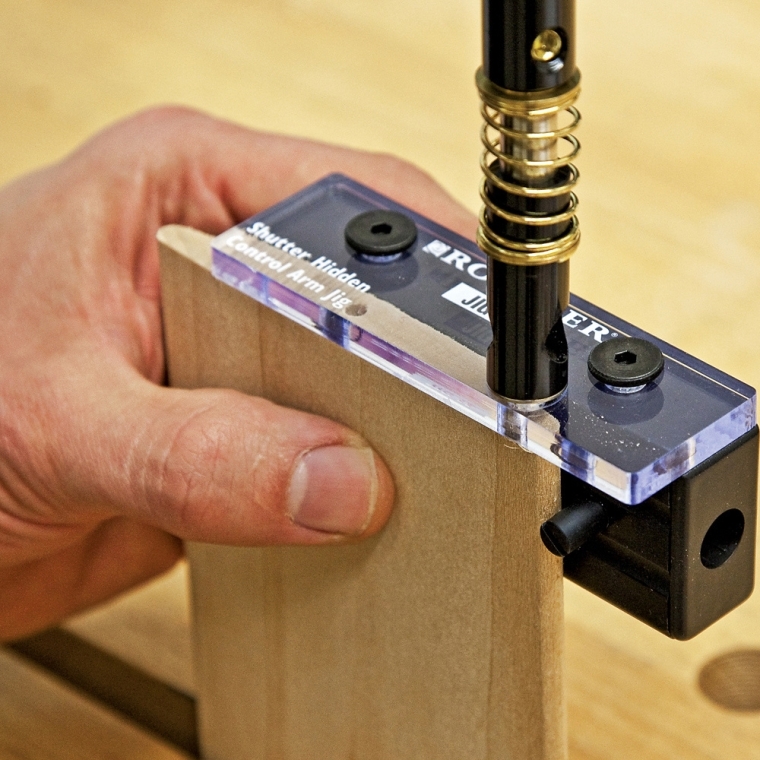

Rear-mounted control arms lend a clean, modern look to your wooden shutters, and this jig makes it easy to drill the necessary holes without splitting. The kit includes a jig and a self-centering drill bit. Just slip the jig over the end of the louver, and use the bit to drill a perfectly placed pilot hole to accept a nail for the control arm. Works in tandem with the Rockler Shutter System Templates. Drilling Jig for Hidden Shutter Control Arm features an extruded aluminum fence and a thick, laser-cut acrylic template. Self-centering drill bit ensures precise hole location, which is critical for even spacing of your louvers.

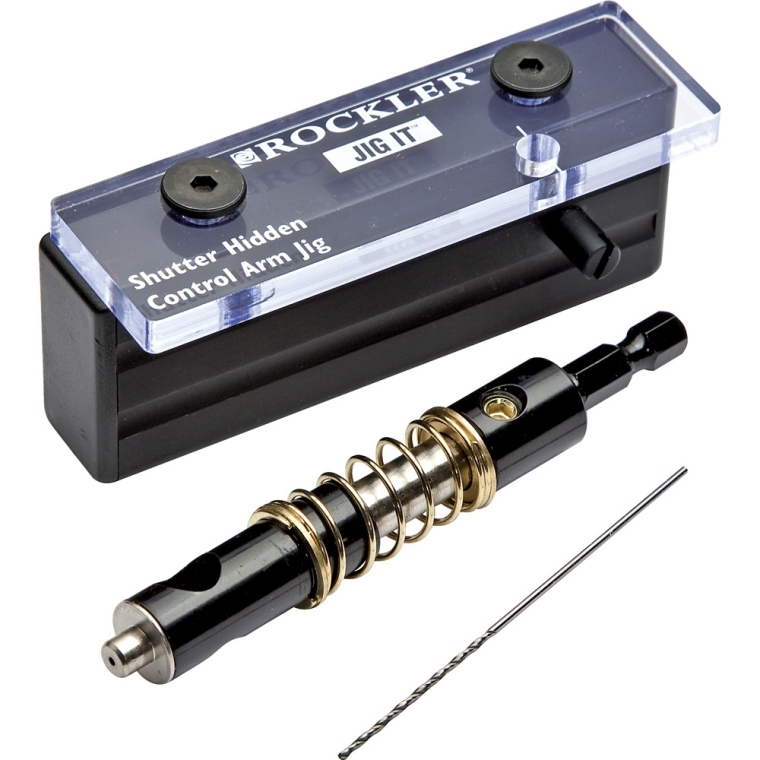

(1) Drilling jig for hidden shutter control arm
(1) Self-centering drill bit
(1) Step-by-step instruction guide
More Information
Manufacturer Part Number TAHCAG-4
Weight 0.4000
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Prop 65 WarningWARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
