$179.99 Kit
In stock
Glassy-smooth ball bearing rollers and high-quality fit and finish make these hardware kits an excellent choice for your handcrafted rolling barn door.

I-Semble Rolling Door Hardware Kit, Bent Strap, Stainless Steel

Item #
52109

Our I-Semble Rolling Door Hardware features sealed ball bearings for glassy-smooth rolling action, and is available in several roller styles and finishes to match your decor. The track is made of solid 1-1/2''H x 1/4'' thick flat steel for excellent beam strength and minimal projection from the wall. A dovetail joint in the middle of the track provides a strong mechanical interlock, and allows you to add optional lengths of track to customize the track length. Also available is a soft-close option (#51786, sold separately), which engages at the final section of travel to pull the door quietly closed.


Features:

  • Smooth-gliding roller straps are made from solid steel
  • Two-piece track mechanically interlocks with a strong dovetail joint
  • Includes all necessary hardware to hang a single door on the included track

Note: Not drilled for use with Soft Close Mechanism (#51786, sold separately).

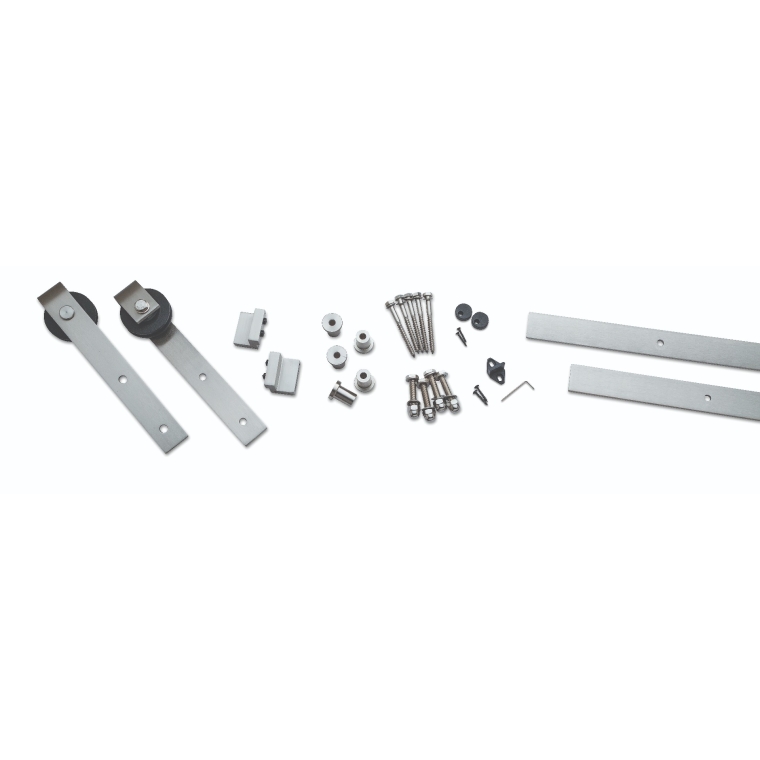

(2) Roller assemblies
(6) Wall mount brackets
(2) 38-1/2'' Track Lengths
(2) Door stops
(1) Floor Guide
(2) Anti-jump discs
(1) Pack of installation hardware
More Information
Brand I-Semble
Weight 16.2500
Tech Spec
  • Hanger Style: Bent strap
  • Material: Stainless steel
  • Finish: Stainless steel
  • Track Length: (2) 38-1/2''; total 78''
  • Weight Capacity: 240 lbs.
  • Roller Assembly Dimensions: 11-1/4''H x 2-3/4''W (wheel diameter) x 2-1/2''D (nut/bolt)
  • Minimum Door Thickness: 1-3/8''
  • Maximum Door Thickness: 1-3/4'' (if the opening will have casing trim, you must subtract for the thickness of the casing)
Technical Documents
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

There are no reviews for this item. Write Review
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 5 questions Browse 5 questions and 6 answers
Why did you choose this?
Rockler Store
Because you did not have the black one
Paul B on Jun 3, 2018
Price plus Look. Been waiting for the price to become reasonable.
Jkulak on Oct 17, 2017
Because you did not have the black one
Paul B on Jun 3, 2018
I thought this would look better than black hardware on white doors
Daniel R on Nov 4, 2017
Price plus Look. Been waiting for the price to become reasonable.
Jkulak on Oct 17, 2017
I thought this would look better than black hardware on white doors
Daniel R on Nov 4, 2017
Does this version work with the soft-close dampers?
Richard G on Jun 11, 2019
I-Semble Rolling Door Hardware Kit, Bent Strap, Stainless Steel
I-Semble Rolling Door Hardware Kit, Bent Strap, Stainless Steel
Soft-Close Mechanism for I-Semble Rolling Barn Door Kits
Soft-Close Mechanism for I-Semble Rolling Barn Door Kits
BEST ANSWER: The main rail was predrilled for the soft-close dampers, and the fit was fine. The clearance was a bit tight for the installation, but eventually worked out ok. They function very nicely, the adjustment was a little tricky.
Can I buy 2 extra roller assemblies? I have 2 doors that are 16” each.
Charles B on Feb 15, 2019
BEST ANSWER: I did just this. I bought two sets and mounted them side by side. Just realize that the steel tracks that come with each set have an interlocking feature between their two ends. This helps the rollers roll smoothly over the seam between two steel tracks. You will have to be careful when mounting the second set to make sure they are at the same height and the rollers roll smoothly on to the second track set.
May we use this hardware for an exterior Door?
David Z on Jul 27, 2019
BEST ANSWER: It's made of high quality stainless steel so i don't see why not.
Would this be suitable for outdoors?
John P on Apr 20, 2019
Are you selling the top mount version or the vertical strap model? Two pictures are shown; which one is selling for $149?
James H on Dec 23, 2018
