Partial Overlay Pocket/Flipper Door Hinge Kit

Item #
25929
Rating:
100% of 100

Pocket/flipper door hinges for partial overlay doors (7/16" maximum overlay; 3/4" maximum door thickness) on either frameless or face-frame cabinets. Can be used with slides in the EZ Pocket Door System for doors that weigh up to 30 lbs. and are a maximum of 42" tall x 24" wide or with slides in the KV8091 Pocket Door System for doors up to 75 lbs. and 72" tall x 26" wide. Require 40mm hinge cup holes.


Note: The EZ Pocket Door System requires one set of hinges per door. The KV8091 Pocket Door System requires two sets of hinges per door.

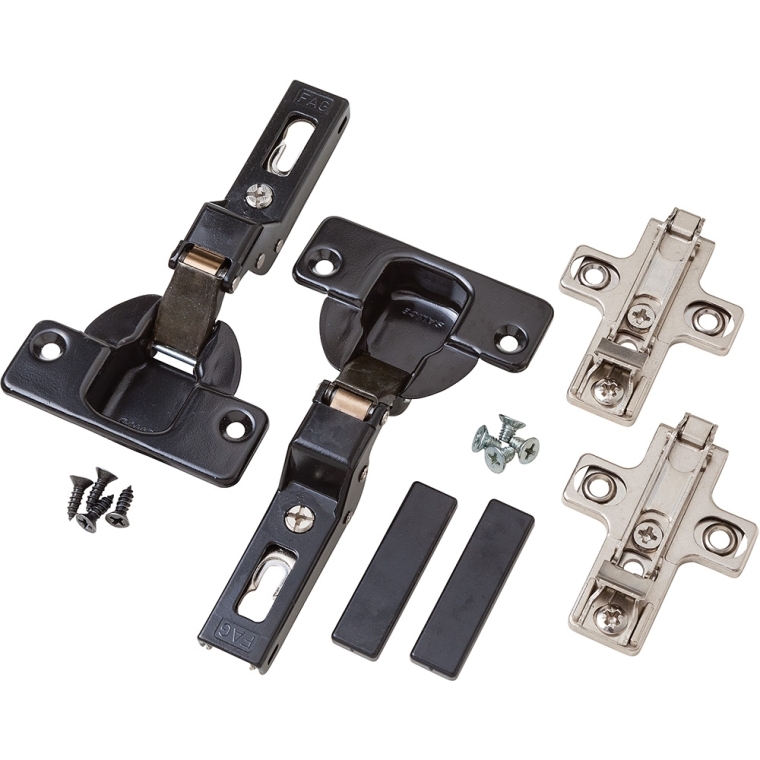

(1) Partial Overlay Pocket/Flipper Door Hinge Kit
More Information
Brand Knape & Vogt
Manufacturer Part Number 8080HKL SAL EB
Weight 0.5000
Tech Spec
  • 40mm cup hole
  • Application Partial Overlay
    Style Self Close
    Minimum Door Thickness 0mm
    Maximum Door Thickness 19mm
    5.0 / 5.0
    2 Reviews
    5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Star
    2
    0
    0
    0
    0
    Excellent product, Very easy to use. Be sure to read and follow the instruction page.
    November 25, 2019
    Purchased
    1 year ago
    Woodworking Experience:
    Advanced
    Uusual hinges, perfect size
    Fit exactly as desired. Not cheap but just what we needed!
    July 9, 2017
    Purchased
    over 2 years ago
    Woodworking Experience:
    Advanced
    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 8 questions Browse 8 questions and 25 answers
    Why did you choose this?
    Rockler Store
    These supposedly go with the door slides
    Daniel W on May 27, 2020
    REPLACEMENT PART
    PAUL P on Jan 1, 2020
    These supposedly go with the door slides
    Daniel W on May 27, 2020
    Needed partial overlay hinges for the cabinet I am working on. Only place I found them.
    Kevin W on Jan 28, 2020
    REPLACEMENT PART
    PAUL P on Jan 1, 2020
    Needed it too use the EZ pocket door slide.
    R. C on Mar 27, 2019
    For TV cabinet
    LadyMary on Jan 25, 2019
    The company I work with does home modifications for elderly and physically disabled people. We use this product to do roll under cabinet doors at the vanity so it still looks nice but works for a wheelchair user.
    Andrew L on Jan 4, 2019
    required for project
    Debby K on Nov 30, 2018
    To go with the EZ pocket door system
    Kim J on Jan 13, 2018
    Because they're the only hinges that work with the flipper doors.
    GINA M on Dec 14, 2017
    had a hinge to break on ent. center. hope this works.
    gig man on Jun 30, 2017
    A replacement match
    Mark A G on Dec 13, 2016
    hardware recomended to compliment pocket door slide, but i will return if i am unable to find 40 mm bit!
    Arthur A on Sep 11, 2016
    We use this to do roll under doors for people in wheelchairs to roll up to a vanity.
    ANDY L on Apr 6, 2016
    Needed partial overlay hinges for the cabinet I am working on. Only place I found them.
    Kevin W on Jan 28, 2020
    Needed it too use the EZ pocket door slide.
    R. C on Mar 27, 2019
    Will these hinges close further than 90 degrees? I want to build a corner media cabinet and have the doors go in to pockets on the slides but when the doors come out and close the front will be more like 120degrees.
    cathy M on Jul 24, 2015
    BEST ANSWER: they make these hinges from 90-135 .They just don't come with the slider kit. Sounds like a corner unit.
    Do you get 2 hinges in a kit?
    Trevor on Jan 30, 2019
    BEST ANSWER: Yes you get two hinges per set.
    My cabinets are a 3/8" overlay. Will they work for us?
    Avery on Nov 22, 2019
    BEST ANSWER: I believe the hinge will allow a 3/8” overlay. There should be enough adjustment in the hinge to accommodate the 3/8” overlay. Be sure to build your door width at this overlay dimension and adjust as needed.
    Will this work with a full overlay cabinet door? The door is a typical kitchen cabinet door. If not, then which product will work with full overlay?
    Nikki B on May 27, 2020
    BEST ANSWER: You will need Full Overlay Hinge Kit for KV8091 Pocket/Flipper Door Slides.
    Full Overlay Hinge Kit for KV8091 Pocket/Flipper Door Slides
    Full Overlay Hinge Kit for KV8091 Pocket/Flipper Door Slides
    Am I correct in assuming that there are 2 hinges in a kit as pictured above?
    Trevor on Jan 30, 2019
    BEST ANSWER: Yes.
    How do you put them on
    hotlipsrm on Mar 6, 2016
    BEST ANSWER: Very simple process. Basically you will need a forstner bit to drill out the big hole for the hinge. Follow the directions with the package to measure the location for the main hole and drill to the appropriate depth which is pretty much the depth of the forstner drill's cutting element. With the hinges in place on the door, you can install the brackets that mount on the door onto the hinges. I basically just hold the door where I want it and mark the holes for the bracket on the inside of the cabinet. Pre-drill holes for the mounting screws on the inside of the cabinet. Remove the brackets from the hinges and install them into the cabinet sides. When you get them in, snap the door into place.
    How to measure pockets hinge for proper drill?
    Enrique S on Sep 14, 2016
