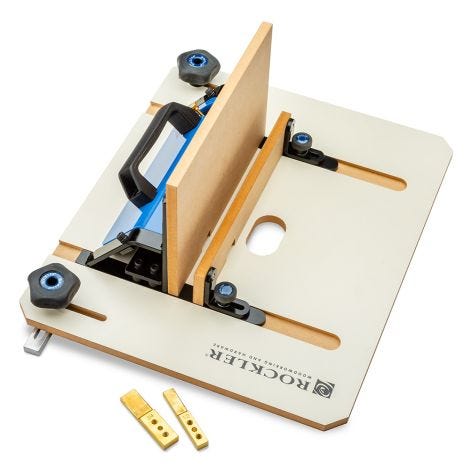

Rockler Router Table XL Box Joint Jig

Now you can easily machine big box joints for large-scale projects on your router table.

Item #
59827
$119.99 Each
In stock

Get Expert Advice

Return Policy

Box joints create strong, attractive corners on large chests, cabinets, boxes and more. This design uses solid brass indexing keys that stay engaged with your workpiece as it slides past the router bit, preventing slippage and ensuring precise results. Just use the knobs to secure the MDF base of the jig into the miter slot of your router table—the sturdy steel sled then lets you guide the workpiece past the bit with complete control. The jig includes precision-machined brass indexing keys to give you air-tight joints with either 1/2'' or 3/4'' fingers. The vertical face of the sled features two sacrificial MDF boards that securely sandwich the workpiece and provide backup support for reduced tearout. Larger pieces can be supported easily by adding a 1/2'' piece of material to the left and right side of the jig platform. The jig is easy to set up and detailed instructions are included.

Features:

  • Precision-machined brass indexing keys mount to and move with the sled, preventing slippage for an airtight fit
  • Includes 1/2'' and 3/4'' indexing keys so you can choose your finger width
  • Rear-mounted handle provides excellent control and keeps hands away from bit
  • Sturdy steel frame handles heavy materials
  • Stable MDF platform has low-friction melamine coating for added durability and easy cleanup
  • Comfortable ergonomic knobs lock platform into standard 3/4'' x 3/8'' miter slot
  • Includes sacrificial MDF fence faces that sandwich the board and provide large clamping areas
  • Fits standard 3/8'' x 3/4'' miter gauge slot
  • Key not in use stores on sled
  • Includes all necessary mounting hardware

Notes: Near edge of table's miter track must be between 4-3/8'' and 7-3/8'' from the center of the bit. Requires a straight router bit to match the size of the indexing key. Use with up-cut spiral bits for the cleanest cuts without blowout (see #63008 and #57813, sold separately).

For best results, we strongly recommend applying a blade and bit lubricant such as Bostik GlideCote (#97594, sold separately) to the router bit before cutting box joints. This will greatly reduce heat buildup and scorching, which are likely to produce poor results and shorten the life of your bit.

Rockler Router Table XL Box Joint Jig
(1) MDF platform
(2) Expandable miter slot bars
(1) 1/2'' indexing key
(1) 3/4'' indexing key
(2) 5/16''-18 Easy-to-Grip 5-Star Knobs
(2) 1'' Easy-to-Grip Round Knobs
(1) Front sacrificial fence
(1) Rear sacrificial fence
(1) Full set of miscellaneous hardware
(1) Hex Wrench

More Information
Brand Rockler
Weight 10.950000
Tech Spec
  • Brand: Rockler Innovation
  • Manufacturer Part Number: TA59827
  • Base Dimensions: 18'' wide x 15'' deep x 1/2'' thick
  • Platform Material: MDF with melamine coating
  • Finger Joint Widths: 1/2'', 3/4''
  • Compatible Miter Slot: 3/8'' x 3/4''
  • Router Table Compatibility: Near edge of table's miter track must be between 4-3/8'' and 7-3/8'' from the center of the bit
