Snap-Lock Zero-Clearance Insert Ring

Zero-clearance opening for minimal tear-out and maximum workpiece support—push-button release for fast bit changes!
Item #
$19.99 Each
In stock

Get Expert Advice

Return Policy

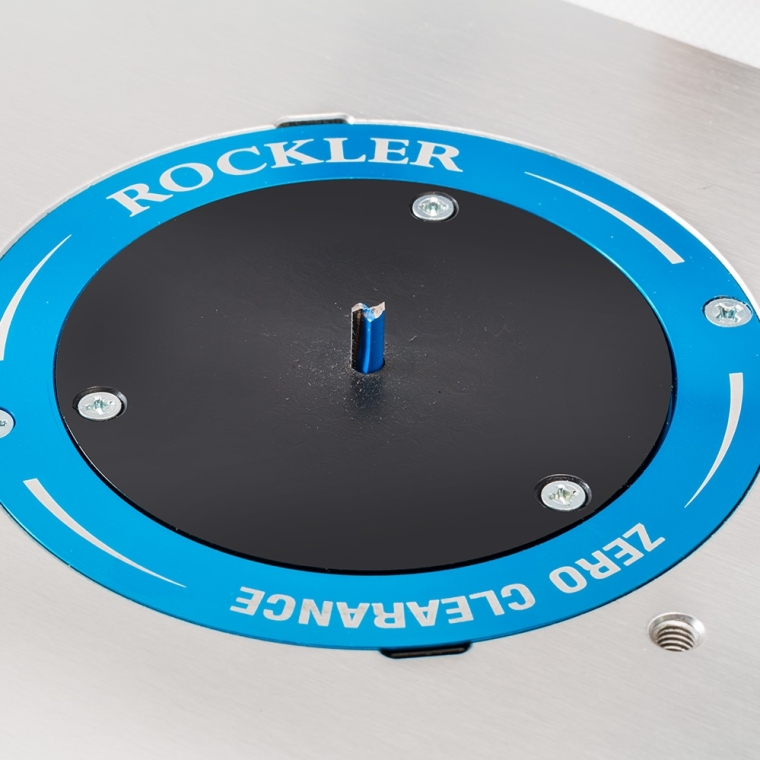

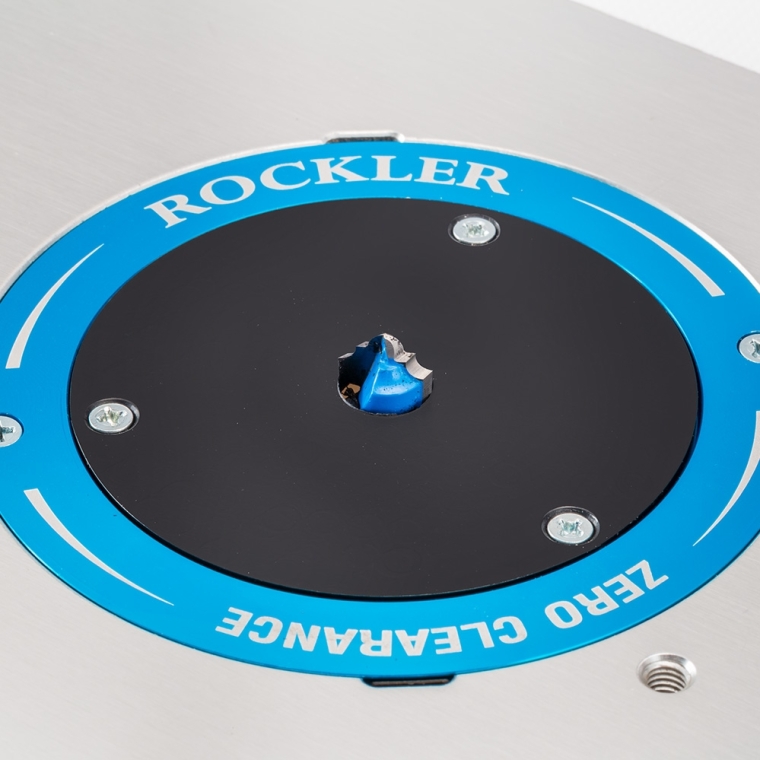

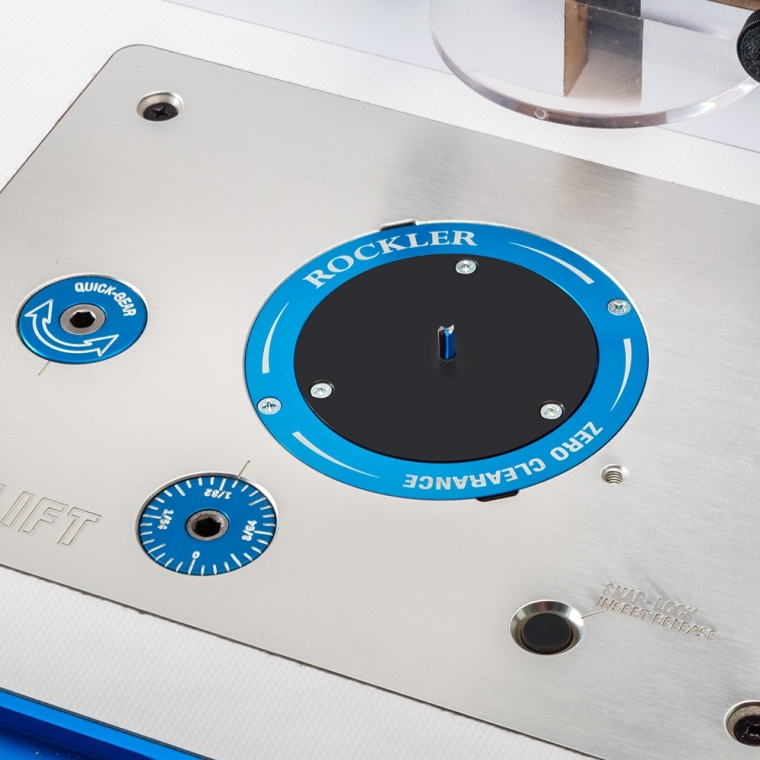

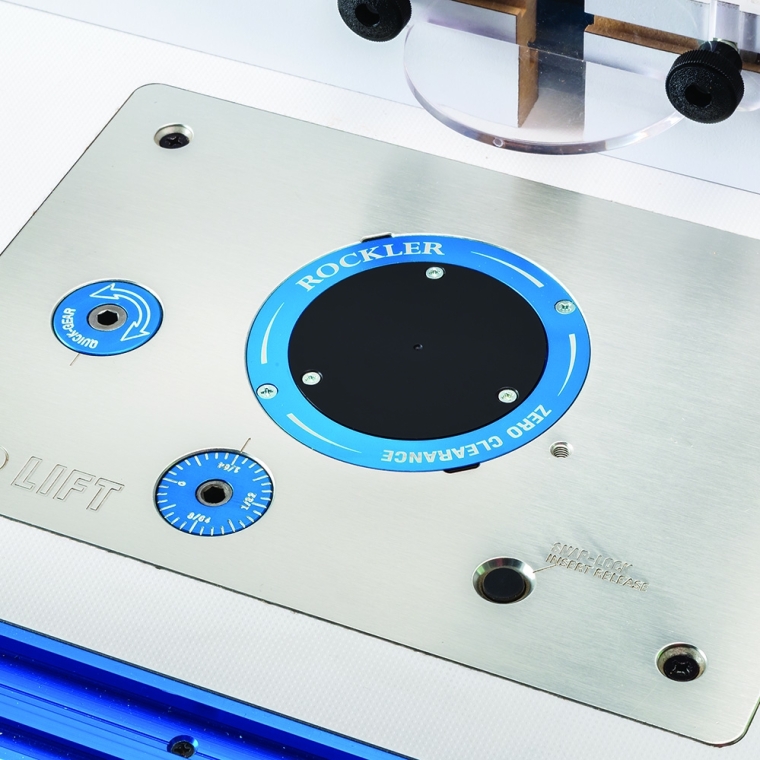

When you need to minimize the gap between your router bit and Pro Lift plate, this zero-clearance insert is the way to go. It features the same easy-change Snap-Lock technology as our other Pro Lift insert rings, but has a solid ABS center so you can customize the opening for any router bit up to 1-1/2'' in diameter. With the gap reduced to an absolute minimum, you'll enjoy less tear-out and better support directly around the bit. Screws are included to secure the ring to your Pro Lift plate while you raise the bit through the ABS. Once the opening is cut, the screws can be removed, and thereafter, the insert ring pops out with the push of a button.


  • Get cleaner cuts and more support with a zero-clearance insert that is customized to your bit

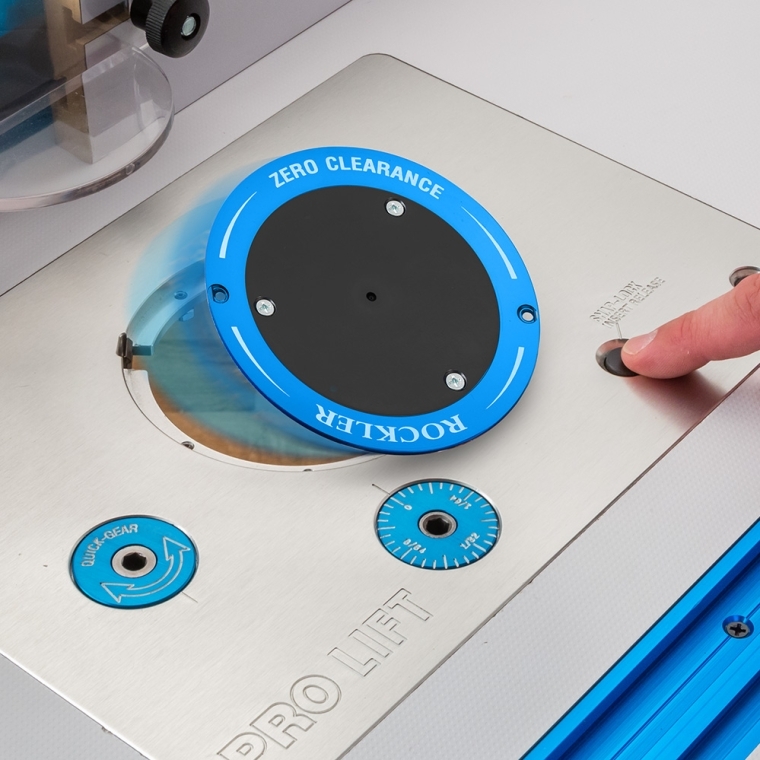

  • Snap-Lock mechanism for fast, tool-free insert ring changes—just push the button to release
  • ABS plastic insert blank secures to insert ring with included screws
  • Screws are included to secure insert ring to Pro Lift plate while you raise the bit through the insert blank during initial setup
Notice: Snap-Lock Insert Rings are designed to fit the Rockler Pro Lift (#52429 and #55803, sold separately) and SL Lift (#52309, sold separately).

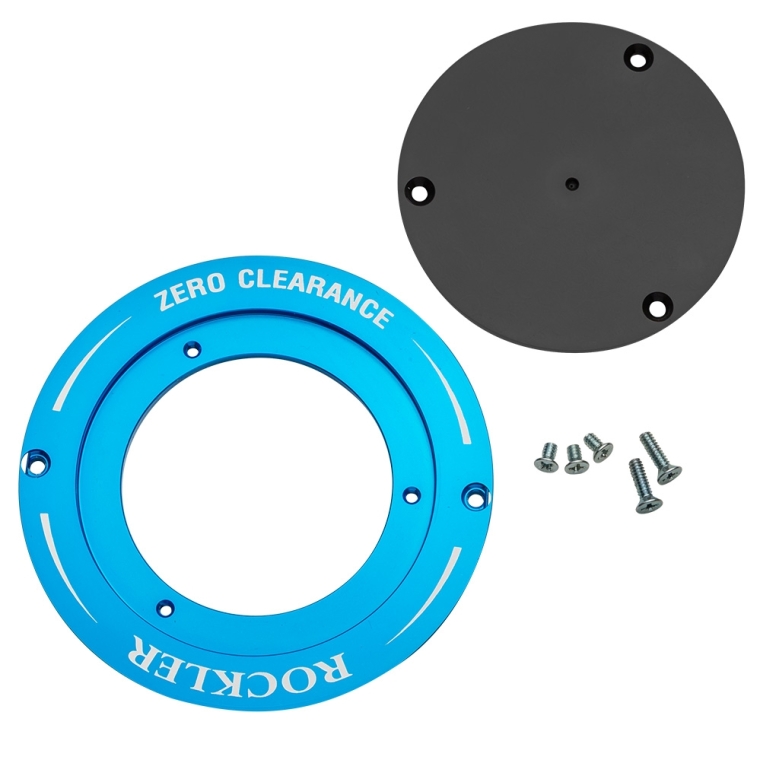

(1) Snap-Lock aluminum insert ring
(1) ABS zero-clearance insert
(5) 6-32 flathead machine screws

More Information
Brand Rockler
Weight 0.300000
Tech Spec
  • Material: Anodized aluminum
  • Inside Diameter: None (customize to your needs)
  • Outside Diameter: Approximately 4-3/8''
  • Compatible Lift: Rockler Pro Lift (#52429 and #55803, sold separately) and SL Lift (#52309, sold separately)
  • Maximum Router Bit Diameter: 1-1/2''
