$54.99 Pair
In stock

Solid Brass Side Rail Hinges with Lid Support

Item #
11027
Rating:
64% of 100
Solid Brass Side Rail Hinges with Lid Support Solid Brass Side Rail Hinges with Lid Support
Solid Brass Side Rail Hinges with Lid Support
A beautiful choice for your finest music boxes, jewelry boxes, humidors, and all other small boxes and cases. These deluxe solid brass hinges are gold-plated for a beautiful finish that will complement your best woodworking projects. An integral lid support keeps heavier duty small-box lids propped open.

Related Products

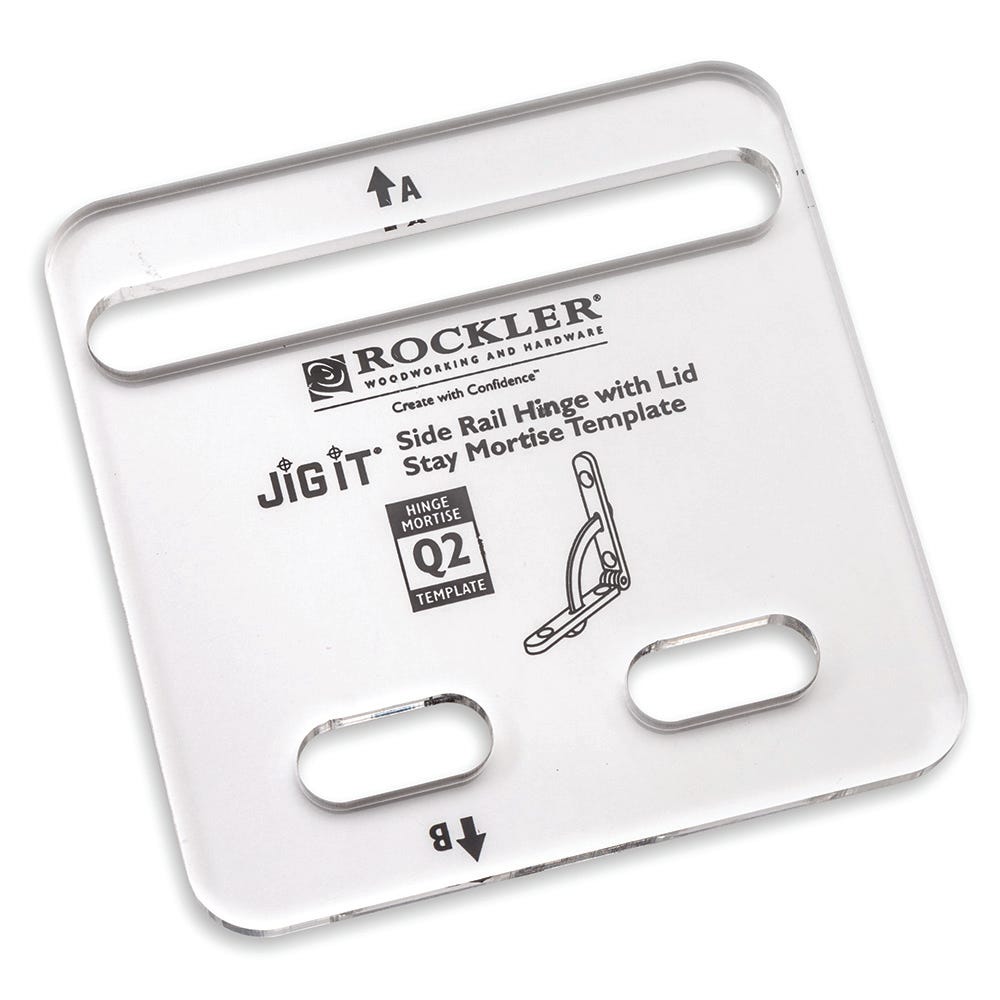

We recommend using our JIG IT® Hinge Mortising System with the Q2 Side Rail Hinge with Lid Stay Mortise Template to make installation of these hinges accurate and easy.
Solid Brass Heavy-Duty Side-Rail Hinges with Lid Support, Pair
More Information
Brand N/A
Manufacturer Part Number N/A
Weight 0.1000
Tech Spec
  • Machined from solid brass and coated with a non-tarnishing epoxy finish
  • Hinges have a 95° stop and are 1/8" thick
  • Measure 2" x 2" x 5/16"
  • Hinges have a built-in stay
  • Installation requires mortising the box's side panel
Technical Documents N/A
Application N/A
Cabinet Application N/A
Open Degree N/A
Finish Brass
Style N/A
Tab N/A
Cup Diameter N/A
Cup Depth N/A
Minimum Door Thickness N/A
Maximum Door Thickness N/A
Adjustments N/A
Gap N/A
Demountable N/A
Minimum Reveal N/A
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

3.2 / 5.0
5 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
0
2
2
1
0
Professional Hinge
This is a high quality hinge that takes precise work to install. I didn't have any issues with short, breaking, or stripping screws, but you cannot hurry things. Doing this again though, I think I would go with brass, as the visual difference is minimal; cost savings is huge.
July 18, 2018
Purchased
3 months ago
Woodworking Experience:
Intermediate
I recently used these hinges on...
I recently used these hinges on a walnut box. I was pleasantly surprised to find they were very sturdily constructed and they supported my 12" X 18" lid with no problem. The only thing I would recommend changing is adding some longer screws.
January 28, 2011
This hinge is NOT for the...
This hinge is NOT for the amature woodworker. There are no instructions to install. Here is what I finally came up with. The hinge mortice is a 5/16 router bit cut 1 7/8 and 1/8 deep from the back in both top and bottom of the box (correct inset for lid to lift correctly, or slightly less). Then it takes a deep mortice for the lid stay when closed. It takes a mortice in both the top and bottom 1/2 inch from rear, 1 3/16 by 1/8 3/4 inch long. This pocket allow the stay to close and not interfere with hinge screws. when finished it is a beautiful hinge. lots of precise cutting. Good luck.
February 16, 2013
Very lovely hinges. Bought them for...
Very lovely hinges. Bought them for my wife's jewelry box/birthday present. The only problem I have with this product is the screws. They are beyond a joke. Too small. A larger gauge screw would be better. The small screws strip to easily. I could not find a screwdriver to fit the screws at my local hardware store or any screws to use so I could put them in first before the proper screws. Even with pre drilling and using a wax to help drive them in, they still stripped.
September 30, 2012
I really liked the hinge but, The price is way too high
September 18, 2016
Purchased
over 2 years ago
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 6 questions Browse 6 questions and 15 answers
Why did you choose this?
Rockler Store
Building my wife a custom jewelry box
Scott C on Aug 16, 2017
Humidor box.
Nicholas S on Jun 13, 2016
Building my wife a custom jewelry box
Scott C on Aug 16, 2017
want to try out this hinge to see if I like the look & function. it looks in the picture to be a cleaner hidden look.
Lloyd Duane G on Nov 19, 2016
Humidor box.
Nicholas S on Jun 13, 2016
Needed an attractive hinge that would hold in place a customized urn.
Ben T on Aug 24, 2015
want to try out this hinge to see if I like the look & function. it looks in the picture to be a cleaner hidden look.
Lloyd Duane G on Nov 19, 2016
Needed an attractive hinge that would hold in place a customized urn.
Ben T on Aug 24, 2015
When installed, does the hinge protrude beyond the back of the box? The installed item picture makes it seem that about half of the hinge barrel would remain outside of the box/case back.
Earle D on Sep 6, 2017
WOULD THESE WORK FOR A DROP FRONT SUPPORT AS WELL AS A LID?
Casey J on Aug 14, 2015
BEST ANSWER: I think these hinges would be a little too light in construction for drop front support; they work very nicely for a small box lid as shown. In stead of inserting the hinge in the end of the box as shown , I made an extra block for the hinge ; it was less work and kept the end of the box corner stronger because you did not remove all of the material for the hinge arm.
TS.
Does the arm only disappear into the bottom? The top I'm using is less than 3/4" thick
Lynn B. K on Aug 14, 2016
BEST ANSWER: No, the arm is hidden equal distance into the top and bottom, as per the instructions. I think it was a 1" deep recess in each. Not sure if you could go 1/2" deep in the top and 1-1/2" in the bottom without affecting operation... possibly. I remember the clearances were pretty tight with the curvature of the arm.
What is the size. Would they work on an old secretary's desk? hinge shown in picture
Marietta D on Dec 19, 2015
BEST ANSWER: Woodworking guide offers anyone of any skill level the ability to build amazing projects. The guide is extra helpful because it offers more detailed explanations, videos and blueprints then your typical woodworker magazine . Download over 16,000 WOODWORKING PLANS at here tiny.cc/woodboat
Hope it will help you next time !
are these Brusso hinges ?
John W on Aug 8, 2016
BEST ANSWER: yes
how do you get the bottom screw in with the support arm in the way?
Lloyd Duane G on Dec 13, 2016
