$8.99 Each
In stock
Use with the JIG IT Hinge Mortising System (#58822, sold separately) to rout mortises for Side Rail Hinges (#11040, sold separately).

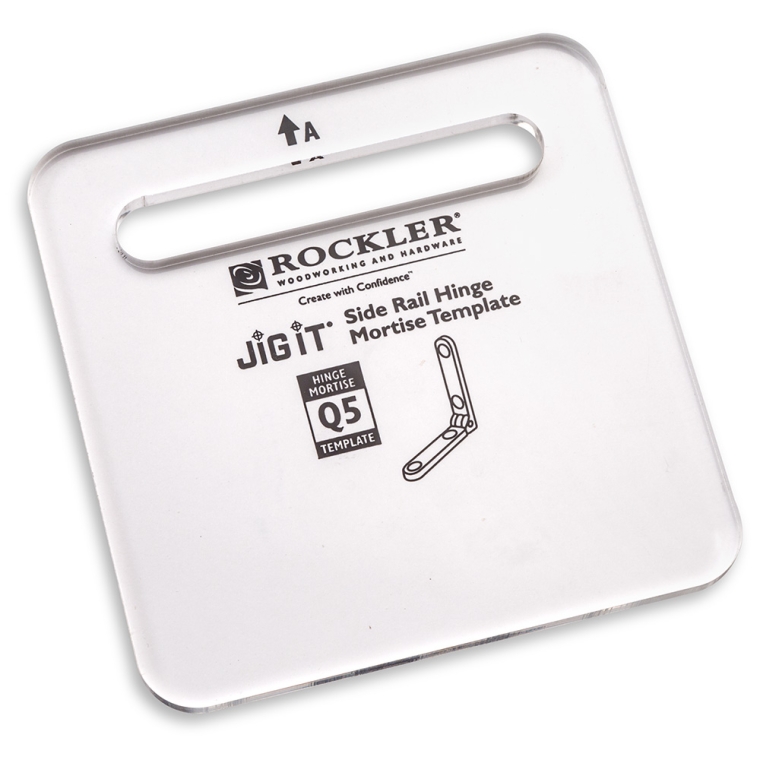

Q5 Side Rail Hinge Mortise Template

Item #
56612
Rating:
20% of 100

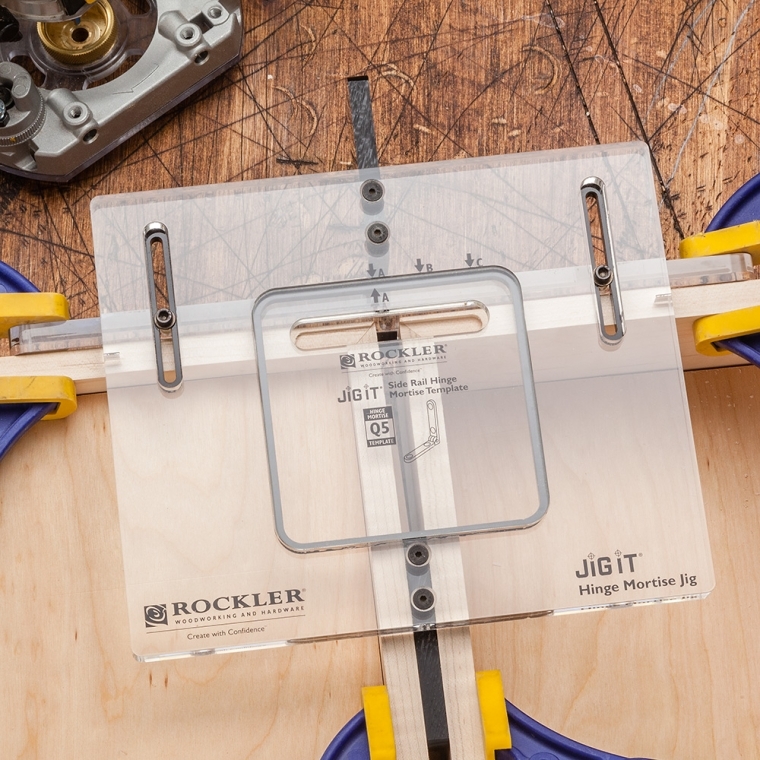

Insert this template into the JIG IT Hinge Mortising System (#58822, sold separately) to rout precise hinge mortises with smooth, hinge-hugging contours. With the easy setup and routing provided by this system, frustrating mistakes will be a thing of the past. Clear acrylic for easy visibility. Laser etchings ensure foolproof setup. The Q5 Side Rail Hinge Mortise Template should be used to rout mortises for Solid Brass Side Rail Hinges (#11040, sold separately)

(1) Q5 Side Rail Hinge Mortise Template
More Information
Brand Rockler
Manufacturer Part Number No
Weight 0.2000
Tech Spec
  • Material: Transparent acrylic
  • Thickness: 3/8''
  • Compatible Hinges: 11040
Tech Docs
Type No
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Prop 65 WarningWARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
1.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
0
0
0
0
1
A problem...
I purchased this to install hinges on a keepsake box I was making. Using the template as instructed results in the hinges protruding about 3/8 in from the back of the box. This is not satisfactory as these hinges should be flush with the back of the box. Not recommended for this specific hinge.
