Rockler 1-1/16" Diameter X 3/4" High Drawer Lock Bit

Increases gluing surface and provides a strong, mechanical locking action for drawer box corner joints.
Item #
92112
Rating:
78% of 100

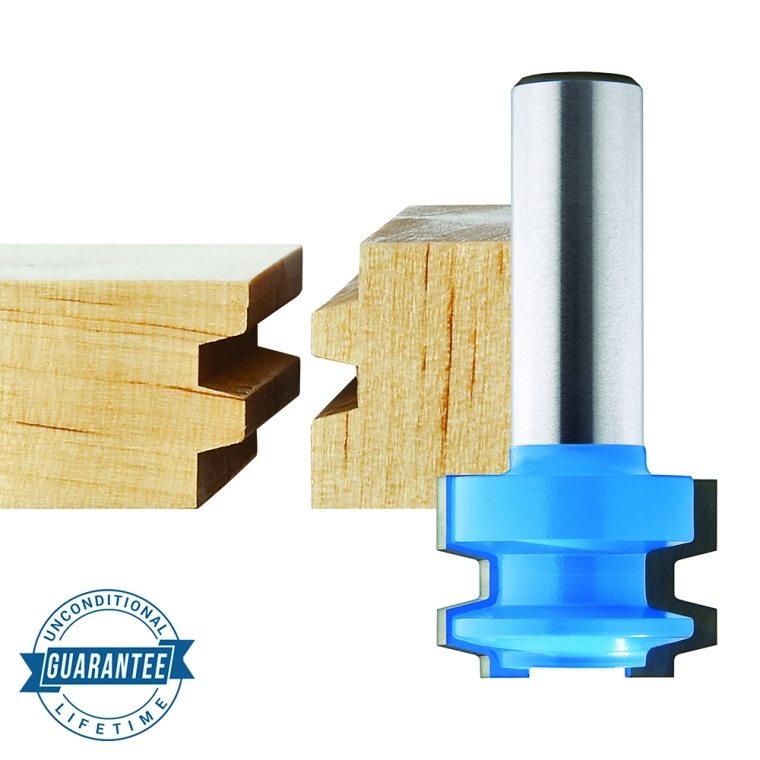

This unique bit is similar to a locking rabbet bit, but it cuts two tongues instead of one for added mechanical strength and additional gluing surface. The wedged profile of the tongues helps everything snug up under clamping pressure, while still exposing valuable long grain gluing surface. To machine your parts, run the drawer fronts flat on the router table and the sides vertically against your fence. 1/4" shank.
(1) Rockler Drawer Lock Bit, 1/4" Shank
More Information
Brand Rockler
Weight 0.1200
Bit Type Drawer Lock
Diameter 1-1/16"
Cutter Height 3/4"
Shank Size 1/4"
Flutes 2
3.9 / 5.0
8 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
2
4
1
1
0
Very Nice Bit
I purchased this bit at the Pasadena, CA store, where the sales people are wonderful. I needed to replace 13 drawers in my kitchen that were falling apart. Built up a router table out of scrap aluminum, and the bit cut flawlessly with very little setup. This bit has a 1/4" shaft (last one in the store), because I used it on my laminate router.
February 23, 2017
Woodworking Experience:
Intermediate
The bit is great, but to...
The bit is great, but to me more important was the outstanding level of customer service. My issue was resolved in a professional and quick manner. I will definitely continue to order from Rockler.
February 13, 2011
Does the job
Makes good cuts
January 4, 2019
Purchased
10 months ago
Woodworking Experience:
Intermediate
Usable drawer lock
While this cutter works well, the interlocking fit is not as tight as I would prefer.
October 22, 2018
Purchased
1 year ago
Woodworking Experience:
Intermediate
Drawer-lock bit
I was impressed with the drawer-lock bit, but it has a drawback. If you use it on the rear of the drawer and slide in the bottom, the side drawer sides do not go all the way to the back of the drawer. This makes it a little difficult to start the drawer in the cabinet.
October 16, 2016
Purchased
over 3 years ago
Woodworking Experience:
Advanced
I purchased this bit to build...
I purchased this bit to build drawers for a four drawer all oak tool box. I am very pleased with the excelent job that it did. It was easy to set up and produced good tight joints.
March 17, 2008
The router bit itself is OK,...
The router bit itself is OK, but the setup jig is completely worthless. This setup jig is apparently only for 3/4" (front) stock joined to 5x8" (side). In my setup with 1/2" sides, it is competely wrong. That being said, without the jig, it takes a LOT of trial and error to get the setup just right. Once I had it right, I just made my own jig out of a piece of MDF.
February 10, 2010
The bit itself is a fine...
The bit itself is a fine bit. The setup is another matter it took me 10 hours to get it right. Instructions would have help a great deal. I bought the setup jig thinking it would help, a complete waste of money. I have bought many products from Rockler this is the first time I have been extremely disappointed.
May 9, 2011
