Rockler 4-Pc. Dovetail Router Bit Upgrade Set - 8mm Shank

Thicker 8mm shanks help to reduce chatter for tighter fitting dovetails and box joints.
Item #
20439
Rating:
86% of 100

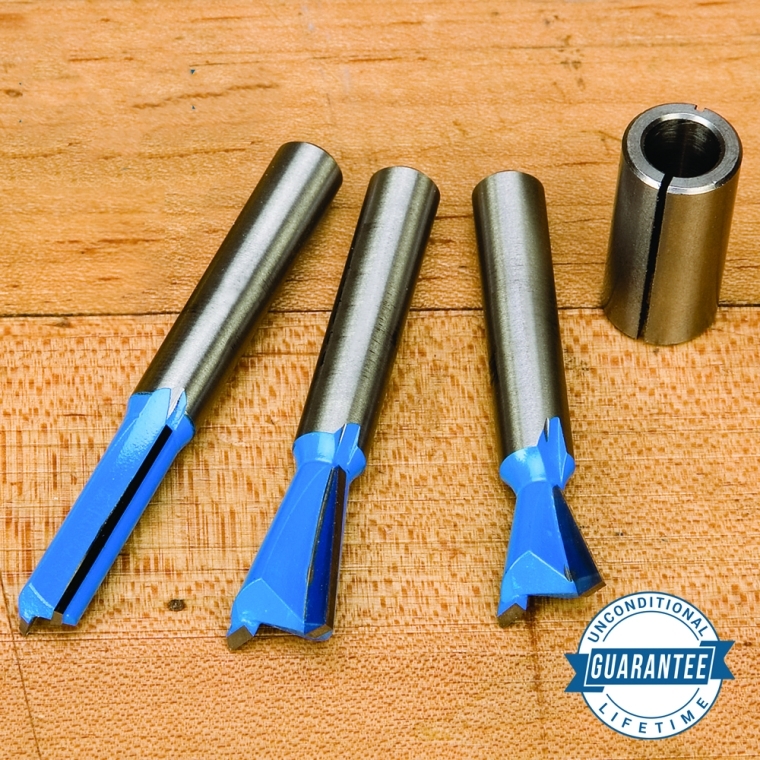

This router bit set features 8mm shanks, which are 25% larger than 1/4" bits. The extra mass in the shank helps to reduce chatter. Ideal for joining case goods, the set includes 1/2" x 14° and 8° dovetail bits, a 5/16" straight bit, and 1/2" to 8mm collet adapter. The straight bit can be used for box joints, or for cutting grooves and dados. Fits all existing Rockler dovetail jigs.
(1) 1/2" x 14° Dovetail Bit
(1) 1/2" x 8° Dovetail Bit
(1) 5/16" straight bit
(1) 1/2" to 8mm collet adapter
More Information
Brand Rockler
Weight 0.2000
Tech Spec 5/16" Diameter
  • Cutter Height: 1-1/32"
  • Type: Straight Bit

1/2" Diameter
  • Cutter Height: 53/64"
  • Type: Dovetail bit
  • Angle: 8°

1/2" Diameter
  • Cutter Height: 17/32"
  • Type: Dovetail bit
  • Angle: 14°

Bit Type Dovetail
Diameter 1/2", 5/16"
Cutter Height 1-1/32", 53/64"
Shank Size 8mm
Flutes 2
4.3 / 5.0
9 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
6
1
1
1
0
These products that I bought work very very well. My father love this store, so when he past away I inherited a lot of my father's tools they were a lot from Rockler. I've been using a lot of these Jigs and bits on a lot of my projects my dad made very good choices so I wanted to follow in his steps thank you for the product.
March 7, 2019
Purchased
9 months ago
Woodworking Experience:
Intermediate
Great bits for making tight boxes.
I have bought this set at least 10 times over 6 years and use the larher dovetail bit and straight bit in my Rockler dovetail jig. I do so many dovetails on 3/4" oak, cherry and mahogany for my box pieces that I dedicate a full size router for each bit. Changing bits and resetting depth of cut is wasted time. I have great results, probably because of the thicker 8mm shank. My only complaint is that I never use the smaller dovetail bit, so I would like to stock up on the 2 I do use, and Rockler doesn't sell the straight bit separately: only the dovetail bit.
Humidor in cherry over mahogany
Humidor in cherry over mahogany
December 16, 2017
Purchased
1 year ago
Woodworking Experience:
Advanced
Great package at a good price.
Rockler bits are guaranteed for life. These bits with an 8mm shank (with 1/2" to 8mm reducer) helps considerably with stability and tear out while making through dovetail joints. Used on a Leigh D4 dovetail jig. The 14 degree bit makes nice sliding dovetail joints.
October 5, 2017
Purchased
over 2 years ago
Woodworking Experience:
Intermediate
Great!!!!!!!!!!!
December 17, 2016
Purchased
over 2 years ago
Woodworking Experience:
Advanced
Long Lasting
Seems to last longer than most b/w sharpenings.
August 15, 2016
Purchased
over 4 years ago
Woodworking Experience:
Advanced
I used the 14 degree 8mm...
I used the 14 degree 8mm dovetail bit 29961 in this kit to compliment my Rockler dovetail jig 23777. It wasn't until the bit dulled after many, many uses on solid oak drawers I've built for all of my home projects that I went back to another brand at 1/4" thinking it should work the same. It didn't. I realized how truly magnificent the extra width of the shank is. There was a major difference in chatter and the Rockler bit's ability to cut smooth, perfect dovetails every time. I put the other brand 1/4" bit back in its case and ordered three more Rockler bits. I'll never go back.
November 18, 2010
Good Results!
Had good results with the bits.
Be careful using the provided collet adapter. I wasn't careful and the adapter slipped down into the router and forced me to destroy the router bit to remove.
I have since ordered a proper 8mm collet for my router so this won't happen again.
Cannot seem to find the replacement 5/16 x 8mm bit that got destroyed though. Rocker doesn't seem to have this bit for individual sale?
August 17, 2017
Woodworking Experience:
Intermediate
disappointed
The bit cut fine and with perfect results. Unfortunately the bit tends to stick in the collet spacer. This happened twice and on the second time the bit was damaged in removing it from the collet. Otherwise it is great!
November 24, 2014
Non-Standard Size Causes Problems
Using a shim on a router bit is always cumbersome. Can you not make this in a standard 1/4" or 1/2" shank?
July 22, 2019
Purchased
4 months ago
Woodworking Experience:
Intermediate
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 3 questions Browse 3 questions and 2 answers
Why did you choose this?
Rockler Store
To have a extra set
These are good and I needed a replacement that I know will work with my Rockler Jig.
s c on Mar 26, 2018
To have a extra set
Like the additional strength of the 8mm
J A on Jan 4, 2019
These are good and I needed a replacement that I know will work with my Rockler Jig.
s c on Mar 26, 2018
to make better joints
Paul g on Jan 23, 2018
I have the jig but I couldn't find the bushing or the straight bit.
Jerrold L on Aug 15, 2017
I bought the Rockler jig at an auction but it did not include the bits.
Mark B on Jul 12, 2017
One set came with the Rockler Dovetail jig and I was impressed with the router bits. I wanted a spare.
Patrick L on Dec 15, 2016
For making dovetails.
Buster on Apr 6, 2016
Goes along with the dove tail jig. However, I found out the jig comes with router bits.
David J on Mar 18, 2016
My original set is getting old.
Rod W on Jul 17, 2015
Like the additional strength of the 8mm
J A on Jan 4, 2019
to make better joints
Paul g on Jan 23, 2018
The 8mm adapter got stuck in my router. any suggestions on getting it out?
Emily G on Feb 24, 2018
BEST ANSWER: Yes, I had the same thing happen to mine. I removed the cinch nut, wrapped the adapter in duck tape, and 'gently' used a pair of pliers on it to work it out. Since the portion you use with the pliers is never in the chuck it won't matter much if it gets scarred up a little. Just don't get to aggressive with it. I'm curious which router you are using. I wonder if its the same. Might actually be a design issue.
Can this set be used with a Leigh D4? Thanks
David S on Jun 25, 2018
I have a Rockler Dovetail jig I purchased more then 10 years ago. Will these bits work with that along with the guide bushing that came with it?
Daryl H on Nov 10, 2017
