$199.00 Each
Oversold Until 10/08/2018

AC 12 Accessory Kit for Leigh Super 12 Dovetail Jig

Item #
34016

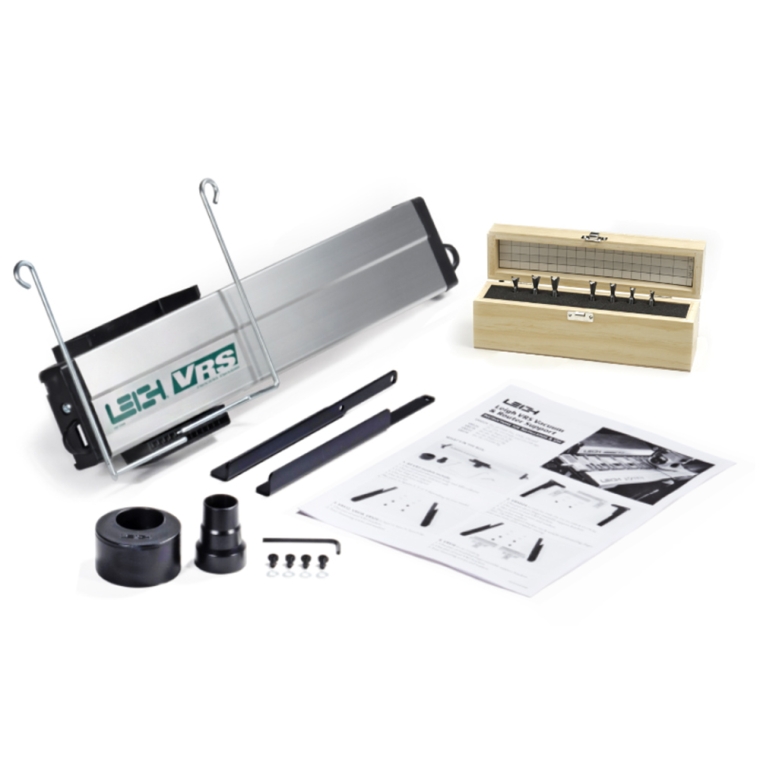

Cut a wider range of joinery sizes with the Leigh Super 12 Dovetail Jig and vastly improve dust collection while you work. Kit includes a Vacuum & Router Support (VRS) for the Super 12, as well as a boxed set of four 8˚ bits for cutting through dovetails and three bits (10°, 12° and 18°) for machining half-blind dovetails. All bits have 8mm shanks and require the collet reducer that comes with the Super 12 Dovetail Jig.


The VRS provides full-width router support and incorporates control arms that move the vacuum chute from side to side, automatically following the router as you cut the joint. Chips and sawdust are drawn into the vacuum chute and down through the hose. Each VRS comes with two adapters to fit popular vacuum hose sizes from 1’’ to 2 1/2’’.

(1) 12'' Vacuum & Router Support
(1) 8° Through Dovetail Bit 50-8(1/4'')
(1) 8° Through Dovetail Bit 60-8(5/16'')
(1) 8° Through Dovetail Bit 70-8(3/8'')
(1) 8° Through Dovetail Bit 75-8(7/16'')
(1) Half-blind Bit 101-8(10°)
(1) Half-blind Bit 112-8(12°)
(1) Half-blind Bit 128-8(18°)
(1) Bit Storage Box
More Information
Brand Leigh
Manufacturer Part Number AC 12
Weight 3.3300
Tech Spec N/A
Tech Docs N/A
Type Dovetailing
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Prop 65 WarningWARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
There are no reviews for this item. Write Review
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 4 questions Browse 4 questions and 2 answers
Why did you choose this?
Rockler Store
I want to get the maximum utility and convenience out of my dovetail jig
Don M A on Oct 21, 2017
I want to get the maximum utility and convenience out of my dovetail jig
Don M A on Oct 21, 2017
If I buy the 12 Super Dovetail Jig, why do I need this accessory package?
Juggler on Aug 6, 2016
I'm a little confused. If I buy the 12" super jig, why do I need the accessory kit?
Juggler on Aug 5, 2016
BEST ANSWER: I believe it adds support to any project you are working on.
Dose item #34016 fit the Super 18 Leigh Dovetail jig?
Russell on Dec 18, 2017
BEST ANSWER: No for the one I have is the 12” jig and my dust collector fit it from end to end. If you where to put the 12” on the 18” you would be short 3” on each end.
What size opening on a router base?
Abe G on Apr 4, 2018
