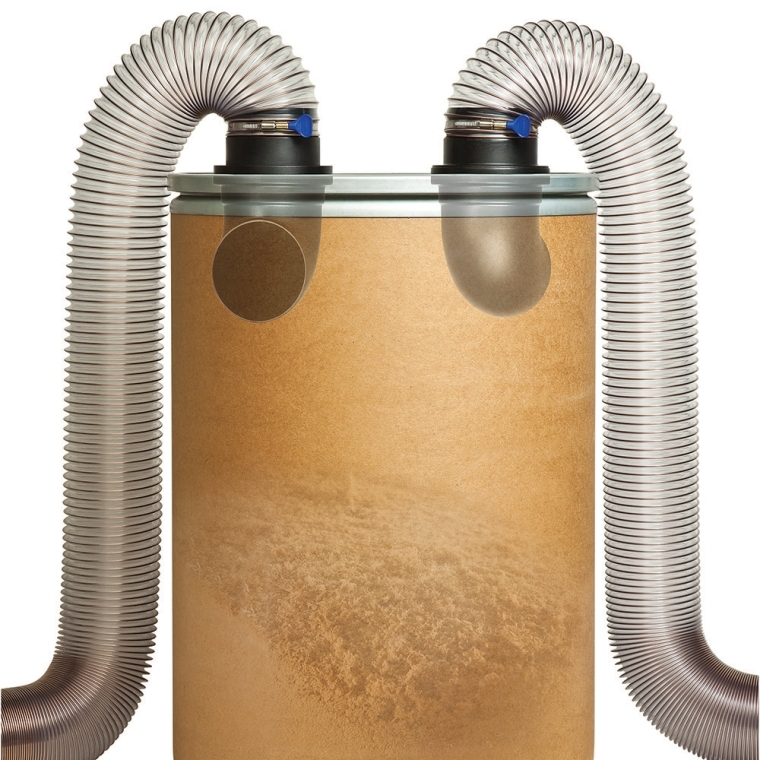

Dust Right® 4'' Dust Separator Components, with FREE Downloadable Plan!

Prevents unnecessary damage to your dust collector by separating out large wood chips.

Item #
94% of 100

Separate large wood chips out of your system before they reach your dust collector. One pair of plastic elbow and coupler components serve as infeed and outfeed points when you install them on either end of a box, bin or other fixture you wish to use to catch large wood chips. This system will save wear and tear on your dust collector, and you won't have to empty it as often. The two coupler components fit standard 4" dust hose as well as the Dust Right® Handle system (sold separately).

(2) Plastic Elbows
(2) Straight Couplers
(2) Circle Templates (for cutting holes)
More Information
Brand Dust Right
Manufacturer Part Number TADSC25-6
Weight 1.9000
4.7 / 5.0
130 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
Cut dust vacuum noise coming thru your hose in half
My Jet 1 1/2 HP dust vacuum was so noisy that I moved it to a shed next to my shop. Still noise from the hose at my lathe was 92 dB measured in a meter. I purchased a fiber barrel from Grainger Supply and with your nozzles put it in line between the Jet and my lathe. Now the dB meter reads 53. I can hear again.
April 21, 2020
2 months ago
Woodworking Experience:
Works like a charm
this set of components installed in a 30 gal plastic drum take all of the large and small particulates out before the actual dust collector. this is a must have for any shop using something larger than a shop vacuum.
March 19, 2020
3 months ago
Woodworking Experience:
Works great
March 15, 2020
3 months ago
It works well, i am having trouble finding a barrel with locking lid that is half the size of a trash barrel. Same dia. just smaller.
March 9, 2020
3 months ago
Woodworking Experience:
Great alternative to expensive dust cyclone
Recomend this 100%
Easy to cut holes using provided circle stickers. Works amazingly w/ hardly no dust passing through.
Easy to cut holes using provided circle stickers. Works amazingly w/ hardly no dust passing through.
March 5, 2020
3 months ago
Woodworking Experience:
i installed these into a 30 gallon galvanized garbage can to create a two stage dust collector. works great.
January 8, 2020
5 months ago
Great addition to my dust collection.
Works great. Bought a 32 gallon trash can with a locking lid from Lowes. Easily mounted the adapters in 10 minutes. My dust collector now only collects dust, not chips.
November 14, 2019
7 months ago
Woodworking Experience:
bought them for a friend and he loves them!
September 13, 2019
9 months ago
Worked as advertised.
The dust separator works really well. It sure will save changing bags as often. Easy to assemble too. I used a cardboard drum with locking lid.
August 31, 2019
9 months ago
Woodworking Experience:
A Great Product
I have used a Jet dust collector for several years. The collection bag is much too small and very difficult to remove when full. The dust separator was easy to assemble. I had a plastic barrel on hand and cut a plywood top for the barrel. The barrel now traps almost all chips and dust and it is easy to empty. The barrel also has a large capacity that supports running a planer.
August 26, 2019
10 months ago
Woodworking Experience:
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 21 questions Browse 21 questions and 99 answers
Why did you choose this?
Rockler Store
Putting together my new dust collector system in the shop
Mike P on May 2, 2020
Low cost and good ratings
James M on Apr 20, 2020
Putting together my new dust collector system in the shop
Mike P on May 2, 2020
Want to build my own two-stage system
Al on Apr 29, 2020
Low cost and good ratings
James M on Apr 20, 2020
re-doing my shop and collection system
RONALD T on Apr 15, 2020
for the panel saw.
MICHAEL Z on Mar 28, 2020
To remove large pieces
Steve P on Feb 29, 2020
Cost effective solution!
Jayson J on Feb 18, 2020
Building new system with seperator barrel
Don C on Feb 14, 2020
Saw it on u tube
Martin on Jan 30, 2020
Too much chip volume in my collector bag, and current bag is a pain to empty, it is not a Rockler system
J U on Jan 19, 2020
Great Idea for DeWalt Planer Plans
T O on Oct 23, 2019
My shop NEEDS a housekeeper! This seems like the next best bet!!
Georg S on Aug 22, 2019
to setup a second 2 stage system in my shop
Randall W on Apr 18, 2019
Looked like a good option
Steve Basso Y on Apr 9, 2019
need it
Debra H on Mar 12, 2019
Appears to be an economical alternative to a separator lid and can.
M C on Mar 3, 2019
Looks like a good kit to convert to two stage system.
Carp on Feb 13, 2019
Free Shipping
RON H on Jan 28, 2019
hope to have more time between dumping sawdust, will be used on 55 gal. drum
Daniel D T on Jan 21, 2019
this is the second stage to my collection system
james s on Dec 31, 2018
These are the perfect chip separator set up.
EMILE B on Dec 13, 2018
husband request
kathy b on Dec 11, 2018
Requested by son in law who is a woodworker and wanted this item in his shop.
William K on Dec 7, 2018
have been looking for just these components to convert my drum to a chip separator without having to assemble half a dozen components to do the job.
James R on Jul 7, 2018
setting up new system
Gene W on Jul 6, 2018
need it for plainer
Kathy L on Jun 27, 2018
samuel l on May 10, 2018
It is more efficient and less combersom than created it out of PVC
Michael J on Apr 10, 2018
Met my needs and is reasonably priced
Barry T. R on Feb 21, 2018
mount on 55 gallon deum
wendell t on Feb 1, 2018
The design
James P on Jan 16, 2018
Convert single stage dust collector to two stage
Wayne M on Jan 5, 2018
Dust collector bag is a pain to empty so I"ll catch chips in a barrel which will be easy to empty!
Steven W on Jan 3, 2018
I already own one set and I have two barrels. They work great!
Matthew M on Dec 27, 2017
Bought a 20 inch planer and the bag on my dust collector fills up really fast. Hoping this will extend the dumping time.
Randy B on Dec 2, 2017
I already have a setup and like it, but want to make a double barrel setup to catch more sawdust that would normally go into the dust collector bag.
Ronald M on Nov 22, 2017
Simply could not seem to bring myself to buy cyclone dust separator for over 150.00 willing to try this first.
Raymond C on Nov 2, 2017
dust collection system
Bruce M on Oct 28, 2017
i have always been for dust separation.
Bruce K on Sep 29, 2017
needed to try an correct a fine dust problem in my shop.
gerald g on Sep 25, 2017
To protect the impellers in my vacuum. Should also be easier to dump sawdust.
Aaron T on Sep 24, 2017
I have a 4 inch dust collector that keeps clogging up.
David on Sep 14, 2017
upgrade system
kelly L on Aug 10, 2017
Seems like the right fit for my small shop, the free plan is a nice touch and the price is right. Plus it had great reviews all around, nothing really negative so it was worth to try them out.
Jonathan S on Jul 24, 2017
to build system
STRATTON K on Jun 4, 2017
Economical alternative to separating dust before gets in filter.
Athor on May 5, 2017
I need something that separates the big chunks of wood so my dust collector is not damaged
James M on May 3, 2017
Adding 2nd stage dust collection to my existing system
Robert A. C on Apr 30, 2017
it screws together in the lid
HARRY D on Apr 19, 2017
I don't want the bigger pieces hitting the blades on my collector.
Jim S on Mar 28, 2017
Want to build my own two-stage system
Al on Apr 29, 2020
re-doing my shop and collection system
RONALD T on Apr 15, 2020
Will these fit on the 4" dust right separator? I want to eliminate any stress on the hose.
Tomas F on Feb 13, 2017
Dust Right® 4'' Dust Separator Components, with FREE Downloadable Plan!
Dust Right® 4'' Dust Separator Components, with FREE Downloadable Plan!
Elbow Connector Dust Collection Fittings
Elbow Connector Dust Collection Fittings
Where can i purchase the round cardbrd container you preview in your dust collection ad ?
Robert O on Sep 17, 2015
BEST ANSWER: Use a search engine and search on fiber drums and you'll will see several sources. One source has 10 - 75 gallon drums available.
Will a plastic trash can with a tight fitting lid work as a separator for chips?
Cheryl D on Oct 26, 2016
BEST ANSWER: I would use steel. Plastic can collapse.
Downloadable diagram doesnt make sense.. Second option for dust barrel shows both ports as outlet completing a circle within.. While in reality, both ports are not outlets, one port is an inlet and the other is an outlet.. Can someone please clarify this as I do not see the recommended position of ports able to produce a natural circular stream? It would seem the best placement would be to have one port directly behind the other both facing away?
Jonas A on Apr 28, 2018
BEST ANSWER: Suggest you google "Thien baffle". I bought this set to use ONE of them to make this style of two stage system. Much better that the plans you are talking about, and not that much more work.
Does the debris container need to be as air tight as possible in order for the suction to be effective?
Courtney W on Sep 24, 2015
BEST ANSWER: The debris container needs to be as air tight as possible. If not, it will cause the dust collection system to be less efficient. The dust control device only moves a certain amount of air/minute and any leak in the container results in some of that air movement being dissipated via the leak.
Where flexible hoses are attached to the outside of the box Item #: 34367?
jorge humberto s on Mar 30, 2016
BEST ANSWER: If you refer to the free plans directions are included. Draw your pattern for the hose usong your own supplied fitting. If you use the lid with the large can idea then trace the line for the output in the same manner. Many combinations of hose are possible so the hole size is determined by you. Hope this helps. Mine works great attached to a 4 inch system i have also used my 2 and 1/4 vac with it with smaller fittings.
Would this work with 6" hoses, couplerscouplers, etc?
Toby H on Mar 21, 2016
BEST ANSWER: These are 4" fittings, you would need 4" to 6" adapters.
Am I correct that this works well as it is and does not require a Thein Baffle?
John on Jun 26, 2018
BEST ANSWER: That is correct, using dust right dust separator components will allow you to build your cyclone. just add the bucket and drill the holes on top and connect the hoses to your vacuum and you are good to go. It will take about 1/2 hr. The dust right is a cyclones and Cyclone also add more resistance (SP), which would especially be a consideration in a lower HP system.
Will this work with a standard 5hp shop vac with 2/1/4 hose till i get a real dust collector?
Christopher on Jun 8, 2017
BEST ANSWER: Hi Chris, I don't see any reason for it not to work, however it was made to be used with 4 inch hoses, so you might have a hard time finding the right adaptors, from your 2 1/4 hose, to 4 inch, specially since those adaptors are funny, in terms measurements are sometimes internal, sometimes external, a perfect adaptor for a hose, does not always work with another conector, of course you can always fix it with duct tape, now my advice would be, buy a Oneida dust deputy for your shop vac, it works great, and you will want to keep it in your vac even after you get your dust collector, it's kind of expensive, but saves you tons in vac filters, and work, and use this product once you buy your dust collector.
I am using a 55 gallon barrel and it is collapsing. What am I doing wrong?
Brian B on Jan 27, 2017
BEST ANSWER: I use a steel drum and have never had a problem. The rigidity of the vessel or drum is most likely your problem.
I am using a 55 gallon barrel and it is collapsing. What am I doing wrong?
Brian B on Jan 27, 2017
BEST ANSWER: this is designed to use a 30 gal cardboard barrel and mine works as advertised. If your barrel is collapsing that would suggest that you have a constriction on the inlet side. If you have a powerful dust collector and it is pulling more air out of the barrel than is coming in, I can see a plastic barrel collapsing. That suggests your inlet is too small (or a kinked hose, or something to restrict the air) and the barrel is too weak.
Will this work with a narrow drum? The one I'm considering is only about 12 inches in diameter, but tall (14 gallon capacity), which fits my space better. However, I don't know if the cyclonic action will actually work well in this configuration. I'd appreciate any input!
Steven S on May 1, 2020
BEST ANSWER: Steven, my advice is to find something wider, if you can. To start, 12 inches does not give you a lot of room to mount the in- and out-takes. Also, 14 gal. is sort of small for powerful 4" system. If the container is cheap and disposable, you can try it, but I'm afraid you'll be disappointed in the results. Let us know how it works out.
I'm using this with the 30 gallon fiber drum (as pictured in the Rockler photo). It works great, but I have a low powered dust collector (about 600 CFM) that's aging badly. Thinking of upgrading to the new Rockler 1250 CFM unit. My question is if this would create way to much flow for the separator components --- i.e. collapse the drum, or suck the chips right through??? Can anybody predict if this might be a problem?
GEORGE K on Apr 16, 2020
BEST ANSWER: I use this system with a fiber drum and a 1000cfm Delta dust collector and have had no problems. The fiber drum should hold up fine and the heavy dust should go into the barrel. Finer dust may come through to your filer bag.
Will this work with a dw 735 planer?
Lenny on Apr 22, 2018
BEST ANSWER: If the planer has a 4" port, it should work with this separator. We use a large drum for collection, but I have seen box separators working as well.
Can this be converted to 6" inlet and outlet?
Steve F on May 24, 2016
BEST ANSWER: Yes, with an adapter, but I don't think it would be very effective. It would be easier to build a can with 6" fittings.
Would this work well with a 20 gallon drum (21" Height, 21" Diameter) or is it too small? It will be attached to a dust collector with 660 CFM which has 4" dust ports. I don't mind if I have to empty more frequently but wanted to make sure it performs well.
John2018 on May 20, 2018
BEST ANSWER: That is what I'm using and it works well, it is much easier to deal with than a 55 gal. drum
Im assuming this is designed to work with a 55 gallon drum. However, i dont have enough space (or need) for something that big. Would it work equally well with something smaller... perhaps in the 10-25 gal range?
Jim R on Apr 29, 2018
BEST ANSWER: yes it will still work
How deep is the threaded flange? Will it go through 3/4 inch plywood with enough threads?
Paul A on Nov 19, 2017
BEST ANSWER: The short answer is "YES". I used a 55 gallon metal drum. I made a top from 3/4" plywood and mounted these into it. It works fine and collects most of the sawdust. My theory was that the 55 gallon drum is much taller than the cardboard drums, therefore farther for the sawdust to fall and not get sucked up by the outlet. Just make the cover a bit larger than the diameter of the drum. Rout a 3/8" to 1/2" dado for the drum to fit into to make a good seal.
What effect does this have on CFM ? If the Dust Collect side produces 500 CFM how much vacuum loss is expected on the separator input side to the tool ?
Spike E on May 25, 2017
BEST ANSWER: Zero or very small loss. In the long run it probably helps because you end up with less stuff in the bag so there is more bag area open to allow air flow. I only have a 1/2 HP system and it works great.
What dust right connectors will I need to make 90 degree bends out of the top?
Tomas F on Feb 12, 2017
BEST ANSWER: You can use a 4 inch coupler to 4 inch elbow or a small section of 4inch plastic hose with hose clamps.
