Overview

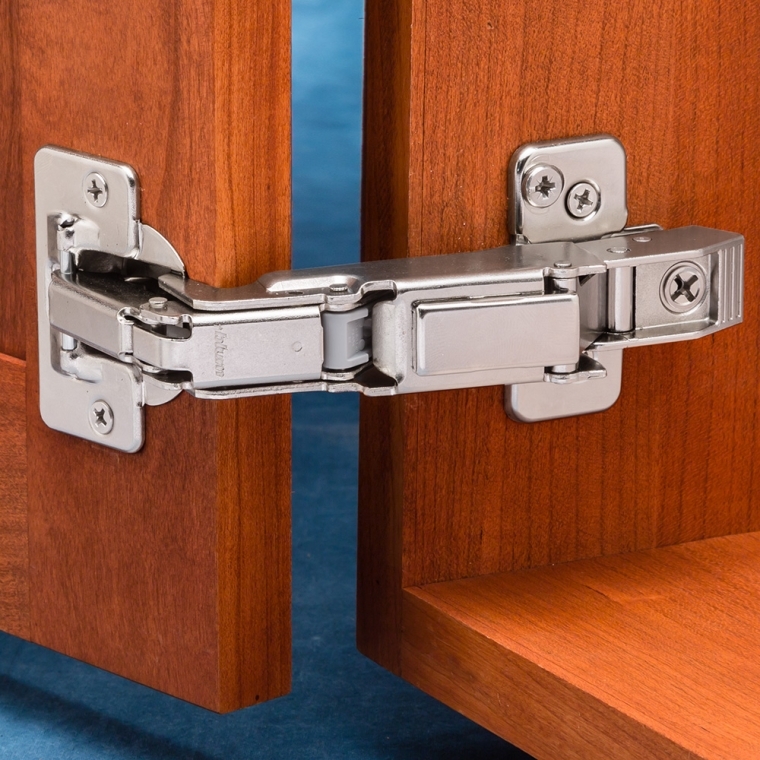

Our Greatest Opening capacity, 170°. 35mm cup. With Clip top hinges you can make all three hinge adjustments - side-to-side, depth and height without loosening the installation screws. Recommended for frameless cabinet applications. Featuring snap-close functionality. Now you can make precession height adjustments with the new parallel-movement mounting plate. Simply turn one screw for easy parallel height adjustments. Mount and dismount cabinet doors without a single tool. Settings remain in place even when you remove the door. See optional Blumotion Soft Close System for silent and cushioned door closure. Hinges also available for inset applications.
Related Products
We recommend using our JIG IT® Deluxe Concealed Hinge Drilling System with the JIG IT® Hinge Plate Template A to make installation of these hinges accurate and easy.
Frequently Bought Together
Questions and Answers
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 4 questions
Browse 4 questions
and 14 answers
Why did you choose this?
Rockler Store
In a tight corner cabinet, needed to get the cabinet door completely out of the way to allow full access to interior, particularly the interior that extended back into the corner.
Jim in the workshop
on Aug 9, 2016
ease of installation, adjustment options, full access to the cabinet.
Norman M
on Jun 24, 2016
In a tight corner cabinet, needed to get the cabinet door completely out of the way to allow full access to interior, particularly the interior that extended back into the corner.
Jim in the workshop
on Aug 9, 2016
To replace the broken hinge on my cabinet .
Bruno N
on Jun 30, 2016
how far into the cabinet space does the hinge extend?
BEST ANSWER: We have frameless cabinets. So, from the front edge of the cabinet the arm of the hinge extends 2 3/4 inches into it.
- Reply
- Inaccurate
- Anne C on Jul 12, 2015
- Purchased on Mar 10, 2015
Is there a soft close version of this hinge? If not this exact angle (170 degrees), maybe something else close to it (155+ degrees) with soft close?
BEST ANSWER: I have not found a 170 degree version with integrated soft close, but it looks like this one can accept the Blumotion soft close system.
- Reply
- Inaccurate
- brian l on Aug 19, 2016
55840 what is the clearance from face of frame to face of door when open
BEST ANSWER: I've never measured it, but it has to be over 3/4" because it allows the door to pivot back on itself (do to speak) I'm guessing it's round 7/8" though
Remember it can also be adjusted using the cam on the hinge
Remember it can also be adjusted using the cam on the hinge
- Reply
- Inaccurate
- Simon F on Feb 24, 2016
- Purchased on Mar 10, 2015
Reviews
4.8 / 5.0
4 Reviews
Great hinge for a cabinet in the corner
Finding the right hinge for inside corner cabinets has been challenging, but Rockler's web site has been most helpful. These hinges are kind of amazing the way they allow the door to swing out and not collide with surrounding doors, and open wide, wide, wide! Thanks!
- Was this review helpful? Yes (1) No (0)
- Flag as Inappropriate
August 23, 2014
- Was this review helpful? Yes (1) No (0)
- Flag as Inappropriate
Worked perfectly. Great help at the store.
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
what's not to like
also has a secure close feature that snugs the door tight when closed.
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Good produce
Installed as replacement for broken hinge. Owner had a part number. New part similar but not the same. Had to pad the back of the face frame. Assembling the 2 parts simple when one knows how. Some instructions might have saved an hour. Result works as well as original. Owner is happy.
