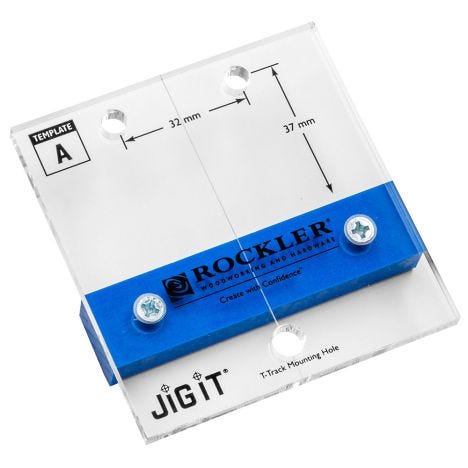

JIG IT® Hinge Plate Template A

Enjoy fast, precise installation of the hinge plates on your concealed Euro-style hinges.
Item #
50375
$16.99 ea
In stock

Get Expert Advice

Return Policy

Your doors will swing smoothly and line up neatly every time with our JIG IT® templates to guide your way. Just butt the template up against the face of your cabinet and use a centering bit to drill perfectly positioned mounting holes for a wide variety of concealed hinges. See the compatibility info below for a list of which hinges are compatible with this template. Requires centering bit #68991 (sold separately).

For even faster, more foolproof installation, use several of these templates mounted on one of our T-track rails (e.g. #26420, sold separately).

For easier mounting of the cup plate from two-part Euro-style hinges, check out the JIG IT® Deluxe Concealed Hinge Drilling System. It works with your handheld drill and sets up so you can bore precisely spaced hinge cup mounting holes on multiple doors.

Features:

  • Installs hinges: #33626, #36879, #37258, #35929, #21591, #32894, #33603, #55864, #55872, #27325, #55793, #55801, #55840, #55847, #28817, #81018, #55886, #38385, #38398
  • Use with #6 Self Centering Bit (#68991, sold separately)
  • These hinges are used on frameless cabinets
  • Clear acrylic for easy alignment with your marks
  • Also includes T-track mounting hole for repeatable alignment and placement of hinges
  • Hole spacing and setback measurements are conveniently printed on the acrylic face for reference
  • Stable, durable polymer fence

(1) JIG IT® Hinge Plate Template A
