In stock
Grouped product items
Product Name Price Qty

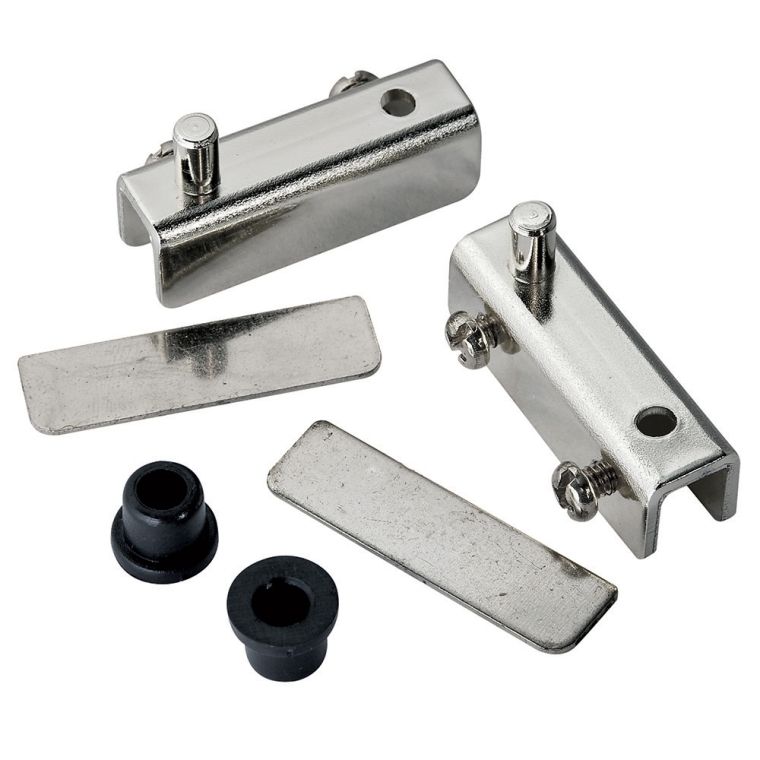

Glass Door Pivot Hinge - Polished Chrome (Pair)
Glass Door Pivot Hinge - Polished Chrome (Pair) Item #: 30031
Temporarily Oversold
$4.99
Pair
Glass Door Pivot Hinge - Polished Brass (Pair)
Glass Door Pivot Hinge - Polished Brass (Pair) Item #: 30015
In stock
$4.99
Pair
Glass Door Pivot Hinge - Satin Black (Pair)
Glass Door Pivot Hinge - Satin Black (Pair) Item #: 30023
In stock
$4.99
Pair

Glass Door Pivot Hinge for Free Swinging Glass Doors-Select finish

Item #
GRP132_1
Rating:
96% of 100

Use this hinge to insert glass to create a free swinging glass door. This pivot hinge requires no drilling of the glass and is simple to install. Choose from Polished Chrome, Polished Brass, or Satin Black Finishes. Sold in pairs.

(1) Pair of Glass Door Pivot Hinges
More Information
Brand No
Manufacturer Part Number No
Weight 0.1100
Tech Spec
  • Use on inset doors only
  • Pressure screws will hold 1/4" thick glass securely in the hinge
  • Requires a 9 mm hole for pivot bushing
  • Requires Magnetic catch/Magnastrike
  • 28 lb. load rating per pair
  • Available in Polished Chrome, Polished Brass or Satin Black Finishes
Tech Docs
Hardware Type No
4.8 / 5.0
41 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
34
5
1
1
0
Very Effective Replacement Hinge
Hinges that came with medicine cabinet mirror doors broke. Cheap pot metal originally. While these show from the front and the original ones didn't, these hinges are more robust and work just fine. Kept me from replacing the medicine cabinet.
August 25, 2018
Purchased
1 month ago
Woodworking Experience:
Intermediate
Impressed and happy
Turnaround time for order was quick. Quality and ease of install was good and easy to figure out.
July 12, 2018
Purchased
3 months ago
It was on time and have the quality as I expected.
June 25, 2018
Purchased
3 months ago
Glass door pivot hinge
My three mirror vanity was missing one glass. My glazer supplied the mirrors, but not the hinge. He assured me that I would find one locally in a hardware store. Not true. This is the only site with the exact replacement part
May 13, 2018
Purchased
5 months ago
Woodworking Experience:
Intermediate
Works nicely
Built a nice bamboo cabinet with glass doors, the hinges gave it the look I wanted.
April 27, 2018
Purchased
1 year ago
Woodworking Experience:
Intermediate
great service
needed some hardware and went on line and ordered what we needed and received hinges within a very short time.
March 18, 2018
Purchased
7 months ago
Perfect!
As described. Exact replacement part. Same as what came with cabinet. Needed 2 hinges for missing parts.
Worked perfect!
Worked perfect!
January 31, 2018
Purchased
8 months ago
Glass door hinges.
The hinges I purchased were the perfect match to what was on the furniture. The item was over 15+ years old . Didn’t think of taking a photo to share and won’t be able to because it’s about 3 hours from here. But if I ever get to see it again I will share it .
November 1, 2017
Purchased
11 months ago
Exactly what I wanted and easy to work with- thx
June 16, 2017
Purchased
1 year ago
Woodworking Experience:
Beginner
replacement hinges
needed hinges that had been lost in transit of cabinet. Ordered these to replace, worked great!!! Thanks
April 17, 2017
Purchased
1 year ago
Woodworking Experience:
Intermediate
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 18 questions Browse 18 questions and 78 answers
Why did you choose this?
Rockler Store
For bathroom mirror vanity.
Luanne M on Aug 13, 2018
To repair broken hinges of a similar, but different design on our mirrored door medicine cabinet.
Barry L on Jul 29, 2018
For bathroom mirror vanity.
Luanne M on Aug 13, 2018
match existing
Northeast Surgery C on Aug 7, 2018
To repair broken hinges of a similar, but different design on our mirrored door medicine cabinet.
Barry L on Jul 29, 2018
Needed it and I can't find it in any local retail store
Edward M on Jul 21, 2018
Home repair
Denita M on Jul 14, 2018
Your the only store that carries this.
Mark P on Jul 11, 2018
NEEDED THIS FOR A PROJECT
GREGORY P. M on Jun 25, 2018
I needed these for a china cabinet replacements.
Ruth W on Jun 22, 2018
the color matches with our other fixtures
Julie R on Jun 21, 2018
To fix medicine cabinet
Heather D on Jun 7, 2018
Piece got lost and needed to replace item without buying new mirror medicine cabinet.
Michael M on Jun 6, 2018
I got these in the Brushed Brass. We have a Bathroom vanity with 3 mirrored doors and one of the doors fell off. Luckily only the fasteners on the door came off. So these were a great solution to getting door back on our vanity immediately.
Ivan R on May 11, 2018
i need to fix a shower door and this is the part i need
Bernie G on May 3, 2018
one of the hinge broke, so I had to replace it so you the guys had them a carry them so I could fix my door. Thanks
Garry C on Apr 28, 2018
Replacement for hardware purchased 40 years ago.
Steven H on Apr 28, 2018
Replacement for missing medicine cabinet mirror
Celestino M on Apr 19, 2018
We are refinifhing furniture damaged by Hurricane Irma.
Cheistine H on Apr 8, 2018
you had it in stock ready to ship
yvonne z on Mar 16, 2018
Replacement for broken pivot hinge on vanity mirror.
George P on Mar 14, 2018
I really needed this in Nickel Finish but, it wasn't available so, I ordered the Chrome Finish instead.
Lisa F on Mar 10, 2018
replace broken hinge.
michael t on Jan 30, 2018
Installing frameless glass doors on cabinet
Joanne O on Jan 24, 2018
For mirror vanity
Lisa N on Jan 19, 2018
Replace missing parts.
Perrim on Jan 3, 2018
Needed for a project.
Bruce M on Jan 1, 2018
I need it for glass cabinet door for TV console
Kevin C on Dec 11, 2017
Recommended from a knowledgeable sales person at Menards. He uses your products for all his projects.
DARNELL K on Dec 9, 2017
To replace the current hinges on my curio cabinet.
Sonya O on Nov 8, 2017
updating bathroom and changing its look.
Randy W B on Nov 3, 2017
I have an old TV standing unit and the hinges just like this broke so I’m replacing them all.
Anthony J C on Oct 10, 2017
glass medicine door hinge broke, this product should save the day.
kevin v on Sep 9, 2017
Replacing missing hinges on furniture
Jeff E on Sep 4, 2017
I NEEDED TO REPLACE THE EXISTING ONES TO CHANGE THE FINISH FROM BRASS TO CHROME
Jeffrey N on Aug 26, 2017
These items do not seem to be available locally. The order process was simple and convenient.
Diane M on Aug 25, 2017
Replace hinges as were rusty. Cabinet was salvaged from fire set by Crazy tenant destroying my Owner's Unit
Col. Pete on Aug 5, 2017
need it for glass medicine cabinet.
byron w on Jul 30, 2017
Same bathroom cabinet door as above.
Garry S on Jul 26, 2017
Same as above
Lucien D on Jul 12, 2017
to repair a stereo cabinet
merl g on Jun 17, 2017
as a replacement for old ones
larry m. p on May 30, 2017
replacing same for same
Stuart B on May 5, 2017
I did an Internet search for a glass door pivot hinge to replace the one that broke on an entertainment center cabinet. Rockler came up along with a picture that showed just what I was searching for.
Deborah T on Apr 20, 2017
I'm building a frameless glass swing door for an enclosure.
Carolyn W on Apr 2, 2017
To repair the door on my entertainment system
DONNA F on Mar 25, 2017
the others I got did not work. I think these will?
albert d b on Mar 24, 2017
I need them
William S on Mar 9, 2017
hinges on my medicine cabinet broke
Robert R on Mar 6, 2017
Couldn't find them locally.
Gary F on Feb 27, 2017
Replace lost hinge-
Edwin G on Feb 25, 2017
Needed replacement parts for glass door, Parts lost by professional packers in long distance move. Very happy to have found these so easily.
Barbara M on Feb 9, 2017
match existing
Northeast Surgery C on Aug 7, 2018
Needed it and I can't find it in any local retail store
Edward M on Jul 21, 2018
how much space do the hinges take up when determining door dimension ?
t p on Nov 14, 2016
I am about to order the glass for the doors that will use these hinges. How much clearance should I allow? Looking for both height and width values.
Larry M on Nov 2, 2016
What MM glass does this fit?
Andrew on Sep 13, 2017
BEST ANSWER: Are these hinges about 1 1/2” x 3/16”? And will they fit 1/4” glass?
do the glass pivot hinge sets come with adhesive to attach the metal plate for the set screws?
doug B on Jul 29, 2016
BEST ANSWER: No there is a plastic plate that goes between the glass and the set screws which is held in place by the set screws.
i am trying to replace fireplace door hinges that have rusted., are these the correct ones to use?, they look like the same ones on there now.
catherine c on Nov 30, 2015
BEST ANSWER: Without knowing what the hinge pivot inserts are made of as well as the composition of the backer plates, I can't say that these would withstand the heat from a fireplace. Suggest that you go to a fireplace store and inquire about an appropriate hinge.
The nob on top of 30031 which goes in the wood is "Push Down" Nob or static?
Krishan S on May 14, 2015
BEST ANSWER: The knobs going into the wood frame are static and the installation is easiest if you insert the hinges into the wood frame and then slide the glass door into them.
The hinges shown are for the bottom of the glass and the one that I want is for the top of the glass that when closed, sticks to a magnet on the cabinet. That keeps the door closed.
vicki l on Feb 20, 2016
BEST ANSWER: The hinges attach to both the bottom and the top of the glass. You need two hinges for each door. The magnet contact plate and mag latch (separate items) can be set up to engage the glass door at either the top or bottom opposite the hinge point. The metal strip you see in fhe hinge set goes between he glass and the hinge set screws to keep the screws from breaking the glass.
Do they possibly come in brushed nickel and antique bronze?
Andrew on Oct 23, 2015
BEST ANSWER: Andrew, I needed the gold so I really did not look for the two finishes you are requesting. If Rockleer does not have the product there are many online stores that also carry this hinge. Just google.
having trouble reinstalling glass doors with pivot
hinges. how to replace doors in cabinet?
Mary S on Jan 31, 2017
BEST ANSWER: Secure either top or bottom hinge to glass and install in pivot hole. Insert opposite hinge in pivot hole, hold it in place, and then slide glass into it. Secure it w/ the two screws. If you have someone working w/ you, then you can have the assistant hold the two hinges in place while you slide the glass into the hinges and then secure them w/ the screws.
What is the maximum size of door this hinge can support?
Mike D on Apr 5, 2016
BEST ANSWER: I don't really know the answer to that but the glass doors that I have used it on are 28" tall by 16" wide and they work just fine. Hope this helps.
The hinge I want is the one in the picture at the bottom of the glass.
vicki l on Feb 20, 2016
BEST ANSWER: These hinges are for both top and bottom. My order came as expected and has worked perfectly.
I want the hinge that is just plain without anything attached.
vicki l on Feb 20, 2016
BEST ANSWER: Your question is a little vague so it's difficult to give you a definitive answer. Are you asking for a comparison between several hinge types or do you just want a plain no frills hinge? The hinge pictured is about as plain as any that I can think of and you can get it in chrome, brass or black to match your cabinet.
I have a 61x22 21lb piece of glass, is that usable with this?
Brittany W on Apr 6, 2018
BEST ANSWER: I built a display cabinet that has 7 glass doors. These hinges work well with these doors. The wieght_ and size of your door might be a problem. There is a spec. sheet for those hinges which should give you a better feel. My doors were 48" by 18" and a1/4" thick.
how far off the vertical frame should the hinge/glass edge be held?
david g on Jul 20, 2017
BEST ANSWER: glass should have a 1/8" gap
http://go.rockler.com/tech/30015-031.pdf
my door is 48 by 24 11lbs plexieglass, I'm wondering what the bushing is made of?
william b on Feb 25, 2017
BEST ANSWER: The bushing is some form of stiff plastic - don't know exactly what though. It has worked fine for my 12 by 24 1/4 inch glass doors. No signs of wear after years of use. I think that they would work just fine for your application.
I bought the hinge sets but there are no plastic plates in the envelope. Will the hinges work without the plastic plates between the glass and the set screws?
Nancy K on Aug 12, 2016
BEST ANSWER: Not at all well. Return the sets and get the commplete package otherwise you will most likely crack the glass if you apply enough pressure to hold the glass door in place.
I need a self closing pivot hinge for glass doors. Is that available anywhere?
Stan S on Jul 12, 2016
BEST ANSWER: I have only used the free swing glass door hinges from Rockler. I don't believe they sell any that are self closing but try the internet.
