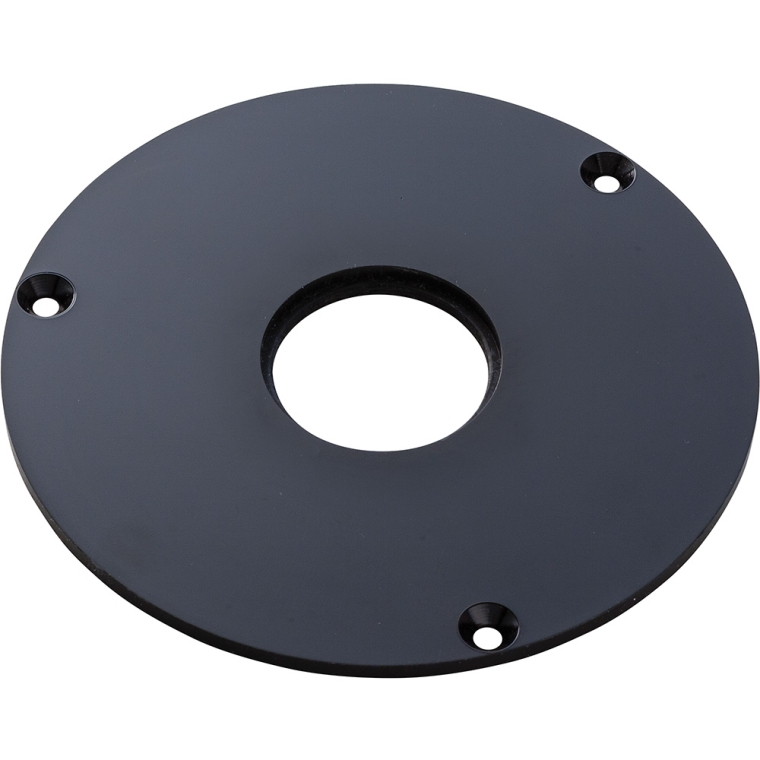

Rockler Router Plate Insert With 1-1/4" Opening For Guide Bushing Large Opening Plate
The interchangeable insert for standard guide bushings features a 1-1/4'' through hole with 1-3/8'' counter bore.
Item #
61594
The interchangeable insert for standard guide bushings features a 1-1/4'' through hole with 1-3/8'' counter bore. The 4-3/8'' OD allows this insert to fit into a large opening plate with a 3-11/16'' opening.
Is This The Right Insert For My Router Plate?
Fits The Following Rockler Router Table Plates:
Rockler Router Plate C (#54074, sold separately)
- Milwaukee 5625-20
- Porter Cable 7518
- Porter Cable 7519
- Porter Cable 7538
- Porter Cable 7539
- Triton TRA001
- Triton MOF001
Rockler Router Plate D (#53855, sold separately)
- Bosch 1619-1619EV
- DeWalt 625
- Freud FT2000
Fits the Following Router Lifts:
- Rockler Router Lift FX (#23194, sold separately)
- Bench Dog® 40-150 ProLift Router Adjustment System (#28827, sold separately)
(1) Rockler Router Plate Insert With 1-1/4" Opening
| Brand | Rockler |
|---|---|
| Weight | 0.1000 |
| Tech Spec |
|
3.8 / 5.0
10 Reviews
Router table insert
It’s what I wanted, but I think they should be stocked in the stores.
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
wonderful material
This insert for a Rockler router table could not be any better. It is made of a plastic and fits exactly as designed It is super smooth so it does not interfere with one's work.
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Should be included w/Rockler lifts & plates.
I'm using the rockler router lift. Unfortunately, rockler has decided to make their inserts a weird size and i needed to use pc bushings. I don't know why they don't include something like this with the lift, or at the very least have these stocked at stores (I believe these are on-line purchase only). In my store, the sales staff initially said that rockler doesn't have an adaptor to fit Porter Cable bushings.
- Was this review helpful? Yes (3) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (3) No (0)
- Flag as Inappropriate
Great router insert plate
This plate fit right into my Rockler Router Lift FX. It allows me to use the spacer collar bushings which are necessary for the Leigh router table dovetail system. Very happy with this purchase
- Was this review helpful? Yes (2) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (2) No (0)
- Flag as Inappropriate
It works
I was suspicious but it worked. The Leigh RTJ400 bushing went right in and stayed put for my first project. I'm pleased at least for now. We'll see what time and use does to my opinion.
- Was this review helpful? Yes (10) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (10) No (0)
- Flag as Inappropriate
Fits the Leigh
Should be carried in the store but no you have to order it on line. The plus is you can get it you just have to wait.
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
I wish this was metal instead of plastic. I would recommend this product to other people.
- Was this review helpful? Yes (4) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (4) No (0)
- Flag as Inappropriate
Tickler too proprietary!
Product good. Works fine but a shame you have to buy everything separate. When you purchase router plates made by other companies, you get three size rings with the plate. With Rockler, you have to pay for the three rings separately, and I didn't even get the screws, or a starting pin. Rockler is way too proprietary with their products.
- Was this review helpful? Yes (3) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (3) No (0)
- Flag as Inappropriate
Rockler Pro Plate - Inserts move when routing , not acceptable
Very disappointed in the quality of the Rockler Pro Plate and these inserts. There is nothing Pro about them. The locking system used to secure these to the Pro Plate do not hold them secure enough on their own. I am using the Leigh Router jig and it requires the insert to not move and this was not the case with this insert or any insert I have used. I would’ve taken it back but I already drilled into it for my above table adjustment for my Triiton router. I had to stick little pieces of foam in the screw holes so I can work but that will get old when I goto change plates. My old portable Kreg router table locked tight every time , I thought I was getting an upgrade with the new router table from Rockler but now I wish I would’ve saved a little more and bought the full size Kreg table or a Jessem. The router fence is nice, the size of the table is perfect and the stand itself is sturdy so I can give 5 stars for those, but the pro plate and the limited number of available inserts and their fit rates less than a star. Stay away from the Pro Plate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Not happy
Bushing opening too loose for precise routing.
- Was this review helpful? Yes (2) No (2)
- Flag as Inappropriate
- Was this review helpful? Yes (2) No (2)
- Flag as Inappropriate
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 10 questions
Browse 10 questions
and 69 answers
Why did you choose this?
Rockler Store
To use with a Benchdog table saw extension fit with Benchdog plate. Need the counterbore insert to use a bushing. Planning on using the Leigh RTJ400 router jig.
Edward G
on Nov 10, 2019
It fit my Pro Plate
STEWART M
on Sep 30, 2019
To use with a Benchdog table saw extension fit with Benchdog plate. Need the counterbore insert to use a bushing. Planning on using the Leigh RTJ400 router jig.
Edward G
on Nov 10, 2019
Needed this for a project I'm working on
Marty K
on Oct 19, 2019
What size are the screws that come with these?
Rockler Router Plate Insert With 1-1/4" Opening For Guide Bushing Large Opening Plate
I'm still learning how to use my router table properly and have literally melted portions of two plates so far. Is there anything out there that is not made out of plastic that will have the same dimensions? Thanks, A Newbie.
BEST ANSWER: Tony, you should really look at your setup first before adding a piece of metal. You could be having a contact issue in which case metal + high speed spinning = Shrapnel (especially aluminum).
If you are melting your plates then you are probably hitting the plate with the spinal in which case you need to pull your bit out of the collet and then lower the router to get the same height. If your bit is in contact with your bushing and you are picking up friction then you should use a bigger busing and re size your template.
If neither of those is the case then you are having air flow problems and among other things you are destroying your router. You can try drilling air holes in the plate around the main holes but avoid hitting the bracing on the back of the plate (I've done this). You should also always use some kind of dust collection it will help keep the bit cool making it last significantly longer.
Good luck, and please be safe
If you are melting your plates then you are probably hitting the plate with the spinal in which case you need to pull your bit out of the collet and then lower the router to get the same height. If your bit is in contact with your bushing and you are picking up friction then you should use a bigger busing and re size your template.
If neither of those is the case then you are having air flow problems and among other things you are destroying your router. You can try drilling air holes in the plate around the main holes but avoid hitting the bracing on the back of the plate (I've done this). You should also always use some kind of dust collection it will help keep the bit cool making it last significantly longer.
Good luck, and please be safe
- Reply(1)
- Inaccurate
- Nathan C on Jun 8, 2015
- Purchased on Mar 4, 2015
are there any available in 4 1/2" dia.?
BEST ANSWER: The opening in the table for the standard plate is listed as 4" and for the large diameter it is 4 3/8". To get to a 4 1/2" opening you would have to modify the plate.
- Reply
- Inaccurate
- Gary C on Nov 1, 2017
- Purchased on Dec 9, 2015
Will these snap into place or will I always have to screw in? I’ve got the FX lift.
BEST ANSWER: I believe you Will have to screw it in. I did not see anything on the one I purchased that appeared to be a “snap in” component/tab.
- Reply
- Inaccurate
- Doug M on Feb 26, 2019
- Purchased on Apr 1, 2017
Is there a dust collection attachment for this? Part #?
BEST ANSWER: No there is no dust collection attachment
- Reply
- Inaccurate
- Thomas C on Aug 13, 2017
- Purchased on Aug 24, 2015
I have a Rockler router table with a 4 3/8 inch router plate with a 1 1/2 inch opening. I need a 1 1/4 inch opening with a rabbeted off-set of 1 3/8inch. Do you have this plate?
Thanks
Kevin
Thanks
Kevin
Does the 61594 insert work with the Leigh RTJ400 guide bushing?
BEST ANSWER: It did not work on RTJ 400 for me and that is why I bought it. Size worked ok but the bushing would not stay still in my bench dog table to use RTJ 400 setting. Perhaps your set up is different. I ended up taking a piece of phenolic and cutting hole w/forstner bit and clamping it to router table.
- Reply
- Inaccurate
- Gary H on Jul 7, 2015
- Purchased on Mar 31, 2015
how thick is the insert? My table needs a 4 inch radius insert that sits down 1/8"
BEST ANSWER: 4" radius is an 8" diameter insert. Are you sure? Rockler's insert has a diameter of 4.375" and is 1/8 thick.
Hope this helps.
Stu
Hope this helps.
Stu
- Reply
- Inaccurate
- Stu K on Feb 27, 2018
- Purchased on Mar 8, 2016
will this fit a bench dog pro plate?
