Rockler Phenolic Router Plates
An excellent lower-cost router plate with a low-friction surface that won't warp, dent, scratch or delaminate.
Item #
GRP40106
Router table insert plates make it easy to lift your router out and set it on the table for comfortable bit changes, height adjustments, maintenance and even to use your router free hand or with a straight edge guide. They save you from a lot of backaches, squinting and bumps on the back of the head from stooping under the table. These router plates are made of 3/8'' solid phenolic, which has naturally low-friction for easy sliding. In addition, phenolic is very stable and extremely durable. At 8-1/4'' x 11-3/4'', they fit both our current tables and most of our old tables, and work equally as well with shop-made router tables.
Which Router Plate Do I Need?
To choose a pre-drilled plate, find your router below.
Router Plate A:
- Bosch MRC23 Series, 1617-1618
- DeWalt 616-618
- Hitachi M12VC (fixed and kit)
- Makita 1100
- Milwaukee 5615-5624
- Porter-Cable 690
- Porter-Cable 890
- Porter-Cable 7529
- Porter-Cable 97529
- Porter-Cable 8529
- Ridgid 2930 Combo Kit
Note: Current models of the Porter-Cable 892 require at least two screws to be 1/2" long versus 5/8".
Router Plate B:
- Craftsman Standard
- DeWalt DW621
- DeWalt DW621K
- Freud FT 1700E
- Freud 1702VCEK
Router Plate C:
- Milwaukee 5625-20
- Porter-Cable 7518
- Porter-Cable 7519
- Porter-Cable 7538
- Porter-Cable 7539
- Triton TRA001
- Triton MOF001
Router Plate D:
- Bosch 1619-1619EV
- DeWalt 625
- Freud FT2000

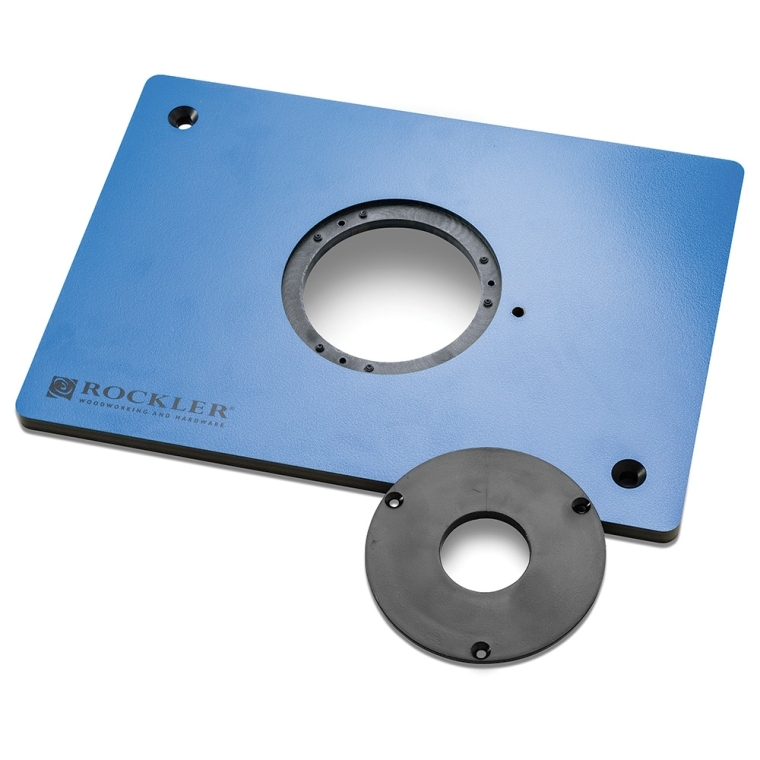

If your router is not listed: Choose from two non-drilled plates—one with a 4'' insert ring (#57293), and the other a 4-3/8'' insert ring (#56845)—and drill the plate to fit your router.
Notice: For customers making custom router tables, we recommend the Router Plate Leveling and Locking Hardware Pack (#22994, sold separately).
(1) Router Plate
(1) Insert Ring
(2) Plate Locking Bolts
(1) Hardware Pack
Leveling screws not included with router plate, they will be included with table top.
(1) Insert Ring
(2) Plate Locking Bolts
(1) Hardware Pack
Leveling screws not included with router plate, they will be included with table top.
| Brand | Rockler |
|---|---|
| Weight | 1.9000 |
| Tech Spec |
|
3.8 / 5.0
57 Reviews
Great insert for a good price
Decent priced insert for the DIY guy on a budget. Made a router table for my table saw extension. Couldn't be happier.
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Husky Router Table
I needed the non-drilled plate to mount an RE600 Ryobi router to the Husky Router table sold by HD. The plate fits well although I did need to sand the plate a bit to get it to fit. But it's the right thickness, much stouter than the Husky plate and even the holes to fasten the plate to the table line up perfectly.
If wondering about the two different insert sizes on the non-drilled plate, it depends on the exact location of the mounting holes on your router. I thought my big Ryobi router would need the bigger mounting insert. But when I drilled the holes in the plate, I cut into the edge of the insert. I should've gone with the smaller insert.
If wondering about the two different insert sizes on the non-drilled plate, it depends on the exact location of the mounting holes on your router. I thought my big Ryobi router would need the bigger mounting insert. But when I drilled the holes in the plate, I cut into the edge of the insert. I should've gone with the smaller insert.
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Great product and the staff was really helpful
- Was this review helpful? Yes (1) No (1)
- Flag as Inappropriate
- Was this review helpful? Yes (1) No (1)
- Flag as Inappropriate
Excellent router accessory.
This is one of Rockler's greatest bargains. You may not realize you need one, but the more you use your router, the more you will understand its importance.
- Was this review helpful? Yes (0) No (1)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (1)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
easy installation
I was able to recess this into the 3/4" plywood top of my workbench pretty easily. I don't have any leveling screws or shims, it just fits perfectly flush.
I was worried about attaching it to the base of my Bosch router, because the plate didn't come with any screws and the screws on the router's sub-base were too short. But I checked the box my router came in, and it actually had all the screws I needed.
I was worried about attaching it to the base of my Bosch router, because the plate didn't come with any screws and the screws on the router's sub-base were too short. But I checked the box my router came in, and it actually had all the screws I needed.
- Was this review helpful? Yes (1) No (1)
- Flag as Inappropriate
- Was this review helpful? Yes (1) No (1)
- Flag as Inappropriate
These products are just what I wanted to complete my new router table. They worked great. Rockler has pretty nice stuff for all my needs.
This is the router table I made with all the items I got from Rockler.
- Was this review helpful? Yes (3) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (3) No (0)
- Flag as Inappropriate
Great
I owm a new Ridgid R2911 router Rockler Phenolic Plate A and it fits perfectly. It is extremely durable. I recommend.
- Was this review helpful? Yes (2) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (2) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (1)
- Flag as Inappropriate
Love it, easy to install. Used to ruin parts with my old table, now I hardly miss a cut
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 53 questions
Browse 53 questions
and 51 answers
Why did you choose this?
Rockler Store
I already have a dedicated table selected. I needed a reliable router plate that fits my Triton router.
SAULO L
on Jul 31, 2018
I'm starting a small custom woodworking Business
Clifford B
on Jun 11, 2018
I already have a dedicated table selected. I needed a reliable router plate that fits my Triton router.
SAULO L
on Jul 31, 2018
To build my own custom router table for guitar building.
Marcus W
on Jun 27, 2018
I own new DeWalt DW26204 router. Which of plates I need to buy?
Rockler Phenolic Router Plates
Why won't my Bosch 1619 work with plate d. Only one Bolt
hole lines up ?
hole lines up ?
I have a Craftsman 27683 model router will plate B work for me?
which plate will my Dewalt 610 router need ?
plate for Makita RT0700C?
What size are the lockdown bolts?
will any of the plates fit a Ryobi ?
BEST ANSWER: We have a standard non drilled and a large non drilled that would work. You will just have to drill out the mounting holes for your particular router.
- Reply(1)
- Inaccurate
- Rick H Staff on Jun 10, 2016
Do the plates include pre-drilled holes for routers with built-in lift mechanisms? For example, I have a Triton and looks like I need Plate C, but will I need to then drill my own hole to use the above the table height adjustment?
BEST ANSWER: Yes you will need to drill a hole in the plate to accommodate the Triton height adjustment
- Reply
- Inaccurate
- Rick H Staff on Apr 24, 2015
Does "Phenolic Router Plate A" include a hole that lines up with the location of the hex key on the "Bosch RA1165 Under-Table Router Base"?
BEST ANSWER: The two pre-drilled holes DO NOT line up with adjusting hex key on the RA1165 base or the standard RA1161 base which is identical and comes standard with the Bosch 1617/1618 routers. There is no capability to lock/unlock the motor clamp from above the table. There is no hole in the router base to access the clamp, and there is no way to operate the clamp with a hex key. The good news, however, is that the proper location for the adjusting hole is equidistant between the two existing holes, and is very easy to drill yourself.
- Reply
- Inaccurate
- John on Dec 4, 2015
- Purchased on Nov 24, 2015
Which plate fits Ridged R2901 router?
I have an older CMT router table top cut out the same demensions as the phenolic plates sold by rockler 8.25 x 11.75 x 3/8 inch . Question are the corners radiused the same?
BEST ANSWER: Sorry, I have no idea if the radius would be the same.
- Reply(1)
- Inaccurate
- GREG K on Jan 29, 2019
- Purchased on Jan 23, 2017
I have a Black & Decker 7600. Should I use the 4" or 4-1/2" OD insert?
BEST ANSWER: Use the smallest thaw will still accommodate your router bit
- Reply
- Inaccurate
- John T on Oct 23, 2017
- Purchased on Dec 5, 2015
I have a Chicago Plunge Router - 1 3/4 HP - Single Phase 20,000 RPM. Is there a router table insert plate that will accommodate this manufacturer?
BEST ANSWER: You'll want to use the 57293 non-drilled plate for this router. This will let you drill the mounting holes in the plate to match the router.
- Reply
- Inaccurate
- Steve Staff on Aug 29, 2016
I have a Rockler router table with i believe the phenolic throat plate. I have a set of router bits that range from 3.5 to 1.25 inches in diameter. The throat plate that is now on the table will not accomodate the larger bit that i want to install. I have a new Porter Cable router. What do I do?
BEST ANSWER: You can order different size inserts that go into the phenolic plate. One has up to a 2.5" hole (http://http://www.rockler.com/insert-with-2-1-2-opening-for-standard-plates). There are also phenolic blanks that you can order online and you can cut your own holes for router mounting and custom bit hole - I don't know if Rockler has one or not. Another option, if this bit is for a special project/not for regular use, would be to make a temporary plate out of 3/8" MDF. You may have to ship the MDF a little.
- Reply
- Inaccurate
- Ronnie K on Feb 4, 2016
- Purchased on Mar 15, 2015
I have a robin #R163 router what plate would I need to purchase?
BEST ANSWER: Purchase the blank (no pre-drilled holes) router plate and drill and countersink your own holes. In my opinion this is always the best option so you know exactly where to place the mounting screws.
- Reply
- Inaccurate
- anthony b on Apr 20, 2019
- Purchased on Apr 22, 2017
Router plate #54820, what is the radius on the corners?
BEST ANSWER: My best guess 1/4 inch.........try on scrap first.
- Reply(1)
- Inaccurate
- Jack B on Apr 5, 2018
- Purchased on Nov 30, 2014
Which plate fits Bosch GKF 600 router??
BEST ANSWER: On Rockler's web site it lists which plate goes with which router. It's either an A,B,C or D plate. I got the wrong one and just added holes to fit it to my router......good luck
- Reply
- Inaccurate
- Gerald K on Jan 13, 2016
- Purchased on Mar 27, 2015
how do you install the router using the standard blank as I have a Skil 1830 and please don't tell me to drill holes? The router comes with a clear base plate and very short screws.
BEST ANSWER: Take the clear base off and if the screws are too short, then head to the hardware store. I had the same problem with a craftsman router
- Reply
- Inaccurate
- Mike H on Nov 21, 2015
- Purchased on Feb 14, 2015
will plate A work for the Bosch 1617EVSPK ?
I have a Milwaukee 361 will any of the predrilled plates work?
BEST ANSWER: To answer your question, I'm not sure. However on the Rockler router plate page a series of downloads that specify several router mounting dimensions can be found. I had to use these to determine the plate I needed. They may not show your exact model but you may be able to find a match. If not, then obviously you'll need to get a blank plate and drill it accordingly.
- Reply
- Inaccurate
- Clinton S on Jul 8, 2015
- Purchased on Mar 30, 2015
My Porter Cable router model is 9690. Will this work with the A series plate?
BEST ANSWER: I have a Porter Cable 895KIT series which was specifically listed as one that it fits. Go to the listing for the insert listing on the Rockler page Go to the bottom of the page and under the Technical Downloads section there is a list of the plates and a PDF drawing that shows the spacing of the mounting holes. Match up the one for your router and order it.
Hope this helps
Mike
Hope this helps
Mike
- Reply
- Inaccurate
- MikeF on Apr 19, 2015
- Purchased on Mar 20, 2015
I have a 3 1/4 raised panel bit. Will this fit in the table A insert? My current table can only accept 3" bits.
BEST ANSWER: mine is a Kreg with an insert that has a three slot twist lock. The inside diameter for between the lips( which reduce the overall diameter) for the twist lock measure 3.620"
- Reply
- Inaccurate
- JANIS H. on Nov 12, 2019
- Purchased on Feb 5, 2018
What size insert is included?
BEST ANSWER: The insert is 4 inches in diameter with a 1.5 inch diameter opening for the router shaft.
- Reply
- Inaccurate
- Jeffrey A on Oct 31, 2019
- Purchased on Jan 4, 2018
Plate A with Bosch 1617EVS; have to drill an add'l hole in same for table-top height adjustment key access?
In the hardware package there are 3 short mounting screws, 3 long mounting screws, 2 Large Plate fastener Screws and a large cynlinder head screw. What is that last screw used for?
BEST ANSWER: I believe that you are referring to the fulcrum pin. This pin screws into the threaded hole next to the black insert ring and provides a starting point for freehand routing.
- Reply
- Inaccurate
- David Staff on Jul 12, 2019
Can this be used with kreg PRS3040 Precision Router Table Insert Plate Levelers?
BEST ANSWER: I just looked up the instructions for the kreg inserts. And it appears that they can be used with this router plate. Just be sure you’re opening is exact fit for the plate. Hope this helps
- Reply
- Inaccurate
- Pietro B on Jun 10, 2019
- Purchased on Aug 24, 2017
I have a Porter Cable router attached to a Porter Cable Model 1001 router base. What plate do I need?
BEST ANSWER: We need to know the model number of the router I have bought several router plates from rockier and each plate will tell you in the description the model it fits, some of the older routers may not in which case you may have to purchase a blank and drill it yourself not difficult comes with instructions. Hope this was some help
- Reply
- Inaccurate
- Tom D on Jun 6, 2019
- Purchased on Aug 12, 2017
I see plate B fits dewalt 616-618 but does that include the dewalt 618pkb?
BEST ANSWER: The Dewalt 618 PKB is a standard 618 bundled with both the standard and plunge base. The standard base is compatible with the Rockler Phenolic Router Plate A.
- Reply
- Inaccurate
- David Staff on Nov 20, 2018
Do any of these plate work with the hitachi m12v2?
BEST ANSWER: I bought the blank one and drilled my own holes which i like better cause it doesnt have all the unnecessary holes.
- Reply
- Inaccurate
- Kyle S on Oct 17, 2018
- Purchased on Oct 28, 2016
I have a Skil 1827. What phenolic router plate will work?
BEST ANSWER: As you can see there are a number of different plates. Check your mounting pattern against the ones listed (even if it is a different company) for each plate to find a match. I had an old Craftman router and bought the plate that was on clearance sale that did not fit and drilled my own holes.
- Reply
- Inaccurate
- RMarksEV on Apr 25, 2018
- Purchased on Jun 3, 2016
