$10.99 Each
In stock
Helps you quickly and accurately set up your drill press for 35mm hole with a 3mm tab.

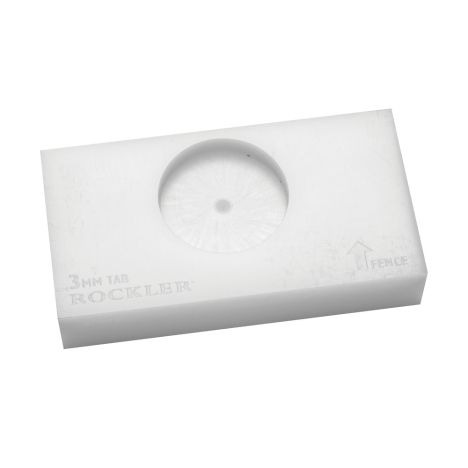

JIG IT® Hinge Cup Drilling Jig, 3mm Tab

Item #
53438
Rating:
76% of 100

Here's an accurate and inexpensive way to set up your drill press for boring the large diameter holes required for cup hinges. Simply align your fence with the hole in the jig, then tighten down your fence. You'll get consistently accurate holes with a perfectly set ''tab'' for your hinge. Set up couldn't be any easier!


Features:

  • Appropriate ''tab'' (distance from door edge to edge of cup hole) is laser-etched onto the JIG-IT
  • Made from stable, durable HDPE material
  • Drilling jigs available for 35mm hole with a 3mm tab
(1) JIG IT® Hinge Cup Drilling Jig
More Information
Brand Rockler
Manufacturer Part Number No
Weight 0.2000
Tech Spec
  • Made in USA
Tech Docs No
Type Hinge
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Prop 65 WarningWARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
3.8 / 5.0
10 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
6
1
0
1
2
Works perfect. Simple setup
August 10, 2018
Purchased
2 months ago
Woodworking Experience:
Intermediate
cup hinge template
Works as advertised. I used it to set my jig to drill all the hinge holes for new kitchen cabinet doors.
June 15, 2017
Purchased
1 year ago
Woodworking Experience:
Intermediate
This is a great little jig it. Took all the guess work out of the project. Easy set up, took no time at all. Every hole I drilled was perfect, all 24 of them. Well worth the money. Would definitely recommend this to everyone.

March 25, 2017
Purchased
1 year ago
Woodworking Experience:
Intermediate
Saves a lot of fiddling around
Makes setting up a fence per instructions very easy, which makes positioning cabinet doors for drilling pockets very easy.
February 23, 2017
Purchased
1 year ago
Woodworking Experience:
Intermediate
Easy set up.
Wish these would have been available years ago. Makes setting things up super easy. All you need to do now is match the number on the bag of hinges that you have chosen with the jig and you are all set.
January 2, 2017
Woodworking Experience:
Intermediate
Very helpful
Very helpful for these hinges.
February 13, 2016
Purchased
over 3 years ago
Keith
Works exactly as it should. Quick no brainer way to set the drill press fence. Does not set the depth though. That you need to eyeball.
May 15, 2017
Purchased
over 2 years ago
Woodworking Experience:
Advanced
Benefit?
I did not feel that the jig was that much of a benefit to my project. If I was doing more cabinet doors I would invest in a more substantial jig.
May 26, 2017
Purchased
1 year ago
Woodworking Experience:
Intermediate
product was useless. Icould have made a better jig
August 25, 2017
Purchased
1 year ago
Disappointed
Sorry that I spent the money. There is no advantage to using this fixture over traditional setup method. Wish I could get my money back.
January 27, 2016
Purchased
over 2 years ago
Woodworking Experience:
Advanced
