$10.99 Each
In stock
Helps you quickly and accurately set up your drill press for 35mm up holes.

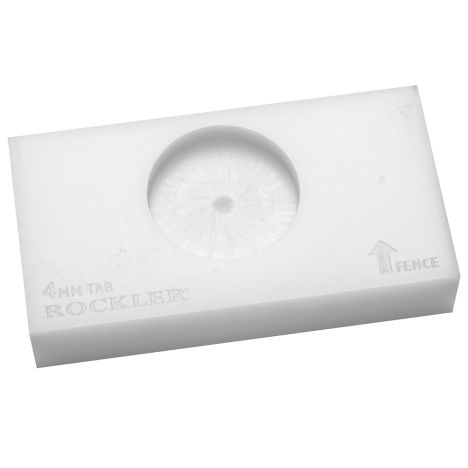

JIG IT® Hinge Cup Drilling Jig, 4mm Tab

Item #
58223
Rating:
100% of 100

Here's an accurate and inexpensive way to set up your drill press for boring the large diameter holes required for cup hinges. Simply align your fence with the hole in the jig, then tighten down your fence. You'll get consistently accurate holes with a perfectly set ''tab'' for your hinge. Set up couldn't be any easier!


Features:

  • Appropriate ''tab'' (distance from door edge to edge of cup hole) is laser-etched onto the JIG-IT
  • Made from stable, durable HDPE material
  • Drilling jigs available for 35mm cup holes
(1) JIG IT® Hinge Cup Drilling Jig
More Information
Brand Rockler
Manufacturer Part Number No
Weight 0.2000
Tech Spec
  • Made in USA
Tech Docs No
Type Hinge
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Prop 65 WarningWARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
5.0 / 5.0
2 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
2
0
0
0
0
Garage cabinets
Built out my cabinet shell and bench for doors. Hinges and door alignment jig worked great. Ended up not using boring jig since cabinet shop that cut and banded the doors mortised the inside hinges with their machine. Overall very satisfied with product and service.
February 5, 2017
Purchased
1 year ago
Woodworking Experience:
Advanced
Great Idea. A must have jig.
The JIG IT hinge drilling jig was the easiest jig to use. It truly made drilling the the precise depth and space to drill the mounting hole for the hidden hinges. Nothing could have been easier.
January 25, 2016
Woodworking Experience:
Advanced
