$8.99 Each
In stock
Enjoy fast, precise installation of the hinge plates on your concealed Euro-style hinges.

JIG IT® Hinge Plate Template B

Item #
57706
Rating:
96% of 100
JIG IT® Hinge Plate Template B JIG IT® Hinge Plate Template B JIG IT Deluxe Concealed Hinge Drilling System
JIG IT® Hinge Plate Template B
Frequently bought together
  1. JIG IT® Hinge Plate Template B
  2. +
  3. Blum® 120° Inset Clip Top 3-Way Face Frame Hinges
Total price: $0.00

Your doors will swing smoothly and line up neatly every time with our JIG IT® templates to guide your way. Just butt the template up against the face of your cabinet and use a centering bit to drill perfectly positioned mounting holes for a wide variety of concealed hinges. See the compatibility info below for a list of which hinges are compatible with this template. Requires centering bit #68991 (sold separately).

For even faster, more foolproof installation, use several of these templates mounted on one of our T-track rails (e.g. #26420, sold separately).

For easier mounting of the cup plate from two-part Euro-style hinges, check out the JIG IT® Deluxe Concealed Hinge Drilling System. It works with your handheld drill and sets up so you can bore precisely spaced hinge cup mounting holes on multiple doors.

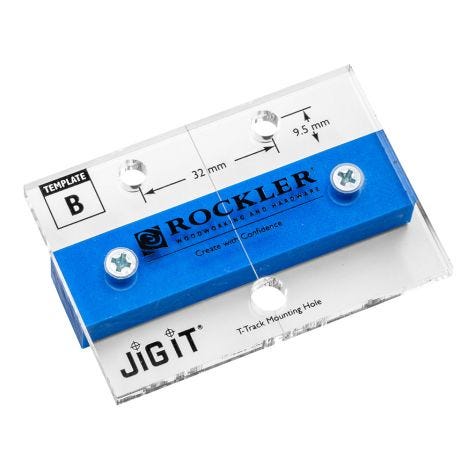

JIG IT Hinge Plate Template B

  • Installs hinges: #33370, #36647, #35137, #38012, #32932, #33216, #33957, #35676, #38458, #39435, #55941
  • Use with #6 Self Centering Bit (#68991, sold separately)
  • These hinges are used on cabinets with face frames
  • Clear acrylic for easy alignment with your marks
  • Also includes T-track mounting hole for repeatable alignment and placement of hinges
  • Hole spacing and setback measurements are conveniently printed on the acrylic face for reference
  • Stable, durable polymer fence
(1) JIG IT® Hinge Plate Template B
More Information
Brand Rockler
Weight 0.1000
Type Hinge
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Prop 65 WarningWARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
4.8 / 5.0
6 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
5
1
0
0
0
TEMPLET "B"
The Jig works well for inside face hinge installations. We could not leave it alone though. Found it is hard to be inside to perform the marking and drilling so we scribed a across the blue stop so you can carry the centerline of the door around to the rear of the face frame. The centerline should be scribed on the blue stop of this particular templet.
May 31, 2018
Purchased
6 months ago
Hinge template
Worked well
December 8, 2017
Purchased
1 year ago
Woodworking Experience:
Advanced
This tool is easy to use and helpful in keeping the hinge location accurate. Worth the purchase.
April 8, 2017
Purchased
1 year ago
Woodworking Experience:
Intermediate
Cuts Install Time by at Least Half!
I knew before I bought this that it would simplify the inset hinge bracket install and it really does. If I were in a production shop, I'd 2 mounted to a T-track in the correct positions to cut down on even more time. Thankfully, I'm only doing about 100 hinges, so 1 works just fine. This is well worth the asking price, it's really a no-brainer...
April 11, 2016
Purchased
over 2 years ago
Woodworking Experience:
Advanced
good jig
does what it says; gets the spacing between screws and the distance off the front of the face frame correct. Along with Insty bits, very easy.
August 18, 2015
Purchased
over 3 years ago
Woodworking Experience:
Intermediate
Very good, could be better
Locating line should extend on all sides of jig. I followed advice of another review and scribed the jig on all sides. Always best to mount hinge prior to attaching frame.
July 26, 2018
Purchased
4 months ago
Woodworking Experience:
Advanced
