$8.99 Each
In stock
Enjoy fast, precise installation of the hinge plates on your concealed Euro-style hinges.

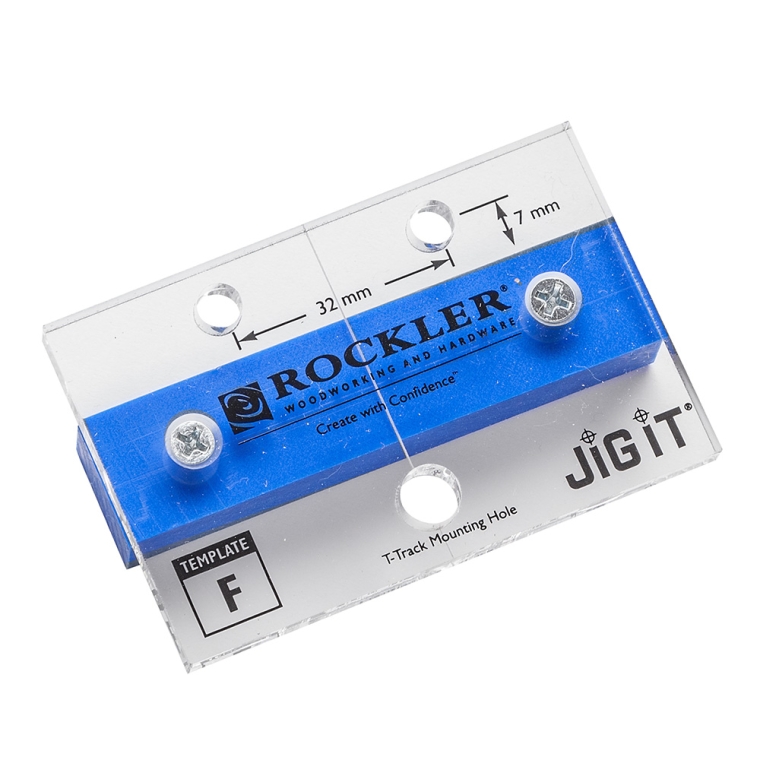

JIG IT® Hinge Plate Template F

Item #
58309
Rating:
80% of 100

Your doors will swing smoothly and line up neatly every time with our JIG IT® templates to guide your way. Just butt the template up against the face of your cabinet and use a centering bit to drill perfectly positioned mounting holes for a wide variety of concealed hinges. See the compatibility info below for a list of which hinges are compatible with this template. Requires centering bit (#68991, sold separately). For even faster, more foolproof installation, use several of these templates mounted on one of our T-track rails (#26420, sold separately).


For easier mounting of the cup plate from two-part Euro-style hinges, check out the JIG IT® Deluxe Concealed Hinge Drilling System. It works with your handheld drill to let you bore precisely spaced hinge cup mounting holes on multiple doors.


Features:
  • Use with #6 Self Centering Bit (#68991, sold separately)
  • Clear acrylic for easy alignment with your marks
  • Also includes T-track mounting hole for repeatable alignment and placement of hinges
  • Hole spacing and setback measurements are conveniently printed on the acrylic face for reference
  • Stable, durable polymer fence
(1) JIG IT® Hinge Plate Template F
More Information
Brand Rockler
Manufacturer Part Number No
Weight 0.1000
Tech Spec No
Tech Docs No
Type Hinge
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Prop 65 WarningWARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
4.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
0
1
0
0
0
Works well but needs a center device. I took an old Phillips screwdriver 1/4", cut the end off and ground to a very shallow point. This worked.
