Laguna JX|6 QuadTec I Jointer 1.5HP 1-Phase 6'' Jointer

Item #
67547

6'' QuadTec I cutterhead with 4-sided carbide inserts for supremely clean, quiet cuts—knee-activated stop bar runs the full length of the body.

More details
$1,999.00
Ships directly from the manufacturer.
How do you want your item?
Delivery
Check In-Store Availability
As soon as today
As soon as today
Check availability in your nearest store

Expert Advice

Mastering woodwork: Expert insights revealed

Contact Us

Satisfaction Guarantee

Enhance your product’s protection and durability

Click Here

Family Run

Passion passed down through generations

Read More

Crafting with Wood: Turn Your Ideas into Reality

Create with wood! Our premium materials make your projects come to life...Read More

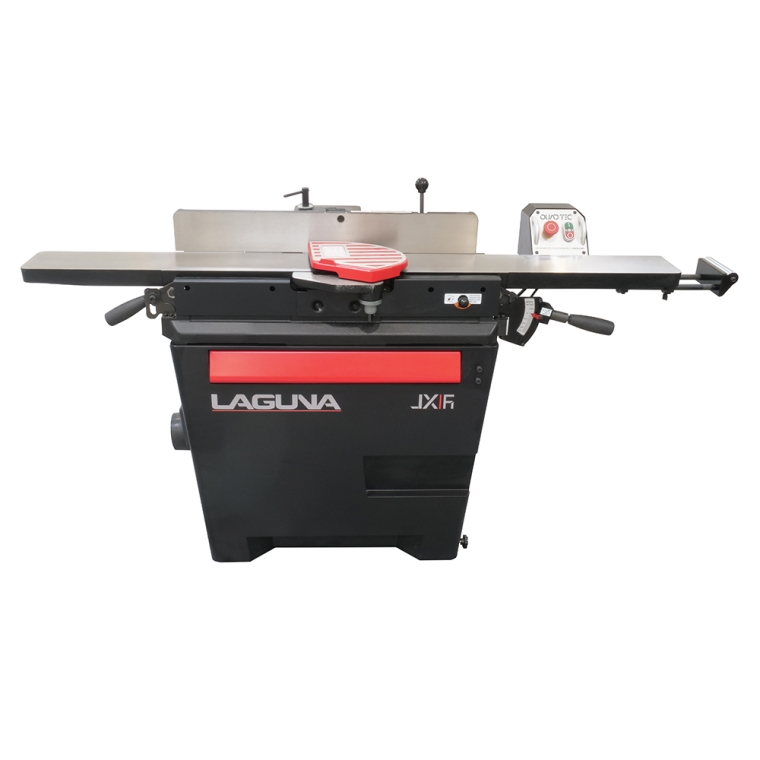

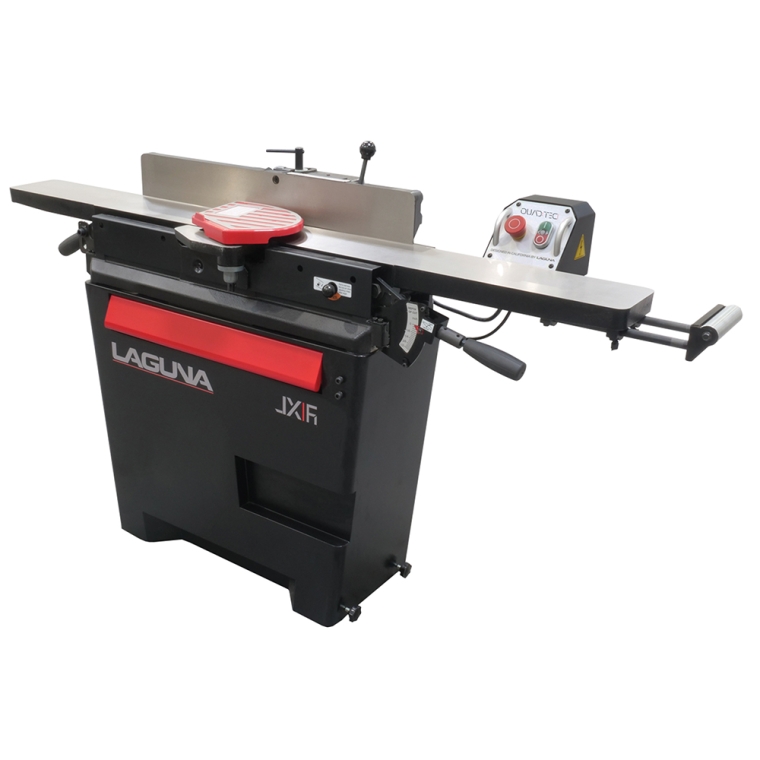

The Laguna JX|6 QuadTec I 1.5HP jointer is loaded with premium features for convenience and accuracy. The JX|6 depth is adjusted with a precision parallelogram system and the jointer comes standard with built-in wheels and a cast iron fence. A knee-activated stop bar runs the length of the body, letting you quickly stop the machine from any position without letting go of your work. The body is ergonomically designed to allow the operator's feet to slide under the machine, and the infeed table is now fitted with a pull-out roller support for long workpieces. The QuadTec I cutterhead features 4-sided solid carbide inserts that can be rotated when needed.

Features:

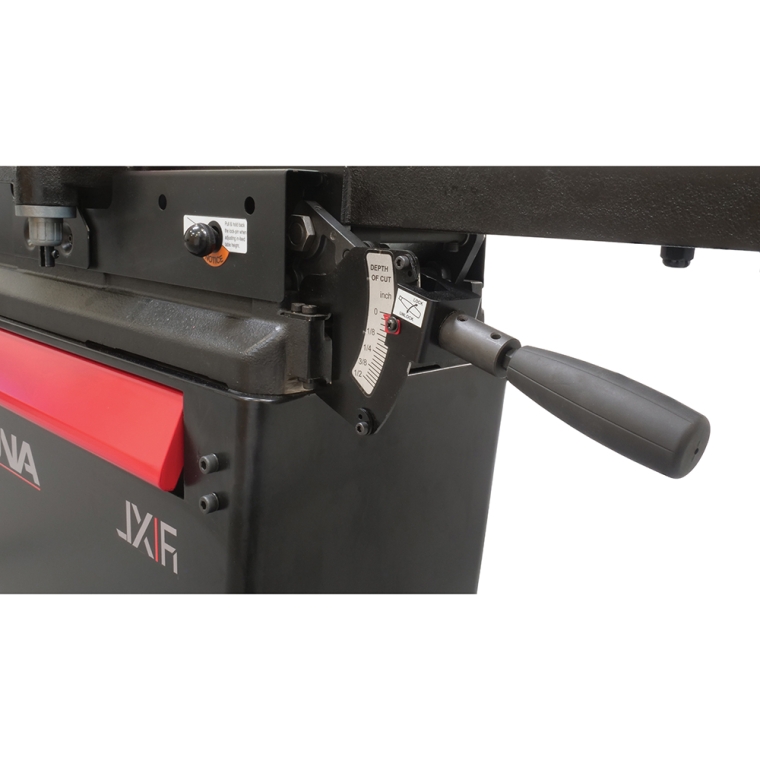

  • Parallelogram table adjustments travel along an arc to keep the same distance to the cutterhead through its travel
  • Knee stop uses a full-length bar at knee height to shut off the jointer
  • Body is designed with a toe-kick to allow the user to stand closer for more comfortable material feeding

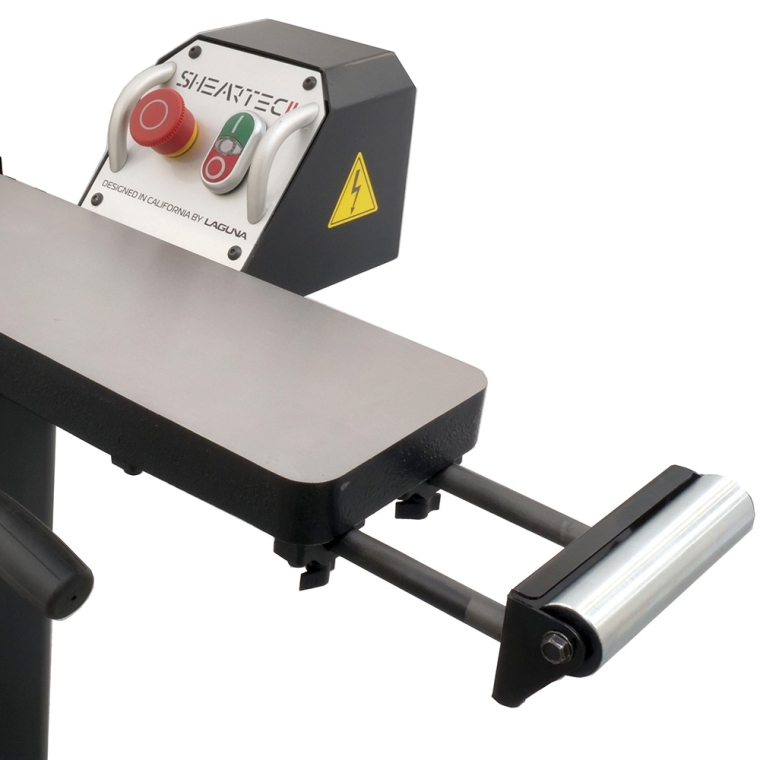

  • Infeed table is fitted with pull-out support roller to help support longer materials

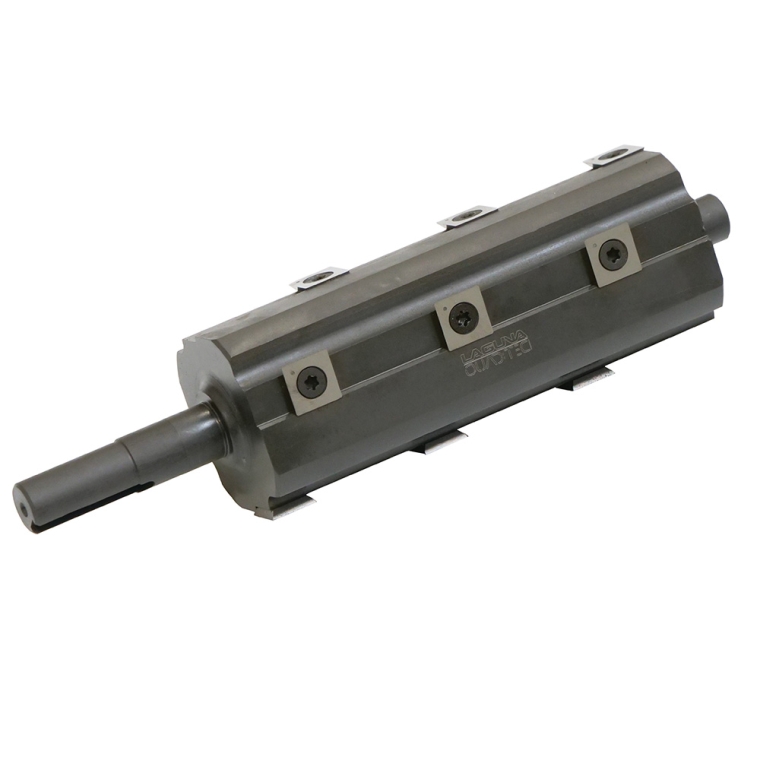

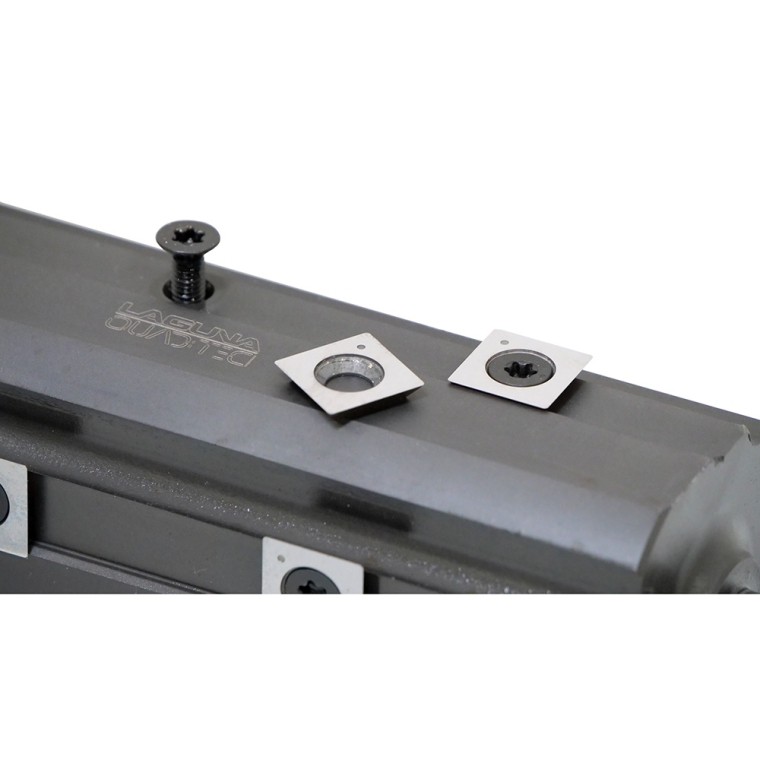

  • QuadTec I cutterhead comes as standard equipment for smooth cuts and less noise

(1) Laguna JX|6 QuadTec I Jointer 1.5HP 1-Phase 6'' Jointer
(1) Set of leveling feet and casters
(1) Dust port
(2) Push blocks

Rockler Protection Plan

With the Rockler Protection Plan you'll get accidental damage coverage immediately upon purchase of your tool. Plus we will extend the manufacturer's warranty for your choice of an additional 1 or 2 years. We'll take care of all parts and labor for any repairs with no deductibles and no hassles. If your tool can not be repaired we'll gladly replace it. Available in the US only. Click here to learn more.

Standard Manufacturer's Warranty: 24 months once registered in the first 30 days

More Information
Brand Laguna
Manufacturer Part Number 506601
Weight 174.00
Tech Spec
  • Brand: Laguna
  • Manufacturer Part Number: 506601
  • Motor: 110V 1.5HP 1 Phase 60hz/13 Amp
  • Bed Size: 60'' x 6''
  • Infeed Table Pull-Out Extension: 8''
  • Rabbeting Capacity: 1/2''
  • Fence Size: 29'' x 3-3/4'' Cast Iron
  • Fence Tilt: ±45/90°
  • Max. Depth Of Cut: 1/8''
  • Table Height From Floor: 31''
  • Safety Bar Shut-Off: Yes
  • Bracket To Mount Light: No
  • 110V Outlet For Light: No
  • Bracket To Mount Feeder: No
  • Dust Port Diameter: 4''
  • Plug (NEMA 5-15P): Yes
  • Cutterhead Insert #: 12 x 4-Sided Carbide, 4-Row
  • Cutterhead RPM: 5500
  • Cutterhead Diameter: 2-1/2''
  • Bed Adjustment: Parallelogram
  • Assembled Dimensions (Approx): 63'' x 22''
  • Dimensions Shipping: 65'' x 22'' x 13'' + 31'' x 16'' x 27''
  • Net/Ship Weight: 161/174 Lbs + 88/94 Lbs (2 Boxes)
