Micro Jig MatchFit Dovetail Clamps, Pair

Dovetail-shaped clamp head slides into any matching groove for incredible clamping versatility.
Item #
61047
Rating:
100% of 100

Micro Jig's MatchFit Dovetail Clamps feature a wedged-shaped clamp head that slides into a routed dovetail groove, allowing you to clamp your work virtually anywhere. Just use any 1/2'' x 14° dovetail router bit to rout grooves into your workbench, a piece of plywood or any of a wide variety of shop-made jigs and fixtures. Since the clamps can slide along the groove, they are perfect for tricky clamping situations where you need to clamp in the middle of a span. Build your own fence extensions, clamping tables, customized track saw systems and more with this innovative clamping system.


Features:

  • Clamps securely at any point along your dovetail groove

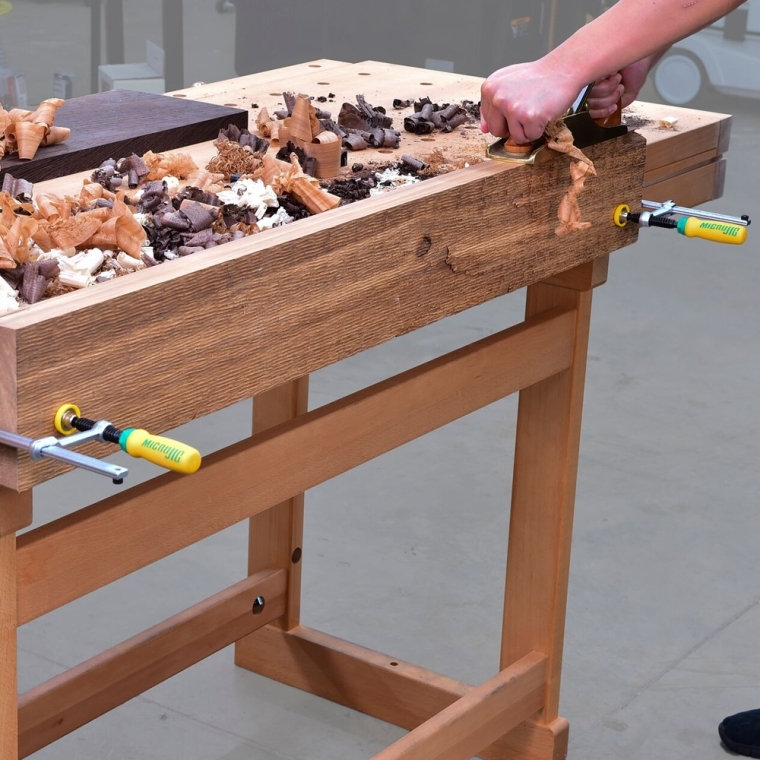

  • Rout a groove along the front of your workbench for an instant face vise

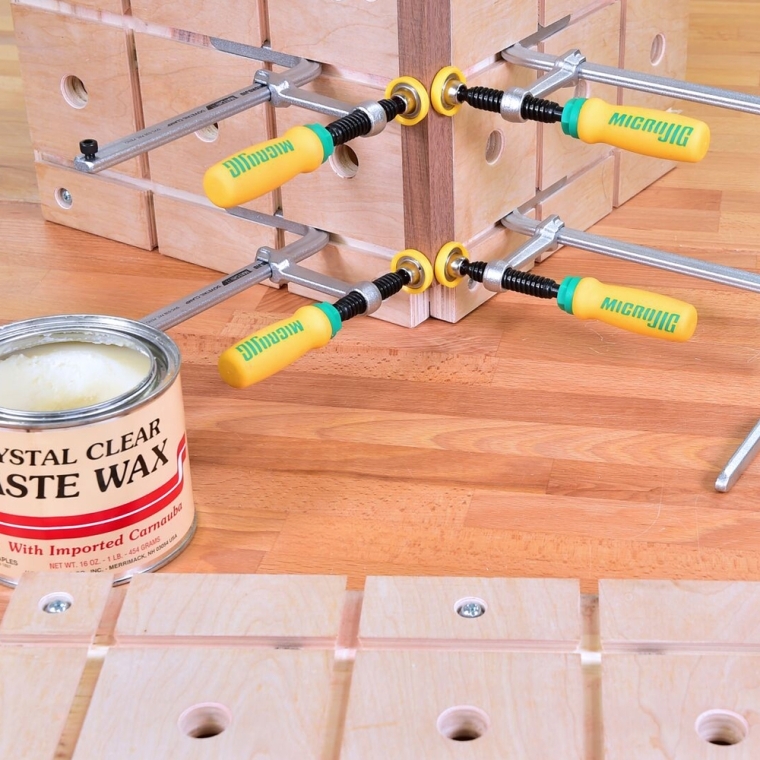

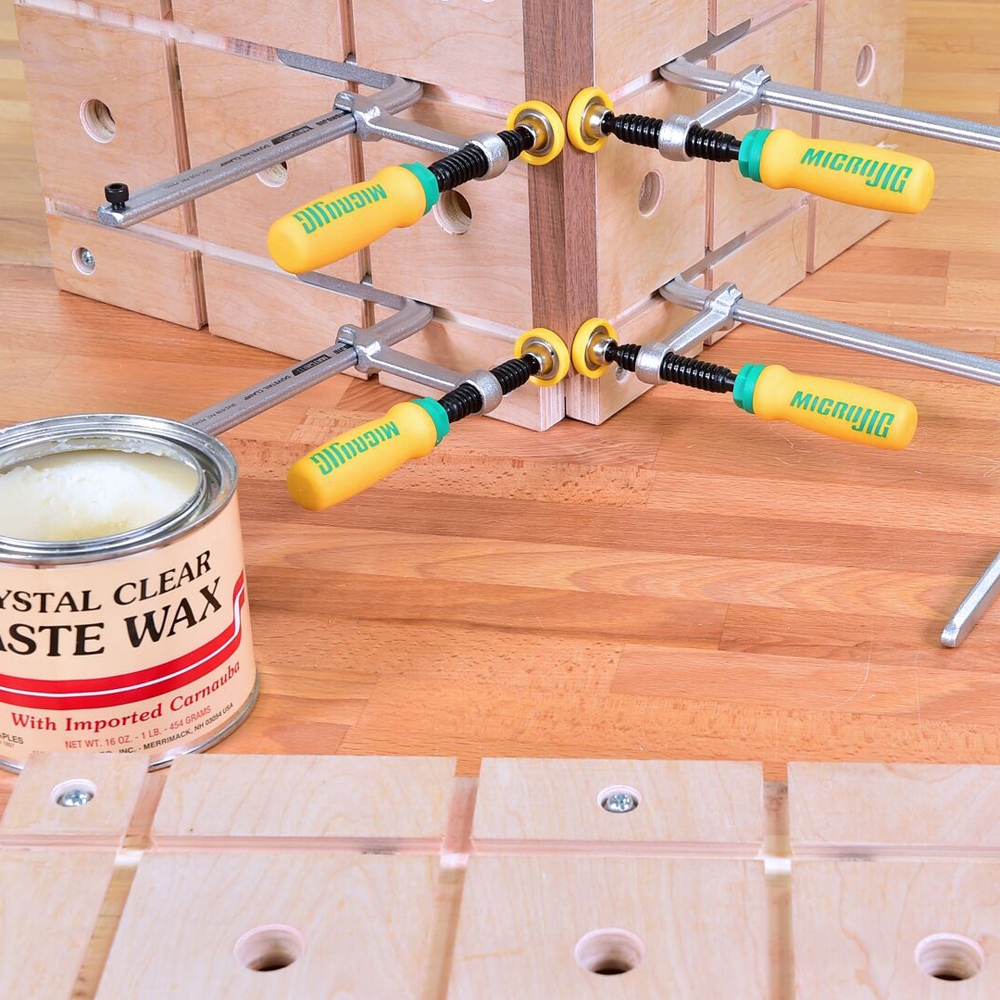

  • Create a grid of grooves for a versatile clamping table

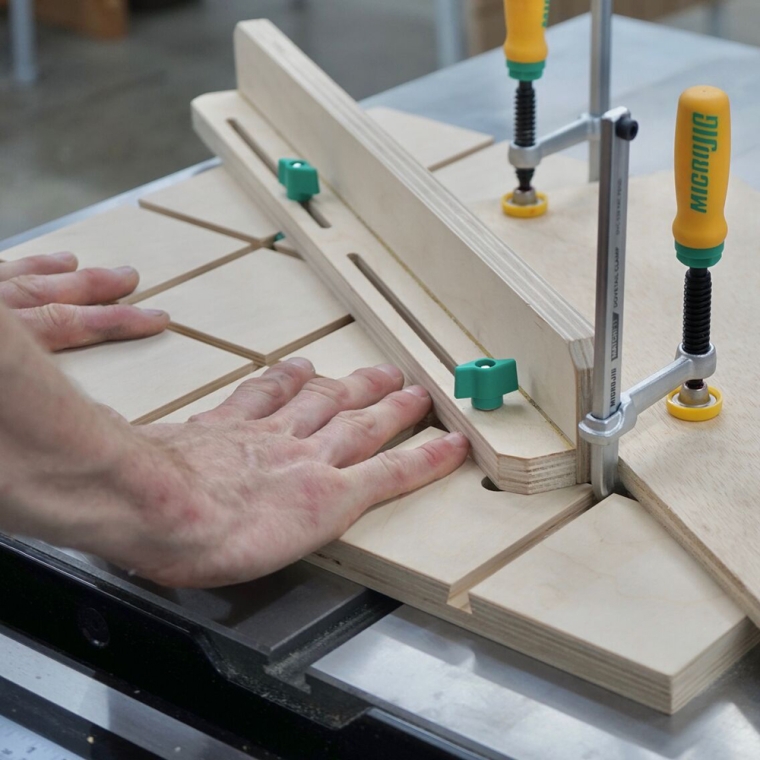

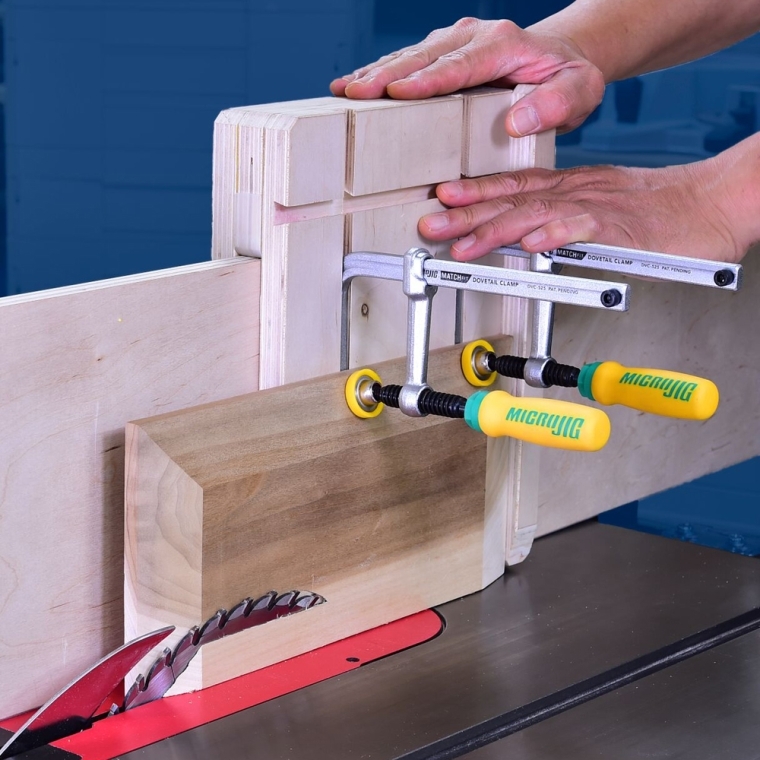

  • Build your own straight edge ripping guide for the table saw
  • Secure shop-made straight edge guides without the clamp head obstructing the travel of your saw or router

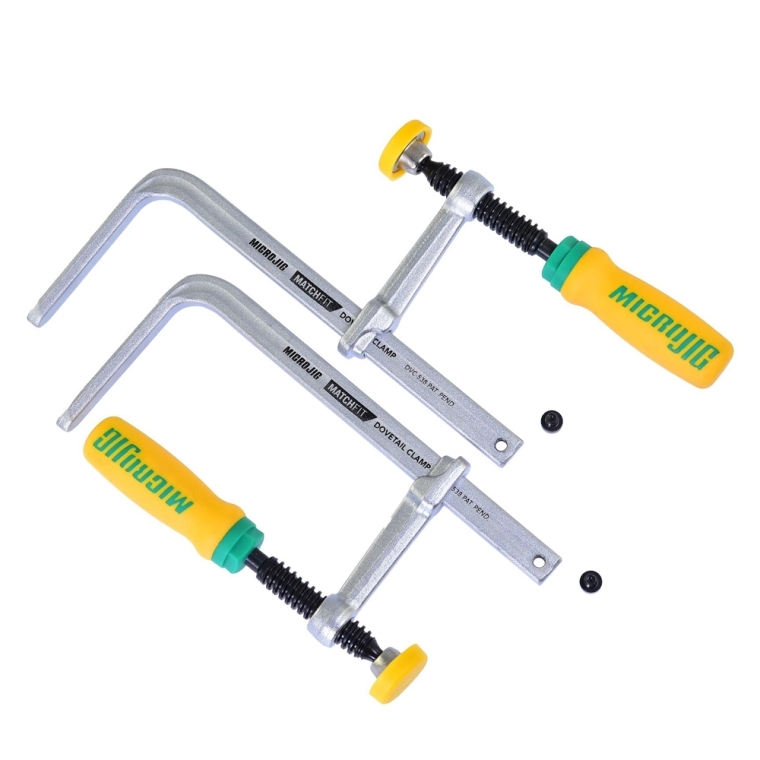

(2) Micro Jig MatchFit Dovetail Clamps
More Information
Manufacturer Part Number DVC-538K2
Weight 1.7000
Tech Spec
  • Clamping Range: 0 to 5-1/4''
  • Clamp Pressure: 595 lbs open at 4''
  • Clamp Jaw Depth: 2-3/8''
  • Minimum Dovetail Slot Length: 3-3/4''
  • Dovetail Profile for Clamp: 1/2'' x 14°
Discountable Yes
5.0 / 5.0
5 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
5
0
0
0
0
Do Just What They Are Supposed To
Like other Micro Jig products I have used for years, these are well made and plenty heavy for their task. They seem a bit pricey but, buy one, cry once.
February 15, 2020
Purchased
3 weeks ago
Woodworking Experience:
Advanced
Micro Jig MatchFit Dovetail clamps
Just got the clamps set up for my workbench and portable workbench. They work great. Just right for my small work area. I've used them on a couple of small projects and they are everything that I hoped for. A friend of mine had a pair of these in his big shop and was really impressed with how they worked so I ordered my pait.
February 10, 2020
Purchased
3 months ago
Woodworking Experience:
Advanced
Nice clamps
These clamps work well either with the complete table or an accessory jig.Used a piece of PSA sandpaper on one side to take up the slop in my Table ( caused by me , not the tool).
January 1, 2020
Purchased
2 months ago
Woodworking Experience:
Intermediate
Matchfit clamps
These clamps are wonderful. I also purchased the matching router bit which I probably could have gotten by without, but the bit is perfectly matched to the precise shape of the clamps, making setup simple. The bit also has an engraved line that lets you precisely set the height of the bit making a perfect dovetail groove for the clamps. These clamps have already solved a couple of tricky problems in the shop, and I'm sure there are many more I don't yet know about they'll work great on.
August 5, 2019
Purchased
7 months ago
Woodworking Experience:
Advanced

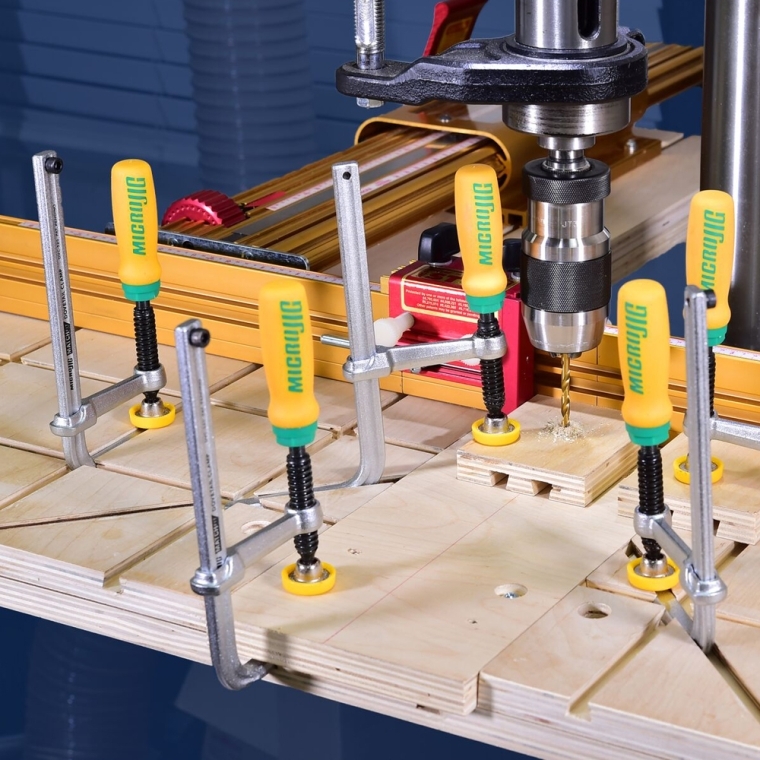

MatchFit Dovetail Clamps on drill press table
The table never was held tight enough with T-Track and knob tightening. I just added a couple of dovetail tracks on the bottom of the table, slipped the clamps into it and it is solid. Just used one clamp on right side of fence because the left side has a 90 degree table that the clamps can't get around. Also added a dovetail slot on the front of the fence for holding objects to the fence.
This is a drill press table I built many years ago that needed the dovetail clamps.
Solid non movable top now with two clamps in dove tail addition on bottom. Fence has one clamp.
December 17, 2018
Purchased
1 year ago
Woodworking Experience:
Intermediate
