$24.95 Each
In stock

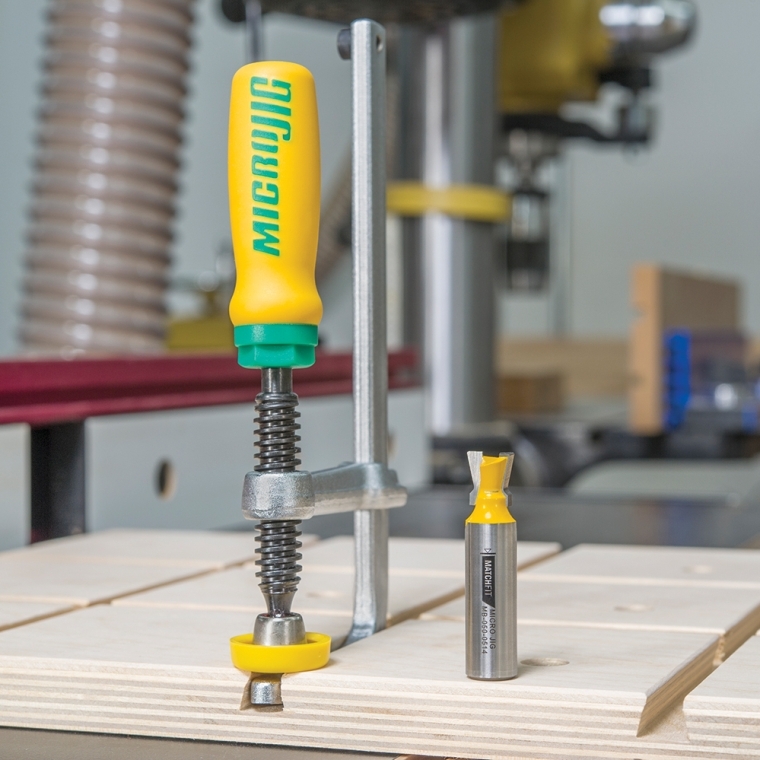

Routs grooves for the MatchFit Dovetail clamps (#61047, sold separately)—rounded corners for a cleaner, more durable groove.

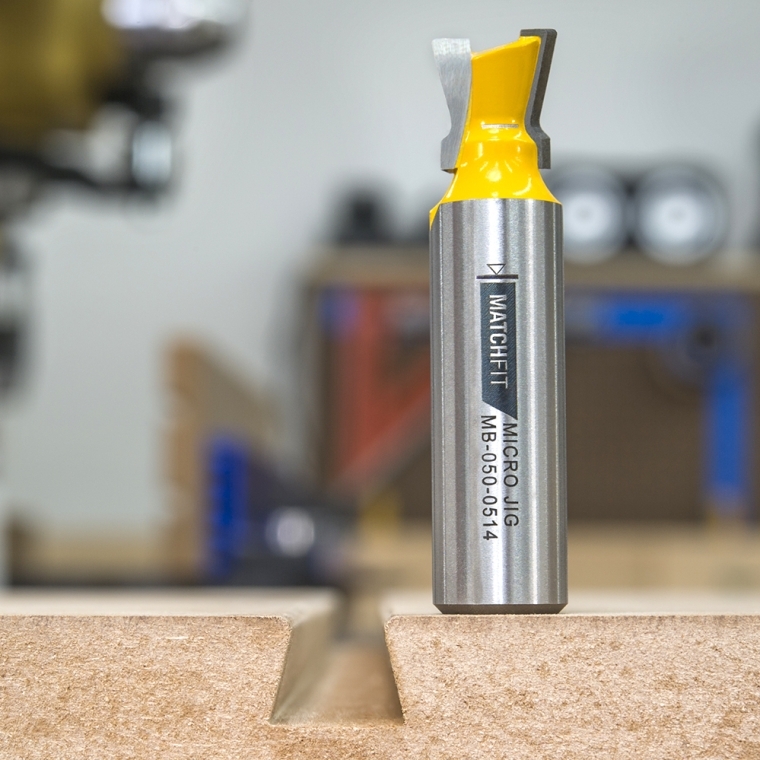

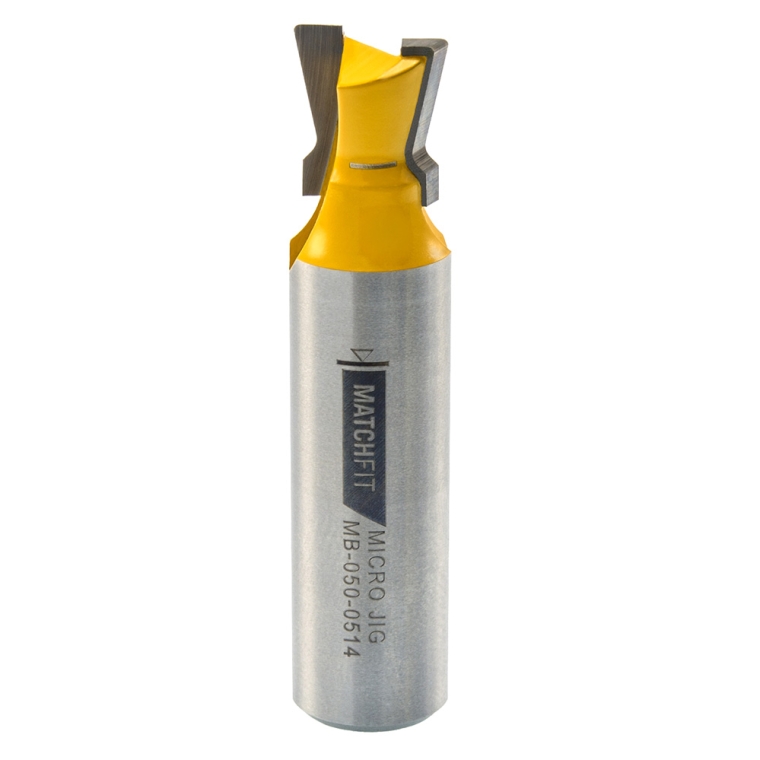

Micro Jig MatchFit Dovetail Router Bit

Item #
61563

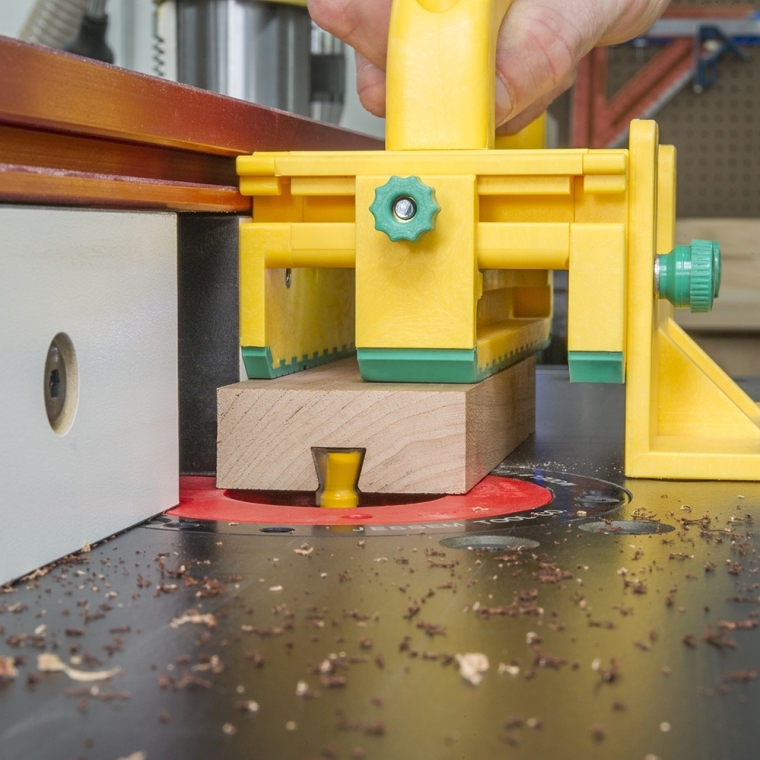

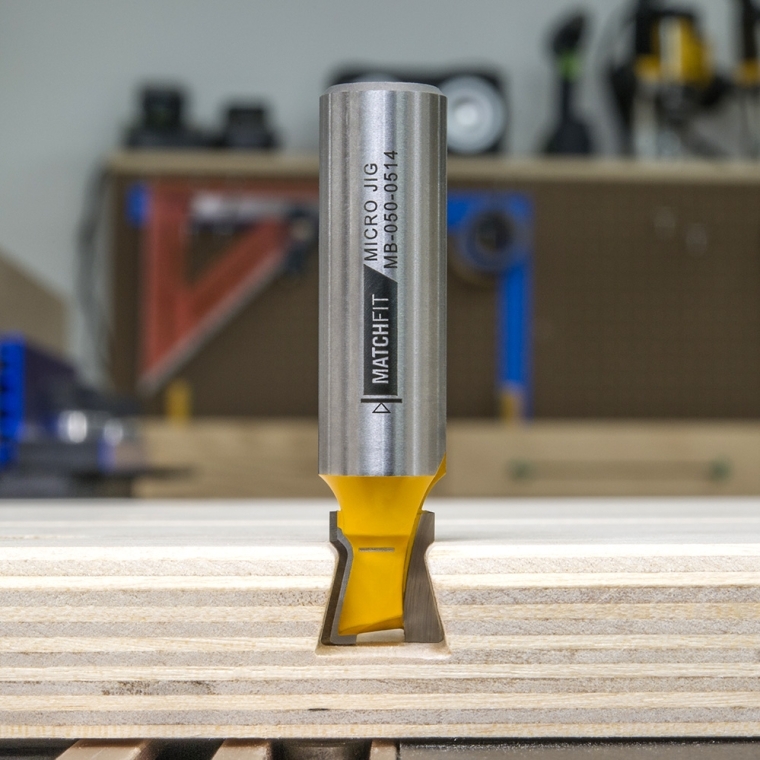

The MatchFit Dovetail Router Bit is designed specifically for the MatchFit Dovetail clamps (#61047, sold separately). Its uses a 14° x 1/2'' profile with unique rounded corners for a cleaner, more durable profile and maximum resistance to plywood delamination. It routes incredibly clean dovetail grooves, and the rounded corners help reduce fuzz for less sanding. The rounded corners at the narrow end of the profile also provide a wider tolerance range—the bit can be set to a depth anywhere between 0.365'' and 0.385'', and still be fully compatible with the MatchFit line of products. Within that range, the width of the groove at the surface of the material will remain the same, but with varying degrees of roundover.


Features:

  • Rout incredibly clean dovetail grooves that require less sanding—ideal for the MatchFit dovetail Clamps (#61047, sold separately)
  • Down-shear design evacuates chips and dust, reducing friction, and heat for cleaner cuts
  • 14° x 1/2'' profile with unique rounded corners for smoother grooves
  • Router collet safety line shows how deep into the collet the bit should be
(1) Micro Jig MatchFit Dovetail Router Bit
More Information
Manufacturer Part Number MB-050-0514
Weight 0.1000
Tech Spec
  • Bit Diameter: 1/2''
  • Angle: 14°
  • Cutter Type: Carbide
  • Radius 1: 1/32''
  • Radius 2: 1/16''
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov.
5.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
0
0
0
0
Good dovetail bit. Needs little to no sanding. Used it to make dovetail datos for the match fit system. I would definitely recommend it.
