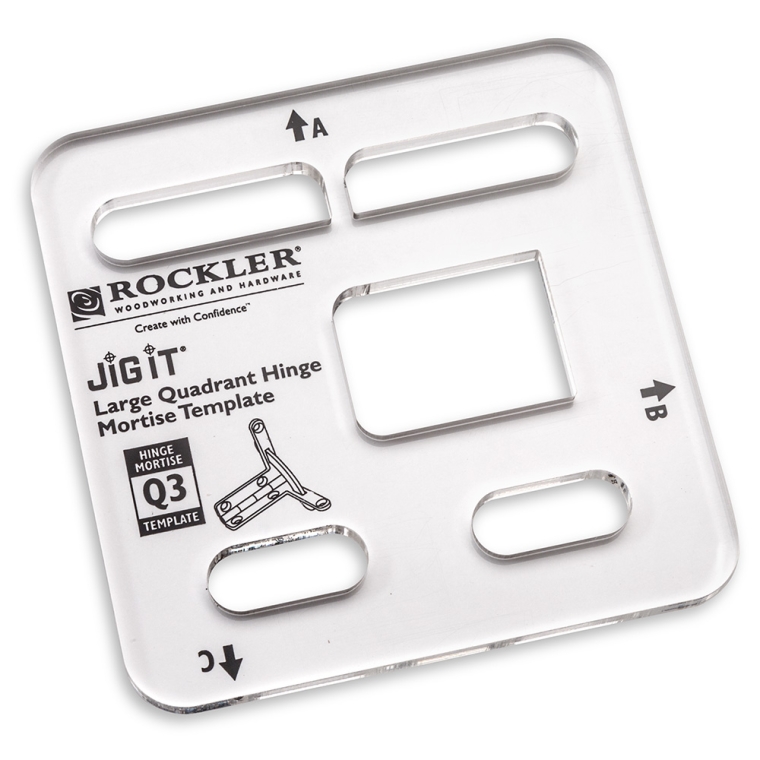

Q3 Large Quadrant Hinge Mortise Template

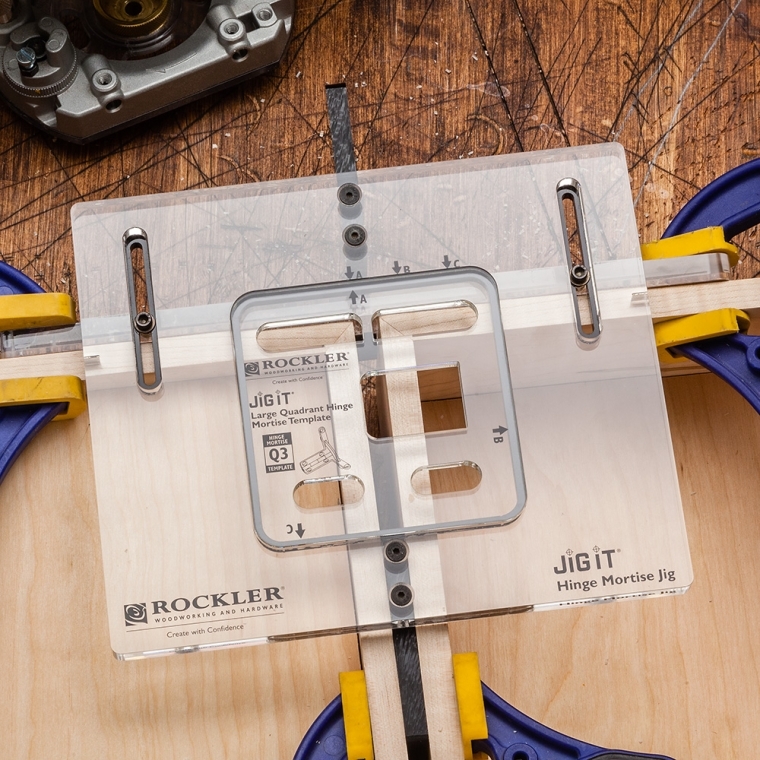

Use with the JIG IT Hinge Mortising System (#58822, sold separately) to rout mortises for Large Quadrant Hinges (#46807 and #24300, sold separately).
Item #
82% of 100

Insert this template into the JIG IT Hinge Mortising System (#58822, sold separately) to rout precise hinge mortises with smooth, hinge-hugging contours. With the easy setup and routing provided by this system, frustrating mistakes will be a thing of the past. Clear acrylic for easy visibility. Laser etchings ensure foolproof setup. The Q3 Large Quadrant Hinge Mortise Template should be used to rout mortises for Large Solid Brass Quadrant Hinges (#46807 and #24300, sold separately)

(1) Q3 Large Quadrant Hinge Mortise Template
More Information
Brand Rockler
Weight 0.1500
Tech Spec
  • Material: Transparent acrylic
  • Thickness: 3/8''
  • Compatible Hinges: #46807 and #24300
