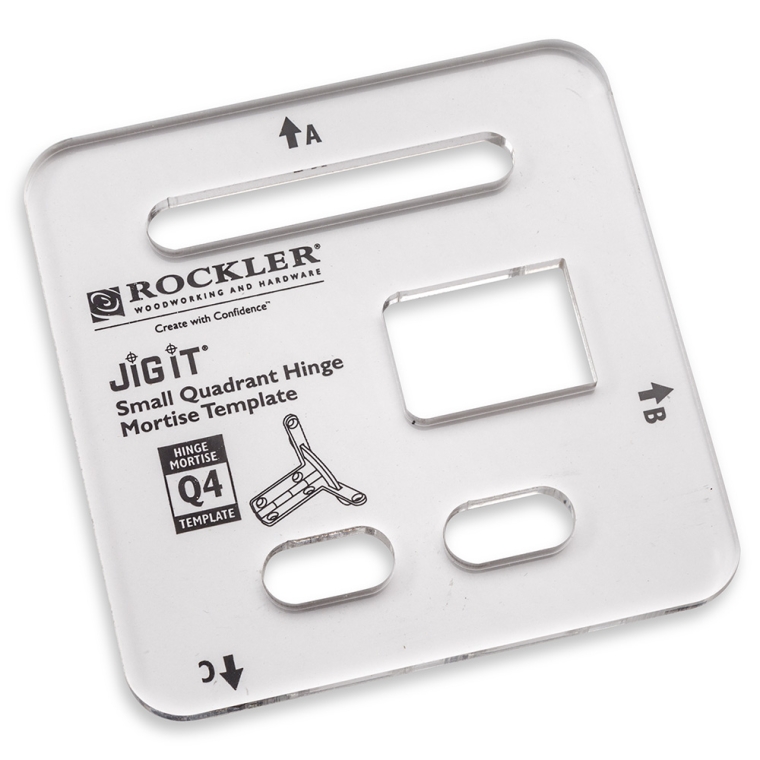

Q4 Small Quadrant Hinge Mortise Template

Use with the JIG IT Hinge Mortising System (#58822, sold separately) to rout mortises for Small Quadrant Hinges (#48068 and #21962, sold separately).
Item #
54698
Rating:
74% of 100
(12)

Insert this template into the JIG IT Hinge Mortising System (#58822, sold separately) to rout precise hinge mortises with smooth, hinge-hugging contours. With the easy setup and routing provided by this system, frustrating mistakes will be a thing of the past. Clear acrylic for easy visibility. Laser etchings ensure foolproof setup.The Q4 Small Quadrant Hinge Mortise Template should be used to rout mortises for Solid Brass Side Rail Hinges (#48068 and #21962, sold separately)

(1) Q4 Small Quadrant Hinge Mortise Template
More Information
Brand Rockler
Weight 0.1500
Tech Spec
  • Material: Transparent acrylic
  • Thickness: 3/8''
  • Compatible Hinges: #48068 and #21962
