Machine 35mm hinge cup holes with your router instead of a drill.
Find In Store
Add to Wish List

Rockler Concealed Hinge Router JIG IT®

Item #
33234
Rating:
76% of 100
14  Reviews
Loading...

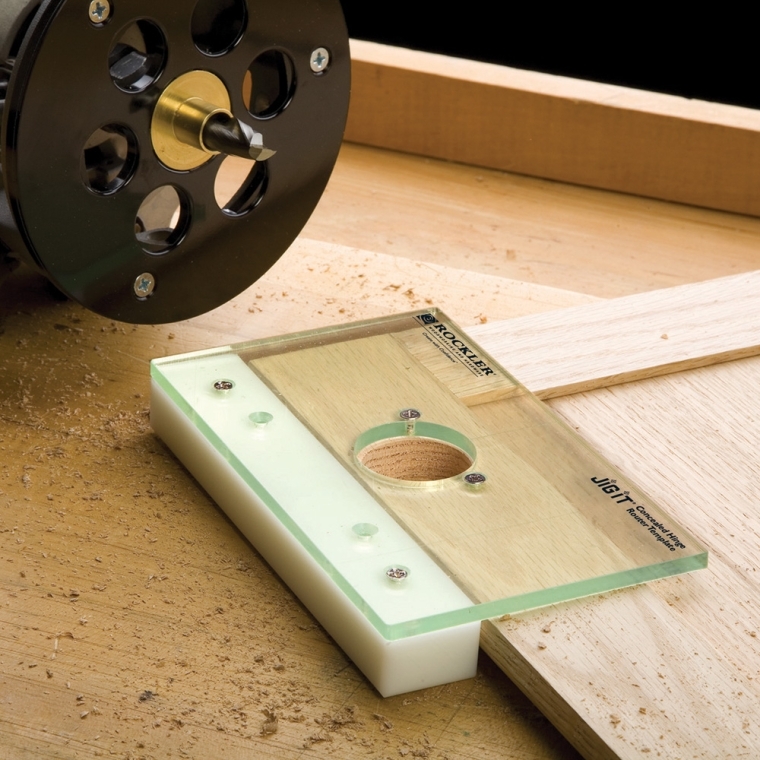

Now you can machine 35mm hinge cup holes with your router instead of a drill - a nice option when you don't have space for a drill press. Since your hinge mounting screws serve double-duty as clamps, setup is simple. Just screw it on, rout and repeat!

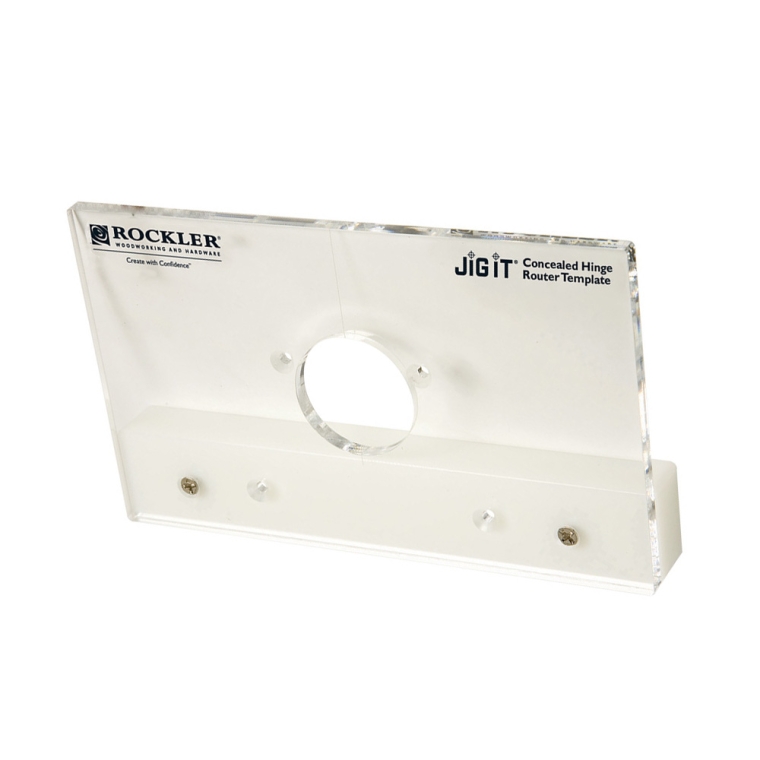

(1) Rockler Concealed Hinge Router JIG IT®
More Information
Brand Rockler
Manufacturer Part Number No
Weight 0.5500
Tech Spec
  • Can be adjusted for either 3mm or 5mm tabs
  • Designed for Blum hinges
  • Use with the 5/8" Short-Shank Guide Bushing (#38756, sold separately), (specially designed for 1/4" template stock) and a 1/2" diameter spiral upcut bit
Tech Docs
Type Euro, Hinge
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Prop 65 WarningWARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
Powered by TurnTo
3.8 / 5.0
14 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
6
4
1
1
2
Loved the way these let me install my slides in much less time than without them.
December 22, 2017
Purchased
 9 months ago
Woodworking Experience:
Intermediate
I purchased the jig, bit and...
I purchased the jig, bit and bushing for my first router project using my brand new Rigid combo kit. Set up was a breeze and the jig and bushing work as advertised, making the job pretty straight-forward. Still had to drill the small set-screw holes with an 11/32 drill bit after the big hole was routed. Used a measured piece of 3/4" copper pipe as a "depth jig" so as not to drill right through the doors, but it works beautifully. I think it is easier than with a Forstner jig and bit.
February 2, 2011
Even a beginner can do it!...
Even a beginner can do it! Had to go out and get the 1/2" router bit, though. Will use all these things time and time again, and like others said, cost effective for the hobbiests.
October 28, 2009
Elegant in its simplicity and perfect...
Elegant in its simplicity and perfect in its functionality; I love this little template. I had been using the Festool jig but found it to be overly complex and frustrating. I purchased this template (it was cheap) and a carbide bit from American Carbide and have been thrilled with how well they work-quick and easy with better results than the big bucks Festool. If I could suggest an improvement it would be to put a more visible registration mark on the bottom of the template.
October 19, 2009
Great little jig! I already had...
Great little jig! I already had the bit and the bushing so this was the least expensive way for me to get my holes bored. As others have noted, using a plunge router will minimize any chance of catastrophes. Worked perfectly for me. A good option for those on a budget.
June 26, 2009
Worked like a charm! I was...
Worked like a charm! I was able to rout sixteen 35mm cup holes in an hour. I can hold off on the drill press purchase for a while longer now! Super fast shipping as always from Rockler.
February 10, 2008
good jig
I have a habit of looking at other peoples reviews before I buy. You need a plunge router base to use this jig. With that said it is a good jig to use if you don't have a lot of hinges to install, works very well. Take your time as positioning the jig. The outer edge of my project had an irregular edge (live edge) so I had to use the inner edge of the rails to position the jig, a bit tricky but worked beautifully.
January 23, 2018
Purchased
 9 months ago
Woodworking Experience:
Advanced
Works great but be careful!
It works as advertised but a second of mental relaxation can destroy the plexiglass. I damaged two so far and finally got the method down. This product should come with an additional plexiglass and there should be replacement glass sold to fix damaged ones.
June 29, 2015
I've now used this jig to...
I've now used this jig to build 28 doors and the only reason I didn't give it an excellent rating is that it should be sold in sets of two or four and priced a little better. Using one at a time is very slow going but gets great results every time!
May 11, 2010
Make sure you use a plunge...
Make sure you use a plunge router. It can be done with a fixed base but then you run the risk of dropping the bit into the jig. A 1/2" spiral bit will destroy the jig in short order. I'm off to buy another jig due to being too lazy to get out my big P/C plunge. Needless to say I will be using the beast for the remaining 24 hinges I need to complete.
June 2, 2008
Powered by TurnTo
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 4 questions Browse 4 questions and 4 answers
Why did you choose this?
Rockler Store
A replacement for the one I have, caught the plexiglass with the router bit. This jig works well.
KEITH L on Apr 26, 2018
Making my first set of shaker style cabinet doors and i pray this will help make it a breeze.
Greg H on Feb 12, 2017
A replacement for the one I have, caught the plexiglass with the router bit. This jig works well.
KEITH L on Apr 26, 2018
as a replacement
Pavlos S on Aug 12, 2017
Making my first set of shaker style cabinet doors and i pray this will help make it a breeze.
Greg H on Feb 12, 2017
It was perfect for installing the hinges. Easy to use, registration holes on jig matched the holes for the hinges. So easy.
Stephen A on Oct 25, 2016
For cabinet doors hinges
JESSE F on Apr 17, 2016
Works great for routing cup hinges.
George M on Apr 3, 2016
Remodeling a bathroom and need to build doors for the linen cabinet.
Robert G on Feb 26, 2016
It is ideal for my cabinet doors
Neil H on Jan 17, 2016
To install Euro hinges.
Jim B on Dec 19, 2015
I am making new cabinet doors for existing cabinets
Francis S on Nov 12, 2015
First try at this looking for an easy way
Debbie D on Aug 8, 2015
It works and I can not find it anywhere else. Shipping is too high!
James on Jun 29, 2015
seemed like a practical solution, the doors I ordered were not predrilled.
RANDAL W M on Jun 1, 2015
as a replacement
Pavlos S on Aug 12, 2017
It was perfect for installing the hinges. Easy to use, registration holes on jig matched the holes for the hinges. So easy.
Stephen A on Oct 25, 2016
Should I mount the bar to the hinge template for a 3mm or 5mm tab?
Vince P on Jun 10, 2015
BEST ANSWER: Euro hinges usually have only two set backs. Frameless hinges are set to the 5mm setting and the
Face frame hinges are set to the 3mm setting
The instructions on the packaging direct to use a 5/8" template bushing with a 1/2" upcut router bit. Is there any reason I couldn't use a 3/8 template bushing with a 1/4" upcut bit vs the 5/8 and 1/2"?
shrubfan on Jan 13, 2016
BEST ANSWER: I just used this jig on a scrap piece. 1/4" upcut bit and 1/4" ID bushing. Hole wound up being 37mm diameter. I'd imagine the OD of the bushing is important, since that's what sets the hole diameter. Quite technical, and I don't see the OD of the bushing called out anywhere.
How far are the two hinge screw (used for clamping) 42mm apart or 45mm apart from each other?
Robbie on Oct 14, 2015
BEST ANSWER: I measure 45mm on the jig I have.
I have many bushings and drill bits.... but not this combination. What else could work? What is the diameter of the jig hole? 2-1/8 I would think? 54mm?
