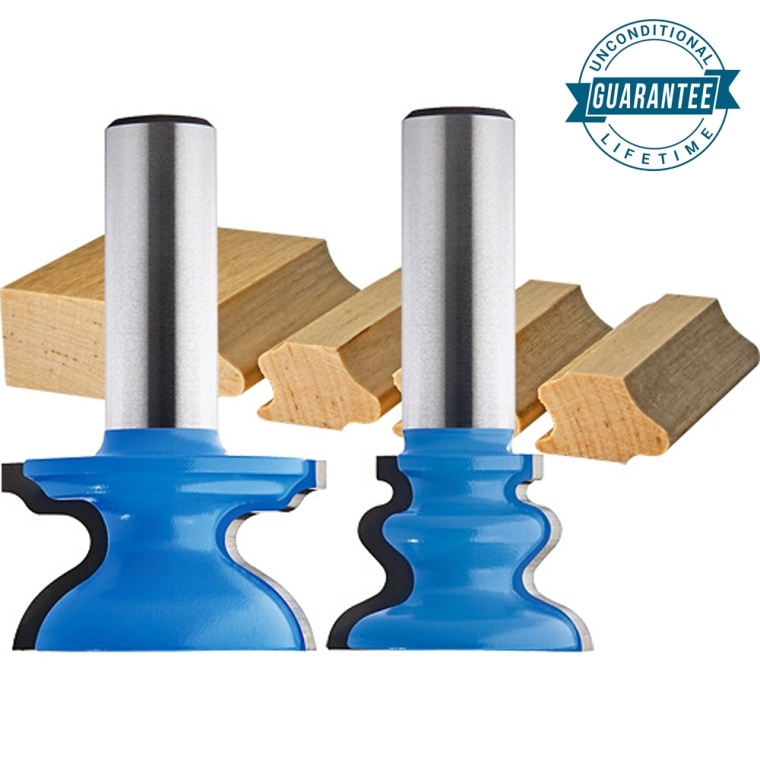

Rockler Tambour Router Bit - 1-3/16" Dia x 13/16" H x 1/2" Shank

Design and create your own custom tambour doors!
Item #
61896
Rating:
90% of 100
This tambour router bit set allows you to custom-make wooden tambour doors of almost any size. The finished tambour will look great from both sides and have an interlocking design to keep slats in line and inhibit warping. Works for double or single curve applications. Requires 1/16" coated cable for connecting. Instructions included. Choose the width, length and wood species for your project!

(1) Rockler Tambour Router Bit Set
More Information

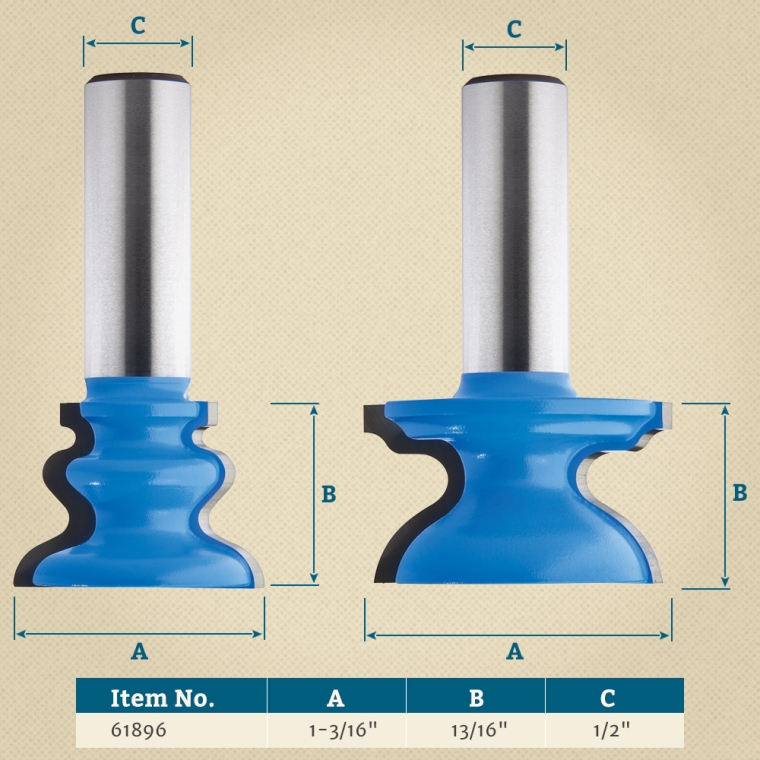

Brand Rockler
Weight 0.4500
Bit Type Joinery
Diameter 1-3/16"
Cutter Height 13/16"
Shank Size 1/2"
Flutes 2
4.5 / 5.0
4 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
2
2
0
0
0
I purchased the Tambour set of bits for a future project. Looking forward to how it all turns out.
September 18, 2019
Purchased
7 months ago
Woodworking Experience:
Intermediate
surprised my wife with this roll top function to conceal some of her small appliances. worked very well and directions included were very helpful.
February 24, 2016
Purchased
over 5 years ago
Woodworking Experience:
Advanced
Tambour router bits
The router bits worked fine but the specification information was lacking.
March 10, 2017
Purchased
over 3 years ago
Woodworking Experience:
Intermediate
Makes a nice looking tambour. Directions...
Makes a nice looking tambour. Directions are ok. You will need to reduce the width of the tenons to get the tambour around a 90 degree corner. Wires bought at a bike shop(as suggested) 1/16th in. coated cable with aluminum ferrules worked well. I've never made one before, but this seems superior to using canvas.
January 31, 2008
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 3 questions Browse 3 questions and 13 answers
Why did you choose this?
Rockler Store
This looks like the best shape for the doors and I got a lot of useful advice from the Rockler community about the bits and how to go about building tambour doors.
Lex D on Jan 1, 2020
Wanted to build the cabinet shown on page 5 of most recent catalogue
Richard C on Aug 2, 2019
This looks like the best shape for the doors and I got a lot of useful advice from the Rockler community about the bits and how to go about building tambour doors.
Lex D on Jan 1, 2020
This looks like the easiest way to route some tambour slats.
Conan M on Nov 28, 2019
Wanted to build the cabinet shown on page 5 of most recent catalogue
Richard C on Aug 2, 2019
Because I was looking at a 3-bit set that wouldn't require canvas or cables, but with this 2-bit tambour router set I can have a smaller turning radius than I would get with the 3-bit set. I'll use cables and still be able to see the wood from both sides. My project is for a large tambour window between our dining room and newly constructed office addition.
Benjamin P on Apr 23, 2016
wanted to build roll top for kitchen storage ( my calls it her appliance garage ).
Dan K on Feb 2, 2016
I wanted it for the discounted price
Wallace W on Nov 22, 2015
This looks like the easiest way to route some tambour slats.
Conan M on Nov 28, 2019
Because I was looking at a 3-bit set that wouldn't require canvas or cables, but with this 2-bit tambour router set I can have a smaller turning radius than I would get with the 3-bit set. I'll use cables and still be able to see the wood from both sides. My project is for a large tambour window between our dining room and newly constructed office addition.
Benjamin P on Apr 23, 2016
Is it possible to use leather as the backing for a tambour door?
Lex D on Dec 31, 2019
BEST ANSWER: Historically it is just canvas but this one is ment for cables to run through the boards. I wouldn't use leather, for one you'll never see it, treating it would be very difficult. If it's not really thin it will be hard open and close. Plus the chems used to cure/tan leather could effect the taste of the breads.. if you have ever stored food in a leather sack you'll know what I mean
What is the radius of track slot for the tambour door?
Terry A on May 2, 2016
BEST ANSWER: It has been a while since I made one, and I don't have one around to look at since it was for a customer, but I think it could be as small as 3" depending on the width of your slats and the thickness of your tennons. Some experimentation might be required. I also used Johnson paste wax for lubrication after staining and finishing. It worked well.
Item #: 61896 am I getting both router bits for AUD 138.61 ?
colin on Jul 8, 2018
BEST ANSWER: Yes,it's a set.
